IOE entrance Physics · Chapter 1
Mechanics
Tap an option to check it. Wrong picks show the right answer and the hint; “Show answer” gives the worked solution.
85 questions in 7 syllabus topics · 36 are 2-mark questions.
1.1 Physical quantities, vectors and kinematics
12 questions
1. The dimensional formula of Planck's constant h is:
Show hintHide hint
Use E = hν and divide the dimensions of energy by those of frequency.
Show answerHide answer
Answer: D. [ML²T⁻¹]
From E = hν, h = E/ν = [ML²T⁻²]/[T⁻¹] = [ML²T⁻¹]. It has the same dimensions as angular momentum.
2. The velocity of a particle is given by v = At + B/(t + C), where t is time. The dimensions of B are:
Show hintHide hint
Quantities added together must have the same dimensions.
Show answerHide answer
Answer: B. [L]
C must have the dimensions of time, so B/(t + C) has dimensions [LT⁻¹] only if B = [LT⁻¹]×[T] = [L].
3. The acceleration due to gravity is found using g = 4π²l/T². If the percentage errors in measuring l and T are 1% and 2% respectively, the maximum percentage error in g is:
2 marksShow hintHide hint
Powers of a quantity multiply its percentage error; errors always add.
Show answerHide answer
Answer: D. 5%
Δg/g = Δl/l + 2(ΔT/T) = 1% + 2×2% = 5%.
4. Two forces, each of magnitude F, act on a particle. If their resultant also has magnitude F, the angle between the two forces is:
Show hintHide hint
Use R² = P² + Q² + 2PQ cosθ.
Show answerHide answer
Answer: D. 120°
F² = F² + F² + 2F²cosθ gives cosθ = −½, so θ = 120°.
5. Vector A = 2i + 3j − k and vector B = i − 2j + ak are perpendicular to each other. The value of a is:
2 marksShow hintHide hint
Perpendicular vectors have zero dot product.
Show answerHide answer
Answer: C. −4
A·B = (2)(1) + (3)(−2) + (−1)(a) = −4 − a = 0, so a = −4.
6. Three forces acting on a particle are represented in magnitude and direction by the three sides of a triangle taken in the same order. The particle will:
Show hintHide hint
What is the resultant of vectors forming a closed figure in order?
Show answerHide answer
Answer: A. remain in equilibrium
By the triangle (polygon) law, vectors represented by the sides of a closed polygon taken in order add to zero, so the net force is zero.
7. A vector of magnitude 10 units makes an angle of 30° with the positive x-axis in the x-y plane. Its x and y components are respectively:
Show hintHide hint
Component along an axis = magnitude × cosine of angle with that axis.
Show answerHide answer
Answer: D. 5√3 and 5
Ax = 10 cos30° = 5√3, Ay = 10 sin30° = 5.
8. A ball is thrown vertically upward with a speed of 30 m/s. The distance travelled by the ball in the first 4 s is (g = 10 m/s²):
2 marksShow hintHide hint
Find when the ball turns back; distance and displacement differ after that.
Show answerHide answer
Answer: D. 50 m
It rises for u/g = 3 s, covering 30²/(2×10) = 45 m, then falls for 1 s covering ½×10×1² = 5 m. Distance = 45 + 5 = 50 m (displacement is 40 m).
9. For a projectile at the highest point of its path (air resistance neglected):
Show hintHide hint
Which velocity component vanishes at the top, and does gravity ever switch off?
Show answerHide answer
Answer: C. velocity is horizontal and acceleration is g vertically downward
At the top only the vertical velocity becomes zero; the horizontal component u cosθ remains, and gravity still acts, so acceleration is g downward.
10. A ball is projected with a speed of 20 m/s at 30° above the horizontal. Its horizontal range is (g = 10 m/s²):
2 marksShow hintHide hint
R = u² sin2θ / g.
Show answerHide answer
Answer: A. 20√3 m
R = u² sin2θ/g = (400 × sin60°)/10 = 40 × (√3/2) = 20√3 m ≈ 34.6 m.
11. The horizontal range of a projectile is four times its maximum height. The angle of projection is:
Show hintHide hint
Divide R by H and simplify to a trigonometric ratio.
Show answerHide answer
Answer: B. 45°
R/H = (2u² sinθ cosθ/g)/(u² sin²θ/2g) = 4 cotθ. Setting 4 cotθ = 4 gives θ = 45°.
12. Two trains of lengths 100 m and 150 m run on parallel tracks in the same direction with speeds 15 m/s and 10 m/s. The time taken by the faster train to completely overtake the slower one is:
2 marksShow hintHide hint
Work in the frame of the slower train.
Show answerHide answer
Answer: B. 50 s
Relative speed = 15 − 10 = 5 m/s; relative distance to cover = 100 + 150 = 250 m; time = 250/5 = 50 s.
1.2 Newton’s laws of motion and friction
12 questions
13. Newton's first law of motion gives the concept of:
Show hintHide hint
What property makes a body resist change in its state of motion?
Show answerHide answer
Answer: A. inertia
The first law says a body stays at rest or in uniform motion unless an external force acts, which is the property of inertia (and a qualitative definition of force).
14. A ball of mass 0.2 kg hits a wall normally at 10 m/s and rebounds with the same speed. The magnitude of the impulse given to the ball is:
Show hintHide hint
Velocity reverses direction, so take signs into account.
Show answerHide answer
Answer: A. 4 N s
Impulse = change in momentum = 0.2 × 10 − (0.2 × (−10)) = 4 N s.
15. A man of mass 60 kg stands on a weighing scale in a lift that is accelerating downward at 2 m/s². The scale reads (g = 10 m/s²):
Show hintHide hint
For downward acceleration, the normal reaction is less than mg.
Show answerHide answer
Answer: A. 480 N
N = m(g − a) = 60 × (10 − 2) = 480 N.
16. Two masses of 3 kg and 2 kg hang from the ends of a light string passing over a smooth, light pulley. The tension in the string is (g = 10 m/s²):
2 marksShow hintHide hint
Find the acceleration first, then apply F = ma to one mass.
Show answerHide answer
Answer: A. 24 N
a = (3 − 2)g/(3 + 2) = 2 m/s². For the 2 kg mass: T − 20 = 2 × 2, so T = 24 N (also T = 2m₁m₂g/(m₁ + m₂)).
17. A block slides down a rough inclined plane of inclination 30°. If the coefficient of kinetic friction is 1/(2√3), the acceleration of the block is (g = 10 m/s²):
2 marksShow hintHide hint
Friction acts up the incline and equals μ mg cosθ.
Show answerHide answer
Answer: B. 2.5 m/s²
a = g(sinθ − μ cosθ) = 10(½ − (1/(2√3))(√3/2)) = 10(0.5 − 0.25) = 2.5 m/s².
18. A block placed on a plank just begins to slide when the plank is tilted to 30° with the horizontal. The coefficient of static friction is:
Show hintHide hint
Relate the angle of repose to μ.
Show answerHide answer
Answer: A. 1/√3
At the angle of repose, μs = tanθ = tan30° = 1/√3.
19. Which of the following statements about friction is NOT correct?
Show hintHide hint
Recall the laws of limiting friction.
Show answerHide answer
Answer: D. Limiting friction depends on the area of contact
By the laws of friction, limiting friction is independent of the apparent area of contact; the other statements are true.
20. A 2 kg block rests on a horizontal floor with μs = 0.4 and μk = 0.25. A horizontal force of 6 N is applied to it. The frictional force acting on the block is (g = 10 m/s²):
2 marksShow hintHide hint
Compare the applied force with limiting friction before using any formula.
Show answerHide answer
Answer: D. 6 N
Limiting friction = μs mg = 0.4 × 20 = 8 N. Since 6 N < 8 N the block does not move, so static friction just balances the applied force: 6 N.
21. A bomb at rest explodes into two fragments of masses 1 kg and 2 kg. If the 1 kg fragment moves at 6 m/s, the 2 kg fragment moves with:
Show hintHide hint
Total momentum before and after explosion is the same.
Show answerHide answer
Answer: A. 3 m/s opposite to the 1 kg fragment
Initial momentum is zero, so 1 × 6 = 2 × v gives v = 3 m/s, in the opposite direction.
22. The momentum of a particle varies with time as p = 3t² + 2t (SI units). The force on the particle at t = 2 s is:
Show hintHide hint
Force is the rate of change of momentum.
Show answerHide answer
Answer: A. 14 N
F = dp/dt = 6t + 2 = 6(2) + 2 = 14 N.
23. Two blocks of masses 4 kg and 6 kg are placed in contact on a smooth horizontal surface. A horizontal force of 20 N is applied to the 4 kg block. The force exerted by the 4 kg block on the 6 kg block is:
2 marksShow hintHide hint
Find the common acceleration, then isolate the block that is pushed only by the contact force.
Show answerHide answer
Answer: C. 12 N
Common acceleration a = 20/(4 + 6) = 2 m/s². The contact force alone accelerates the 6 kg block: N = 6 × 2 = 12 N.
24. A weight of 100 N hangs in equilibrium from two strings, each making an angle of 60° with the vertical. The tension in each string is:
2 marksShow hintHide hint
Resolve the tensions vertically; horizontal parts cancel.
Show answerHide answer
Answer: C. 100 N
Vertical balance: 2T cos60° = 100, so 2T × ½ = 100 and T = 100 N.
1.3 Work, energy and power
12 questions
25. The speed of a 2 kg body increases from 2 m/s to 4 m/s. The work done by the net force on it is:
Show hintHide hint
Net work equals change in kinetic energy.
Show answerHide answer
Answer: B. 12 J
By the work-energy theorem, W = ½m(v² − u²) = ½ × 2 × (16 − 4) = 12 J.
26. If the linear momentum of a body increases by 20%, its kinetic energy increases by:
2 marksShow hintHide hint
Write kinetic energy in terms of momentum.
Show answerHide answer
Answer: B. 44%
K = p²/2m, so K ∝ p². New K = (1.2)² K = 1.44 K, an increase of 44%.
27. A force F = 3x² N acts on a particle along the x-axis. The work done as the particle moves from x = 0 to x = 2 m is:
Show hintHide hint
For a variable force, W = ∫F dx.
Show answerHide answer
Answer: D. 8 J
W = ∫₀² 3x² dx = [x³]₀² = 8 J.
28. Which of the following is a non-conservative force?
Show hintHide hint
A conservative force does zero work round any closed path.
Show answerHide answer
Answer: C. Kinetic friction
Work done by friction depends on the path and is not zero over a closed path, so friction is non-conservative.
29. A spring of force constant 200 N/m is compressed by 10 cm and then released, pushing a 0.5 kg block on a smooth horizontal surface. The speed of the block when it leaves the spring is:
2 marksShow hintHide hint
Elastic potential energy converts fully into kinetic energy.
Show answerHide answer
Answer: B. 2 m/s
½kx² = ½ × 200 × (0.1)² = 1 J = ½ × 0.5 × v², so v² = 4 and v = 2 m/s.
30. A 1 kg block starts from rest at a height of 5 m and slides down a rough curved track, reaching the bottom with a speed of 8 m/s. The work done against friction is (g = 10 m/s²):
2 marksShow hintHide hint
Energy lost by the block equals work done against friction.
Show answerHide answer
Answer: C. 18 J
Loss of PE = mgh = 50 J; gain in KE = ½ × 1 × 64 = 32 J. Work done against friction = 50 − 32 = 18 J.
31. A crane lifts a load of 500 kg through a height of 10 m in 20 s at constant speed. The power developed is (g = 10 m/s²):
Show hintHide hint
Power = work done / time.
Show answerHide answer
Answer: D. 2.5 kW
P = mgh/t = (500 × 10 × 10)/20 = 2500 W = 2.5 kW.
32. A pump lifts 600 kg of water per minute to a height of 10 m. If the efficiency of the pump is 50%, its input power is (g = 10 m/s²):
2 marksShow hintHide hint
Find the useful power first, then divide by efficiency.
Show answerHide answer
Answer: D. 2 kW
Useful output = mgh/t = (600 × 10 × 10)/60 = 1000 W. Input = output/efficiency = 1000/0.5 = 2000 W = 2 kW.
33. A ball moving with speed v collides head-on elastically with an identical ball at rest. After the collision:
Show hintHide hint
Apply conservation of both momentum and kinetic energy with equal masses.
Show answerHide answer
Answer: A. the first ball stops and the second moves with speed v
For a one-dimensional elastic collision between equal masses, the velocities are exchanged.
34. A 2 kg body moving at 6 m/s strikes a 4 kg body at rest and the two stick together. The loss of kinetic energy in the collision is:
2 marksShow hintHide hint
Use momentum conservation to find the common velocity.
Show answerHide answer
Answer: D. 24 J
Common velocity v = (2 × 6)/6 = 2 m/s. Initial KE = ½ × 2 × 36 = 36 J; final KE = ½ × 6 × 4 = 12 J; loss = 24 J.
35. A ball dropped from a height of 10 m rebounds from the floor to a height of 2.5 m. The coefficient of restitution between the ball and floor is:
Show hintHide hint
Speed just before or after the bounce is √(2gh).
Show answerHide answer
Answer: D. 0.5
e = (speed after)/(speed before) = √(2gh₂)/√(2gh₁) = √(2.5/10) = 0.5.
36. The potential energy of a particle moving along the x-axis is U = 5x² − 10x (SI units). The force on the particle at x = 3 m is:
Show hintHide hint
For a conservative force, F = −dU/dx.
Show answerHide answer
Answer: C. −20 N
F = −dU/dx = −(10x − 10) = −(30 − 10) = −20 N.
1.4 Circular motion, gravitation and SHM
12 questions
37. A stone of mass 0.5 kg tied to a string is whirled in a horizontal circle of radius 1 m at 2 revolutions per second. The centripetal force on it is:
Show hintHide hint
Convert revolutions per second to angular velocity first.
Show answerHide answer
Answer: A. 8π² N
ω = 2πf = 4π rad/s. F = mω²r = 0.5 × 16π² × 1 = 8π² N (≈ 79 N).
38. A circular road of radius 40 m is to be banked so that a car at 20 m/s needs no friction to take the turn. The angle of banking is (g = 10 m/s²):
Show hintHide hint
tanθ = v²/rg for frictionless banking.
Show answerHide answer
Answer: C. 45°
tanθ = v²/(rg) = 400/(40 × 10) = 1, so θ = 45°.
39. A conical pendulum has a string of length 0.2 m that makes an angle of 60° with the vertical. Its time period is (g = 10 m/s²):
2 marksShow hintHide hint
For a conical pendulum the effective length is the vertical height L cosθ.
Show answerHide answer
Answer: A. 0.2π s
T = 2π√(L cosθ/g) = 2π√((0.2 × 0.5)/10) = 2π√0.01 = 0.2π s.
40. At what depth below the Earth's surface is the acceleration due to gravity equal to its value at a height equal to the Earth's radius R above the surface?
2 marksShow hintHide hint
Use g(1 + h/R)⁻² above and g(1 − d/R) below.
Show answerHide answer
Answer: C. 3R/4
At height R: g' = g/(1 + 1)² = g/4. At depth d: g' = g(1 − d/R). Equating, 1 − d/R = ¼, so d = 3R/4.
41. A planet has 8 times the mass and twice the radius of the Earth. If the escape velocity from Earth is 11.2 km/s, that from the planet is:
Show hintHide hint
Escape velocity is proportional to √(M/R).
Show answerHide answer
Answer: B. 22.4 km/s
vₑ = √(2GM/R) ∝ √(M/R) = √(8/2) = 2, so vₑ = 2 × 11.2 = 22.4 km/s.
42. Which of the following statements about a geostationary satellite is NOT correct?
Show hintHide hint
Think about which plane its orbit must lie in.
Show answerHide answer
Answer: B. It can be kept stationary directly above Kathmandu
A geostationary satellite must orbit in the equatorial plane, so it can appear fixed only above points on the equator, not above Kathmandu (about 27° N).
43. The work required to raise a body of mass m from the Earth's surface to a height equal to the Earth's radius R is (g = acceleration due to gravity at the surface):
2 marksShow hintHide hint
Use U = −GMm/r, not mgh, for large heights.
Show answerHide answer
Answer: C. mgR/2
ΔU = −GMm/2R − (−GMm/R) = GMm/2R = mgR/2, using GM = gR². (mgh is valid only for h ≪ R.)
44. For a particle executing simple harmonic motion, at the mean position:
Show hintHide hint
Use a = −ω²x and v = ω√(A² − x²).
Show answerHide answer
Answer: A. velocity is maximum and acceleration is zero
Acceleration a = −ω²x is zero at x = 0, while speed ω√(A² − x²) is maximum there.
45. A particle executes SHM with amplitude 10 cm and period π s. Its speed when the displacement is 6 cm is:
2 marksShow hintHide hint
Find ω from the period, then use v = ω√(A² − x²).
Show answerHide answer
Answer: D. 16 cm/s
ω = 2π/T = 2 rad/s. v = ω√(A² − x²) = 2√(100 − 36) = 2 × 8 = 16 cm/s.
46. A mass on a spring oscillates with period T. The spring is cut into two equal halves and the same mass is attached to one half. The new period is:
2 marksShow hintHide hint
How does spring constant change when a spring is cut?
Show answerHide answer
Answer: C. T/√2
Halving a spring doubles its force constant (k' = 2k). Since T = 2π√(m/k), the new period is T/√2.
47. If the length of a simple pendulum is increased by 21%, its time period increases by:
Show hintHide hint
T ∝ √l; take the exact square root rather than halving the percentage.
Show answerHide answer
Answer: C. 10%
T ∝ √l, so T'/T = √1.21 = 1.1, an increase of 10%.
48. In forced oscillations, resonance occurs when:
Show hintHide hint
Resonance is a matching condition between two frequencies.
Show answerHide answer
Answer: D. the frequency of the driving force equals the natural frequency of the oscillator
At resonance the driving frequency matches the natural frequency, and the amplitude of the forced oscillation becomes maximum (limited only by damping).
1.5 Rotational dynamics
12 questions
49. The moment of inertia of a thin uniform ring of mass M and radius R about an axis through its centre and perpendicular to its plane is
Show hintHide hint
Where is all the mass located relative to the axis?
Show answerHide answer
Answer: C. MR²
Every mass element of the ring is at the same distance R from the axis, so I = ∑mR² = MR².
50. The radius of gyration of a uniform solid sphere of radius R about any diameter is
Show hintHide hint
Write I = Mk² and compare with the sphere's moment of inertia.
Show answerHide answer
Answer: B. R√(2/5)
I = (2/5)MR² = Mk², so k = R√(2/5) ≈ 0.63R. Note 2R/5 is k², not k.
51. A uniform disc of mass 2 kg rolls without slipping on a horizontal floor with its centre moving at 4 m/s. Its total kinetic energy is
2 marksShow hintHide hint
Add translational and rotational KE; for a disc I = ½MR² and ω = v/R.
Show answerHide answer
Answer: B. 24 J
KE = ½mv² + ½Iω² = ½mv² + ½(½mR²)(v/R)² = ¾mv² = ¾ × 2 × 16 = 24 J.
52. A force of 20 N is applied at a point 0.5 m from the hinge of a door, the force making an angle of 30° with the line joining the hinge to that point. The torque about the hinge is
Show hintHide hint
τ = rF sin θ, with θ the angle between r and F.
Show answerHide answer
Answer: C. 5 N m
τ = rF sin θ = 0.5 × 20 × sin 30° = 5 N m.
53. A disc of moment of inertia 0.2 kg m² spins freely at 10 rad/s about a vertical axis. A second disc of moment of inertia 0.3 kg m², initially at rest, is gently dropped coaxially on it and they rotate together. The kinetic energy lost is
2 marksShow hintHide hint
Conserve angular momentum first, then compare kinetic energies.
Show answerHide answer
Answer: D. 6 J
Angular momentum is conserved: 0.2 × 10 = 0.5ω, so ω = 4 rad/s. KE before = ½ × 0.2 × 100 = 10 J; after = ½ × 0.5 × 16 = 4 J. Loss = 6 J.
54. Particles of mass 2 kg and 3 kg are placed on the x-axis at x = 0 and x = 5 m respectively. The centre of mass is at x =
Show hintHide hint
Use the mass-weighted average of positions.
Show answerHide answer
Answer: C. 3 m
x_cm = (2 × 0 + 3 × 5)/(2 + 3) = 15/5 = 3 m.

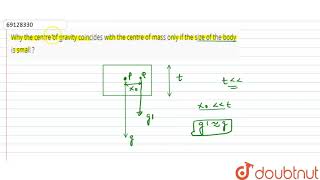

55. The centre of gravity of a body coincides with its centre of mass when
Show hintHide hint
Think about what makes weight distribution differ from mass distribution.
Show answerHide answer
Answer: A. the gravitational field over the body is uniform
The centre of gravity is the point where the resultant weight acts; it coincides with the centre of mass only if g is the same at every part of the body.
56. A thin uniform rod of mass 3 kg and length 2 m rotates about an axis perpendicular to it passing through a point 0.5 m from one end. Its moment of inertia about this axis is
2 marksShow hintHide hint
Use the parallel axis theorem; find the distance of the axis from the centre.
Show answerHide answer
Answer: A. 1.75 kg m²
I_cm = ML²/12 = 3 × 4/12 = 1 kg m². The axis is 1 − 0.5 = 0.5 m from the centre, so I = 1 + 3 × 0.5² = 1.75 kg m².
57. A ring, a hollow sphere, a disc and a solid sphere are released together from rest at the top of the same rough incline and roll without slipping. Which reaches the bottom first?
Show hintHide hint
Compare k²/R² for each body.
Show answerHide answer
Answer: B. Solid sphere
Acceleration a = g sin θ/(1 + k²/R²). k²/R² is smallest for the solid sphere (2/5), so it accelerates most and arrives first.
58. A solid sphere starts from rest and rolls without slipping down an incline through a vertical height of 7 m. Its speed at the bottom is (g = 10 m/s²)
2 marksShow hintHide hint
Energy conservation including rotational KE with k²/R² = 2/5.
Show answerHide answer
Answer: B. 10 m/s
mgh = ½mv²(1 + k²/R²) = ½mv²(7/5), so v = √(10gh/7) = √(10 × 10 × 7/7) = 10 m/s.
59. A constant torque of 10 N m acts on a flywheel of moment of inertia 2 kg m² initially at rest. Its rotational kinetic energy after 4 s is
2 marksShow hintHide hint
Find α from τ = Iα, then ω after 4 s.
Show answerHide answer
Answer: D. 400 J
α = τ/I = 5 rad/s², ω = αt = 20 rad/s, KE = ½Iω² = ½ × 2 × 400 = 400 J.
60. If the Earth (treated as a uniform sphere) suddenly contracted to half its present radius with no change in mass, the length of a day would become about
Show hintHide hint
Angular momentum is conserved; how does I depend on R?
Show answerHide answer
Answer: B. 6 h
L = Iω is conserved and I ∝ R², so I becomes I/4 and ω becomes 4ω. The period becomes 24/4 = 6 h.
1.6 Elasticity
13 questions

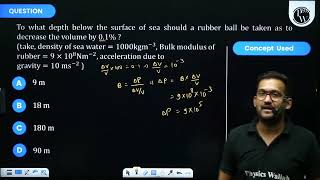

61. To what depth below the surface of a sea should a rubber ball be taken so that its volume decreases by 1%? Bulk modulus of rubber is 9 × 10⁸ N m⁻². (Take density of sea water 1000 kg/m³ and g = 10 m/s².)
IOE model question 2080Show hintHide hint
Pressure needed = B × (ΔV/V), then h = P/(ρg).
Show answerHide answer
Answer: D. 1 km
The exact depth is about 900 m; “1 km” is the nearest option.
ΔV/V = P/B, so P = 0.01 × 9 × 10⁸ = 9 × 10⁶ Pa. Depth h = P/(ρg) = 9 × 10⁶/(1000 × 10) = 900 m, which is about 1 km.
62. Hooke's law states that, within the elastic limit,
Show hintHide hint
Think of the straight-line part of the stress–strain graph.
Show answerHide answer
Answer: A. stress is directly proportional to strain
Within the elastic (proportional) limit, stress/strain = constant, which is the modulus of elasticity.
63. The dimensional formula of Young's modulus is
Show hintHide hint
Strain has no dimensions.
Show answerHide answer
Answer: A. [ML⁻¹T⁻²]
Y = stress/strain; strain is dimensionless, so Y has dimensions of stress (force/area) = [MLT⁻²]/[L²] = [ML⁻¹T⁻²].
64. A wire of length 2 m and cross-sectional area 1 mm² hangs vertically and a mass of 10 kg is attached to its lower end. If Young's modulus of the material is 2 × 10¹¹ N/m², the extension is (g = 10 m/s²)
2 marksShow hintHide hint
Use Δl = FL/(AY) with A in m².
Show answerHide answer
Answer: A. 1 mm
Δl = FL/(AY) = (100 × 2)/(10⁻⁶ × 2 × 10¹¹) = 200/(2 × 10⁵) = 10⁻³ m = 1 mm.
65. The theoretical limits of Poisson's ratio for an isotropic material are
Show hintHide hint
Use Y = 2η(1 + σ) and Y = 3K(1 − 2σ) with all moduli positive.
Show answerHide answer
Answer: C. −1 to 0.5
From the relations among elastic moduli (e.g. Y = 3K(1 − 2σ) = 2η(1 + σ) with K, η positive), σ must lie between −1 and 0.5.
66. The elastic potential energy stored per unit volume of a stretched wire is
Show hintHide hint
It is the area of a triangle under the stress–strain line.
Show answerHide answer
Answer: D. ½ × stress × strain
Work per unit volume = area under the linear stress–strain graph = ½ × stress × strain.
67. A wire of length 1 m and cross-sectional area 2 mm² (Y = 2 × 10¹¹ N/m²) is stretched by 1 mm. The elastic energy stored in it is
2 marksShow hintHide hint
Find the force needed first, then U = ½ F Δl.
Show answerHide answer
Answer: A. 0.2 J
F = YAΔl/L = 2 × 10¹¹ × 2 × 10⁻⁶ × 10⁻³/1 = 400 N. U = ½FΔl = ½ × 400 × 10⁻³ = 0.2 J.
68. Compressibility of a material is defined as
Show hintHide hint
Which modulus deals with change in volume?
Show answerHide answer
Answer: D. the reciprocal of its bulk modulus
Compressibility = 1/K = −(ΔV/V)/ΔP, the fractional change in volume per unit pressure.
69. The bulk modulus of water is 2 × 10⁹ N/m². When the pressure on 1 litre of water is increased by 10⁷ N/m², the decrease in its volume is
2 marksShow hintHide hint
Use K = ΔP/(ΔV/V).
Show answerHide answer
Answer: C. 5 mL
ΔV/V = ΔP/K = 10⁷/(2 × 10⁹) = 5 × 10⁻³. ΔV = 5 × 10⁻³ × 1000 mL = 5 mL.
70. The top face of a rubber cube is displaced sideways relative to its fixed bottom face, changing its shape but not its volume. The elastic constant involved is
Show hintHide hint
Tangential force produces which kind of strain?
Show answerHide answer
Answer: B. modulus of rigidity
A tangential force producing a change of shape without volume change is shear; the relevant constant is the modulus of rigidity (shear modulus) η.
71. Two wires A and B of the same material have lengths in the ratio 1 : 2 and diameters in the ratio 2 : 1. When stretched by the same force, the ratio of their extensions (A : B) is
2 marksShow hintHide hint
Extension ∝ L/d² for the same force and material.
Show answerHide answer
Answer: B. 1 : 8
Δl = FL/(AY) ∝ L/d². Δl_A/Δl_B = (L_A/L_B)(d_B/d_A)² = (1/2)(1/2)² = 1/8.
72. A wire of length 2 m and diameter 1 mm is stretched so that its length increases by 1 mm and its diameter decreases by 1.5 × 10⁻⁴ mm. Poisson's ratio of the material is
2 marksShow hintHide hint
σ = lateral strain/longitudinal strain; use the right original dimensions.
Show answerHide answer
Answer: A. 0.30
Longitudinal strain = 1/2000 = 5 × 10⁻⁴. Lateral strain = 1.5 × 10⁻⁴/1 = 1.5 × 10⁻⁴. σ = 1.5 × 10⁻⁴/(5 × 10⁻⁴) = 0.30.
73. Steel is said to be more elastic than rubber because, for the same stress, steel
Show hintHide hint
Higher modulus means ... strain for a given stress.
Show answerHide answer
Answer: D. develops a smaller strain
Elasticity is measured by the modulus: a larger Y means a smaller strain for the same stress. Steel's Y is far larger than rubber's.
1.7 Fluid mechanics
12 questions
74. A solid of volume 200 cm³ is completely immersed in water (density 1000 kg/m³). The buoyant force on it is (g = 10 m/s²)
Show hintHide hint
Weight of the water displaced; convert cm³ to m³.
Show answerHide answer
Answer: A. 2 N
Upthrust = Vρg = 200 × 10⁻⁶ × 1000 × 10 = 2 N.
75. A wooden block floats in water with 60% of its volume submerged. When placed in an oil of density 800 kg/m³, the fraction of its volume submerged will be
2 marksShow hintHide hint
For a floating body, fraction submerged = ρ_body/ρ_liquid.
Show answerHide answer
Answer: C. 75%
Density of wood = 0.6 × 1000 = 600 kg/m³. In oil, fraction submerged = 600/800 = 0.75 = 75%.
76. The dimensional formula of surface tension is
Show hintHide hint
Surface tension is force per unit length.
Show answerHide answer
Answer: C. [ML⁰T⁻²]
Surface tension = force/length, so [MLT⁻²]/[L] = [ML⁰T⁻²].
77. Water (surface tension 0.07 N/m, angle of contact 0°) rises in a clean glass capillary tube of radius 0.1 mm. The height of rise is (density of water 1000 kg/m³, g = 10 m/s²)
2 marksShow hintHide hint
Use h = 2T cos θ/(rρg) with r in metres.
Show answerHide answer
Answer: C. 14 cm
h = 2T cos θ/(rρg) = (2 × 0.07 × 1)/(10⁻⁴ × 1000 × 10) = 0.14/1 = 0.14 m = 14 cm.
78. The excess pressure inside a soap bubble of radius r, made from a solution of surface tension T, is
Show hintHide hint
Count the number of liquid–air surfaces.
Show answerHide answer
Answer: B. 4T/r
A soap bubble has two surfaces (inside and outside), so the excess pressure is 2 × 2T/r = 4T/r.
79. A small spherical raindrop falls through air with a terminal velocity of 2 cm/s. If 8 such identical drops coalesce to form a single drop, its terminal velocity becomes
2 marksShow hintHide hint
Find the new radius, then use v ∝ r².
Show answerHide answer
Answer: B. 8 cm/s
Volume ×8 means radius ×2. From Stokes' law, terminal velocity ∝ r², so v' = 4 × 2 = 8 cm/s.
80. The SI unit of coefficient of viscosity is
Show hintHide hint
Rearrange Newton's law of viscosity F = ηA dv/dx.
Show answerHide answer
Answer: D. N s m⁻²
From F = ηA(dv/dx), η = F/(A × dv/dx) with units N/(m² × s⁻¹) = N s m⁻² (pascal second).
81. Liquid flows steadily through a horizontal capillary tube at a volume rate Q. If the tube is replaced by another of the same length but half the radius, and the pressure difference across it is doubled, the new rate of flow is
2 marksShow hintHide hint
Use Poiseuille's equation: Q ∝ P r⁴/l.
Show answerHide answer
Answer: A. Q/8
Poiseuille: Q = πPr⁴/(8ηl) ∝ Pr⁴. New rate = Q × 2 × (1/2)⁴ = Q/8.
82. Which statement about Reynolds number is correct?
Show hintHide hint
Recall Re = ρvD/η.
Show answerHide answer
Answer: B. Flow is streamline for low values (below about 2000) of Reynolds number
Re = ρvD/η is dimensionless; it increases with density and decreases with viscosity. Low Re (below about 2000) means streamline flow.
83. Water flows at 2 m/s through a pipe of diameter 4 cm which narrows to a diameter of 2 cm. The speed of water in the narrow part is
Show hintHide hint
Equation of continuity; area depends on diameter squared.
Show answerHide answer
Answer: A. 8 m/s
A₁v₁ = A₂v₂ and A ∝ d², so v₂ = v₁(d₁/d₂)² = 2 × 4 = 8 m/s.
84. Water flows through a horizontal pipe. At point A its speed is 2 m/s and at point B it is 4 m/s. The pressure at A exceeds that at B by (density of water 1000 kg/m³)
2 marksShow hintHide hint
Use Bernoulli's equation with no height change.
Show answerHide answer
Answer: D. 6000 Pa
Bernoulli for a horizontal pipe: P_A − P_B = ½ρ(v_B² − v_A²) = ½ × 1000 × (16 − 4) = 6000 Pa.
85. As the temperature of a liquid increases, its surface tension generally
Show hintHide hint
What happens to cohesive forces when molecules move faster?
Show answerHide answer
Answer: C. decreases
Intermolecular cohesive forces weaken with rise in temperature, so surface tension decreases (becoming zero at the critical temperature).
