Process Management

Define process. Explain the process model along with the transitions.

A process is an entity representing the basic unit of work to be implemented in the system; a process is a program in execution.

Two-state model

• Running: The process is running on the CPU.
• Not running: The process is not running on the CPU.

When a new process P2 is created, it is in the not-running state. When the CPU becomes free, the dispatcher gives control of the CPU to P2, which is waiting in the queue. The dispatcher is a program that gives control of the CPU to the process selected by the CPU scheduler. When the dispatcher allows P2 to execute, P2 starts its execution.

Five-state model

1. New: A process that has just been created but has not yet been admitted to the pool of executable processes by the OS.
2. Ready: A process prepared to execute when given the opportunity; it is waiting only for CPU availability.
3. Running: The process currently being executed.
4. Blocked (waiting): A process that cannot execute until an event occurs.
5. Exit: A process released from the pool of executable processes by the OS.

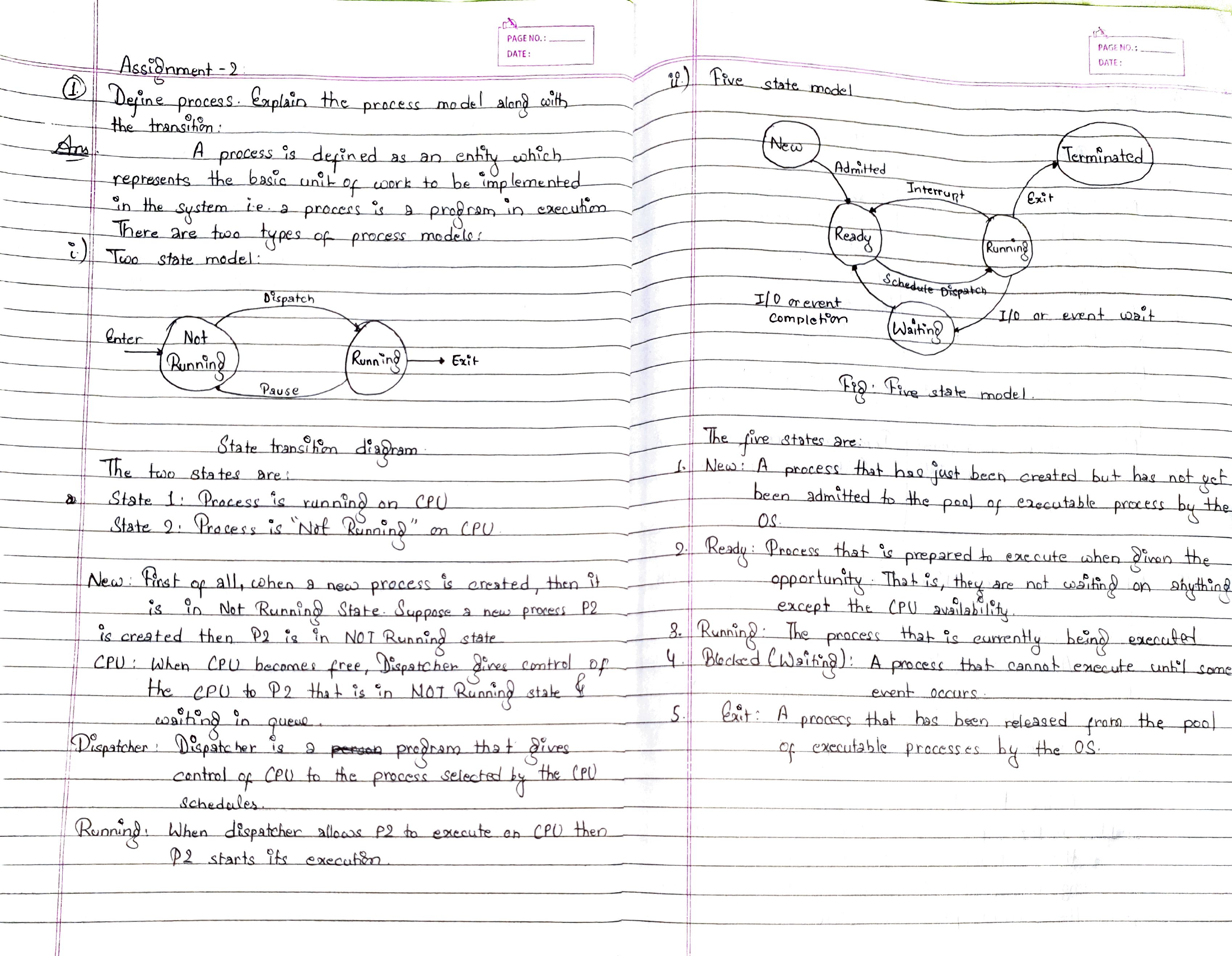

The two original transition diagrams, including their arrow labels, are preserved here:

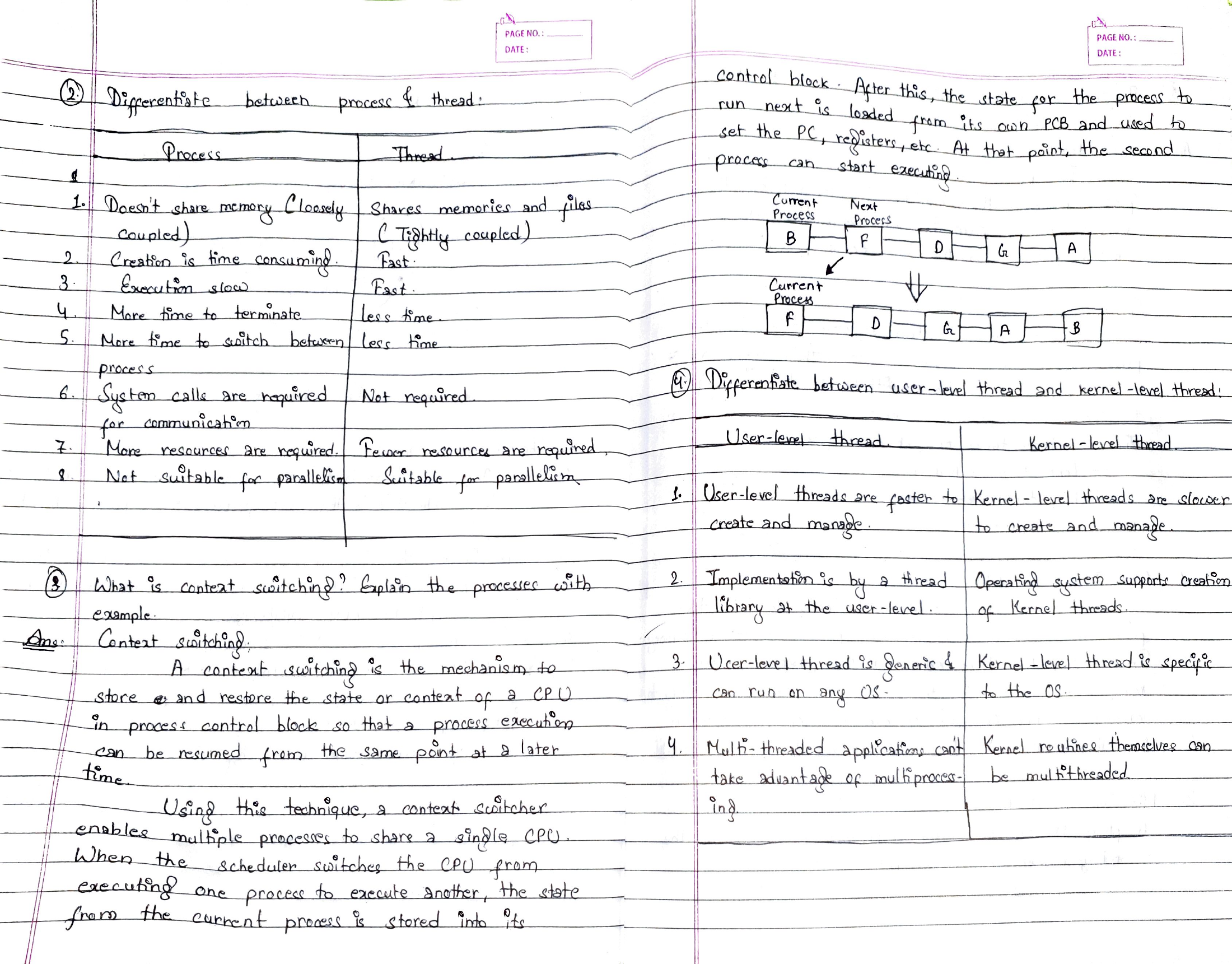

Differentiate between process and thread.

Source fidelity: This reproduces the source's broad comparisons, including its claim about process parallelism; it is not a corrected technical comparison.

What is context switching? Explain the process with an example.

Context switching is the mechanism to store and restore the state or context of a CPU in a process control block so that execution can resume from the same point later. It enables multiple processes to share a single CPU.

When the scheduler switches the CPU from one process to another, the state of the current process is stored in its control block. The state of the next process is loaded from its PCB and used to set the program counter, registers, and other state. The second process can then start executing.

The source diagram shows the queue changing from B, F, D, G, A to F, D, G, A, B:

Differentiate between user-level threads and kernel-level threads.

Source fidelity: The last two rows are retained as written in the notes, rather than generalized or corrected.

Define scheduling. Explain a scheduler and its types. Define dispatcher.

Scheduling: The activity of the process manager that removes the running process from the CPU and selects another process according to a particular strategy.

Scheduler: Special system software that handles process scheduling. Its main tasks are selecting jobs to submit to the system and deciding which process to run.

• Long-term scheduler: Decides the priority in which processes must be placed in main memory. The notes describe these processes as entering the ready state and waiting for execution by the CPU.
• Mid-term scheduler: Places blocked and suspended processes in secondary memory.
• Short-term scheduler: Decides the priority in which processes in the ready queue receive CPU time.

Dispatcher: The module that gives control of the CPU to the process selected by the short-term scheduler from the processes ready to execute.

Define the following terms.

• CPU utilization: Keeping the CPU as busy as possible. The source gives a theoretical range of 0%-100% and a practical range of 40%-90%; these are source statements, not measurements of this project.
• Throughput: The rate at which processes complete per unit time.
• Turnaround time: The difference between completion time and submission time.
• Waiting time: The sum of periods spent waiting in a queue.
• Response time: The time from submission until the process starts responding.
• Burst time: The duration for which a process gets control of the CPU.

Differentiate between preemptive and non-preemptive scheduling.

Calculate average turnaround time and average waiting time using FCFS, SJN, SRTN, priority, round-robin, and HRRN scheduling for the data sets in the source.

The original input tables, time quanta, Gantt charts, intermediate formulas, corrections, and final results are retained below. They have not been recomputed or silently corrected. The source uses different quanta in different examples; read the value beside each example.

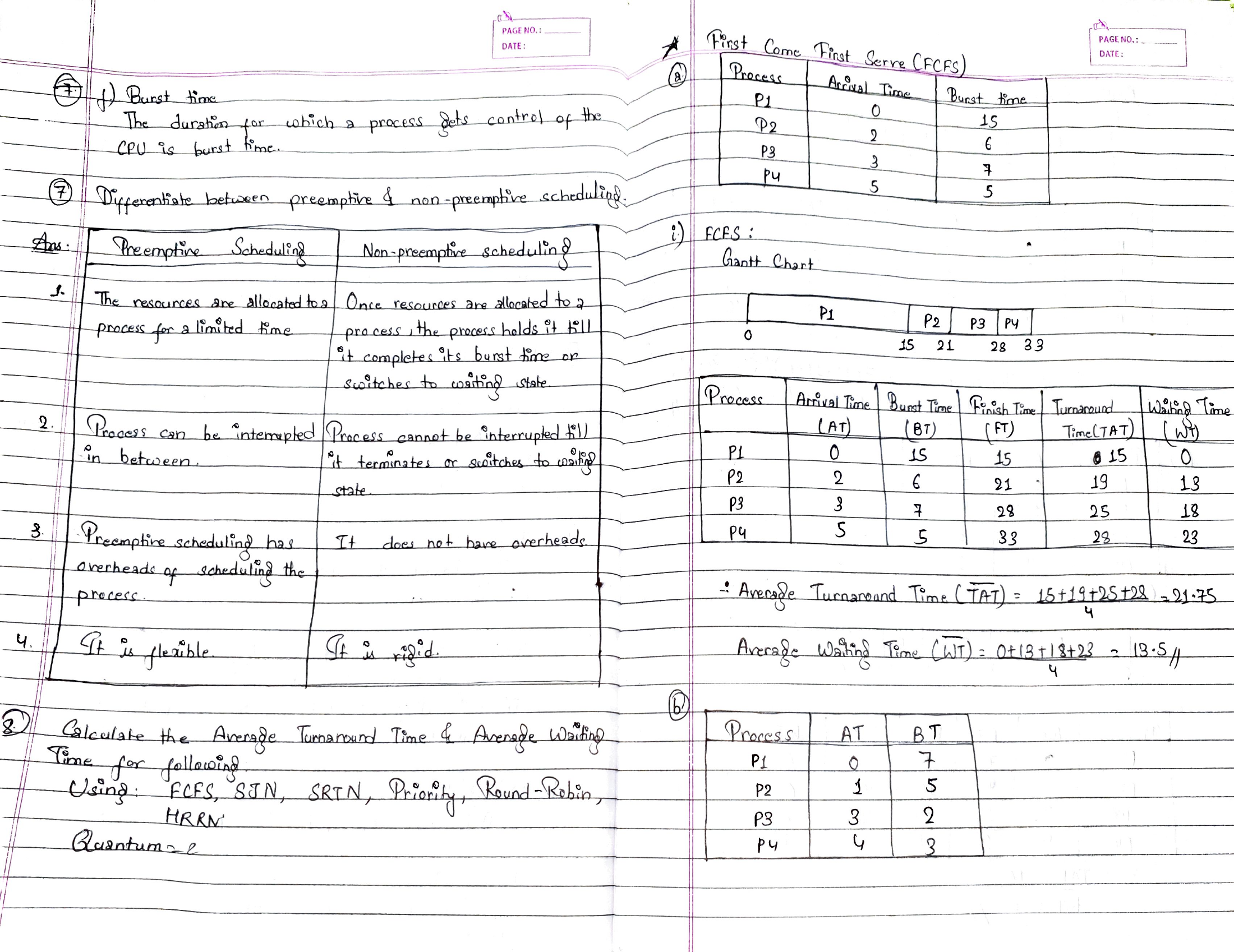

FCFS calculations

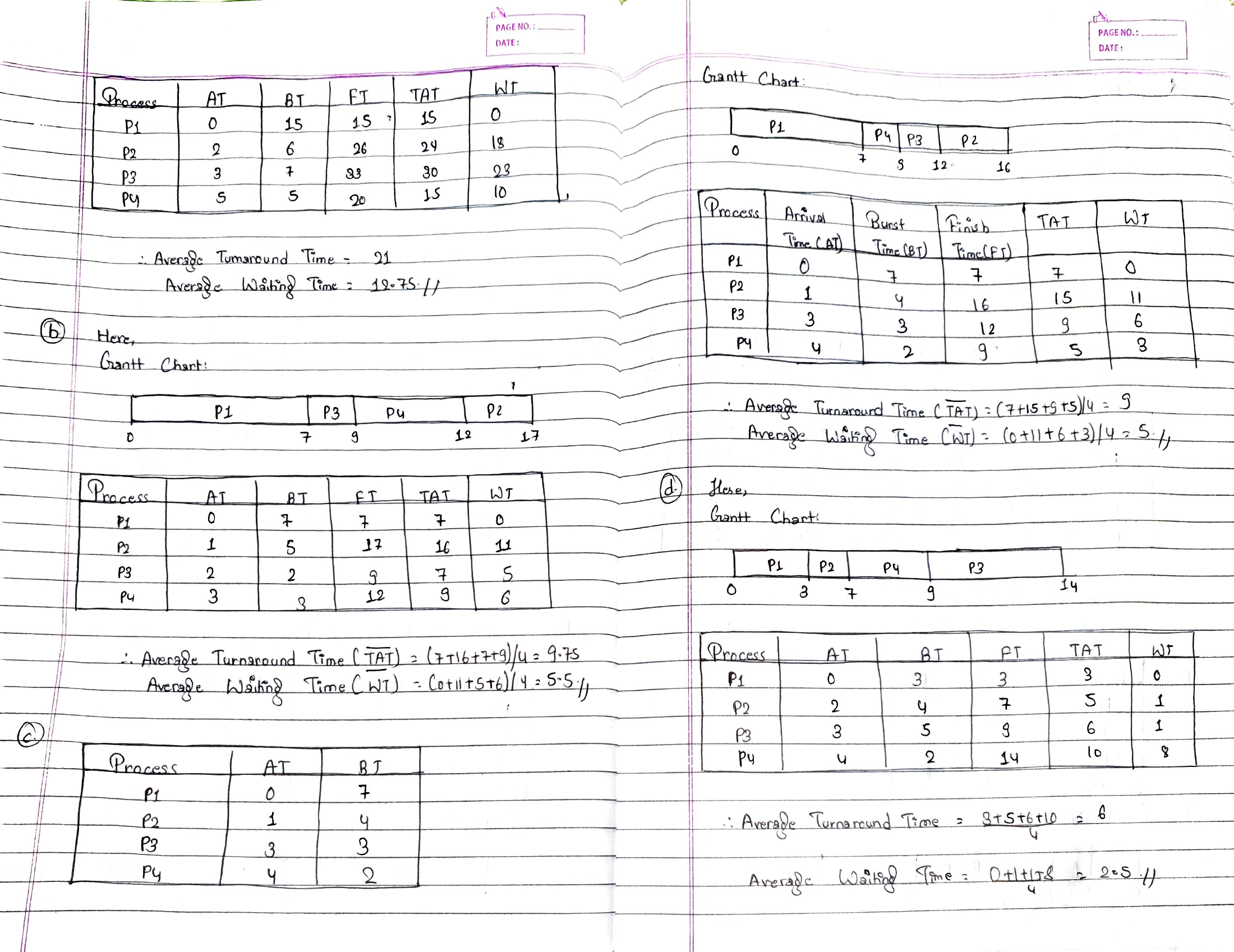

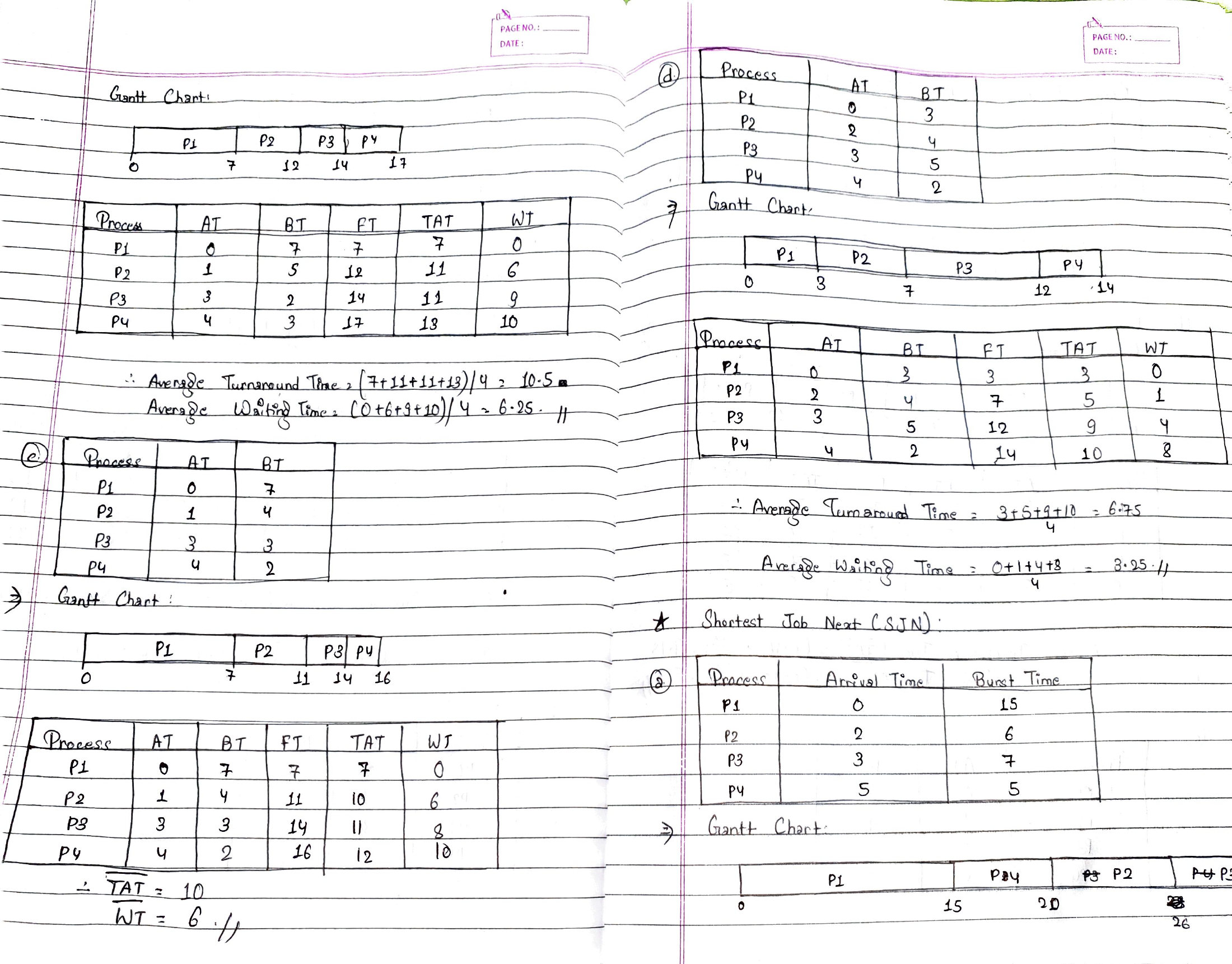

FCFS and SJN calculations

SJN calculations

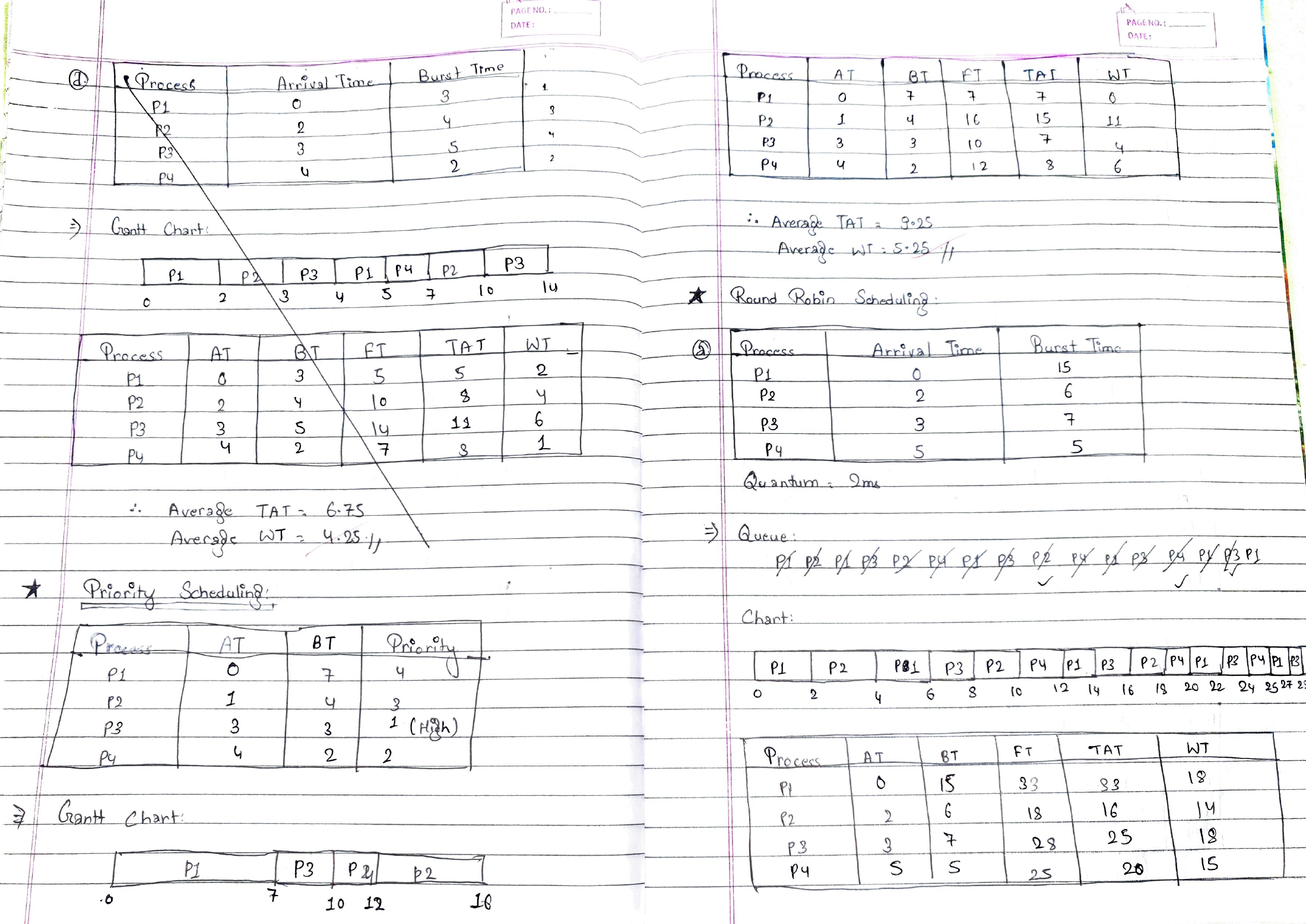

SJN, priority, and round-robin calculations

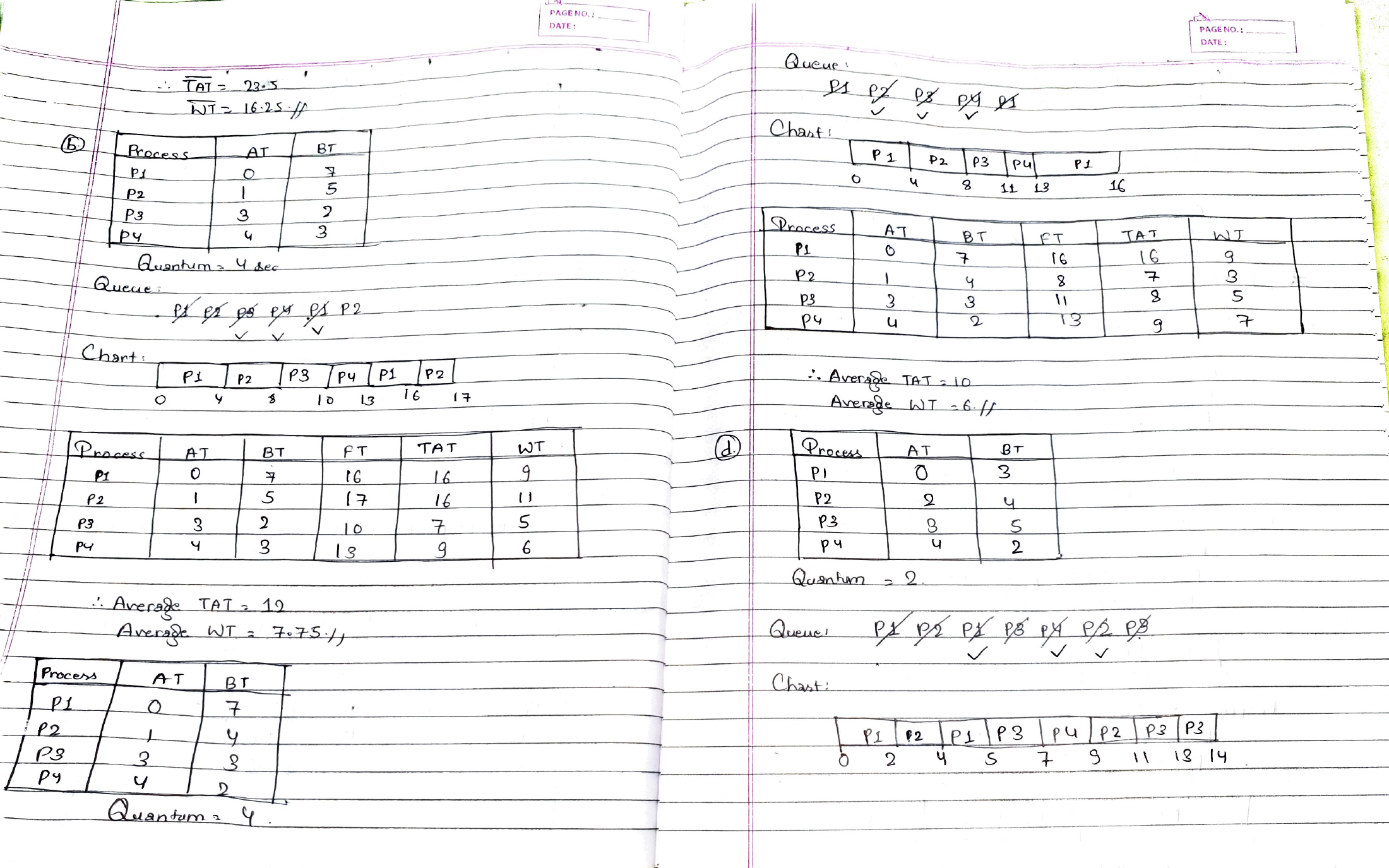

Round-robin calculations

Round-robin and HRRN calculations

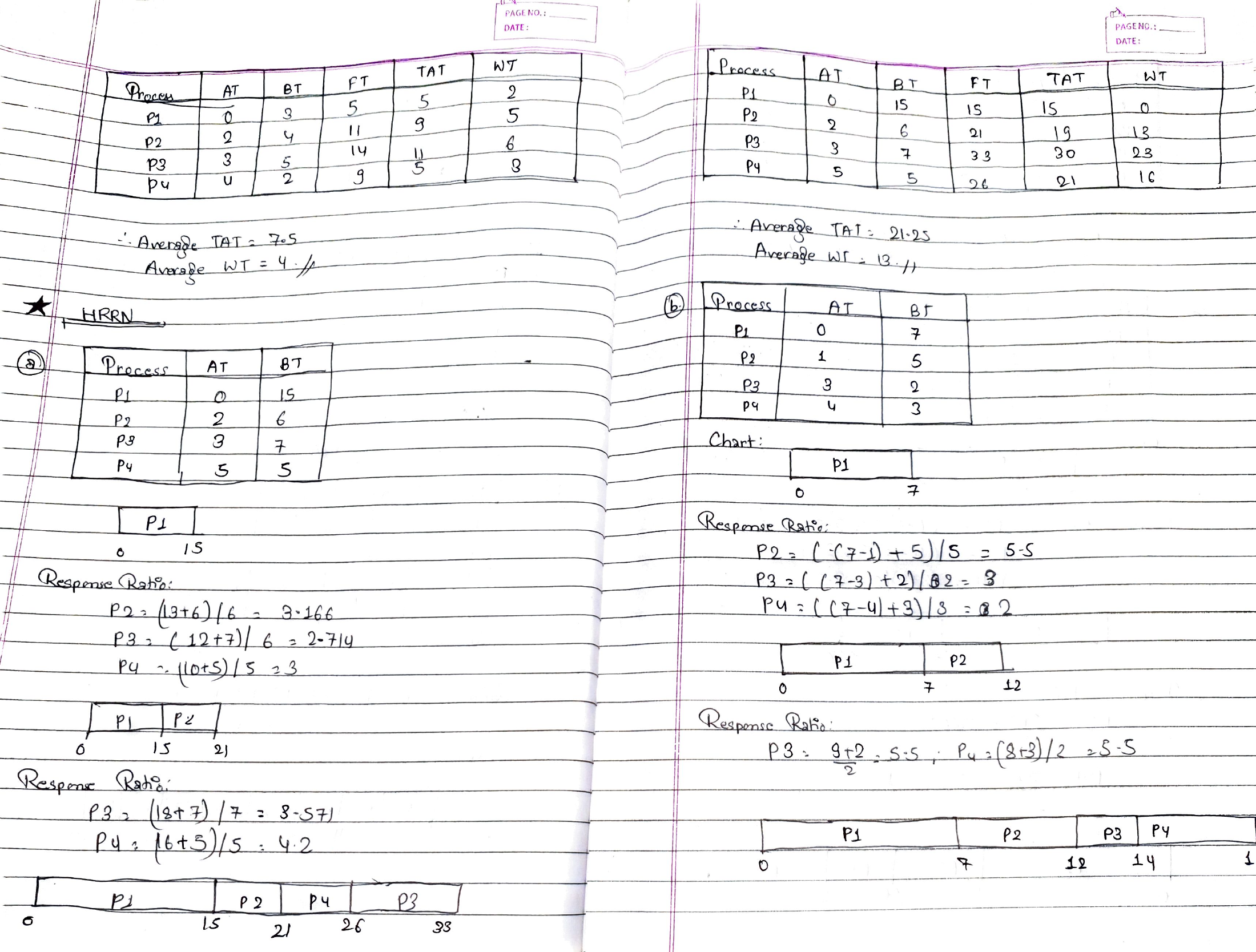

HRRN calculations

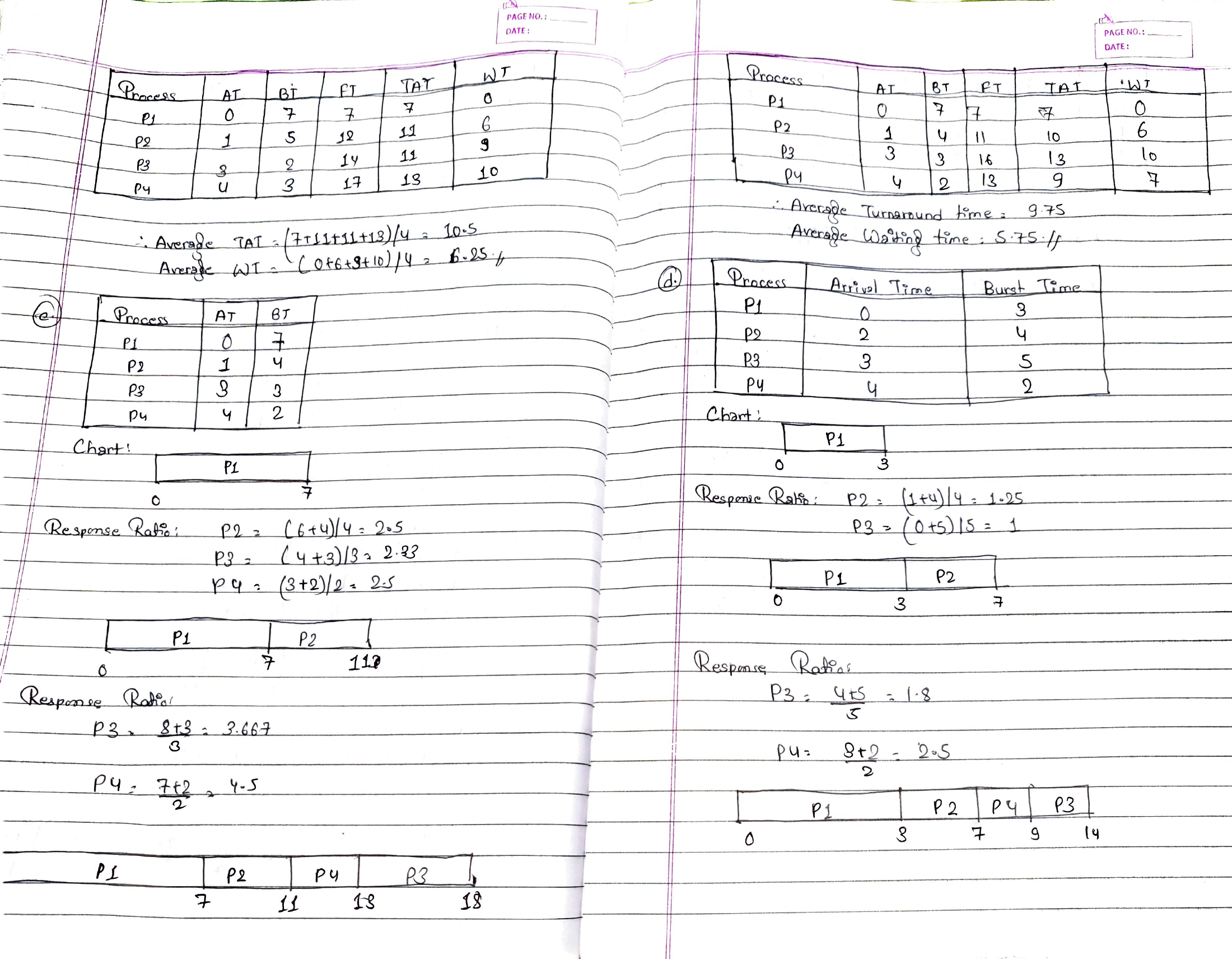

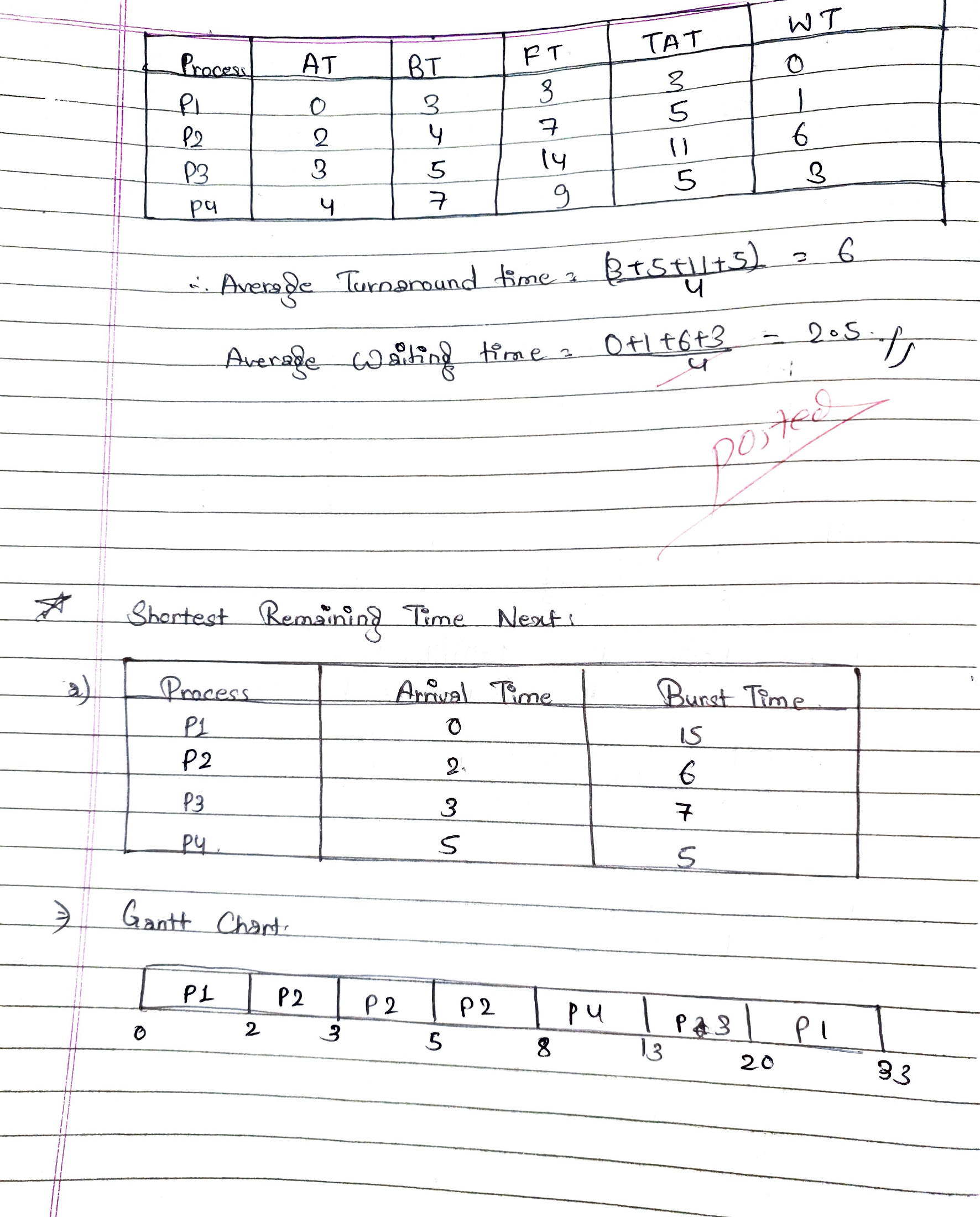

HRRN and SRTN calculations

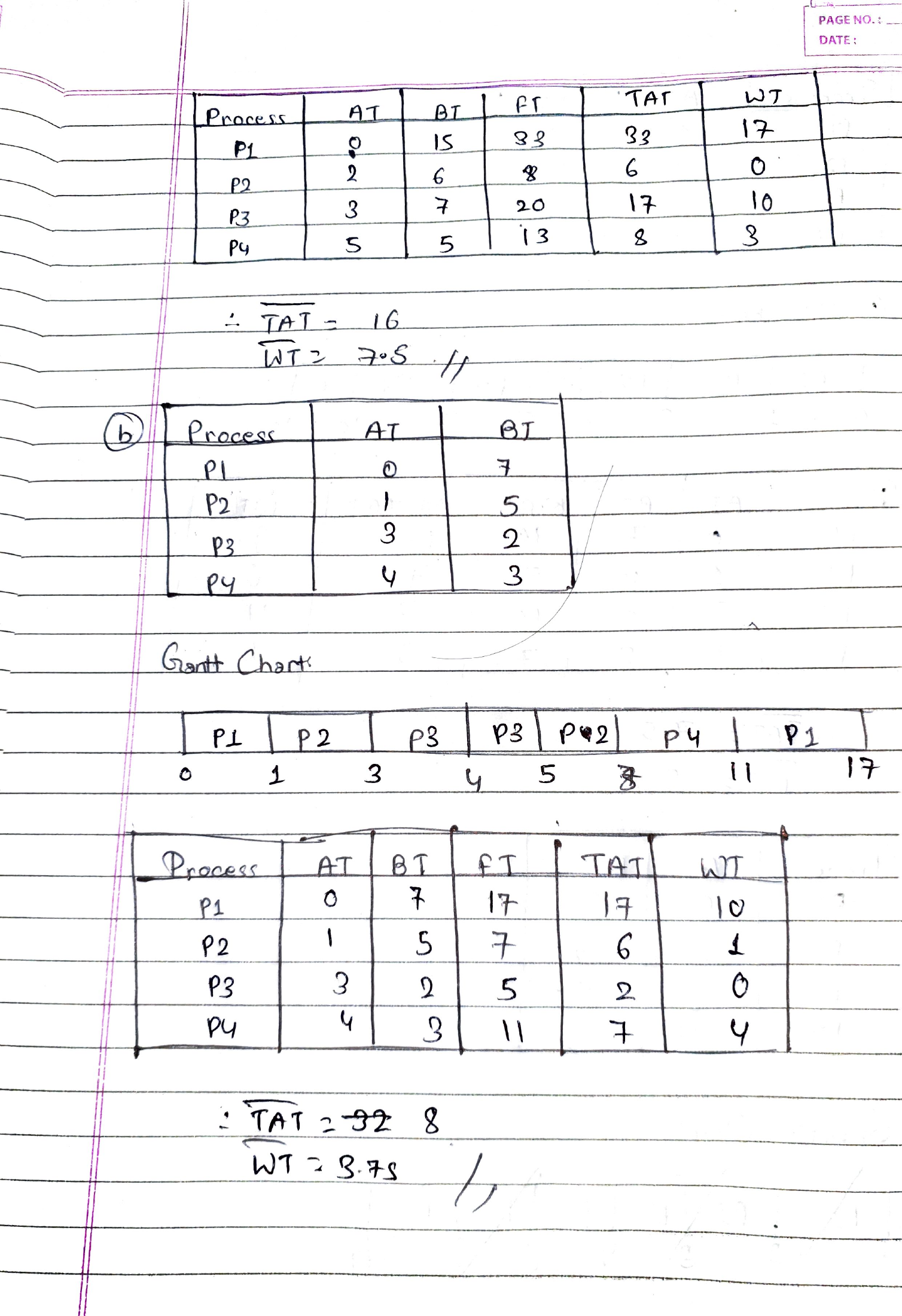

SRTN calculations — continued

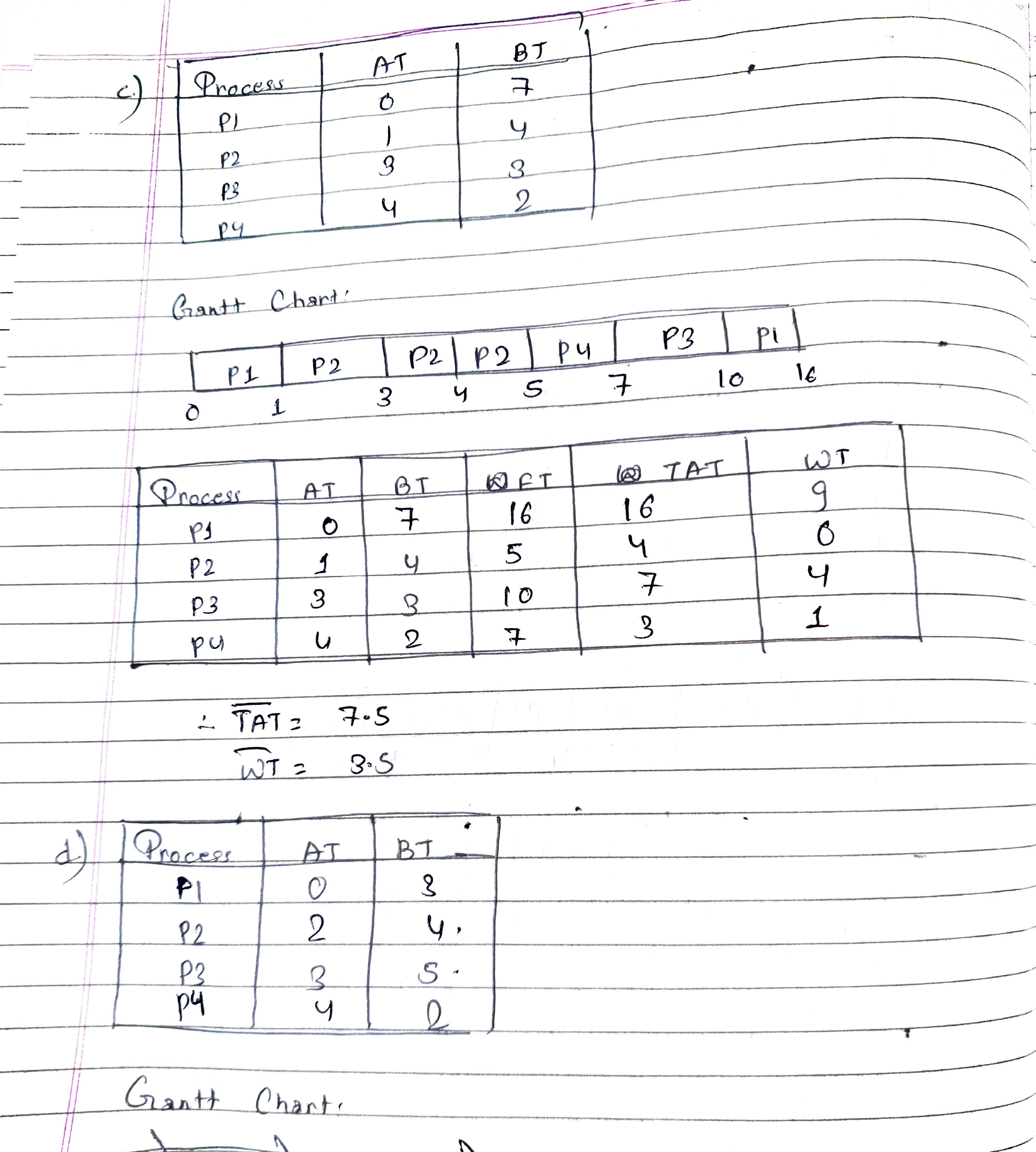

SRTN calculations — continued

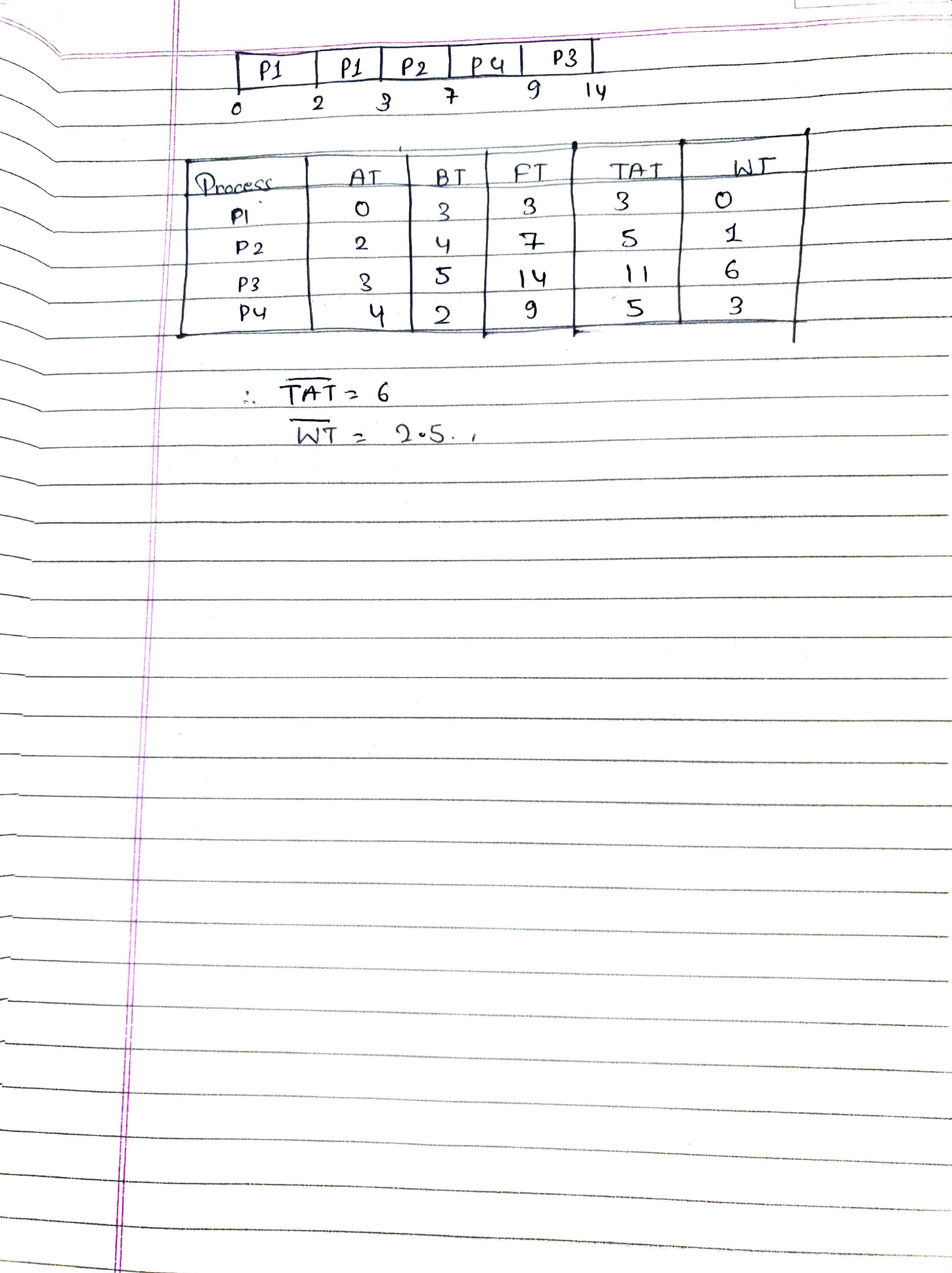

SRTN calculations — continued
