Chapter 5 · 9 hours

Continuous-Time Systems

IOE past exam questions

Past questions and answers

45 questions set from this chapter, 11 of them more than once. Most asked first.

  • Asked 8 times
  • 2082 Chaitra · 6 marks
  • 2081 Chaitra · 5 marks
  • 2077 Chaitra · 4 marks
  • 2075 Bhadra · 6 marks
  • 2074 Bhadra · 6 marks
  • 2073 Bhadra · 6 marks
  • 2071 Bhadra · 8 marks
  • 2082 Bhadra (new course) · 4 marks

Derive the convolution integral for continuous time LTI system.

Answer

The convolution integral gives the output y(t)y(t) of a continuous-time LTI system for any input x(t)x(t) in terms of its impulse response h(t)h(t):

y(t)=∫−∞∞x(τ) h(t−τ) dτ=x(t)∗h(t)y(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau = x(t) * h(t)

Step 1: Represent the input with narrow pulses

Define a unit-area pulse of width Δ\Delta:

δΔ(t)={1/Δ,0≤t<Δ0,otherwise\delta_\Delta(t) = \begin{cases} 1/\Delta, & 0 \le t < \Delta \\ 0, & \text{otherwise}\end{cases}

The staircase approximation of x(t)x(t) is a sum of shifted, scaled pulses:

x^(t)=∑k=−∞∞x(kΔ) δΔ(t−kΔ) Δ\hat{x}(t) = \sum_{k=-\infty}^{\infty} x(k\Delta)\,\delta_\Delta(t - k\Delta)\,\Delta
x(t)     __
      __|  |__
   __|        |__     staircase of width-Delta
  |              |    pulses, height x(k.Delta)
--+--+--+--+--+--+--> t
     kD (k+1)D

Step 2: Response to one pulse

Let h^k(t)\hat{h}_k(t) be the response to δΔ(t−kΔ)\delta_\Delta(t - k\Delta). By linearity (superposition and scaling),

y^(t)=∑k=−∞∞x(kΔ) h^k(t) Δ\hat{y}(t) = \sum_{k=-\infty}^{\infty} x(k\Delta)\,\hat{h}_k(t)\,\Delta

By time invariance, the response to a shifted pulse is the shifted response: h^k(t)=h^0(t−kΔ)\hat{h}_k(t) = \hat{h}_0(t - k\Delta).

Step 3: Take the limit Δ→0\Delta \to 0

As Δ→0\Delta \to 0:

  • x^(t)→x(t)\hat{x}(t) \to x(t),
  • δΔ(t)→δ(t)\delta_\Delta(t) \to \delta(t), so h^0(t)→h(t)\hat{h}_0(t) \to h(t), the impulse response,
  • kΔ→τk\Delta \to \tau (continuous variable), Δ→dτ\Delta \to d\tau, and the sum becomes an integral.
y(t)=lim⁡Δ→0∑k=−∞∞x(kΔ) h^0(t−kΔ) Δ=∫−∞∞x(τ) h(t−τ) dτ\begin{aligned} y(t) &= \lim_{\Delta\to0}\sum_{k=-\infty}^{\infty} x(k\Delta)\,\hat{h}_0(t-k\Delta)\,\Delta \\ &= \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau \end{aligned}

The same result follows directly from the sifting property: x(t)=∫x(τ)δ(t−τ)dτx(t) = \int x(\tau)\delta(t-\tau)d\tau; the system maps δ(t−τ)→h(t−τ)\delta(t-\tau) \to h(t-\tau) (time invariance) and the integral passes through (linearity).

Meaning and evaluation

  • The output is a weighted sum of shifted impulse responses; x(τ)x(\tau) is the weight of the impulse at τ\tau.
  • Steps to evaluate: (1) change variable to τ\tau; (2) fold h(τ)h(\tau) to get h(−τ)h(-\tau); (3) shift by tt to get h(t−τ)h(t-\tau); (4) multiply by x(τ)x(\tau); (5) integrate over the overlap; repeat for each range of tt.
  • Using τ→t−τ\tau \to t - \tau, y(t)=∫h(τ)x(t−τ)dτy(t) = \int h(\tau)x(t-\tau)d\tau also holds (commutative property).

Example: x(t)=u(t)x(t) = u(t), h(t)=e−atu(t)h(t) = e^{-at}u(t), a>0a>0: y(t)=∫0te−a(t−τ)dτ=1a(1−e−at)u(t)y(t) = \int_0^t e^{-a(t-\tau)}d\tau = \frac{1}{a}(1 - e^{-at})u(t).

  • Asked 4 times
  • 2080 Chaitra · 5 marks
  • 2079 Chaitra · 5 marks
  • 2071 Bhadra · 5 marks
  • 2070 Magh · 5 marks

Derive the expression for impulse response of ideal low pass filter (with cutoff frequency ω_c) and discuss.

Answer

The ideal low-pass filter passes all frequencies below the cutoff ωc\omega_c with unit gain and blocks all others:

H(jω)={1,∣ω∣≤ωc0,∣ω∣>ωcH(j\omega) = \begin{cases} 1, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

(zero phase taken for simplicity).

Derivation

Taking the inverse Fourier transform:

h(t)=12π∫−∞∞H(jω)ejωt dω=12π∫−ωcωcejωt dω=12π[ejωtjt]−ωcωc=12π⋅ejωct−e−jωctjt=12π⋅2jsin⁡ωctjt=sin⁡ωctπt\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(j\omega)e^{j\omega t}\,d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega t}\,d\omega \\ &= \frac{1}{2\pi}\left[\frac{e^{j\omega t}}{jt}\right]_{-\omega_c}^{\omega_c} = \frac{1}{2\pi}\cdot\frac{e^{j\omega_c t} - e^{-j\omega_c t}}{jt} \\ &= \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c t}{jt} = \frac{\sin\omega_c t}{\pi t} \end{aligned}

In sinc form:

h(t)=ωcπ⋅sin⁡ωctωct=ωcπ sinc ⁣(ωctπ)h(t) = \frac{\omega_c}{\pi}\cdot\frac{\sin\omega_c t}{\omega_c t} = \frac{\omega_c}{\pi}\,\text{sinc}\!\left(\frac{\omega_c t}{\pi}\right)
 H(jw)                    h(t)
   1 ______                   wc/pi
    |      |                   /\
    |      |          _  _    /  \    _  _
----+------+--> w   -' '-' '-/----\-' '-' '-> t
  -wc  0   wc               -pi/wc pi/wc
                       zeros at t = k.pi/wc

Discussion

  • Peak: at t=0t = 0, h(0)=ωc/πh(0) = \omega_c/\pi (limit of sin⁡ωct/πt\sin\omega_c t/\pi t).
  • Zero crossings: at t=kπ/ωct = k\pi/\omega_c, k=±1,±2,…k = \pm1, \pm2, \dots. A larger ωc\omega_c gives a narrower main lobe (time–bandwidth inverse relation).
  • Non-causal: h(t)≠0h(t) \ne 0 for t<0t < 0; the sinc extends to −∞-\infty. So the filter would have to respond before the impulse is applied, and it is not physically realizable.
  • Infinite duration and oscillating tails (ringing). Its step response shows overshoot (Gibbs phenomenon, about 9%).
  • With linear phase H(jω)=e−jωt0H(j\omega) = e^{-j\omega t_0} in the passband, h(t)=sin⁡ωc(t−t0)π(t−t0)h(t) = \dfrac{\sin\omega_c(t-t_0)}{\pi(t-t_0)}: a delayed sinc that is still non-zero for t<0t<0.
  • Practical filters (Butterworth, Chebyshev, RC) approximate it with a finite transition band.
  • Asked 3 times
  • 2080 Asoj · 5 marks
  • 2079 Asoj · 5 marks
  • 2078 Chaitra · 5 marks

Evaluate the step response of RC filter.

Answer

The step response s(t)s(t) of the RC low-pass filter is its output when x(t)=u(t)x(t) = u(t) and the capacitor is initially uncharged.

        R
 x(t) o--/\/\/--+--------o
  +             |        +
               === C    y(t)
  -             |        -
 ---o-----------+--------o

Impulse response

By KVL, with i(t)=C dydti(t) = C\,\dfrac{dy}{dt}:

x(t)=RCdy(t)dt+y(t)x(t) = RC\frac{dy(t)}{dt} + y(t)

Taking the Fourier transform gives H(jω)=11+jωRCH(j\omega) = \dfrac{1}{1 + j\omega RC}, whose inverse transform (using e−atu(t)↔1a+jωe^{-at}u(t) \leftrightarrow \frac{1}{a + j\omega}) is

h(t)=1RCe−t/RCu(t)h(t) = \frac{1}{RC}e^{-t/RC}u(t)

Step response

The step response is the running integral of the impulse response:

s(t)=u(t)∗h(t)=∫−∞th(τ) dτ=∫0t1RCe−τ/RC dτ(t>0)=1RC[−RC e−τ/RC]0t=(1−e−t/RC)u(t)\begin{aligned} s(t) &= u(t) * h(t) = \int_{-\infty}^{t} h(\tau)\,d\tau \\ &= \int_{0}^{t} \frac{1}{RC}e^{-\tau/RC}\,d\tau \quad (t > 0) \\ &= \frac{1}{RC}\left[-RC\,e^{-\tau/RC}\right]_0^t \\ &= \left(1 - e^{-t/RC}\right)u(t) \end{aligned}

(Check: solving RC y˙+y=1RC\,\dot y + y = 1 with y(0)=0y(0) = 0 gives the same.)

s(t)
 1 |- - - - - - - - - - - - -
   |           _______-----
.632|- - - -.-'
   |      .'
   |    /
   |  /
   +-/-----+---------------> t
   0      RC

Discussion

  • τ=RC\tau = RC is the time constant: s(RC)=1−e−1=0.632s(RC) = 1 - e^{-1} = 0.632.
  • s(t)s(t) reaches about 98% at 4RC4RC and 99.3% at 5RC5RC.
  • Rise time (10% to 90%) =RCln⁡9≈2.2RC= RC\ln 9 \approx 2.2RC. Since bandwidth ωc=1/RC\omega_c = 1/RC, rise time ≈2.2/ωc\approx 2.2/\omega_c: a wider bandwidth gives a faster rise.
  • There is no overshoot (unlike the ideal LPF), and the response is causal because h(t)=0h(t) = 0 for t<0t < 0.
  • Asked 3 times
  • 2082 Kartik · 5 marks
  • 2083 Bhadra (new course) · 3 marks
  • 2083 Baisakh (new course) · 4 marks

Describe the frequency response (transfer function) of a continuous time LTI system.

Answer

The frequency response H(jω)H(j\omega) of a continuous-time LTI system is the Fourier transform of its impulse response. It tells how the system changes the amplitude and phase of each sinusoidal (complex exponential) component of the input.

H(jω)=∫−∞∞h(t)e−jωt dtH(j\omega) = \int_{-\infty}^{\infty} h(t)e^{-j\omega t}\,dt

Eigenfunction property

If x(t)=ejωtx(t) = e^{j\omega t}, the output is

y(t)=∫−∞∞h(τ)ejω(t−τ) dτ=ejωt∫−∞∞h(τ)e−jωτ dτ=H(jω) ejωt\begin{aligned} y(t) &= \int_{-\infty}^{\infty} h(\tau)e^{j\omega(t-\tau)}\,d\tau \\ &= e^{j\omega t}\int_{-\infty}^{\infty} h(\tau)e^{-j\omega\tau}\,d\tau = H(j\omega)\,e^{j\omega t} \end{aligned}

Complex exponentials pass through unchanged in form, only multiplied by the complex number H(jω)H(j\omega).

Transfer function

From the convolution property, y(t)=x(t)∗h(t)⇒Y(jω)=X(jω)H(jω)y(t) = x(t)*h(t) \Rightarrow Y(j\omega) = X(j\omega)H(j\omega), so

H(jω)=Y(jω)X(jω)H(j\omega) = \frac{Y(j\omega)}{X(j\omega)}

For a system described by ∑kakdkydtk=∑kbkdkxdtk\sum_k a_k \frac{d^k y}{dt^k} = \sum_k b_k \frac{d^k x}{dt^k}:

H(jω)=∑kbk(jω)k∑kak(jω)kH(j\omega) = \frac{\sum_k b_k (j\omega)^k}{\sum_k a_k (j\omega)^k}

Magnitude and phase

H(jω)=∣H(jω)∣ ej∠H(jω)H(j\omega) = |H(j\omega)|\,e^{j\angle H(j\omega)}

  • ∣H(jω)∣|H(j\omega)|: gain (magnitude response), often plotted in dB on a Bode plot.
  • ∠H(jω)\angle H(j\omega): phase shift; −d∠H/dω-d\angle H/d\omega is the group delay.
  • For real h(t)h(t): ∣H∣|H| is even and ∠H\angle H is odd in ω\omega.
  • A sinusoid cos⁡ω0t\cos\omega_0 t gives output ∣H(jω0)∣cos⁡(ω0t+∠H(jω0))|H(j\omega_0)|\cos(\omega_0 t + \angle H(j\omega_0)).

Example: RC low-pass filter, H(jω)=11+jωRCH(j\omega) = \dfrac{1}{1 + j\omega RC}: ∣H∣=1/1+(ωRC)2|H| = 1/\sqrt{1 + (\omega RC)^2}, ∠H=−tan⁡−1ωRC\angle H = -\tan^{-1}\omega RC. Low frequencies pass, high frequencies are attenuated.

  • Asked 2 times
  • 2082 Chaitra · 4 marks
  • 2075 Baisakh · 2+4 marks

Define linear time invariant system. Explain causality and time variance properties of continuous time system.

Answer

LTI system

A linear time-invariant (LTI) system is one that is both

  • linear: obeys superposition, ax1(t)+bx2(t)→ay1(t)+by2(t)a x_1(t) + b x_2(t) \to a y_1(t) + b y_2(t), and
  • time-invariant: a delay in the input gives the same delay in the output, x(t−t0)→y(t−t0)x(t - t_0) \to y(t - t_0).

An LTI system is completely described by its impulse response h(t)h(t), and y(t)=x(t)∗h(t)y(t) = x(t) * h(t).

Causality

A system is causal if the output at any time t0t_0 depends only on present and past inputs (t≤t0t \le t_0), never on future inputs. All real-time physical systems are causal.

  • Causal: y(t)=x(t−1)y(t) = x(t-1), y(t)=∫−∞tx(τ)dτy(t) = \int_{-\infty}^{t} x(\tau)d\tau.
  • Non-causal: y(t)=x(t+1)y(t) = x(t+1), y(t)=x(−t)y(t) = x(-t) (at t=−1t = -1 it needs x(1)x(1)).
  • For an LTI system: causal   ⟺  h(t)=0\iff h(t) = 0 for t<0t < 0.

Time variance

A system is time-invariant if its behaviour does not change with time: if x(t)→y(t)x(t) \to y(t) then x(t−t0)→y(t−t0)x(t - t_0) \to y(t - t_0) for every t0t_0. Otherwise it is time-variant.

Test: find y1(t)y_1(t), the output for x(t−t0)x(t - t_0), and compare with y(t−t0)y(t - t_0).

Example 1: y(t)=x(2t)y(t) = x(2t).

y1(t)=x(2t−t0)y(t−t0)=x(2(t−t0))=x(2t−2t0)\begin{aligned} y_1(t) &= x(2t - t_0) \\ y(t - t_0) &= x(2(t - t_0)) = x(2t - 2t_0) \end{aligned}

They differ, so the system is time-variant.

Example 2: y(t)=x(t)2y(t) = x(t)^2: y1(t)=x(t−t0)2=y(t−t0)y_1(t) = x(t - t_0)^2 = y(t - t_0), so it is time-invariant.

PropertyConditionExample
Causaloutput uses t≤t0t \le t_0 onlyy=x(t−2)y = x(t-2)
Non-causaloutput uses future inputy=x(t+2)y = x(t+2)
Time-invariantx(t−t0)→y(t−t0)x(t-t_0) \to y(t-t_0)y=3x(t)y = 3x(t)
Time-variantshift not preservedy=t x(t)y = t\,x(t)
  • Asked 2 times
  • 2082 Kartik · 5 marks
  • 2083 Baisakh (new course) · 4 marks

Derive the transfer function of a RC low pass filter and plot the magnitude and phase.

Answer

        R
 x(t) o--/\/\/--+--------o
  +             |        +
               === C    y(t)
  -             |        -
 ---o-----------+--------o

Transfer function

By KVL, with i(t)=C dydti(t) = C\,\dfrac{dy}{dt}:

x(t)=RCdy(t)dt+y(t)x(t) = RC\frac{dy(t)}{dt} + y(t)

Taking the Fourier transform (with ddt↔jω\frac{d}{dt} \leftrightarrow j\omega):

X(jω)=jωRC Y(jω)+Y(jω)H(jω)=Y(jω)X(jω)=11+jωRC\begin{aligned} X(j\omega) &= j\omega RC\,Y(j\omega) + Y(j\omega) \\ H(j\omega) &= \frac{Y(j\omega)}{X(j\omega)} = \frac{1}{1 + j\omega RC} \end{aligned}

In Laplace form, H(s)=11+sRCH(s) = \dfrac{1}{1 + sRC}. (Same result from the voltage divider: H=1/jωCR+1/jωCH = \dfrac{1/j\omega C}{R + 1/j\omega C}.)

Magnitude and phase

∣H(jω)∣=11+(ωRC)2,∠H(jω)=−tan⁡−1(ωRC)|H(j\omega)| = \frac{1}{\sqrt{1 + (\omega RC)^2}}, \qquad \angle H(j\omega) = -\tan^{-1}(\omega RC)
ω\omega∣H∣\lvert H\rvert∣H∣\lvert H\rvert (dB)∠H\angle H
0011000∘0^\circ
1/RC1/RC1/2=0.7071/\sqrt2 = 0.707−3-3−45∘-45^\circ
10/RC10/RC0.09950.0995−20-20−84.3∘-84.3^\circ
→∞\to\infty→0\to 0slope −20-20 dB/dec→−90∘\to -90^\circ
|H|                         angle H
 1 |----.                  0 |----.
   |     `.                   |     `.
.707|- - - -*                -45|- - - -*
   |         `-.              |         `-.___
   |             `---.    -90 |- - - - - - - -
   +------+-----------> w     +------+--------> w
        1/RC                       1/RC

The cutoff (half-power, −3-3 dB) frequency is ωc=1/RC\omega_c = 1/RC; the circuit is a first-order low-pass filter.

  • Asked 2 times
  • 2082 Kartik · 5 marks
  • 2071 Magh · 8 marks

Find the output y(t) of LTI system if the impulse response h(t) = e^(−t)u(t−3) and input x(t) = u(t−2).

Answer

For an LTI system, y(t)=x(t)∗h(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = x(t) * h(t) = \displaystyle\int_{-\infty}^{\infty} x(\tau)\,h(t - \tau)\,d\tau.

Given x(t)=u(t−2)x(t) = u(t-2) and h(t)=e−tu(t−3)h(t) = e^{-t}u(t-3).

Step 1: Write both functions in τ\tau

x(τ)=u(τ−2),h(t−τ)=e−(t−τ) u(t−τ−3)x(\tau) = u(\tau - 2), \qquad h(t-\tau) = e^{-(t-\tau)}\,u(t - \tau - 3)
  • x(τ)≠0x(\tau) \neq 0 when τ>2\tau > 2.
  • h(t−τ)≠0h(t-\tau) \neq 0 when t−τ>3t - \tau > 3, i.e. τ<t−3\tau < t - 3.
 x(tau)=1 for tau>2      h(t-tau) for tau<t-3
          ___________   ___________
         |              decaying   |
 --------+-------->   <------------+------ tau
         2                        t-3
 overlap: 2 < tau < t-3  (exists only if t-3 > 2)

Step 2: Range of tt

The overlap 2<τ<t−32 < \tau < t - 3 exists only when t−3>2t - 3 > 2, i.e. t>5t > 5.

  • For t<5t < 5: no overlap, y(t)=0y(t) = 0.

Step 3: Evaluate for t>5t > 5

y(t)=∫2t−31⋅e−(t−τ) dτ=e−t∫2t−3eτ dτ=e−t[eτ]2t−3=e−t(et−3−e2)=e−3−e−(t−2)\begin{aligned} y(t) &= \int_{2}^{t-3} 1\cdot e^{-(t-\tau)}\,d\tau = e^{-t}\int_{2}^{t-3} e^{\tau}\,d\tau \\ &= e^{-t}\left[e^{\tau}\right]_{2}^{t-3} = e^{-t}\left(e^{t-3} - e^{2}\right) \\ &= e^{-3} - e^{-(t-2)} \end{aligned}

Result

y(t)=(e−3−e−(t−2))u(t−5)y(t) = \left(e^{-3} - e^{-(t-2)}\right)u(t-5)

Answer: y(t)=0y(t) = 0 for t<5t < 5, and y(t)=e−3−e−(t−2)y(t) = e^{-3} - e^{-(t-2)} for t≥5t \ge 5.

Checks:

  • At t=5t = 5: e−3−e−3=0e^{-3} - e^{-3} = 0 (continuous start).
  • As t→∞t \to \infty: y→e−3≈0.0498y \to e^{-3} \approx 0.0498.
  • Shift view: u(t)∗e−tu(t)=(1−e−t)u(t)u(t)*e^{-t}u(t) = (1 - e^{-t})u(t); here h(t)=e−3 e−(t−3)u(t−3)h(t) = e^{-3}\,e^{-(t-3)}u(t-3), so total shift is 2+3=52 + 3 = 5: y(t)=e−3(1−e−(t−5))u(t−5)y(t) = e^{-3}(1 - e^{-(t-5)})u(t-5), which is the same expression.
  • Asked 2 times
  • 2081 Chaitra · 6 marks
  • 2073 Magh · 4+2 marks

Derive the expression for impulse response of RC filter and plot the magnitude and phase response.

Answer

        R
 x(t) o--/\/\/--+--------o
  +             |        +
               === C    y(t)
  -             |        -
 ---o-----------+--------o

Impulse response

By KVL, with i(t)=C dydti(t) = C\,\dfrac{dy}{dt}:

x(t)=RCdy(t)dt+y(t)x(t) = RC\frac{dy(t)}{dt} + y(t)

Take the Fourier transform:

X(jω)=jωRC Y(jω)+Y(jω)H(jω)=Y(jω)X(jω)=11+jωRC\begin{aligned} X(j\omega) &= j\omega RC\,Y(j\omega) + Y(j\omega) \\ H(j\omega) &= \frac{Y(j\omega)}{X(j\omega)} = \frac{1}{1 + j\omega RC} \end{aligned}

Write it as H(jω)=1/RC1/RC+jωH(j\omega) = \dfrac{1/RC}{1/RC + j\omega} and use the pair e−atu(t)↔1a+jωe^{-at}u(t) \leftrightarrow \dfrac{1}{a + j\omega} with a=1/RCa = 1/RC:

h(t)=1RC e−t/RC u(t)h(t) = \frac{1}{RC}\,e^{-t/RC}\,u(t)

(Physically: an impulse charges the capacitor instantly to 1/RC1/RC, which then discharges through RR with time constant RCRC.)

h(t)
1/RC|.
    | `.
    |   `-.
    |      `--.___
    +-------+-------`----> t
    0      RC

h(t)=0h(t) = 0 for t<0t < 0, so the filter is causal; ∫∣h∣ dt=1\int |h|\,dt = 1, so it is stable.

Magnitude and phase response

∣H(jω)∣=11+(ωRC)2,∠H(jω)=−tan⁡−1(ωRC)|H(j\omega)| = \frac{1}{\sqrt{1 + (\omega RC)^2}}, \qquad \angle H(j\omega) = -\tan^{-1}(\omega RC)
ω\omega∣H∣\lvert H\rvert∣H∣\lvert H\rvert (dB)∠H\angle H
0011000∘0^\circ
1/RC1/RC1/2=0.7071/\sqrt2 = 0.707−3-3−45∘-45^\circ
10/RC10/RC0.09950.0995−20-20−84.3∘-84.3^\circ
→∞\to\infty→0\to 0slope −20-20 dB/dec→−90∘\to -90^\circ
|H|                         angle H
 1 |----.                  0 |----.
   |     `.                   |     `.
.707|- - - -*                -45|- - - -*
   |         `-.              |         `-.___
   |             `---.    -90 |- - - - - - - -
   +------+-----------> w     +------+--------> w
        1/RC                       1/RC

The cutoff (half-power, −3-3 dB) frequency is ωc=1/RC\omega_c = 1/RC; the circuit is a first-order low-pass filter.

  • Asked 2 times
  • 2080 Asoj · 6 marks
  • 2079 Asoj · 8 marks

Find the convolution between the signals x(t) = 1 for −1 < t < 1, 0 otherwise and h(t) = 1 for −1 < t < 1, 0 otherwise.

Answer

y(t)=x(t)∗h(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = x(t) * h(t) = \displaystyle\int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau, with x(τ)=1x(\tau) = 1 for −1<τ<1-1 < \tau < 1, and h(t−τ)=1h(t - \tau) = 1 for −1<t−τ<1-1 < t - \tau < 1, i.e. t−1<τ<t+1t - 1 < \tau < t + 1.

The result is non-zero only where the two pulses overlap. Each has width 2, so the output extends from t=−2t = -2 to t=2t = 2.

       x(tau)            h(t-tau)
     _________        _________
    |         |      |         |
 ---+----+----+--  --+----+----+--> tau
   -1    0    1    t-1    t   t+1

Case 1: t<−2t < -2

t+1<−1t + 1 < -1: no overlap, y(t)=0y(t) = 0.

Case 2: −2≤t<0-2 \le t < 0 (partial overlap from left)

Overlap from τ=−1\tau = -1 to τ=t+1\tau = t + 1:

y(t)=∫−1t+11 dτ=t+2y(t) = \int_{-1}^{t+1} 1\,d\tau = t + 2

Case 3: 0≤t<20 \le t < 2 (partial overlap from right)

Overlap from τ=t−1\tau = t - 1 to τ=1\tau = 1:

y(t)=∫t−111 dτ=2−ty(t) = \int_{t-1}^{1} 1\,d\tau = 2 - t

Case 4: t≥2t \ge 2

t−1>1t - 1 > 1: no overlap, y(t)=0y(t) = 0.

Result

y(t)={t+2,−2≤t<02−t,0≤t<20,∣t∣≥2  =  (2−∣t∣) for ∣t∣<2y(t) = \begin{cases} t + 2, & -2 \le t < 0 \\ 2 - t, & 0 \le t < 2 \\ 0, & |t| \ge 2 \end{cases} \;=\; (2 - |t|)\ \text{for } |t| < 2
 y(t)
   2 |      /\
     |     /  \
   1 |    /    \
     |   /      \
  ---+--/---+----\---> t
      -2    0     2

Answer: a triangular pulse of height 2 at t=0t = 0, base from −2-2 to 22. Convolving two equal rectangles always gives a triangle whose width is the sum of the widths (2 + 2 = 4) and whose peak equals the area of overlap (2).

  • Asked 2 times
  • 2079 Chaitra · 2+5 marks
  • 2070 Bhadra · 2+3 marks

What are the properties of system? Determine whether the given system is time-variant or not. y(t) = sin[x(t)]

Answer

Properties of systems

  1. Memory: memoryless if y(t)y(t) depends only on x(t)x(t) at the same instant (e.g. y=2x(t)y = 2x(t)); otherwise has memory (e.g. y=x(t−1)y = x(t-1)).
  2. Causality: causal if y(t)y(t) depends only on present and past inputs.
  3. Linearity: satisfies superposition: ax1+bx2→ay1+by2a x_1 + b x_2 \to a y_1 + b y_2.
  4. Time invariance: x(t−t0)→y(t−t0)x(t - t_0) \to y(t - t_0).
  5. Stability (BIBO): every bounded input gives a bounded output.
  6. Invertibility: distinct inputs give distinct outputs, so an inverse system exists.

Is y(t)=sin⁡[x(t)]y(t) = \sin[x(t)] time-variant?

Let the input be delayed: x1(t)=x(t−t0)x_1(t) = x(t - t_0). The output for this input is

y1(t)=sin⁡[x1(t)]=sin⁡[x(t−t0)]y_1(t) = \sin[x_1(t)] = \sin[x(t - t_0)]

The original output delayed by t0t_0 is

y(t−t0)=sin⁡[x(t−t0)]y(t - t_0) = \sin[x(t - t_0)]

Since y1(t)=y(t−t0)y_1(t) = y(t - t_0), the system is time-invariant (not time-variant). The operation sin⁡[⋅]\sin[\cdot] does not depend on tt explicitly.

Other properties, for completeness:

PropertyResultReason
Time invarianceTime-invariantshown above
LinearityNon-linearsin⁡(x1+x2)≠sin⁡x1+sin⁡x2\sin(x_1 + x_2) \ne \sin x_1 + \sin x_2
MemoryMemorylessuses only x(t)x(t)
CausalityCausalno future input
StabilityStable∣y(t)∣≤1\lvert y(t)\rvert \le 1 for any input
InvertibilityNot invertiblexx and x+2πx + 2\pi give same yy
  • Asked 2 times
  • 2079 Chaitra · 4 marks
  • 2071 Magh · 4 marks

Describe bode plot with example.

Answer

A Bode plot is a pair of graphs of a system's frequency response H(jω)H(j\omega) against log⁡10ω\log_{10}\omega:

  • Magnitude plot: 20log⁡10∣H(jω)∣20\log_{10}|H(j\omega)| in dB,
  • Phase plot: ∠H(jω)\angle H(j\omega) in degrees.

Because a product of factors becomes a sum of dB values, the plot is drawn by adding simple straight-line (asymptotic) approximations of each factor.

Basic factors

FactorMagnitude (asymptote)Phase
Constant KK20log⁡K20\log K flat0∘0^\circ
Zero at origin jωj\omega+20+20 dB/dec, 0 dB at ω=1\omega=1+90∘+90^\circ
Pole at origin 1/jω1/j\omega−20-20 dB/dec−90∘-90^\circ
Simple pole 11+jω/a\frac{1}{1 + j\omega/a}0 dB up to aa, then −20-20 dB/dec0∘→−90∘0^\circ \to -90^\circ, −45∘-45^\circ at aa
Simple zero 1+jω/a1 + j\omega/a0 dB up to aa, then +20+20 dB/dec0∘→+90∘0^\circ \to +90^\circ

The frequency aa is the corner (break) frequency; the true curve is 3 dB from the asymptote there.

Example

H(jω)=101+jω/10H(j\omega) = \frac{10}{1 + j\omega/10}
  • K=10⇒20log⁡10=20K = 10 \Rightarrow 20\log 10 = 20 dB.
  • Pole at ω=10\omega = 10 rad/s.

Magnitude: 20 dB flat up to 10 rad/s, then falls at −20-20 dB/dec: 0 dB at 100 rad/s, −20-20 dB at 1000 rad/s. Actual value at ω=10\omega = 10: 20−3=1720 - 3 = 17 dB.

Phase: −tan⁡−1(ω/10)-\tan^{-1}(\omega/10): about 0∘0^\circ at 1, −45∘-45^\circ at 10, about −90∘-90^\circ at 100 rad/s.

dB
 20 |--------.
    |         \   -20 dB/dec
  0 +----------\--------------> w (log)
    1     10   100   1000
deg
  0 |----.
-45 |     `--.
-90 |         `-------------> w (log)
    1     10   100

Uses

  • Shows bandwidth, cutoff frequency and filter type at a glance.
  • Gives gain margin and phase margin for stability of feedback systems.
  • Quick to sketch by hand, covering a wide frequency range.
  • 2082 Chaitra · 2+4 marks

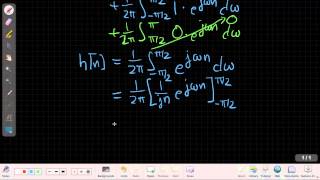

Define frequency response of the discrete LTI system. Derive formula to calculate the impulse response of continuous time ideal low pass filter.

Answer

Frequency response of a discrete-time LTI system

The frequency response H(ejΩ)H(e^{j\Omega}) of a discrete-time LTI system is the DTFT of its impulse response h[n]h[n]:

H(ejΩ)=∑n=−∞∞h[n] e−jΩnH(e^{j\Omega}) = \sum_{n=-\infty}^{\infty} h[n]\,e^{-j\Omega n}

If x[n]=ejΩnx[n] = e^{j\Omega n}, then y[n]=H(ejΩ) ejΩny[n] = H(e^{j\Omega})\,e^{j\Omega n}, so H(ejΩ)H(e^{j\Omega}) gives the gain ∣H∣|H| and phase shift ∠H\angle H at each frequency. Also Y(ejΩ)=H(ejΩ)X(ejΩ)Y(e^{j\Omega}) = H(e^{j\Omega})X(e^{j\Omega}). It is always periodic in Ω\Omega with period 2π2\pi.

Example: h[n]=anu[n]h[n] = a^n u[n], ∣a∣<1|a| < 1 gives H(ejΩ)=11−ae−jΩH(e^{j\Omega}) = \dfrac{1}{1 - a e^{-j\Omega}}.

Impulse response of the CT ideal low-pass filter

The ideal low-pass filter passes all frequencies below the cutoff ωc\omega_c with unit gain and rejects all others:

H(jω)={1,∣ω∣≤ωc0,∣ω∣>ωcH(j\omega) = \begin{cases} 1, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

The impulse response is the inverse Fourier transform of H(jω)H(j\omega):

h(t)=12π∫−∞∞H(jω)ejωt dω=12π∫−ωcωcejωt dω=12π⋅ejωct−e−jωctjt=12π⋅2jsin⁡ωctjt=sin⁡ωctπt=ωcπ sinc ⁣(ωctπ)\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(j\omega)e^{j\omega t}\,d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega t}\,d\omega \\ &= \frac{1}{2\pi}\cdot\frac{e^{j\omega_c t} - e^{-j\omega_c t}}{jt} = \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c t}{jt} \\ &= \frac{\sin\omega_c t}{\pi t} = \frac{\omega_c}{\pi}\,\text{sinc}\!\left(\frac{\omega_c t}{\pi}\right) \end{aligned}
 H(jw)                     h(t)
   1 ______                    wc/pi
    |      |                    /\
    |      |           _  _    /  \    _  _
----+------+--> w    -' '-' '-/----\-' '-' '-> t
  -wc  0   wc               -pi/wc pi/wc
  • Peak value h(0)=ωc/πh(0) = \omega_c/\pi; zeros at t=kπ/ωct = k\pi/\omega_c, k≠0k \ne 0.
  • h(t)≠0h(t) \ne 0 for t<0t < 0, so the ideal LPF is non-causal and cannot be built exactly.
  • 2079 Jestha · 2+8 marks

What is an LTI system? Find the output of the LTI system with impulse response h(t) = e^(−2t)u(t) when the input to the system is x(t) = 1 for |t| < 5; 0 otherwise.

Answer

LTI system

An LTI system is a system that is both linear (obeys superposition) and time-invariant (a shift in input gives the same shift in output). It is fully described by its impulse response h(t)h(t), and the output for any input is the convolution y(t)=x(t)∗h(t)y(t) = x(t) * h(t).

Output for h(t)=e−2tu(t)h(t) = e^{-2t}u(t), x(t)=1x(t) = 1 for ∣t∣<5|t| < 5

y(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau
  • x(τ)=1x(\tau) = 1 for −5<τ<5-5 < \tau < 5.
  • h(t−τ)=e−2(t−τ)h(t - \tau) = e^{-2(t-\tau)} for t−τ>0t - \tau > 0, i.e. τ<t\tau < t.

So the integrand is non-zero for −5<τ<min⁡(t,5)-5 < \tau < \min(t, 5).

   x(tau)                  h(t-tau)
    ___________          .-'|
   |           |     .-'    |
 --+-----+-----+--.--------+---> tau
  -5     0     5           t

Case 1: t<−5t < -5. No overlap.

y(t)=0y(t) = 0

Case 2: −5≤t<5-5 \le t < 5. Overlap from −5-5 to tt.

y(t)=∫−5te−2(t−τ) dτ=e−2t[e2τ2]−5t=e−2t2(e2t−e−10)=12(1−e−2(t+5))\begin{aligned} y(t) &= \int_{-5}^{t} e^{-2(t-\tau)}\,d\tau = e^{-2t}\left[\frac{e^{2\tau}}{2}\right]_{-5}^{t} \\ &= \frac{e^{-2t}}{2}\left(e^{2t} - e^{-10}\right) = \frac{1}{2}\left(1 - e^{-2(t+5)}\right) \end{aligned}

Case 3: t≥5t \ge 5. Overlap from −5-5 to 55.

y(t)=∫−55e−2(t−τ) dτ=e−2t2(e10−e−10)=12(e−2(t−5)−e−2(t+5))\begin{aligned} y(t) &= \int_{-5}^{5} e^{-2(t-\tau)}\,d\tau = \frac{e^{-2t}}{2}\left(e^{10} - e^{-10}\right) \\ &= \frac{1}{2}\left(e^{-2(t-5)} - e^{-2(t+5)}\right) \end{aligned}

Result

y(t)={0,t<−512(1−e−2(t+5)),−5≤t<512(e−2(t−5)−e−2(t+5)),t≥5y(t) = \begin{cases} 0, & t < -5 \\[2pt] \dfrac12\left(1 - e^{-2(t+5)}\right), & -5 \le t < 5 \\[6pt] \dfrac12\left(e^{-2(t-5)} - e^{-2(t+5)}\right), & t \ge 5 \end{cases}
 y(t)
 0.5 |      .------------.
     |    /               \
     |   /                  `.
  ---+--/--------+-----------+-`---___--> t
       -5        0           5

Checks: y(−5)=0y(-5) = 0; at t=5t = 5 both pieces give 12(1−e−20)≈0.5\tfrac12(1 - e^{-20}) \approx 0.5 (continuous); y→0y \to 0 as t→∞t \to \infty. Physically, the output rises toward 0.5 with time constant 0.5 s while the input is on, then decays after t=5t = 5.

  • 2079 Jestha · 7 marks

Show that ideal low pass filter is not practically realizable.

Answer

The ideal low-pass filter passes all frequencies below the cutoff ωc\omega_c with unit gain and rejects all others:

H(jω)={1,∣ω∣≤ωc0,∣ω∣>ωcH(j\omega) = \begin{cases} 1, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

A physically realizable system must be causal: for an LTI system this means h(t)=0h(t) = 0 for t<0t < 0.

Step 1: Impulse response

The impulse response is the inverse Fourier transform of H(jω)H(j\omega):

h(t)=12π∫−∞∞H(jω)ejωt dω=12π∫−ωcωcejωt dω=12π⋅ejωct−e−jωctjt=12π⋅2jsin⁡ωctjt=sin⁡ωctπt=ωcπ sinc ⁣(ωctπ)\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(j\omega)e^{j\omega t}\,d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega t}\,d\omega \\ &= \frac{1}{2\pi}\cdot\frac{e^{j\omega_c t} - e^{-j\omega_c t}}{jt} = \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c t}{jt} \\ &= \frac{\sin\omega_c t}{\pi t} = \frac{\omega_c}{\pi}\,\text{sinc}\!\left(\frac{\omega_c t}{\pi}\right) \end{aligned}
 H(jw)                     h(t)
   1 ______                    wc/pi
    |      |                    /\
    |      |           _  _    /  \    _  _
----+------+--> w    -' '-' '-/----\-' '-' '-> t
  -wc  0   wc               -pi/wc pi/wc

Step 2: Check causality

h(t)h(t) is an even sinc function. It has its peak ωc/π\omega_c/\pi at t=0t = 0 and oscillating tails on both sides, extending to t=−∞t = -\infty. For example, at t=−π/(2ωc)t = -\pi/(2\omega_c):

h ⁣(−π2ωc)=sin⁡(−π/2)π(−π/2ωc)=2ωcπ2≠0h\!\left(-\frac{\pi}{2\omega_c}\right) = \frac{\sin(-\pi/2)}{\pi(-\pi/2\omega_c)} = \frac{2\omega_c}{\pi^2} \neq 0

So h(t)≠0h(t) \ne 0 for t<0t < 0: the filter must produce output before the impulse is applied at t=0t = 0.

Step 3: Delay does not help

With linear phase, H(jω)=e−jωt0H(j\omega) = e^{-j\omega t_0} for ∣ω∣<ωc|\omega| < \omega_c, giving

h(t)=sin⁡ωc(t−t0)π(t−t0)h(t) = \frac{\sin\omega_c(t - t_0)}{\pi(t - t_0)}

This is centred at t0t_0, but its tail still extends to −∞-\infty, so h(t)≠0h(t) \ne 0 for some t<0t < 0 for every finite t0t_0.

Step 4: Paley–Wiener criterion

A causal filter with magnitude ∣H(jω)∣|H(j\omega)| must satisfy

∫−∞∞∣ln⁡∣H(jω)∣∣1+ω2 dω<∞\int_{-\infty}^{\infty}\frac{\big|\ln|H(j\omega)|\big|}{1 + \omega^2}\,d\omega < \infty

For the ideal LPF, ∣H∣=0|H| = 0 over the whole stopband, so ∣ln⁡∣H∣∣=∞|\ln|H|| = \infty there and the integral diverges. A causal filter can have zero gain only at isolated frequencies, never over a band.

Hence the ideal low-pass filter is non-causal and not physically realizable. Practical filters such as Butterworth and Chebyshev only approximate it, accepting a finite transition band, some passband ripple or stopband leakage, and a non-linear phase.

  • 2078 Baisakh · 6 marks

What do you mean by impulse response of a LTI system? Derive formula to calculate impulse response of continuous time ideal low pass filter.

Answer

Impulse response of an LTI system

The impulse response h(t)h(t) of an LTI system is its output when the input is the unit impulse δ(t)\delta(t) and the system is initially at rest:

δ(t)  →  h(t)\delta(t) \;\to\; h(t)

Because any input can be written as x(t)=∫x(τ)δ(t−τ)dτx(t) = \int x(\tau)\delta(t-\tau)d\tau, linearity and time invariance give y(t)=∫x(τ)h(t−τ)dτ=x(t)∗h(t)y(t) = \int x(\tau)h(t-\tau)d\tau = x(t)*h(t). So h(t)h(t) completely characterises an LTI system: causality (h(t)=0h(t) = 0 for t<0t<0), stability (∫∣h∣ dt<∞\int|h|\,dt < \infty) and frequency response (H(jω)=F{h(t)}H(j\omega) = \mathcal{F}\{h(t)\}) can all be read from it.

Impulse response of the CT ideal low-pass filter

The ideal low-pass filter passes all frequencies below the cutoff ωc\omega_c with unit gain and rejects all others:

H(jω)={1,∣ω∣≤ωc0,∣ω∣>ωcH(j\omega) = \begin{cases} 1, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

The impulse response is the inverse Fourier transform of H(jω)H(j\omega):

h(t)=12π∫−∞∞H(jω)ejωt dω=12π∫−ωcωcejωt dω=12π⋅ejωct−e−jωctjt=12π⋅2jsin⁡ωctjt=sin⁡ωctπt=ωcπ sinc ⁣(ωctπ)\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(j\omega)e^{j\omega t}\,d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega t}\,d\omega \\ &= \frac{1}{2\pi}\cdot\frac{e^{j\omega_c t} - e^{-j\omega_c t}}{jt} = \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c t}{jt} \\ &= \frac{\sin\omega_c t}{\pi t} = \frac{\omega_c}{\pi}\,\text{sinc}\!\left(\frac{\omega_c t}{\pi}\right) \end{aligned}
 H(jw)                     h(t)
   1 ______                    wc/pi
    |      |                    /\
    |      |           _  _    /  \    _  _
----+------+--> w    -' '-' '-/----\-' '-' '-> t
  -wc  0   wc               -pi/wc pi/wc
  • h(0)=ωc/πh(0) = \omega_c/\pi; zero crossings at t=kπ/ωct = k\pi/\omega_c (k=±1,±2,…k = \pm1, \pm2, \dots).
  • Width of the main lobe 2π/ωc2\pi/\omega_c shrinks as bandwidth ωc\omega_c grows.
  • h(t)h(t) exists for t<0t < 0, so the ideal LPF is non-causal and not realizable; it is also of infinite duration.
  • 2078 Baisakh · 3 marks

State and prove commutative property of continuous time LTI system.

Answer

Statement: Convolution of continuous-time signals is commutative:

x(t)∗h(t)=h(t)∗x(t)x(t) * h(t) = h(t) * x(t)

For LTI systems, this means the output is the same whether the input is x(t)x(t) applied to a system with impulse response h(t)h(t), or h(t)h(t) applied to a system with impulse response x(t)x(t).

Proof:

x(t)∗h(t)=∫−∞∞x(τ) h(t−τ) dτx(t) * h(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t - \tau)\,d\tau

Substitute λ=t−τ\lambda = t - \tau, so τ=t−λ\tau = t - \lambda and dτ=−dλd\tau = -d\lambda. When τ→−∞\tau \to -\infty, λ→∞\lambda \to \infty; when τ→∞\tau \to \infty, λ→−∞\lambda \to -\infty:

x(t)∗h(t)=∫∞−∞x(t−λ) h(λ) (−dλ)=∫−∞∞h(λ) x(t−λ) dλ=h(t)∗x(t)\begin{aligned} x(t) * h(t) &= \int_{\infty}^{-\infty} x(t - \lambda)\,h(\lambda)\,(-d\lambda) \\ &= \int_{-\infty}^{\infty} h(\lambda)\,x(t - \lambda)\,d\lambda = h(t) * x(t) \end{aligned}

■\blacksquare

x(t) --> [ h(t) ] --> y(t)   ==   h(t) --> [ x(t) ] --> y(t)

Use: we can flip whichever signal is simpler when evaluating the integral; and for cascaded LTI systems, the order of the systems can be swapped.

  • 2078 Baisakh · 5 marks

Explain invertibility of LTI system and derive the necessary condition for two LTI systems to become inverse of each other.

Answer

A system is invertible if distinct inputs produce distinct outputs, so that the input can be recovered from the output. The system that recovers it is the inverse system.

x(t) --> [ h(t) ] --w(t)--> [ h1(t) ] --> y(t) = x(t)

Condition for LTI systems

Let the system have impulse response h(t)h(t) and the inverse system h1(t)h_1(t). The cascade is an LTI system with impulse response h(t)∗h1(t)h(t) * h_1(t). For the cascade to be the identity system (y(t)=x(t)y(t) = x(t) for every xx):

y(t)=x(t)∗[h(t)∗h1(t)]=x(t)⇒  h(t)∗h1(t)=δ(t)\begin{aligned} y(t) &= x(t) * \big[h(t) * h_1(t)\big] = x(t) \\ \Rightarrow\; h(t) * h_1(t) &= \delta(t) \end{aligned}

because x(t)∗δ(t)=x(t)x(t) * \delta(t) = x(t) is the only identity for convolution.

In the frequency domain (convolution property):

H(jω) H1(jω)=1  ⇒  H1(jω)=1H(jω)H(j\omega)\,H_1(j\omega) = 1 \;\Rightarrow\; H_1(j\omega) = \frac{1}{H(j\omega)}

So an LTI system is invertible only if H(jω)≠0H(j\omega) \ne 0 at all frequencies (no information destroyed). Similarly, in discrete time: h[n]∗h1[n]=δ[n]h[n] * h_1[n] = \delta[n].

Examples

  1. Delay: h(t)=δ(t−t0)h(t) = \delta(t - t_0). Inverse: h1(t)=δ(t+t0)h_1(t) = \delta(t + t_0), since δ(t−t0)∗δ(t+t0)=δ(t)\delta(t - t_0) * \delta(t + t_0) = \delta(t).
  2. Accumulator: y[n]=∑k=−∞nx[k]y[n] = \sum_{k=-\infty}^{n} x[k], h[n]=u[n]h[n] = u[n]. Inverse: first difference y[n]=x[n]−x[n−1]y[n] = x[n] - x[n-1], h1[n]=δ[n]−δ[n−1]h_1[n] = \delta[n] - \delta[n-1]. Check: u[n]−u[n−1]=δ[n]u[n] - u[n-1] = \delta[n].
  3. Not invertible: y(t)=0y(t) = 0, or an ideal LPF (H=0H = 0 in stopband; those frequencies are lost).
  • 2078 Poush · 3 marks

Elaborate the physical meaning of convolution integral using suitable example.

Answer

The convolution integral

y(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau

says that the output of an LTI system at time tt is the sum of the responses to all past (and present) input values, each weighted by how strongly the system still "remembers" it.

Physical meaning:

  • The input is thought of as a chain of very narrow impulses; the impulse at time τ\tau has strength x(τ) dτx(\tau)\,d\tau.
  • Each impulse produces its own response h(t−τ)h(t-\tau), which starts at τ\tau and dies out according to the system's memory.
  • The output is the superposition (linearity) of these shifted copies (time invariance).
  • h(t−τ)h(t - \tau) acts as a weighting function: hh of a large age t−τt - \tau is small for a system with short memory.

Example – RC circuit charging: h(t)=1RCe−t/RCu(t)h(t) = \frac{1}{RC}e^{-t/RC}u(t). The capacitor voltage now is

y(t)=∫−∞tx(τ)1RCe−(t−τ)/RC dτy(t) = \int_{-\infty}^{t} x(\tau)\frac{1}{RC}e^{-(t-\tau)/RC}\,d\tau

Recent inputs (small t−τt - \tau) count almost fully; inputs older than about 5RC5RC have almost no effect, because that charge has leaked away. Another everyday example is an echo in a hall: what you hear is the present sound plus fading copies of earlier sounds.

  • 2078 Poush · 6+6 marks

Derive convolution sum. Prove that an ideal low-pass filter is a non-causal system.

Answer

Derivation of the convolution sum

Any discrete-time signal can be written as a sum of shifted, scaled unit impulses (sifting property):

x[n]=∑k=−∞∞x[k] δ[n−k]x[n] = \sum_{k=-\infty}^{\infty} x[k]\,\delta[n-k]

e.g. x[n]={2,3}x[n] = \{2, 3\} (starting at n=0n=0) is 2δ[n]+3δ[n−1]2\delta[n] + 3\delta[n-1].

Let the system be LTI with impulse response h[n]h[n], i.e. δ[n]→h[n]\delta[n] \to h[n].

  1. Time invariance: δ[n−k]→h[n−k]\delta[n-k] \to h[n-k].
  2. Scaling (homogeneity): x[k] δ[n−k]→x[k] h[n−k]x[k]\,\delta[n-k] \to x[k]\,h[n-k] (x[k]x[k] is just a number for fixed kk).
  3. Additivity: sum over all kk:
y[n]=∑k=−∞∞x[k] h[n−k]=x[n]∗h[n]y[n] = \sum_{k=-\infty}^{\infty} x[k]\,h[n-k] = x[n] * h[n]

This is the convolution sum. By substituting m=n−km = n - k, y[n]=∑mh[m]x[n−m]y[n] = \sum_m h[m]x[n-m] (commutative).

Procedure: fold h[k]h[k] to h[−k]h[-k], shift by nn, multiply with x[k]x[k], add the products; repeat for each nn.

Example: x[n]={1,2}x[n] = \{1, 2\}, h[n]={1,1}h[n] = \{1, 1\} (both starting at 0): y[0]=1y[0] = 1, y[1]=1⋅1+2⋅1=3y[1] = 1\cdot1 + 2\cdot1 = 3, y[2]=2y[2] = 2, so y[n]={1,3,2}y[n] = \{1, 3, 2\}.

Ideal LPF is non-causal

The ideal low-pass filter passes all frequencies below the cutoff ωc\omega_c with unit gain and rejects all others:

H(jω)={1,∣ω∣≤ωc0,∣ω∣>ωcH(j\omega) = \begin{cases} 1, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

Impulse response: The impulse response is the inverse Fourier transform of H(jω)H(j\omega):

h(t)=12π∫−∞∞H(jω)ejωt dω=12π∫−ωcωcejωt dω=12π⋅ejωct−e−jωctjt=12π⋅2jsin⁡ωctjt=sin⁡ωctπt=ωcπ sinc ⁣(ωctπ)\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(j\omega)e^{j\omega t}\,d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega t}\,d\omega \\ &= \frac{1}{2\pi}\cdot\frac{e^{j\omega_c t} - e^{-j\omega_c t}}{jt} = \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c t}{jt} \\ &= \frac{\sin\omega_c t}{\pi t} = \frac{\omega_c}{\pi}\,\text{sinc}\!\left(\frac{\omega_c t}{\pi}\right) \end{aligned}
 H(jw)                     h(t)
   1 ______                    wc/pi
    |      |                    /\
    |      |           _  _    /  \    _  _
----+------+--> w    -' '-' '-/----\-' '-' '-> t
  -wc  0   wc               -pi/wc pi/wc

Causality test: an LTI system is causal if and only if h(t)=0h(t) = 0 for t<0t < 0 (the output cannot depend on future input, since y(t)=∫h(τ)x(t−τ)dτy(t) = \int h(\tau)x(t - \tau)d\tau uses xx at t−τ>tt - \tau > t whenever h(τ)≠0h(\tau) \ne 0 for τ<0\tau < 0).

For the ideal LPF, h(t)=sin⁡ωctπth(t) = \dfrac{\sin\omega_c t}{\pi t} is an even function, non-zero on both sides of t=0t = 0. For example,

h ⁣(−π2ωc)=2ωcπ2≠0h\!\left(-\frac{\pi}{2\omega_c}\right) = \frac{2\omega_c}{\pi^2} \ne 0

So h(t)≠0h(t) \ne 0 for t<0t < 0 and the ideal LPF is non-causal. Even with a delay t0t_0, h(t)=sin⁡ωc(t−t0)π(t−t0)h(t) = \dfrac{\sin\omega_c(t-t_0)}{\pi(t-t_0)} still has a tail reaching t=−∞t = -\infty, so no finite delay makes it causal. (The discrete-time ideal LPF, h[n]=sin⁡Ωcnπnh[n] = \dfrac{\sin\Omega_c n}{\pi n}, is non-causal for the same reason.) Hence it cannot be realized in real time.

  • 2077 Chaitra · 2+3 marks

What do you mean by causal and non causal systems? Derive the condition for a continuous time LTI system to be causal.

Answer

Causal and non-causal systems

  • A causal system is one whose output at any time depends only on the present and past values of the input, not on future values. Example: y(t)=x(t)+2x(t−1)y(t) = x(t) + 2x(t-1). All physical real-time systems are causal.
  • A non-causal system's output depends on future input values as well. Example: y(t)=x(t+1)y(t) = x(t+1), y(t)=x(−t)y(t) = x(-t). Such systems can be used only on stored (recorded) data, e.g. image processing.

Condition for a CT LTI system to be causal

For an LTI system,

y(t)=∫−∞∞h(τ) x(t−τ) dτy(t) = \int_{-\infty}^{\infty} h(\tau)\,x(t-\tau)\,d\tau

Split the integral at τ=0\tau = 0:

y(t)=∫0∞h(τ) x(t−τ) dτ⏟uses x at times≤t+∫−∞0h(τ) x(t−τ) dτ⏟uses x at times>ty(t) = \underbrace{\int_{0}^{\infty} h(\tau)\,x(t-\tau)\,d\tau}_{\text{uses } x \text{ at times} \le t} + \underbrace{\int_{-\infty}^{0} h(\tau)\,x(t-\tau)\,d\tau}_{\text{uses } x \text{ at times} > t}

The second integral uses future inputs x(t−τ)x(t - \tau) with t−τ>tt - \tau > t. For y(t)y(t) to be independent of every future input, this term must vanish for all xx, which requires

h(t)=0for t<0h(t) = 0 \quad \text{for } t < 0

Then

y(t)=∫0∞h(τ) x(t−τ) dτ=∫−∞tx(τ) h(t−τ) dτy(t) = \int_{0}^{\infty} h(\tau)\,x(t-\tau)\,d\tau = \int_{-\infty}^{t} x(\tau)\,h(t-\tau)\,d\tau

Condition: a CT LTI system is causal if and only if its impulse response h(t)=0h(t) = 0 for t<0t < 0. (Physically, the system cannot respond before the impulse is applied at t=0t = 0.)

Examples: h(t)=e−2tu(t)h(t) = e^{-2t}u(t) is causal; h(t)=e−2∣t∣h(t) = e^{-2|t|} or h(t)=sin⁡(ωct)/πth(t) = \sin(\omega_c t)/\pi t is non-causal.

  • 2077 Chaitra · 3+3 marks

Prove, with necessary derivations, that an ideal low pass filter is not physically realizable. Also derive the expression for step response of ideal low pass filter.

Answer

Ideal LPF is not physically realizable

The ideal low-pass filter passes all frequencies below the cutoff ωc\omega_c with unit gain and rejects all others:

H(jω)={1,∣ω∣≤ωc0,∣ω∣>ωcH(j\omega) = \begin{cases} 1, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

Its impulse response is the inverse Fourier transform: The impulse response is the inverse Fourier transform of H(jω)H(j\omega):

h(t)=12π∫−∞∞H(jω)ejωt dω=12π∫−ωcωcejωt dω=12π⋅ejωct−e−jωctjt=12π⋅2jsin⁡ωctjt=sin⁡ωctπt=ωcπ sinc ⁣(ωctπ)\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(j\omega)e^{j\omega t}\,d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega t}\,d\omega \\ &= \frac{1}{2\pi}\cdot\frac{e^{j\omega_c t} - e^{-j\omega_c t}}{jt} = \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c t}{jt} \\ &= \frac{\sin\omega_c t}{\pi t} = \frac{\omega_c}{\pi}\,\text{sinc}\!\left(\frac{\omega_c t}{\pi}\right) \end{aligned}

A realizable (causal) LTI system needs h(t)=0h(t) = 0 for t<0t < 0. Here h(t)h(t) is an even sinc, non-zero on both sides; e.g. h(−π/2ωc)=2ωc/π2≠0h(-\pi/2\omega_c) = 2\omega_c/\pi^2 \ne 0. It responds before the impulse arrives, so it is non-causal. Adding delay t0t_0 gives sin⁡ωc(t−t0)π(t−t0)\dfrac{\sin\omega_c(t-t_0)}{\pi(t-t_0)}, still non-zero for t<0t < 0. Also, ∣H∣=0|H| = 0 over a whole band violates the Paley–Wiener condition ∫∣ln⁡∣H(jω)∣∣1+ω2dω<∞\int \frac{|\ln|H(j\omega)||}{1+\omega^2}d\omega < \infty. Hence it is not physically realizable.

Step response of the ideal LPF

The step response is the running integral of h(t)h(t):

s(t)=∫−∞th(τ) dτ=∫−∞tsin⁡ωcτπτ dτ=∫−∞0sin⁡ωcτπτ dτ+∫0tsin⁡ωcτπτ dτ\begin{aligned} s(t) &= \int_{-\infty}^{t} h(\tau)\,d\tau = \int_{-\infty}^{t}\frac{\sin\omega_c\tau}{\pi\tau}\,d\tau \\ &= \int_{-\infty}^{0}\frac{\sin\omega_c\tau}{\pi\tau}\,d\tau + \int_{0}^{t}\frac{\sin\omega_c\tau}{\pi\tau}\,d\tau \end{aligned}

Using ∫0∞sin⁡ωcττdτ=π2\int_0^\infty \frac{\sin\omega_c\tau}{\tau}d\tau = \frac{\pi}{2}, the first integral is 1π⋅π2=12\frac{1}{\pi}\cdot\frac{\pi}{2} = \frac12. In the second, put x=ωcτx = \omega_c\tau:

s(t)=12+1π∫0ωctsin⁡xx dx=12+1π Si(ωct)s(t) = \frac12 + \frac{1}{\pi}\int_0^{\omega_c t}\frac{\sin x}{x}\,dx = \frac12 + \frac{1}{\pi}\,\text{Si}(\omega_c t)

where Si(z)=∫0zsin⁡xxdx\text{Si}(z) = \int_0^z \frac{\sin x}{x}dx is the sine integral.

 s(t)        overshoot ~9%
  1  |          _/\_ _
     |         /     ' '-----
 0.5 |- - - - /
     |  _    /
  0  +-' '--/---------------> t
           0   pi/wc
  • s(0)=0.5s(0) = 0.5; s(−∞)=0s(-\infty) = 0; s(∞)=1s(\infty) = 1.
  • Maximum at t=π/ωct = \pi/\omega_c: s=0.5+Si(π)/π≈1.09s = 0.5 + \text{Si}(\pi)/\pi \approx 1.09 (about 9% overshoot, Gibbs phenomenon).
  • The response starts before t=0t = 0 (non-causal) and rises from 0 to 1 in a time of order π/ωc\pi/\omega_c.
  • 2077 Chaitra · 5 marks

Consider a continuous time system with input x(t) and output y(t) related by y(t) = x(t−2) + x(2−t). Is the system Linear Time invariant? Explain.

Answer

Given y(t)=x(t−2)+x(2−t)y(t) = x(t-2) + x(2-t). Check linearity and time invariance separately.

Linearity

Let x1(t)→y1(t)=x1(t−2)+x1(2−t)x_1(t) \to y_1(t) = x_1(t-2) + x_1(2-t) and x2(t)→y2(t)=x2(t−2)+x2(2−t)x_2(t) \to y_2(t) = x_2(t-2) + x_2(2-t).

For x3(t)=ax1(t)+bx2(t)x_3(t) = a x_1(t) + b x_2(t):

y3(t)=x3(t−2)+x3(2−t)=ax1(t−2)+bx2(t−2)+ax1(2−t)+bx2(2−t)=a[x1(t−2)+x1(2−t)]+b[x2(t−2)+x2(2−t)]=ay1(t)+by2(t)\begin{aligned} y_3(t) &= x_3(t-2) + x_3(2-t) \\ &= a x_1(t-2) + b x_2(t-2) + a x_1(2-t) + b x_2(2-t) \\ &= a\big[x_1(t-2) + x_1(2-t)\big] + b\big[x_2(t-2) + x_2(2-t)\big] \\ &= a y_1(t) + b y_2(t) \end{aligned}

Superposition holds, so the system is linear.

Time invariance

Apply a delayed input x1(t)=x(t−t0)x_1(t) = x(t - t_0). The output is obtained by replacing x(⋅)x(\cdot) with x(⋅−t0)x(\cdot - t_0):

y1(t)=x1(t−2)+x1(2−t)=x(t−2−t0)+x(2−t−t0)y_1(t) = x_1(t-2) + x_1(2-t) = x(t - 2 - t_0) + x(2 - t - t_0)

Now delay the original output by t0t_0 (replace tt by t−t0t - t_0):

y(t−t0)=x(t−t0−2)+x(2−t+t0)y(t - t_0) = x(t - t_0 - 2) + x(2 - t + t_0)

The first terms match, but the second terms differ: x(2−t−t0)≠x(2−t+t0)x(2 - t - t_0) \ne x(2 - t + t_0). So y1(t)≠y(t−t0)y_1(t) \ne y(t - t_0) and the system is time-variant.

Counter-example: let x(t)=δ(t)x(t) = \delta(t). Then y(t)=δ(t−2)+δ(2−t)=2δ(t−2)y(t) = \delta(t-2) + \delta(2-t) = 2\delta(t-2). For x(t)=δ(t−1)x(t) = \delta(t-1): y(t)=δ(t−3)+δ(1−t)=δ(t−3)+δ(t−1)y(t) = \delta(t-3) + \delta(1-t) = \delta(t-3) + \delta(t-1), which is not y(t−1)=2δ(t−3)y(t-1) = 2\delta(t-3).

The cause is the time-reversal term x(2−t)x(2 - t): a delay of the input moves this part of the output earlier, not later.

Answer: the system is linear but time-variant, so it is not an LTI system. (It is also non-causal: y(0)=x(−2)+x(2)y(0) = x(-2) + x(2) needs a future input.)

  • 2076 Baisakh · 3 marks

Write a short note on LTI system.

Answer

A linear time-invariant (LTI) system is a system that satisfies both:

  • Linearity (superposition): ax1(t)+bx2(t)→ay1(t)+by2(t)a x_1(t) + b x_2(t) \to a y_1(t) + b y_2(t).
  • Time invariance: x(t−t0)→y(t−t0)x(t - t_0) \to y(t - t_0).

Key results:

  • An LTI system is completely described by its impulse response h(t)h(t) (or h[n]h[n]). The output for any input is the convolution
y(t)=x(t)∗h(t)=∫−∞∞x(τ)h(t−τ) dτ,y[n]=∑kx[k]h[n−k]y(t) = x(t) * h(t) = \int_{-\infty}^{\infty} x(\tau)h(t-\tau)\,d\tau, \qquad y[n] = \sum_k x[k]h[n-k]
  • In frequency domain, Y(jω)=H(jω)X(jω)Y(j\omega) = H(j\omega)X(j\omega); complex exponentials are eigenfunctions.
  • Causal iff h(t)=0h(t) = 0 for t<0t < 0. BIBO stable iff ∫∣h(t)∣ dt<∞\int |h(t)|\,dt < \infty.
  • Cascade: h1∗h2h_1 * h_2 (order can be swapped). Parallel: h1+h2h_1 + h_2.
  • Described by linear constant-coefficient differential/difference equations.

Examples: RC circuit, ideal delay, moving-average filter y[n]=12(x[n]+x[n−1])y[n] = \frac12(x[n] + x[n-1]).

  • 2076 Baisakh · 3 marks

Write a short note on Bode plot.

Answer

A Bode plot is a pair of graphs of a system's frequency response H(jω)H(j\omega) against log⁡10ω\log_{10}\omega:

  • Magnitude plot: 20log⁡10∣H(jω)∣20\log_{10}|H(j\omega)| in dB,
  • Phase plot: ∠H(jω)\angle H(j\omega) in degrees.

Because a product of factors becomes a sum of dB values, the plot is drawn by adding simple straight-line (asymptotic) approximations of each factor.

Rules for sketching:

  • A constant KK adds 20log⁡K20\log K dB.
  • Each pole at the origin adds −20-20 dB/decade and −90∘-90^\circ; each zero at the origin +20+20 dB/dec and +90∘+90^\circ.
  • A simple pole 1/(1+jω/a)1/(1 + j\omega/a): 0 dB up to the corner frequency aa, then −20-20 dB/dec; phase goes from 0∘0^\circ to −90∘-90^\circ (−45∘-45^\circ at aa). The true curve is 3 dB below the corner.

Example: H(jω)=11+jωRCH(j\omega) = \dfrac{1}{1 + j\omega RC} (RC LPF): flat 0 dB up to ω=1/RC\omega = 1/RC, then −20-20 dB/dec.

Uses: read bandwidth and filter type, and find gain and phase margins for stability of control systems.

  • 2076 Bhadra · 5+6 marks

Derive formula to calculate convolution integral for continuous time LTI system. Find convolution between following continuous time signals x(t) = e^(−t)u(t) and y(t) = e^(−2t)u(t−3)

Answer

Derivation of the convolution integral

The convolution integral gives the output y(t)y(t) of a continuous-time LTI system for any input x(t)x(t), once the impulse response h(t)h(t) is known.

Step 1 – Represent the input by impulses (sifting property):

x(t)=∫−∞∞x(τ) δ(t−τ) dτx(t) = \int_{-\infty}^{\infty} x(\tau)\,\delta(t-\tau)\,d\tau

So x(t)x(t) is a continuous sum of shifted impulses δ(t−τ)\delta(t-\tau), each weighted by x(τ) dτx(\tau)\,d\tau.

Step 2 – Response to one impulse: by definition, δ(t)→h(t)\delta(t) \rightarrow h(t).

Step 3 – Time invariance: δ(t−τ)→h(t−τ)\delta(t-\tau) \rightarrow h(t-\tau).

Step 4 – Linearity (homogeneity): x(τ) δ(t−τ) dτ→x(τ) h(t−τ) dτx(\tau)\,\delta(t-\tau)\,d\tau \rightarrow x(\tau)\,h(t-\tau)\,d\tau.

Step 5 – Linearity (additivity): adding (integrating) the responses to all the weighted impulses,

y(t)=∫−∞∞x(τ) h(t−τ) dτ=x(t)∗h(t)y(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau = x(t) * h(t)

This is the convolution integral. By changing the variable λ=t−τ\lambda = t-\tau it can also be written y(t)=∫−∞∞h(τ) x(t−τ) dτy(t)=\int_{-\infty}^{\infty} h(\tau)\,x(t-\tau)\,d\tau.

Graphical steps: (1) change tt to τ\tau; (2) fold h(τ)h(\tau) to get h(−τ)h(-\tau); (3) shift by tt to get h(t−τ)h(t-\tau); (4) multiply by x(τ)x(\tau); (5) integrate over the overlap; (6) repeat for all tt.

Convolution of x(t)=e−tu(t)x(t)=e^{-t}u(t) and y(t)=e−2tu(t−3)y(t)=e^{-2t}u(t-3)

Let z(t)=x(t)∗y(t)z(t) = x(t) * y(t):

z(t)=∫−∞∞e−τu(τ)  e−2(t−τ)u(t−τ−3) dτz(t) = \int_{-\infty}^{\infty} e^{-\tau}u(\tau)\; e^{-2(t-\tau)}u(t-\tau-3)\,d\tau

Limits:

  • u(τ)=1u(\tau) = 1 only for τ≥0\tau \ge 0.
  • u(t−τ−3)=1u(t-\tau-3) = 1 only for τ≤t−3\tau \le t-3.

So the product is non-zero only for 0≤τ≤t−30 \le \tau \le t-3, which needs t≥3t \ge 3.

Case 1: t<3t < 3 – no overlap, so z(t)=0z(t) = 0.

Case 2: t≥3t \ge 3:

z(t)=∫0t−3e−τ e−2t e2τ dτ=e−2t∫0t−3eτ dτ=e−2t[eτ]0t−3=e−2t(et−3−1)=e−(t+3)−e−2t\begin{aligned} z(t) &= \int_{0}^{t-3} e^{-\tau}\,e^{-2t}\,e^{2\tau}\,d\tau \\ &= e^{-2t}\int_{0}^{t-3} e^{\tau}\,d\tau \\ &= e^{-2t}\left[e^{\tau}\right]_0^{t-3} \\ &= e^{-2t}\left(e^{t-3} - 1\right) \\ &= e^{-(t+3)} - e^{-2t} \end{aligned}

Check: at t=3t = 3, z(3)=e−6−e−6=0z(3) = e^{-6} - e^{-6} = 0, so the output starts smoothly from zero. At t=4t = 4, z(4)=e−7−e−8≈0.000576z(4) = e^{-7} - e^{-8} \approx 0.000576.

Answer:

z(t)=x(t)∗y(t)=(e−(t+3)−e−2t)u(t−3)z(t) = x(t)*y(t) = \left(e^{-(t+3)} - e^{-2t}\right)u(t-3)

Shortcut check: e−2tu(t−3)=e−6 e−2(t−3)u(t−3)e^{-2t}u(t-3) = e^{-6}\,e^{-2(t-3)}u(t-3), so it is e−6e^{-6} times e−2tu(t)e^{-2t}u(t) delayed by 3. Since e−tu(t)∗e−2tu(t)=(e−t−e−2t)u(t)e^{-t}u(t) * e^{-2t}u(t) = (e^{-t}-e^{-2t})u(t), the result is e−6(e−(t−3)−e−2(t−3))u(t−3)=(e−(t+3)−e−2t)u(t−3)e^{-6}\left(e^{-(t-3)} - e^{-2(t-3)}\right)u(t-3) = \left(e^{-(t+3)} - e^{-2t}\right)u(t-3), the same answer.

  • 2075 Bhadra · 4 marks

Determine whether the given system is linear or not. y(t) = A x(t) + B

Answer

A system is linear if it obeys superposition: for inputs x1,x2x_1, x_2 and constants a,ba, b, the input ax1(t)+bx2(t)a x_1(t) + b x_2(t) must give the output ay1(t)+by2(t)a y_1(t) + b y_2(t).

Given: y(t)=A x(t)+By(t) = A\,x(t) + B

Outputs for two separate inputs:

y1(t)=Ax1(t)+By2(t)=Ax2(t)+B\begin{aligned} y_1(t) &= A x_1(t) + B \\ y_2(t) &= A x_2(t) + B \end{aligned}

Weighted sum of the outputs:

ay1(t)+by2(t)=A[ax1(t)+bx2(t)]+(a+b)Ba y_1(t) + b y_2(t) = A\left[a x_1(t) + b x_2(t)\right] + (a+b)B

Output for the combined input x3(t)=ax1(t)+bx2(t)x_3(t) = a x_1(t) + b x_2(t):

y3(t)=A[ax1(t)+bx2(t)]+By_3(t) = A\left[a x_1(t) + b x_2(t)\right] + B

These two are equal only if (a+b)B=B(a+b)B = B for all a,ba, b, i.e. only when B=0B = 0.

Zero-input test: for x(t)=0x(t) = 0, y(t)=B≠0y(t) = B \ne 0. A linear system must give zero output for zero input, so the test fails.

Conclusion:

  • If B≠0B \ne 0: the system is not linear. It is called an incrementally linear (affine) system: the change in output is linear in the change in input.
  • If B=0B = 0: y(t)=Ax(t)y(t) = A x(t) is linear.
  • 2075 Bhadra · 3 marks

Write a short note on causal and non causal systems.

Answer

A causal system is one whose output at any time depends only on the present and past values of the input, never on future values. A non-causal system has an output that depends on at least one future input value.

Causal system

  • y(t)y(t) depends on x(τ)x(\tau) only for τ≤t\tau \le t.
  • It does not respond before the input is applied (non-anticipative).
  • All physically realizable real-time systems are causal.
  • Examples: y(t)=x(t)+2x(t−1)y(t) = x(t) + 2x(t-1); an RC circuit; y[n]=x[n]−x[n−1]y[n] = x[n] - x[n-1].
  • LTI condition: h(t)=0h(t) = 0 for t<0t < 0 (or h[n]=0h[n] = 0 for n<0n < 0).

Non-causal system

  • The output uses future input, e.g. y(t)=x(t+1)y(t) = x(t+1), y[n]=x[n+1]+x[n]y[n] = x[n+1] + x[n], y(t)=x(−t)y(t) = x(-t).
  • It cannot work in real time, but can be used when the whole signal is stored (image processing, offline audio smoothing).
  • An ideal low pass filter is non-causal because its h(t)h(t) is a sinc that exists for t<0t < 0.

Anti-causal system: output depends only on future inputs, h(t)=0h(t) = 0 for t>0t > 0.

  • 2075 Baisakh · 5 marks

Find output y(t) of LTI system if input x(t) = exp(−at) u(t) and impulse response h(t) = u(t).

Answer

For an LTI system the output is the convolution of input and impulse response:

y(t)=x(t)∗h(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = x(t) * h(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau

Given: x(t)=e−atu(t)x(t) = e^{-at}u(t) (take a>0a > 0), h(t)=u(t)h(t) = u(t).

y(t)=∫−∞∞e−aτu(τ) u(t−τ) dτy(t) = \int_{-\infty}^{\infty} e^{-a\tau}u(\tau)\,u(t-\tau)\,d\tau

Limits: u(τ)=1u(\tau) = 1 for τ≥0\tau \ge 0 and u(t−τ)=1u(t-\tau) = 1 for τ≤t\tau \le t. The overlap is 0≤τ≤t0 \le \tau \le t, which exists only for t≥0t \ge 0.

For t<0t < 0: no overlap, y(t)=0y(t) = 0.

For t≥0t \ge 0:

y(t)=∫0te−aτ dτ=[e−aτ−a]0t=1a(1−e−at)\begin{aligned} y(t) &= \int_{0}^{t} e^{-a\tau}\,d\tau \\ &= \left[\frac{e^{-a\tau}}{-a}\right]_0^{t} \\ &= \frac{1}{a}\left(1 - e^{-at}\right) \end{aligned}

Answer:

y(t)=1a(1−e−at)u(t)y(t) = \frac{1}{a}\left(1 - e^{-at}\right)u(t)
 y(t)
 1/a |        .-------------
     |     .-'
     |   .'
     |  /
     | /
   0 +/----------------------> t
     0

The output starts at 0 at t=0t = 0 and rises to the final value 1/a1/a as t→∞t \to \infty. This is expected, because h(t)=u(t)h(t) = u(t) is an ideal integrator, so y(t)=∫−∞tx(τ) dτy(t) = \int_{-\infty}^{t} x(\tau)\,d\tau, the running area under e−ate^{-at}, whose total area is 1/a1/a.

  • 2075 Baisakh · 4 marks

Derive the conditions for distortionless transmission for continuous-time LTI system.

Answer

Distortionless transmission means the output is an exact copy of the input in shape; it may only be scaled in amplitude and delayed in time.

Time-domain condition:

y(t)=K x(t−t0)y(t) = K\,x(t - t_0)

where KK is a constant gain and t0≥0t_0 \ge 0 is a constant delay.

Impulse response: put x(t)=δ(t)x(t) = \delta(t):

h(t)=K δ(t−t0)h(t) = K\,\delta(t - t_0)

Frequency response: take the Fourier transform of y(t)=Kx(t−t0)y(t) = K x(t-t_0) using the time-shift property:

Y(ω)=K X(ω) e−jωt0H(ω)=Y(ω)X(ω)=K e−jωt0\begin{aligned} Y(\omega) &= K\,X(\omega)\,e^{-j\omega t_0} \\ H(\omega) &= \frac{Y(\omega)}{X(\omega)} = K\,e^{-j\omega t_0} \end{aligned}

Conditions:

  1. Constant magnitude: ∣H(ω)∣=K|H(\omega)| = K for all frequencies (at least over the band of the signal). Every frequency component is amplified equally, so there is no amplitude distortion.
  2. Linear phase: θ(ω)=∠H(ω)=−ωt0\theta(\omega) = \angle H(\omega) = -\omega t_0 (a straight line through the origin with slope −t0-t_0). Then every frequency component is delayed by the same time, so there is no phase distortion.

The delay is constant because the group delay is

tg=−dθ(ω)dω=t0t_g = -\frac{d\theta(\omega)}{d\omega} = t_0
 |H(w)|                 angle H(w)
  K  +--------------      |\
     |                    |  \  slope = -t0
     |                    |    \
   --+-------------> w  --+------\----> w

In practice, it is enough for these conditions to hold over the bandwidth of the input signal.

  • 2073 Magh · 2+8 marks

What is LTI system? For LTI system, describe the properties: (a) linearity (b) stability (c) time invariance and (d) causality.

Answer

A Linear Time-Invariant (LTI) system is a system that is both linear (obeys superposition) and time invariant (its behaviour does not change with time). An LTI system is completely described by its impulse response h(t)h(t), and its output for any input is the convolution y(t)=x(t)∗h(t)y(t) = x(t) * h(t).

(a) Linearity

A system is linear if it satisfies superposition = additivity + homogeneity:

a x1(t)+b x2(t)  →  a y1(t)+b y2(t)a\,x_1(t) + b\,x_2(t) \;\rightarrow\; a\,y_1(t) + b\,y_2(t)
  • Additivity: x1+x2→y1+y2x_1 + x_2 \rightarrow y_1 + y_2.
  • Homogeneity (scaling): ax→aya x \rightarrow a y.
  • A consequence: zero input gives zero output.
  • Examples: y(t)=3x(t)y(t) = 3x(t), y(t)=dxdty(t) = \frac{dx}{dt} are linear; y(t)=x2(t)y(t) = x^2(t) and y(t)=2x(t)+1y(t) = 2x(t) + 1 are not.
  • Convolution itself is a linear operation, so an LTI system is linear in its input.

(b) Stability

A system is BIBO stable (bounded-input bounded-output) if every bounded input ∣x(t)∣≤Mx<∞|x(t)| \le M_x < \infty gives a bounded output ∣y(t)∣≤My<∞|y(t)| \le M_y < \infty.

For an LTI system:

∣y(t)∣=∣∫h(τ)x(t−τ)dτ∣≤Mx∫−∞∞∣h(τ)∣ dτ|y(t)| = \left|\int h(\tau)x(t-\tau)d\tau\right| \le M_x \int_{-\infty}^{\infty}|h(\tau)|\,d\tau

So the condition is that the impulse response is absolutely integrable:

∫−∞∞∣h(t)∣ dt<∞\int_{-\infty}^{\infty} |h(t)|\,dt < \infty
  • h(t)=e−2tu(t)h(t) = e^{-2t}u(t): area =1/2= 1/2, stable.
  • h(t)=u(t)h(t) = u(t) (integrator): area infinite, unstable.

(c) Time invariance

A system is time invariant if a time shift of the input causes the same time shift of the output:

x(t)→y(t)  ⇒  x(t−t0)→y(t−t0)x(t) \rightarrow y(t) \;\Rightarrow\; x(t - t_0) \rightarrow y(t - t_0)
  • Test: find the output for the delayed input, then compare with y(t−t0)y(t-t_0).
  • y(t)=x(t−2)y(t) = x(t-2) is time invariant.
  • y(t)=t x(t)y(t) = t\,x(t) is time varying, because the delayed input gives t x(t−t0)t\,x(t-t_0) but y(t−t0)=(t−t0)x(t−t0)y(t-t_0) = (t-t_0)x(t-t_0).
  • Systems with constant coefficients are time invariant.

(d) Causality

A system is causal if its output at time tt depends only on present and past inputs (τ≤t\tau \le t), not on future inputs.

For an LTI system, y(t)=∫h(τ)x(t−τ)dτy(t) = \int h(\tau)x(t-\tau)d\tau. To avoid using future values x(t−τ)x(t-\tau) with τ<0\tau < 0:

h(t)=0for t<0h(t) = 0 \quad \text{for } t < 0

Then y(t)=∫0∞h(τ) x(t−τ) dτy(t) = \int_{0}^{\infty} h(\tau)\,x(t-\tau)\,d\tau.

  • h(t)=e−tu(t)h(t) = e^{-t}u(t) is causal.
  • h(t)=e−∣t∣h(t) = e^{-|t|} is non-causal (it is stable, though).
PropertyGeneral conditionLTI condition
LinearitySuperposition holdsAlways (convolution)
Time invarianceShifted input gives shifted outputAlways
CausalityNo future inputs usedh(t)=0h(t)=0, t<0t<0
StabilityBounded in, bounded out∫∣h(t)∣dt<∞\int \lvert h(t)\rvert dt < \infty
  • 2073 Bhadra · 4+2 marks

Derive Formula to calculate the impulse response of continuous time ideal low pass filter. Is this system practically realizable or not.

Answer

Impulse response of an ideal low pass filter

An ideal low pass filter (LPF) passes all frequencies below the cutoff ωc\omega_c without distortion and completely blocks higher frequencies:

H(ω)={K e−jωt0,∣ω∣<ωc0,∣ω∣>ωcH(\omega) = \begin{cases} K\,e^{-j\omega t_0}, & |\omega| < \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

(constant gain KK and linear phase, i.e. distortionless in the pass band).

 |H(w)|
   K  +-----------+
      |           |
 -----+-----+-----+-------> w
    -wc     0     wc

The impulse response is the inverse Fourier transform:

h(t)=12π∫−ωcωcK e−jωt0 ejωt dω=K2π[ejω(t−t0)j(t−t0)]−ωcωc=K2π⋅2jsin⁡ωc(t−t0)j(t−t0)=Ksin⁡ωc(t−t0)π(t−t0)=Kωcπ sinc[ωc(t−t0)]\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} K\,e^{-j\omega t_0}\,e^{j\omega t}\,d\omega \\ &= \frac{K}{2\pi}\left[\frac{e^{j\omega(t-t_0)}}{j(t-t_0)}\right]_{-\omega_c}^{\omega_c} \\ &= \frac{K}{2\pi}\cdot\frac{2j\sin\omega_c(t-t_0)}{j(t-t_0)} \\ &= \frac{K\sin\omega_c(t-t_0)}{\pi(t-t_0)} \\ &= \frac{K\omega_c}{\pi}\,\mathrm{sinc}\left[\omega_c(t-t_0)\right] \end{aligned}

where sinc(x)=sin⁡x/x\mathrm{sinc}(x) = \sin x / x. The peak value Kωc/πK\omega_c/\pi occurs at t=t0t = t_0, and zeros occur at t=t0±nπ/ωct = t_0 \pm n\pi/\omega_c.

            h(t)
             /\    peak K*wc/pi at t0
   .  ..   /  \   ..  .
 --'--''--/----\--''--'--> t
          |  t0 |
   tails extend to t -> -inf

Is it practically realizable?

No. A physically realizable system must be causal, i.e. h(t)=0h(t) = 0 for t<0t < 0. The sinc response extends from t=−∞t = -\infty to +∞+\infty, so it is non-zero for t<0t < 0 for any finite delay t0t_0: the filter would respond before the impulse is applied. Hence the ideal LPF is non-causal and not realizable. (The Paley–Wiener criterion also fails, because ∣H(ω)∣|H(\omega)| is exactly zero over a band.) Practical filters (Butterworth, Chebyshev) only approximate it, using a large delay and truncating the tails.

  • 2073 Bhadra · 3 marks

Write a short note on invertibility of LTI system.

Answer

A system is invertible if distinct inputs always give distinct outputs, so that the input can be recovered exactly from the output. The system that recovers it is called the inverse system.

x(t) --> [ h(t) ] --> y(t) --> [ h_inv(t) ] --> x(t)

Condition for an LTI system: the system h(t)h(t) is invertible if there is an LTI system hinv(t)h_{inv}(t) such that the cascade gives the identity system:

h(t)∗hinv(t)=δ(t)h(t) * h_{inv}(t) = \delta(t)

In the frequency domain: H(ω) Hinv(ω)=1H(\omega)\,H_{inv}(\omega) = 1, so Hinv(ω)=1/H(ω)H_{inv}(\omega) = 1/H(\omega). This needs H(ω)≠0H(\omega) \ne 0 at every frequency.

Examples:

  • y(t)=x(t−t0)y(t) = x(t - t_0), h(t)=δ(t−t0)h(t) = \delta(t-t_0): inverse hinv(t)=δ(t+t0)h_{inv}(t) = \delta(t+t_0).
  • Integrator h(t)=u(t)h(t) = u(t): inverse is the differentiator, y(t)=dxdty(t) = \frac{dx}{dt}.
  • y[n]=x[n]−x[n−1]y[n] = x[n] - x[n-1]: inverse is the accumulator y[n]=∑k=−∞nx[k]y[n] = \sum_{k=-\infty}^{n} x[k].
  • Not invertible: y(t)=0y(t) = 0, y(t)=x2(t)y(t) = x^2(t) (sign is lost), an ideal LPF (high frequencies are lost).

Use: channel equalization in communication, deconvolution, decoding.

  • 2072 Asoj · 2+6 marks

What is convolution? Obtain the expression for convolution integral.

Answer

Convolution

Convolution is a mathematical operation that combines two signals to produce a third. In signals and systems it gives the output y(t)y(t) of an LTI system as the input x(t)x(t) "convolved" with the impulse response h(t)h(t):

y(t)=x(t)∗h(t)y(t) = x(t) * h(t)

It works as a weighted, shifted sum: each past value of the input is weighted by the system's impulse response and all contributions are added.

Expression for the convolution integral

Step 1 – Input as a sum of impulses. Approximate x(t)x(t) by narrow pulses of width Δ\Delta:

x(t)≈∑k=−∞∞x(kΔ) δΔ(t−kΔ) Δx(t) \approx \sum_{k=-\infty}^{\infty} x(k\Delta)\,\delta_\Delta(t-k\Delta)\,\Delta

where δΔ(t)\delta_\Delta(t) is a pulse of width Δ\Delta and height 1/Δ1/\Delta (unit area).

Step 2 – Response to one pulse. Let hΔ(t)h_\Delta(t) be the response to δΔ(t)\delta_\Delta(t).

  • Time invariance: δΔ(t−kΔ)→hΔ(t−kΔ)\delta_\Delta(t-k\Delta) \rightarrow h_\Delta(t-k\Delta).
  • Homogeneity: x(kΔ)Δ δΔ(t−kΔ)→x(kΔ)Δ hΔ(t−kΔ)x(k\Delta)\Delta\,\delta_\Delta(t-k\Delta) \rightarrow x(k\Delta)\Delta\,h_\Delta(t-k\Delta).
  • Additivity:
y(t)≈∑k=−∞∞x(kΔ) hΔ(t−kΔ) Δy(t) \approx \sum_{k=-\infty}^{\infty} x(k\Delta)\,h_\Delta(t-k\Delta)\,\Delta

Step 3 – Limit Δ→0\Delta \to 0. Then δΔ→δ(t)\delta_\Delta \to \delta(t), hΔ→h(t)h_\Delta \to h(t), kΔ→τk\Delta \to \tau, Δ→dτ\Delta \to d\tau and the sum becomes an integral:

y(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau

This is the convolution integral. Substituting λ=t−τ\lambda = t-\tau gives the equivalent form y(t)=∫−∞∞h(τ) x(t−τ) dτy(t) = \int_{-\infty}^{\infty} h(\tau)\,x(t-\tau)\,d\tau.

For causal system and causal input (h(t)=0h(t) = 0 and x(t)=0x(t) = 0 for t<0t < 0):

y(t)=∫0tx(τ) h(t−τ) dτy(t) = \int_{0}^{t} x(\tau)\,h(t-\tau)\,d\tau

Procedure (graphical): fold h(τ)h(\tau) to h(−τ)h(-\tau), shift it by tt, multiply by x(τ)x(\tau), and find the area of the product; repeat for each tt.

Properties: commutative (x∗h=h∗xx*h = h*x), associative ((x∗h1)∗h2=x∗(h1∗h2)(x*h_1)*h_2 = x*(h_1*h_2), used for cascade), distributive (x∗(h1+h2)=x∗h1+x∗h2x*(h_1+h_2) = x*h_1 + x*h_2, used for parallel connection), and x(t)∗δ(t−t0)=x(t−t0)x(t)*\delta(t-t_0) = x(t-t_0).

Example: e−atu(t)∗u(t)=∫0te−aτdτ=1a(1−e−at)u(t)e^{-at}u(t) * u(t) = \int_0^t e^{-a\tau}d\tau = \frac{1}{a}(1-e^{-at})u(t).

  • 2071 Magh · 7 marks

Find convolution between two signals x(t) = e^(0.5t) for 0 < t < 5, 0 otherwise and h(t) = 1 for 1 < t < 3, 0 otherwise.

Answer

Use the convolution integral, sliding the pulse hh across the fixed input xx:

y(t)=∫−∞∞x(τ) h(t−τ) dτy(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau

Given:

  • x(τ)=e0.5τx(\tau) = e^{0.5\tau} for 0<τ<50 < \tau < 5.
  • h(t−τ)=1h(t-\tau) = 1 when 1<t−τ<31 < t-\tau < 3, i.e. t−3<τ<t−1t-3 < \tau < t-1.

So the shifted window is (t−3, t−1)(t-3,\ t-1), of width 2, and it must overlap (0, 5)(0,\ 5).

x(tau):        |0=========5|
window:  (t-3 ----- t-1)  slides right as t increases

Useful integral: ∫abe0.5τdτ=2(e0.5b−e0.5a)\int_{a}^{b} e^{0.5\tau}d\tau = 2\left(e^{0.5b} - e^{0.5a}\right).

Case 1: t<1t < 1 (t−1<0t-1 < 0): no overlap, y(t)=0y(t) = 0.

Case 2: 1<t<31 < t < 3 (partial overlap, window enters): limits 00 to t−1t-1.

y(t)=∫0t−1e0.5τdτ=2(e0.5(t−1)−1)y(t) = \int_0^{t-1} e^{0.5\tau}d\tau = 2\left(e^{0.5(t-1)} - 1\right)

Case 3: 3<t<63 < t < 6 (window fully inside): limits t−3t-3 to t−1t-1.

y(t)=2(e0.5(t−1)−e0.5(t−3))=2(1−e−1)e0.5(t−1)≈1.2642 e0.5(t−1)\begin{aligned} y(t) &= 2\left(e^{0.5(t-1)} - e^{0.5(t-3)}\right) \\ &= 2\left(1 - e^{-1}\right)e^{0.5(t-1)} \approx 1.2642\,e^{0.5(t-1)} \end{aligned}

Case 4: 6<t<86 < t < 8 (window leaving): limits t−3t-3 to 55.

y(t)=2(e2.5−e0.5(t−3))y(t) = 2\left(e^{2.5} - e^{0.5(t-3)}\right)

Case 5: t>8t > 8 (t−3>5t-3 > 5): no overlap, y(t)=0y(t) = 0.

Answer:

y(t)={0,t<12(e0.5(t−1)−1),1≤t<32(e0.5(t−1)−e0.5(t−3)),3≤t<62(e2.5−e0.5(t−3)),6≤t<80,t≥8y(t) = \begin{cases} 0, & t < 1 \\ 2\left(e^{0.5(t-1)} - 1\right), & 1 \le t < 3 \\ 2\left(e^{0.5(t-1)} - e^{0.5(t-3)}\right), & 3 \le t < 6 \\ 2\left(e^{2.5} - e^{0.5(t-3)}\right), & 6 \le t < 8 \\ 0, & t \ge 8 \end{cases}

Key values (continuity check):

tty(t)y(t)
10
32(e−1)=3.4372(e - 1) = 3.437
62(e2.5−e1.5)=15.4022(e^{2.5} - e^{1.5}) = 15.402
80

The pieces meet at t=3t = 3 and t=6t = 6. The output rises from 0 at t=1t=1, peaks at about 15.40 at t=6t = 6, and falls to 0 at t=8t = 8. The total duration is 5+2=75 + 2 = 7 (from 0+10+1 to 5+35+3), as expected for convolution.

 y(t)
15.4|                 *
    |              .-' \
    |          .--'     \
 3.4|      .--*          \
    |   .-'               \
  0 +--*-----+-------------*--> t
       1     3        6    8
  • 2071 Magh · 4+4 marks

Derive the expression for impulse response and step response of ideal low pass filter.

Answer

Impulse response of the ideal LPF

The ideal LPF has constant gain and linear phase in the pass band and zero gain outside:

H(ω)={e−jωt0,∣ω∣≤ωc0,∣ω∣>ωcH(\omega) = \begin{cases} e^{-j\omega t_0}, & |\omega| \le \omega_c \\ 0, & |\omega| > \omega_c \end{cases}

(unit gain taken; for gain KK, multiply the results by KK).

Inverse Fourier transform:

h(t)=12π∫−∞∞H(ω)ejωtdω=12π∫−ωcωcejω(t−t0)dω=12π⋅ejωc(t−t0)−e−jωc(t−t0)j(t−t0)=sin⁡ωc(t−t0)π(t−t0)=ωcπ sinc[ωc(t−t0)]\begin{aligned} h(t) &= \frac{1}{2\pi}\int_{-\infty}^{\infty} H(\omega)e^{j\omega t}d\omega = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega(t-t_0)}d\omega \\ &= \frac{1}{2\pi}\cdot\frac{e^{j\omega_c(t-t_0)} - e^{-j\omega_c(t-t_0)}}{j(t-t_0)} \\ &= \frac{\sin\omega_c(t-t_0)}{\pi(t-t_0)} = \frac{\omega_c}{\pi}\,\mathrm{sinc}\left[\omega_c(t-t_0)\right] \end{aligned}
  • Peak value ωc/π\omega_c/\pi at t=t0t = t_0.
  • Zero crossings at t=t0+nπ/ωct = t_0 + n\pi/\omega_c, n=±1,±2,…n = \pm1, \pm2, \dots
  • Main lobe width 2π/ωc2\pi/\omega_c: a wider bandwidth gives a narrower, taller pulse.
  • h(t)≠0h(t) \ne 0 for t<0t < 0, so the filter is non-causal (not physically realizable).
           h(t)
            /\   wc/pi
  .  .-.   /  \   .-.  .
 -'--' '--/----\--' '--'--> t
             t0

Step response of the ideal LPF

The step response is the running integral of the impulse response:

s(t)=∫−∞th(λ) dλ=∫−∞tsin⁡ωc(λ−t0)π(λ−t0) dλs(t) = \int_{-\infty}^{t} h(\lambda)\,d\lambda = \int_{-\infty}^{t} \frac{\sin\omega_c(\lambda-t_0)}{\pi(\lambda-t_0)}\,d\lambda

Let x=ωc(λ−t0)x = \omega_c(\lambda - t_0), so dλ=dx/ωcd\lambda = dx/\omega_c and λ−t0=x/ωc\lambda - t_0 = x/\omega_c:

s(t)=1π∫−∞ωc(t−t0)sin⁡xx dx=1π∫−∞0sin⁡xx dx+1π∫0ωc(t−t0)sin⁡xx dx\begin{aligned} s(t) &= \frac{1}{\pi}\int_{-\infty}^{\omega_c(t-t_0)} \frac{\sin x}{x}\,dx \\ &= \frac{1}{\pi}\int_{-\infty}^{0} \frac{\sin x}{x}\,dx + \frac{1}{\pi}\int_{0}^{\omega_c(t-t_0)} \frac{\sin x}{x}\,dx \end{aligned}

Using ∫−∞0sin⁡xxdx=π2\int_{-\infty}^{0} \frac{\sin x}{x}dx = \frac{\pi}{2} and the sine integral Si(y)=∫0ysin⁡xxdx\mathrm{Si}(y) = \int_0^{y}\frac{\sin x}{x}dx:

s(t)=12+1π Si[ωc(t−t0)]s(t) = \frac{1}{2} + \frac{1}{\pi}\,\mathrm{Si}\left[\omega_c(t-t_0)\right]

Features:

  • s(t0)=1/2s(t_0) = 1/2; s(−∞)=0s(-\infty) = 0; s(∞)=1s(\infty) = 1 (since Si(±∞)=±π/2\mathrm{Si}(\pm\infty) = \pm\pi/2).
  • Rise time: the slope at t0t_0 is h(t0)=ωc/πh(t_0) = \omega_c/\pi, so tr≈π/ωc=1/(2B)t_r \approx \pi/\omega_c = 1/(2B) where B=ωc/2πB = \omega_c/2\pi Hz. Rise time is inversely proportional to bandwidth.
  • Overshoot and ringing: the response overshoots by about 9% (peak about 1.09) and oscillates around 1. This is the Gibbs phenomenon; it does not shrink as ωc\omega_c increases.
  • The response starts before t=0t = 0, again showing the filter is non-causal.
 s(t)
 1.09|          _
 1.0 |   - - - / \_/~~~~~~~
 0.5 |       /
     |~~\_  /
   0 +----------------------> t
            t0
  • 2071 Magh · 6 marks

For the LTI system, describe following properties: (a) linearity (b) causality (c) stability (d) time invariance.

Answer

An LTI system is linear and time invariant; it is fully described by its impulse response h(t)h(t), and y(t)=x(t)∗h(t)y(t) = x(t) * h(t).

(a) Linearity

A system is linear if it obeys superposition:

a x1(t)+b x2(t)→a y1(t)+b y2(t)a\,x_1(t) + b\,x_2(t) \rightarrow a\,y_1(t) + b\,y_2(t)

It combines additivity (x1+x2→y1+y2x_1 + x_2 \rightarrow y_1 + y_2) and homogeneity (ax→aya x \rightarrow a y). Zero input must give zero output.

  • Linear: y(t)=5x(t)y(t) = 5x(t), y(t)=∫−∞tx(τ)dτy(t) = \int_{-\infty}^{t} x(\tau)d\tau.
  • Non-linear: y(t)=x2(t)y(t) = x^2(t), y(t)=x(t)+3y(t) = x(t) + 3.

(b) Causality

The output at any time depends only on the present and past inputs. For an LTI system:

h(t)=0for t<0h(t) = 0 \quad \text{for } t < 0

so that y(t)=∫0∞h(τ)x(t−τ)dτy(t) = \int_0^{\infty} h(\tau)x(t-\tau)d\tau uses only xx up to time tt.

  • Causal: h(t)=e−3tu(t)h(t) = e^{-3t}u(t).
  • Non-causal: h(t)=δ(t+1)h(t) = \delta(t+1), i.e. y(t)=x(t+1)y(t) = x(t+1).

(c) Stability

A system is BIBO stable if every bounded input gives a bounded output. Since ∣y(t)∣≤Mx∫∣h(τ)∣dτ|y(t)| \le M_x\int|h(\tau)|d\tau for ∣x∣≤Mx|x| \le M_x, the condition for an LTI system is:

∫−∞∞∣h(t)∣ dt<∞\int_{-\infty}^{\infty} |h(t)|\,dt < \infty
  • Stable: h(t)=e−tu(t)h(t) = e^{-t}u(t) (area 1).
  • Unstable: h(t)=u(t)h(t) = u(t), h(t)=etu(t)h(t) = e^{t}u(t).

(d) Time invariance

A time shift in the input gives the same time shift in the output:

x(t−t0)→y(t−t0)x(t-t_0) \rightarrow y(t-t_0)

The system's characteristics do not change with time (constant parameters).

  • Time invariant: y(t)=x(t−1)y(t) = x(t-1), y(t)=dxdty(t) = \frac{dx}{dt}.
  • Time varying: y(t)=t x(t)y(t) = t\,x(t), y(t)=x(2t)y(t) = x(2t).
PropertyLTI test on h(t)h(t)
LinearityHolds for every convolution system
Causalityh(t)=0h(t) = 0 for t<0t < 0
Stability∫∣h(t)∣dt\int \lvert h(t)\rvert dt finite
Time invarianceHolds for every convolution system
  • 2070 Magh · 8+2 marks

The impulse responses of two LTI systems are given by h₁(t) = e^(−t/2)u(t) and h₂(t) = u(t) − u(t−5). Determine the equivalent impulse response if these two systems are connected in cascade. Also sketch the graph of equivalent impulse response.

Answer

For two LTI systems in cascade, the equivalent impulse response is the convolution of the individual impulse responses (associative property):

h(t)=h1(t)∗h2(t)=∫−∞∞h1(τ) h2(t−τ) dτh(t) = h_1(t) * h_2(t) = \int_{-\infty}^{\infty} h_1(\tau)\,h_2(t-\tau)\,d\tau
x(t) -->[ h1(t) ]-->[ h2(t) ]--> y(t)
   ==  x(t) -->[ h1(t)*h2(t) ]--> y(t)

Given: h1(t)=e−t/2u(t)h_1(t) = e^{-t/2}u(t); h2(t)=u(t)−u(t−5)h_2(t) = u(t) - u(t-5), a unit pulse on 0≤t<50 \le t < 5.

h2(t−τ)=1h_2(t-\tau) = 1 when 0≤t−τ<50 \le t-\tau < 5, i.e. t−5<τ≤tt-5 < \tau \le t. Also h1(τ)≠0h_1(\tau) \ne 0 only for τ≥0\tau \ge 0.

Useful integral: ∫abe−τ/2dτ=2(e−a/2−e−b/2)\int_a^b e^{-\tau/2}d\tau = 2\left(e^{-a/2} - e^{-b/2}\right).

Case 1: t<0t < 0 – no overlap: h(t)=0h(t) = 0.

Case 2: 0≤t<50 \le t < 5 – limits 00 to tt:

h(t)=∫0te−τ/2dτ=2(1−e−t/2)h(t) = \int_0^{t} e^{-\tau/2}d\tau = 2\left(1 - e^{-t/2}\right)

Case 3: t≥5t \ge 5 – limits t−5t-5 to tt:

h(t)=2(e−(t−5)/2−e−t/2)=2(e2.5−1)e−t/2≈22.365 e−t/2\begin{aligned} h(t) &= 2\left(e^{-(t-5)/2} - e^{-t/2}\right) \\ &= 2\left(e^{2.5} - 1\right)e^{-t/2} \approx 22.365\,e^{-t/2} \end{aligned}

Answer:

h(t)={0,t<02(1−e−t/2),0≤t<52(e2.5−1)e−t/2,t≥5h(t) = \begin{cases} 0, & t < 0 \\ 2\left(1 - e^{-t/2}\right), & 0 \le t < 5 \\ 2\left(e^{2.5} - 1\right)e^{-t/2}, & t \ge 5 \end{cases}

Compactly: h(t)=2(1−e−t/2)u(t)−2(1−e−(t−5)/2)u(t−5)h(t) = 2\left(1 - e^{-t/2}\right)u(t) - 2\left(1 - e^{-(t-5)/2}\right)u(t-5).

Values for the sketch:

tt0125710
h(t)h(t)00.7871.2641.8360.6750.151

Peak: h(5)=2(1−e−2.5)=1.836h(5) = 2(1 - e^{-2.5}) = 1.836, which is continuous from both sides.

Sketch

 h(t)
1.84|            *
    |         .-' \
    |      .-'     \
    |    .'         `.
    |  .'             `-._
    | /                   `--.__
  0 +-------------+---------------> t
    0             5     10

It rises like a charging capacitor (2(1−e−t/2)2(1-e^{-t/2})) from 0 to 1.836 over 0≤t≤50 \le t \le 5, then decays exponentially to zero with time constant 2 s for t>5t > 5.

  • 2070 Bhadra · 5 marks

Let x(t) be the input to an LTI system with unit impulse response h(t), where x(t) = e^(−at)u(t), a > 0 and h(t) = u(t). Verify commutative law of LTI system.

Answer

The commutative law of convolution states x(t)∗h(t)=h(t)∗x(t)x(t) * h(t) = h(t) * x(t): the output of an LTI system is the same whether we convolve the input with the impulse response or the other way round.

Given: x(t)=e−atu(t)x(t) = e^{-at}u(t), a>0a > 0; h(t)=u(t)h(t) = u(t).

LHS: y1(t)=x(t)∗h(t)y_1(t) = x(t) * h(t)

y1(t)=∫−∞∞x(τ) h(t−τ) dτ=∫−∞∞e−aτu(τ) u(t−τ) dτy_1(t) = \int_{-\infty}^{\infty} x(\tau)\,h(t-\tau)\,d\tau = \int_{-\infty}^{\infty} e^{-a\tau}u(\tau)\,u(t-\tau)\,d\tau

Non-zero for 0≤τ≤t0 \le \tau \le t (needs t≥0t \ge 0):

y1(t)=∫0te−aτdτ=[e−aτ−a]0t=1a(1−e−at)u(t)y_1(t) = \int_0^{t} e^{-a\tau}d\tau = \left[\frac{e^{-a\tau}}{-a}\right]_0^t = \frac{1}{a}\left(1 - e^{-at}\right)u(t)

RHS: y2(t)=h(t)∗x(t)y_2(t) = h(t) * x(t)

y2(t)=∫−∞∞h(τ) x(t−τ) dτ=∫−∞∞u(τ) e−a(t−τ)u(t−τ) dτy_2(t) = \int_{-\infty}^{\infty} h(\tau)\,x(t-\tau)\,d\tau = \int_{-\infty}^{\infty} u(\tau)\,e^{-a(t-\tau)}u(t-\tau)\,d\tau

Non-zero for 0≤τ≤t0 \le \tau \le t (needs t≥0t \ge 0):

y2(t)=e−at∫0teaτdτ=e−at⋅eat−1a=1a(1−e−at)u(t)\begin{aligned} y_2(t) &= e^{-at}\int_0^{t} e^{a\tau}d\tau \\ &= e^{-at}\cdot\frac{e^{at} - 1}{a} \\ &= \frac{1}{a}\left(1 - e^{-at}\right)u(t) \end{aligned}

Result

y1(t)=y2(t)=1a(1−e−at)u(t)y_1(t) = y_2(t) = \frac{1}{a}\left(1 - e^{-at}\right)u(t)

so x(t)∗h(t)=h(t)∗x(t)x(t) * h(t) = h(t) * x(t) and the commutative law is verified.

Meaning: an input e−atu(t)e^{-at}u(t) applied to an integrator (h=u(t)h = u(t)) gives the same output as a unit step applied to a system with impulse response e−atu(t)e^{-at}u(t). In general the roles of input and impulse response can be interchanged.

  • 2070 Bhadra · 5 marks

What is distortionless transmission? Derive the expression for unit step response of ideal low pass filter.

Answer

Distortionless transmission

Transmission is distortionless when the output has exactly the same shape as the input, only scaled by a constant KK and delayed by a constant t0t_0:

y(t)=K x(t−t0)  ⇒  H(ω)=K e−jωt0y(t) = K\,x(t-t_0) \;\Rightarrow\; H(\omega) = K\,e^{-j\omega t_0}

So the system needs (1) constant magnitude ∣H(ω)∣=K|H(\omega)| = K and (2) linear phase ∠H(ω)=−ωt0\angle H(\omega) = -\omega t_0 over the signal bandwidth.

Unit step response of the ideal LPF

Ideal LPF (unit gain, delay t0t_0, cutoff ωc\omega_c):

H(ω)=e−jωt0 for ∣ω∣<ωc,0 otherwiseH(\omega) = e^{-j\omega t_0}\ \text{for } |\omega| < \omega_c,\quad 0 \text{ otherwise}

Its impulse response (inverse Fourier transform) is

h(t)=12π∫−ωcωcejω(t−t0)dω=sin⁡ωc(t−t0)π(t−t0)h(t) = \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega(t-t_0)}d\omega = \frac{\sin\omega_c(t-t_0)}{\pi(t-t_0)}

The step response is the integral of h(t)h(t):

s(t)=∫−∞tsin⁡ωc(λ−t0)π(λ−t0) dλs(t) = \int_{-\infty}^{t} \frac{\sin\omega_c(\lambda-t_0)}{\pi(\lambda-t_0)}\,d\lambda

Put x=ωc(λ−t0)x = \omega_c(\lambda - t_0):

s(t)=1π∫−∞ωc(t−t0)sin⁡xxdx=1π[π2+Si(ωc(t−t0))]=12+1πSi[ωc(t−t0)]\begin{aligned} s(t) &= \frac{1}{\pi}\int_{-\infty}^{\omega_c(t-t_0)}\frac{\sin x}{x}dx \\ &= \frac{1}{\pi}\left[\frac{\pi}{2} + \mathrm{Si}\left(\omega_c(t-t_0)\right)\right] \\ &= \frac{1}{2} + \frac{1}{\pi}\mathrm{Si}\left[\omega_c(t-t_0)\right] \end{aligned}

where Si(y)=∫0ysin⁡xxdx\mathrm{Si}(y) = \int_0^{y}\frac{\sin x}{x}dx is the sine integral.

  • s(t0)=0.5s(t_0) = 0.5, s(∞)=1s(\infty) = 1, s(−∞)=0s(-\infty) = 0.
  • Rise time ≈π/ωc\approx \pi/\omega_c, inversely proportional to bandwidth.
  • About 9% overshoot with ringing (Gibbs phenomenon), and response before t=0t = 0 (non-causal).
  • 2069 Bhadra · 8 marks

A LTI system has input x(t) = e^(−t)u(t) and impulse response h(t) = e^(t)u(−t). Find output y(t) of the system using Fourier transform of x(t) and h(t).

Answer

For an LTI system, convolution in time becomes multiplication in frequency:

y(t)=x(t)∗h(t)  ⟺  Y(ω)=X(ω) H(ω)y(t) = x(t) * h(t) \;\Longleftrightarrow\; Y(\omega) = X(\omega)\,H(\omega)

Step 1: Fourier transform of the input

X(ω)=∫0∞e−te−jωtdt=[e−(1+jω)t−(1+jω)]0∞=11+jω\begin{aligned} X(\omega) &= \int_{0}^{\infty} e^{-t}e^{-j\omega t}dt = \left[\frac{e^{-(1+j\omega)t}}{-(1+j\omega)}\right]_0^{\infty} \\ &= \frac{1}{1 + j\omega} \end{aligned}

Step 2: Fourier transform of the impulse response

h(t)=etu(−t)h(t) = e^{t}u(-t) is non-zero only for t<0t < 0:

H(ω)=∫−∞0ete−jωtdt=[e(1−jω)t1−jω]−∞0=11−jω\begin{aligned} H(\omega) &= \int_{-\infty}^{0} e^{t}e^{-j\omega t}dt = \left[\frac{e^{(1-j\omega)t}}{1-j\omega}\right]_{-\infty}^{0} \\ &= \frac{1}{1 - j\omega} \end{aligned}

Step 3: Output spectrum

Y(ω)=1(1+jω)(1−jω)=11+ω2Y(\omega) = \frac{1}{(1+j\omega)(1-j\omega)} = \frac{1}{1 + \omega^2}

Step 4: Inverse transform (partial fractions)

1(1+jω)(1−jω)=A1+jω+B1−jω\frac{1}{(1+j\omega)(1-j\omega)} = \frac{A}{1+j\omega} + \frac{B}{1-j\omega}

Multiply out: 1=A(1−jω)+B(1+jω)1 = A(1-j\omega) + B(1+j\omega). Comparing terms: A+B=1A + B = 1 and −A+B=0-A + B = 0, so A=B=12A = B = \tfrac{1}{2}.

Y(ω)=12⋅11+jω+12⋅11−jωY(\omega) = \frac{1}{2}\cdot\frac{1}{1+j\omega} + \frac{1}{2}\cdot\frac{1}{1-j\omega}

Using the pairs from Steps 1 and 2:

  • 11+jω↔e−tu(t)\frac{1}{1+j\omega} \leftrightarrow e^{-t}u(t)
  • 11−jω↔etu(−t)\frac{1}{1-j\omega} \leftrightarrow e^{t}u(-t)
y(t)=12e−tu(t)+12etu(−t)y(t) = \frac{1}{2}e^{-t}u(t) + \frac{1}{2}e^{t}u(-t)

Answer:

y(t)=12e−∣t∣,−∞<t<∞y(t) = \frac{1}{2}e^{-|t|}, \quad -\infty < t < \infty

Check: the standard pair e−a∣t∣↔2aa2+ω2e^{-a|t|} \leftrightarrow \frac{2a}{a^2+\omega^2} with a=1a = 1 gives 12e−∣t∣↔11+ω2\frac{1}{2}e^{-|t|} \leftrightarrow \frac{1}{1+\omega^2}. Also y(0)=12π∫dω1+ω2=12π⋅π=0.5y(0) = \frac{1}{2\pi}\int\frac{d\omega}{1+\omega^2} = \frac{1}{2\pi}\cdot\pi = 0.5.

          y(t)
          0.5
          /\
       .-'  '-.
 ___.-'        '-.___
 ---------+----------> t
          0

The output is two-sided because h(t)h(t) is anti-causal (non-zero for t<0t < 0).

  • 2069 Bhadra · 5 marks

Write about the following properties of continuous time system: (a) Linearity (b) Causality (c) Memory (d) Stability (e) Time invariance.

Answer

Continuous-time systems are classified by the following basic properties.

(a) Linearity

A system is linear if it obeys superposition (additivity + homogeneity): ax1(t)+bx2(t)→ay1(t)+by2(t)a x_1(t) + b x_2(t) \rightarrow a y_1(t) + b y_2(t).

  • Linear: y(t)=2x(t)y(t) = 2x(t), y(t)=dxdty(t) = \frac{dx}{dt}.
  • Non-linear: y(t)=x2(t)y(t) = x^2(t), y(t)=x(t)+1y(t) = x(t) + 1.

(b) Causality

Output at time tt depends only on present and past inputs, not future ones. It is non-anticipative and can work in real time.

  • Causal: y(t)=x(t)+x(t−2)y(t) = x(t) + x(t-2).
  • Non-causal: y(t)=x(t+1)y(t) = x(t+1). For LTI: causal if h(t)=0h(t) = 0 for t<0t < 0.

(c) Memory

A memoryless (static) system's output depends only on the input at the same instant. A system with memory (dynamic) uses past (or future) inputs.

  • Memoryless: y(t)=5x(t)y(t) = 5x(t), a resistor v=Riv = Ri.
  • With memory: y(t)=∫−∞tx(τ)dτy(t) = \int_{-\infty}^{t} x(\tau)d\tau, a capacitor. For LTI: memoryless only if h(t)=Kδ(t)h(t) = K\delta(t).

(d) Stability

BIBO stable: every bounded input gives a bounded output.

  • Stable: y(t)=ex(t)y(t) = e^{x(t)}, h(t)=e−tu(t)h(t) = e^{-t}u(t).
  • Unstable: y(t)=t x(t)y(t) = t\,x(t), an ideal integrator. For LTI: ∫∣h(t)∣dt<∞\int|h(t)|dt < \infty.

(e) Time invariance

A time shift in the input causes the same shift in the output: x(t−t0)→y(t−t0)x(t-t_0) \rightarrow y(t-t_0).

  • Time invariant: y(t)=x(t−3)y(t) = x(t-3).
  • Time varying: y(t)=t x(t)y(t) = t\,x(t), y(t)=x(2t)y(t) = x(2t).
  • 2069 Bhadra · 5 marks

Derive the expression for impulse response and step response of first order continuous time system described by the differential equation τ dy(t)/dt + y(t) = x(t).

Answer

Given: a first-order system with time constant τ\tau:

τdy(t)dt+y(t)=x(t)\tau\frac{dy(t)}{dt} + y(t) = x(t)

(e.g. an RC low pass circuit with τ=RC\tau = RC). Assume the system is initially at rest.

Impulse response

Take the Fourier transform, using ddt↔jω\frac{d}{dt} \leftrightarrow j\omega:

(jωτ+1) Y(ω)=X(ω)H(ω)=Y(ω)X(ω)=11+jωτ=1/τ1/τ+jω\begin{aligned} (j\omega\tau + 1)\,Y(\omega) &= X(\omega) \\ H(\omega) = \frac{Y(\omega)}{X(\omega)} &= \frac{1}{1 + j\omega\tau} = \frac{1/\tau}{1/\tau + j\omega} \end{aligned}

Using the pair e−atu(t)↔1a+jωe^{-at}u(t) \leftrightarrow \frac{1}{a + j\omega} with a=1/τa = 1/\tau:

h(t)=1τe−t/τu(t)h(t) = \frac{1}{\tau}e^{-t/\tau}u(t)

Check: for t>0t > 0, τh′+h=−1τe−t/τ+1τe−t/τ=0\tau h' + h = -\frac{1}{\tau}e^{-t/\tau} + \frac{1}{\tau}e^{-t/\tau} = 0, and the jump h(0+)=1/τh(0^+) = 1/\tau makes τ dh/dt\tau\,dh/dt contain δ(t)\delta(t), matching the input.

Step response

s(t)=∫−∞th(λ) dλ=∫0t1τe−λ/τdλ=[−e−λ/τ]0t=(1−e−t/τ)u(t)\begin{aligned} s(t) &= \int_{-\infty}^{t} h(\lambda)\,d\lambda = \int_0^{t}\frac{1}{\tau}e^{-\lambda/\tau}d\lambda \\ &= \left[-e^{-\lambda/\tau}\right]_0^{t} \\ &= \left(1 - e^{-t/\tau}\right)u(t) \end{aligned}

Features:

  • s(τ)=1−e−1=0.632s(\tau) = 1 - e^{-1} = 0.632: the output reaches 63.2% of the final value in one time constant.
  • It reaches about 98% after 4τ4\tau; final value is 1.
  • Smaller τ\tau means a faster response (wider bandwidth 1/τ1/\tau rad/s).
 h(t)                      s(t)
1/tau|\                    1 |      .--------
     | \                0.632|   .-'
     |  `-.                  |  /
     |     `---___           | /
   0 +--------------> t    0 +/-------------> t
     0  tau                  0  tau
  • 2069 Bhadra · 5 marks

If the impulse response of continuous time linear time invariant system is h(t) = u(t) − u(t−3) and input to the system is x(t) = u(t+4) − u(t), determine the output y(t) of the system.

Answer

The output is the convolution y(t)=∫−∞∞h(τ) x(t−τ) dτy(t) = \int_{-\infty}^{\infty} h(\tau)\,x(t-\tau)\,d\tau.

Given:

  • h(t)=u(t)−u(t−3)h(t) = u(t) - u(t-3): unit pulse on 0≤t<30 \le t < 3 (width 3).
  • x(t)=u(t+4)−u(t)x(t) = u(t+4) - u(t): unit pulse on −4≤t<0-4 \le t < 0 (width 4).

The output lasts from 0+(−4)=−40 + (-4) = -4 to 3+0=33 + 0 = 3, and convolving two unequal rectangles gives a trapezoid with flat top height = smaller width = 3.

Limits: x(t−τ)=1x(t-\tau) = 1 when −4≤t−τ<0-4 \le t-\tau < 0, i.e. t<τ≤t+4t < \tau \le t+4. Combine with 0≤τ<30 \le \tau < 3 from hh.

Case 1: t<−4t < -4 (t+4<0t+4 < 0): no overlap, y(t)=0y(t) = 0.

Case 2: −4≤t<−1-4 \le t < -1 (partial overlap, 0≤τ≤t+40 \le \tau \le t+4):

y(t)=∫0t+4dτ=t+4y(t) = \int_0^{t+4} d\tau = t + 4

Case 3: −1≤t<0-1 \le t < 0 (window (t, t+4)(t,\ t+4) covers all of [0,3][0,3]):

y(t)=∫03dτ=3y(t) = \int_0^{3} d\tau = 3

Case 4: 0≤t<30 \le t < 3 (partial overlap, t≤τ≤3t \le \tau \le 3):

y(t)=∫t3dτ=3−ty(t) = \int_t^{3} d\tau = 3 - t

Case 5: t≥3t \ge 3: no overlap, y(t)=0y(t) = 0.

Answer:

y(t)={0,t<−4t+4,−4≤t<−13,−1≤t<03−t,0≤t<30,t≥3y(t) = \begin{cases} 0, & t < -4 \\ t + 4, & -4 \le t < -1 \\ 3, & -1 \le t < 0 \\ 3 - t, & 0 \le t < 3 \\ 0, & t \ge 3 \end{cases}

Equivalently y(t)=r(t+4)−r(t+1)−r(t)+r(t−3)y(t) = r(t+4) - r(t+1) - r(t) + r(t-3), where r(t)=t u(t)r(t) = t\,u(t) is the ramp.

Check: area of yy = (area of hh) × (area of xx) = 3×4=123 \times 4 = 12; trapezoid area =12(7+1)×3=12= \frac{1}{2}(7 + 1)\times 3 = 12.

 y(t)
   3 |        +----+
     |       /|    |\
     |      / |    | \
     |     /  |    |  \
   0 +----+---+----+---+----> t
         -4  -1    0   3
  • 2083 Bhadra (new course) · 5 marks

Define LTI system. Explain causality and stability property of continuous time LTI system.

Answer

A Linear Time-Invariant (LTI) system is a system that obeys superposition (linear) and whose response to a delayed input is the same response delayed (time invariant). Its output for any input is given by convolution with its impulse response:

y(t)=x(t)∗h(t)=∫−∞∞h(τ) x(t−τ) dτy(t) = x(t) * h(t) = \int_{-\infty}^{\infty} h(\tau)\,x(t-\tau)\,d\tau

Causality

A system is causal if its output at time tt depends only on inputs at times ≤t\le t.

In the convolution, the term x(t−τ)x(t-\tau) for τ<0\tau < 0 is a future input value. For it never to be used, the weight h(τ)h(\tau) must be zero there:

h(t)=0for t<0h(t) = 0 \quad \text{for } t < 0

Then y(t)=∫0∞h(τ) x(t−τ) dτy(t) = \int_0^{\infty} h(\tau)\,x(t-\tau)\,d\tau.

  • Causal: h(t)=e−2tu(t)h(t) = e^{-2t}u(t), h(t)=u(t)−u(t−1)h(t) = u(t) - u(t-1).
  • Non-causal: h(t)=e−∣t∣h(t) = e^{-|t|}, h(t)=δ(t+2)h(t) = \delta(t+2).
  • Physically realizable real-time systems must be causal.

Stability

A system is BIBO stable if every bounded input, ∣x(t)∣≤Mx|x(t)| \le M_x, gives a bounded output.

∣y(t)∣=∣∫h(τ)x(t−τ)dτ∣≤∫∣h(τ)∣ ∣x(t−τ)∣ dτ≤Mx∫−∞∞∣h(τ)∣ dτ|y(t)| = \left|\int h(\tau)x(t-\tau)d\tau\right| \le \int|h(\tau)|\,|x(t-\tau)|\,d\tau \le M_x\int_{-\infty}^{\infty}|h(\tau)|\,d\tau

So the output is bounded if

∫−∞∞∣h(t)∣ dt<∞\int_{-\infty}^{\infty} |h(t)|\,dt < \infty

(the impulse response is absolutely integrable). This is also necessary: if the integral is infinite, the bounded input x(t)=sgn[h(−t)]x(t) = \mathrm{sgn}[h(-t)] gives y(0)=∫∣h(τ)∣dτ=∞y(0) = \int|h(\tau)|d\tau = \infty.

  • Stable: h(t)=e−2tu(t)h(t) = e^{-2t}u(t), since ∫0∞e−2tdt=0.5\int_0^\infty e^{-2t}dt = 0.5.
  • Unstable: h(t)=u(t)h(t) = u(t) (integrator), h(t)=e2tu(t)h(t) = e^{2t}u(t).
  • 2082 Bhadra (new course) · 2+6 marks

Define frequency response of a LTI system. Derive the impulse response of an ideal low pass and high pass filter.

Answer

Frequency response

The frequency response H(ω)H(\omega) of an LTI system is the Fourier transform of its impulse response. It tells how the system changes the magnitude and phase of a sinusoid of each frequency:

H(ω)=∫−∞∞h(t)e−jωtdt=Y(ω)X(ω)=∣H(ω)∣ ejθ(ω)H(\omega) = \int_{-\infty}^{\infty} h(t)e^{-j\omega t}dt = \frac{Y(\omega)}{X(\omega)} = |H(\omega)|\,e^{j\theta(\omega)}

If the input is ejωte^{j\omega t}, the output is H(ω)ejωtH(\omega)e^{j\omega t}. ∣H(ω)∣|H(\omega)| is the magnitude (gain) response and θ(ω)\theta(\omega) is the phase response.

Impulse response of an ideal low pass filter

Pass band ∣ω∣<ωc|\omega| < \omega_c, unit gain, linear phase (delay t0t_0):

HLP(ω)={e−jωt0,∣ω∣<ωc0,otherwiseH_{LP}(\omega) = \begin{cases} e^{-j\omega t_0}, & |\omega| < \omega_c \\ 0, & \text{otherwise} \end{cases} hLP(t)=12π∫−ωcωcejω(t−t0)dω=12π⋅2jsin⁡ωc(t−t0)j(t−t0)=sin⁡ωc(t−t0)π(t−t0)=ωcπsinc[ωc(t−t0)]\begin{aligned} h_{LP}(t) &= \frac{1}{2\pi}\int_{-\omega_c}^{\omega_c} e^{j\omega(t-t_0)}d\omega \\ &= \frac{1}{2\pi}\cdot\frac{2j\sin\omega_c(t-t_0)}{j(t-t_0)} \\ &= \frac{\sin\omega_c(t-t_0)}{\pi(t-t_0)} = \frac{\omega_c}{\pi}\mathrm{sinc}\left[\omega_c(t-t_0)\right] \end{aligned}

A sinc pulse centred at t0t_0 with peak ωc/π\omega_c/\pi.

Impulse response of an ideal high pass filter

The ideal HPF blocks ∣ω∣<ωc|\omega| < \omega_c and passes everything above. It is the all-pass (delay) system minus the LPF:

HHP(ω)=e−jωt0−HLP(ω)={0,∣ω∣<ωce−jωt0,∣ω∣>ωcH_{HP}(\omega) = e^{-j\omega t_0} - H_{LP}(\omega) = \begin{cases} 0, & |\omega| < \omega_c \\ e^{-j\omega t_0}, & |\omega| > \omega_c \end{cases}
 |H_LP|              |H_HP|
 1 +----+          1 ---+      +---
   |    |               |      |
 --+----+----> w   -----+--+---+---> w
 -wc  0  wc           -wc  0   wc

Since e−jωt0↔δ(t−t0)e^{-j\omega t_0} \leftrightarrow \delta(t-t_0):

hHP(t)=δ(t−t0)−sin⁡ωc(t−t0)π(t−t0)h_{HP}(t) = \delta(t - t_0) - \frac{\sin\omega_c(t-t_0)}{\pi(t-t_0)}

Remarks:

  • Both impulse responses are non-zero for t<0t < 0 (sinc tails), so both ideal filters are non-causal and cannot be built exactly; practical filters approximate them.
  • With t0=0t_0 = 0: hLP(t)=sin⁡ωctπth_{LP}(t) = \frac{\sin\omega_c t}{\pi t} and hHP(t)=δ(t)−sin⁡ωctπth_{HP}(t) = \delta(t) - \frac{\sin\omega_c t}{\pi t}.

Questions from Old Question Collection (Signal Analysis EX 651) (IOE Signal Analysis (EX 651) exam papers from 2069 to 2082) and 2080 course paper (ENEX 255) (IOE Signals and Systems (ENEX 255, new course) papers: 2082 Bhadra, 2083 Baisakh, 2083 Bhadra). Answers are written for this site; check them against your class notes.

Chapter titles and hours from the IOE syllabus ↗
