Chapter 1 · 14 hours
Introduction to Basic Fluid Mechanics and Hydraulics
IOE past exam questions
Past questions and answers
70 questions set from this chapter, 5 of them more than once. Most asked first.
- Asked 5 times
- 2082 Chaitra · 6 marks
- 2081 Asoj · 6 marks
- 2072 Asoj · 2+2+2 marks
- 2074 Bhadra · 4 marks
- 2073 Bhadra · 2+2 marks
Classify the fluid flows with examples: (i) Compressible versus Incompressible (ii) Laminar versus Turbulent and (iii) Steady versus Unsteady.
Answer
Fluid flow is classified by how density, the motion of particles and the flow properties behave in space and time.
Compressible versus incompressible flow
- Compressible flow: density changes from point to point, i.e. constant. Examples: flow of gases at high speed, air in a compressor or nozzle, flow of steam in a turbine.
- Incompressible flow: density is (practically) constant, constant. Liquids are almost always treated as incompressible. Examples: water flow in a penstock, river flow, oil in a pipe; air at low speed (Mach number below about 0.3).
Laminar versus turbulent flow
- Laminar flow: particles move in smooth, parallel layers (laminae) that slide over each other without mixing. Viscous forces dominate. In pipes . Examples: flow of thick oil in a thin tube, blood flow in capillaries, groundwater flow.
- Turbulent flow: particles move in a random, zig-zag way with eddies and strong mixing. Inertia forces dominate. In pipes . Examples: flow in rivers and canals, water in a penstock, smoke rising far from a chimney.
- Reynolds number: ; between 2000 and 4000 the flow is transitional.
Steady versus unsteady flow
- Steady flow: flow properties (velocity, pressure, density) at a point do not change with time:
Example: flow through a pipe from a large reservoir at constant level; constant discharge in a canal.
- Unsteady flow: properties at a point change with time, . Examples: flood flow in a river, flow during valve closure (water hammer) in a penstock, emptying of a tank.
| Basis | Type 1 | Type 2 |
|---|---|---|
| Density | Incompressible ( const.) | Compressible ( varies) |
| Particle motion | Laminar, layers, | Turbulent, eddies, |
| Change with time | Steady | Unsteady |
| Typical example | Water in pipe | Air in jet engine |
| Example | Oil in capillary | River flow |
| Example | Constant canal flow | Flood wave |
- Asked 3 times
- 2081 Chaitra · 4 marks
- 2078 Chaitra · 4 marks
- 2074 Bhadra · 2 marks
Define the terms specific weight, specific gravity, specific mass, specific volume, viscosity, surface tension, capillarity and compressibility.
Answer
These are the basic physical properties used to describe a fluid.
- Specific weight (weight density), or : weight per unit volume, . Unit N/m³. Water: 9810 N/m³.
- Specific gravity, : ratio of the density (or specific weight) of a fluid to that of a standard fluid (water at 4 °C for liquids, air for gases). ; no unit. Mercury: 13.6.
- Specific mass (mass density), : mass per unit volume, . Unit kg/m³. Water: 1000 kg/m³.
- Specific volume, : volume per unit mass, . Unit m³/kg. Mostly used for gases.
- Viscosity: the property by which a fluid resists the relative motion (shear) between its layers. By Newton's law, , where is the dynamic viscosity (N·s/m² or Pa·s). Kinematic viscosity (m²/s).
- Surface tension, : the tensile force per unit length acting on the free surface of a liquid, caused by cohesion between liquid molecules. Unit N/m. Water–air at 20 °C: about 0.073 N/m.
- Capillarity: rise or fall of a liquid in a thin tube due to surface tension, adhesion and cohesion. Rise . Water rises (adhesion > cohesion); mercury falls.
- Compressibility: the reciprocal of bulk modulus; it measures the fractional change in volume per unit change of pressure, . Unit m²/N. Liquids have very low compressibility, so they are treated as incompressible.
- Asked 2 times
- 2082 Kartik · 2+4 marks
- 2075 Baisakh · 2+3+3 marks

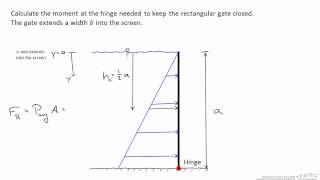

Define the terms total pressure and centre of pressure. Derive expressions for total pressure and centre of pressure for a vertically immersed surface.
Answer
Total pressure is the resultant force exerted by a static fluid on a surface in contact with it; it acts normal to the surface. Centre of pressure is the point on the surface through which this resultant force acts.
Setup
Consider a plane surface of any shape, area , immersed vertically in a liquid of specific weight . Let be the depth of its centroid G and the depth of the centre of pressure P, both measured from the free surface.
free surface
---------------------------------
| |
| h-bar | h*
v |
+---G------+ |
| [strip] |<- dh at depth h
| P | v
+----------+
Total pressure
Take a thin horizontal strip of width and thickness at depth . Pressure on it is , so
since (first moment of area about the free surface).
Centre of pressure
Take moments about the free surface line. The moment of is . Sum of moments equals the moment of the resultant:
where is the second moment of area about the free surface. By the parallel axis theorem . So
Results
- (independent of the shape; depends only on area and centroid depth).
- . Because is always positive, the centre of pressure lies below the centroid; the gap reduces as depth increases.
- Example: rectangle with top at the surface: , , so .
- Asked 2 times
- 2082 Kartik · 3+1+2 marks
- 2071 Magh · 2+3 marks
Briefly explain the different types of heads in a moving liquid. Define Bernoulli's equation and list the assumptions made in its derivation.
Answer
In a moving liquid the energy per unit weight is called head (unit m). There are three main heads.
Types of heads
- Pressure head, : energy due to pressure; the height of liquid column the pressure can support.
- Velocity (kinetic) head, : energy due to motion; the height a particle would rise if its velocity were turned upwards.
- Potential (datum) head, : energy due to position above an arbitrary datum.
- Piezometric head (level shown by a piezometer, defines the HGL).
- Total head (defines the energy line). In real flows a loss of head due to friction and fittings also appears.
Bernoulli's equation
For steady, ideal, incompressible flow along a streamline, the total head is constant:
or between sections 1 and 2:
Assumptions
- The fluid is ideal (non-viscous), so there is no friction loss.
- The flow is steady.
- The flow is incompressible ( constant).
- The flow is irrotational and the equation is applied along a streamline.
- Only gravity and pressure forces act; no energy is added or removed (no pump or turbine) and no heat transfer.
- Velocity is uniform over the section (one-dimensional flow).
- Asked 2 times
- 2081 Chaitra · 1+5 marks
- 2077 Chaitra · 6 marks
What do you mean by most-economical section of an open channel? Show that the hydraulic mean depth of a most-economical rectangular channel section is half of the channel flow depth.
Answer
A most economical (best hydraulic) section of an open channel is the section which, for a given area, bed slope and roughness, carries the maximum discharge. Since (Chezy) or (Manning), is maximum when is maximum, i.e. when the wetted perimeter is minimum for the given area. Such a section also needs the least lining and excavation.
Proof for a rectangular section
|<------- b ------->|
| | ^
| water | y
|___________________| v
Let width , depth .
For given , is minimum when :
Since : . (Check: , so it is a minimum.)
Hydraulic mean depth:
Result
For the most economical rectangular channel:
- width is twice the depth, ;
- hydraulic mean depth is half the depth, .
Example: if m, then m and m.
- 2073 Bhadra · 4 marks
Discuss surface tension and capillarity.
Answer
Surface tension
Surface tension () is the tensile force per unit length acting along the free surface of a liquid, so that the surface behaves like a stretched membrane. Unit: N/m.
- Cause: a molecule inside the liquid is pulled equally in all directions by cohesion, but a molecule at the surface is pulled only inwards. This creates a net inward pull and a "skin" at the surface.
- Examples: water drops are spherical, small insects walk on water, a needle can float.
- Pressure inside a droplet: ; inside a soap bubble (two surfaces): ; inside a liquid jet: .
- decreases with increase in temperature. For water at 20 °C, N/m.
Capillarity
Capillarity is the rise or fall of a liquid in a small-diameter tube dipped in it, caused by surface tension together with adhesion and cohesion.
- If adhesion > cohesion (water and glass), the liquid wets the tube, the meniscus is concave and the liquid rises.
- If cohesion > adhesion (mercury and glass), the meniscus is convex and the liquid falls (capillary depression).
Equating the upward surface tension force to the weight of the raised column:
where is the contact angle ( for water–glass, for mercury–glass). The rise is inversely proportional to tube diameter, so manometer and piezometer tubes are made wider than about 6 mm to keep capillary error small.
- 2070 Bhadra · 2+4 marks
Define the terms specific gravity and specific weight. Differentiate between Newtonian and Non-Newtonian fluid showing diagram of variations of shear stress with velocity gradient.
Answer
Specific gravity and specific weight
- Specific weight ( or ): weight per unit volume of a fluid, (N/m³). For water N/m³.
- Specific gravity (): ratio of the specific weight (or density) of a fluid to that of a standard fluid (water at 4 °C for liquids). ; it has no unit. For mercury .
Newtonian and non-Newtonian fluids
A Newtonian fluid obeys Newton's law of viscosity: shear stress is directly proportional to velocity gradient, with a constant viscosity:
A non-Newtonian fluid does not obey this linear law; its apparent viscosity changes with the rate of shear, in general .
tau ^ B
| / P
| / _.-'
| / .-' N
| / .' .-'
| / .' .-'
ty +----'.' .-' D
| .' .-' _.-'
| / .-' _.--'
| / .-' _.--'
|/.-_.-'
+--------------------> du/dy
N = Newtonian (straight line from 0)
P = pseudo-plastic (slope decreases)
D = dilatant (slope increases)
B = Bingham plastic (flows only after
yield stress ty, then linear)
| Point | Newtonian | Non-Newtonian |
|---|---|---|
| Law | ||
| vs graph | Straight line through origin | Curve, or line not through origin |
| Viscosity | Constant at given temperature | Changes with shear rate |
| Yield stress | None | May exist (Bingham plastic) |
| Examples | Water, air, kerosene, petrol | Blood, paint, toothpaste, sewage sludge, cement slurry |
Types of non-Newtonian fluids: pseudo-plastic (, e.g. paint, blood), dilatant (, e.g. rice starch, quicksand), Bingham plastic (needs a yield stress before flowing, e.g. toothpaste, sewage sludge).
- 2075 Baisakh · 1+4 marks
State the Newton's law of viscosity and explain the importance of viscosity in fluid motion.
Answer
Newton's law of viscosity: the shear stress on a fluid layer is directly proportional to the rate of shear strain (velocity gradient) normal to the layer:
where is the coefficient of dynamic viscosity (N·s/m²). Fluids that obey this law are Newtonian fluids.
Importance of viscosity in fluid motion
- Resistance to flow and head loss: viscosity causes shear between layers and friction at the walls. This produces head loss in pipes, penstocks and canals (). In hydropower, friction loss in the penstock reduces the net head and power.
- Type of flow: viscosity appears in the Reynolds number , which decides whether flow is laminar or turbulent.
- No-slip condition and velocity profile: because of viscosity, fluid touching a wall has zero velocity, giving the parabolic (laminar) or flatter (turbulent) velocity profile and the boundary layer.
- Drag and power needs: viscous drag on bodies and the power needed to pump fluids depend on viscosity.
- Lubrication: a thin oil film separates moving surfaces (bearings of turbines and generators), reducing wear; correct viscosity is essential.
- Energy dissipation: viscosity converts kinetic energy into heat, for example in hydraulic jumps below spillways.
- Temperature effect: viscosity of liquids falls with rise in temperature (weaker cohesion) while that of gases rises (more molecular momentum exchange); this must be considered in design.
- 2081 Chaitra · 5 marks
The space between two parallel plates, 5 mm apart, is filled with crude oil. A force of 2 N is required to drag the upper plate at a constant velocity of 0.8 m/s, while the lower plate remains stationary. The area of the upper plate is 0.09 m². Determine the dynamic viscosity and kinematic viscosity of the oil, given that the specific gravity of the oil is 0.9.
Answer
Use Newton's law of viscosity, , with a linear velocity distribution between the plates.
Given: gap mm m, N, m/s, m², .
Dynamic viscosity
Kinematic viscosity
Answer: N·s/m² (= 1.389 poise), m²/s (= 1.543 stokes).
- 2077 Chaitra · 7 marks
Calculate the dynamic viscosity of oil which is used for the lubrication between square plate of size 0.8 m × 0.8 m and an inclined plane with an angle of inclination 30°. The weight of the square plate is 300 N and it slides down the inclined plane with a uniform velocity of 0.3 m/s. The thickness of oil film is 1.5 mm.
Answer
The plate slides at uniform velocity, so the component of its weight along the plane is balanced by the viscous shear force of the oil film.
Given: m², N, , m/s, mm m.
plate (W = 300 N)
_/_/
/ / ---> slides down at 0.3 m/s
/ / oil film 1.5 mm
/__/________
/ 30 deg
Shear force and shear stress
Velocity gradient (linear profile)
Viscosity
Answer: dynamic viscosity of the oil N·s/m² (= 11.72 poise).
- 2074 Bhadra · 4 marks
A liquid compressed in a cylinder has a volume of 3600 cm³ at pressure 4 MN/m² and a volume of 3200 cm³ at pressure 8 MN/m². What is bulk modulus of elasticity?
Answer
Bulk modulus is the ratio of the increase in pressure to the resulting volumetric strain:
Given: cm³ at MN/m², cm³ at MN/m².
(The initial volume 3600 cm³ is used as the reference volume.)
Answer: MN/m² N/m².
- 2080 Asoj · 5 marks
State and prove Pascal's law.
Answer
Pascal's law: the pressure at a point in a fluid at rest is the same in all directions, i.e. .
Proof
Consider a small wedge-shaped fluid element at rest, of unit width perpendicular to the paper, with sides (horizontal), (vertical) and inclined face at angle to the vertical.
|\
| \ ds (pressure p_z
p_x -> | \ normal to it)
dy | \
| \
|_____\
dx
^ p_y
Pressures: on the vertical face, on the bottom face, on the inclined face. Geometry: , (with the angle between the inclined face and the vertical).
Since the fluid is at rest, there are no shear forces; only pressure forces and weight act.
Horizontal equilibrium:
Using : .
Vertical equilibrium:
Using :
As the element shrinks to a point (), the weight term (second-order small) vanishes, so .
Therefore
Since was arbitrary, the pressure at a point is the same in every direction.
Applications
Hydraulic press, hydraulic jack and brakes, where a small force on a small piston gives a large force on a large piston ().
- 2082 Chaitra · 6 marks
As shown in the figure below, pipe M contains carbon tetrachloride of specific gravity 1.594 under a pressure of 105 kN/m² and pipe N contains oil of specific gravity 0.8. If the pressure in the pipe N is 175 kN/m² and the manometric fluid is mercury, find the difference x between the levels of mercury. [Figure: pipe M (carbon tetrachloride, sp. gr. 1.594) on the left and pipe N (oil, sp. gr. 0.8) on the right are joined by a U-tube containing mercury; the centre of M is 2.5 m above the centre of N, the centre of N is 1.5 m above the higher mercury level (Z–Z), and x is the difference between the two mercury levels.]
Answer
Use the manometer principle: pressures at the same level in the same continuous liquid are equal. Take the datum at the lower mercury level, which lies below Z–Z.
Given: kN/m², (CCl₄); kN/m², (oil); ; m/s².
Since , mercury is pushed down in the limb under N and up in the limb under M. So Z–Z (higher mercury level) is in M's limb and the lower level is in N's limb.
- Height of M above Z–Z m.
- Oil column in N's limb .
Pressure balance at the datum (lower mercury level)
Left limb (M side):
Right limb (N side):
Equating (in kN/m², for water kN/m³):
Answer: the difference between the mercury levels is m mm (mercury higher in the limb below pipe M).
- 2082 Kartik · 5 marks
A differential manometer is connected to points A and B, as shown in the figure below. Given that the air pressure at A is 60 kN/m², determine the pressure at point B. [Figure: pipe A contains air above water (S₁ = 1) and pipe B contains oil (S₂ = 0.9); they are connected by a U-tube with mercury (S = 13.6) in its bottom; the vertical distances marked on the figure are 200 mm, 550 mm and 100 mm, measured relative to the datum X–X at the mercury surface.]
Answer
Write the pressure balance at the datum X–X (mercury surface in the left limb), moving through each fluid column.
Assumed reading of the figure: the air–water surface on the A side is 200 mm above X–X. On the B side, mercury stands 100 mm above X–X, and B is 550 mm above X–X, so the oil column is mm.
Given: kN/m² (air; its weight is neglected), water , oil , mercury , kN/m³.
A (air) B (oil)
|~~~~~| 200 mm water | 450 mm oil
| | |------ Hg top (+100)
X-|-----|------------ X | 100 mm Hg
|__ mercury ____________|
Pressure at X–X, left limb
Pressure at X–X, right limb
Equate
Answer: kN/m² (gauge), i.e. about 15.35 kN/m² less than at A. (If the figure's heights are placed differently, use the same column-by-column balance with those heights.)
- 2080 Asoj · 6 marks
A U-tube manometer contains oil, mercury, and water as shown in figure below. For the column heights indicated, what is the pressure differential between pipe A and B? [Figure: pipe A (oil, SG = 0.9) on the left and pipe B (water) on the right are connected by a U-tube with mercury (SG = 13.6) at the bottom; the column heights marked are 4 cm, 3 cm and 12 cm.]
Answer
Use the manometer rule: start at A, add when going down a column, subtract when going up, and end at B.
Assumed reading of the figure: A (oil) is 12 cm above the oil–mercury surface in the left limb. Mercury in the right limb stands 4 cm higher than in the left limb. B (water) is 3 cm above the right mercury surface.
Given: oil , mercury , water ; N/m³.
A (oil)
| B (water)
| 12 cm oil | 3 cm water
| Hg -------+ (right Hg level)
| | 4 cm
+-- Hg level --+
|_____ mercury ______|
Manometer equation
Answer: kN/m² (pressure at A is higher). If the column heights are arranged differently in the figure, the same step-by-step balance applies with those heights.
- 2079 Chaitra · 6 marks
Two pipes as shown in figure convey oil of specific gravity of 0.875 and water respectively. Both the liquids in the pipes are under pressure. The pipes are connected to a U-tube manometer and the hoses connecting the pipes to the tubes are filled with the corresponding liquids. Find the difference of pressure in two pipes if the level of manometric liquid having a specific gravity of 1.25 is 2.25 m higher in the right limb than the lower level of oil in the left limb of the manometer. [Figure: pipe A (oil) and pipe B (water) connected through an inverted U-tube manometer; the centre of A is 1.5 m above the lower oil level D–D, and the manometric liquid in the right limb stands 2.25 m above D–D (level E–F).]
Answer
Equate the pressures on the horizontal plane D–D (the lower oil level / top of the manometric liquid in the left limb), since below it the same manometric liquid is continuous.
Given: oil , manometric liquid , water . Centre of A is 1.5 m above D–D. Manometric liquid in the right limb stands 2.25 m above D–D (level E–F). The centre of B is taken at level E–F, as no other height is given.
A (oil) o o B (water) -- E-F
| |
| 1.5 m oil | 2.25 m of
| | liquid S=1.25
D ------+---- S = 1.25 ------+------ D
Pressure at D–D, left limb
Pressure at D–D, right limb
Equate
Answer: kN/m² (≈ 14.72 kPa); pipe A (oil) is at the higher pressure.
- 2075 Bhadra · 5 marks
Calculate the pressure difference between the points A and B. Specific gravity of oil is 0.8. [Figure: pipes A and B both contain water and are connected by two mercury U-tubes joined at the top by an inverted U-tube containing oil; marked heights are 90 cm (centre of A above the bottom datum), 60 cm and 40 cm (mercury columns on the left), 50 cm (mercury column on the right) and 80 cm (centre of B above the right mercury level).]
Answer
Go from A to B through each column: add going down, subtract going up.
Assumed reading of the figure (heights above the bottom datum): centre of A = 0.90 m. In the left mercury U-tube, the mercury surface is at 0.40 m in A's limb and 0.60 m in the other limb. Oil fills the inverted U-tube, down to the right U-tube's mercury surface, taken at 0.40 m. The right U-tube's mercury in B's limb is at 0.50 m. B is 0.80 m above that, i.e. at 1.30 m.
Given: , , water , kN/m³.
| Step | Column | Height (m) | Pressure change (kN/m²) |
|---|---|---|---|
| A down to Hg (left) | water | 0.50 | |
| Up in Hg to 0.60 | mercury | 0.20 | |
| Down through oil to 0.40 | oil | 0.20 | |
| Up in Hg to 0.50 | mercury | 0.10 | |
| Up in water to B | water | 0.80 |
Manometer equation
Answer: kN/m² (A at higher pressure), for the heights read as above. The method is the same for any other placement of the marked heights.
- 2071 Magh · 7 marks
Find the pressure difference between the container A and B as shown in figure. [Figure: container A holds liquid of sp. gr. 0.8 and container B holds water; they are connected by a U-tube with mercury at the bottom; the limb from A is inclined at 45° and the limb to B at 60°; lengths marked are 130 mm and 230 mm on the A side, 230 mm on the B side, and vertical heights 550 mm (left limb) and 300 mm (right limb).]
Answer
In an inclined limb only the vertical height of a column produces pressure: .
Assumed reading of the figure: liquid of stands 550 mm vertically above the mercury surface in A's limb, and water stands 300 mm vertically above the mercury surface in B's limb. The mercury surface lies 130 mm along the 45° limb on the A side and 230 mm along the 60° limb on the B side, measured from the common bottom of the U-tube.
Vertical heights of the mercury surfaces
So mercury on the B side stands 0.1073 m higher.
Pressure balance at the level of the lower (A-side) mercury surface
Answer: kN/m² (container A at the higher pressure), for the reading above. Use the same method if the figure places the lengths differently.
- 2070 Magh · 6 marks
How do you measure difference of pressure between any two points in a pipe? Explain with neat sketch and mathematical expression.
Answer
The pressure difference between two points in a pipe (or between two pipes) is measured with a differential manometer: a U-tube with a heavy manometric liquid (usually mercury) whose two limbs are connected to the two points.
U-tube differential manometer (points at different levels)
A o
| pipe liquid S1 o B
| | pipe liquid S2
| h_A | h_B
| h |
X --+-----. .-------------+
| Hg | | Hg surface
\____|__|____/
mercury (S_g)
Let A be above the datum X–X (lower mercury surface), B be above the higher mercury surface, and the mercury difference.
Pressure at X–X in the left limb . Pressure at X–X in the right limb .
Both points at the same level, same liquid
If A and B are in the same horizontal pipe carrying liquid of density :
For water and mercury: .
Inverted U-tube manometer
For small pressure differences a light liquid (air or oil) is used at the top of an inverted U-tube:
Steps of measurement
- Connect each limb to the pipe tapping, filling the leads with the pipe liquid (no air bubbles).
- Let the manometer settle and read the level difference .
- Choose a datum at the lower interface and equate pressures in both limbs.
Other devices: Bourdon gauge pair or electronic differential pressure transducers for large differences.
- 2070 Bhadra · 2+4 marks
What is the use of manometer? Show the working principle of inverted manometer with neat sketch.
Answer
Use of a manometer
A manometer measures pressure at a point (simple manometer) or the difference of pressure between two points (differential manometer) by balancing it against a column of liquid. Used for pipes, venturimeters, orifice meters and laboratory flow measurement; it is simple, cheap and accurate.
Inverted U-tube differential manometer
It is an inverted U-tube whose top part contains a light fluid (air or a light oil) lighter than the liquid in the pipes. It is used to measure small pressure differences, where a heavy liquid like mercury would give too small a reading.
.---------------.
| light liquid | (air or oil, rho_s)
X ----+------. |
| | h |
| '--------+---- right interface
h_1 | liquid |
| rho_1 | h_2 liquid rho_2
o A |
o B
Let X–X be the left (higher) interface, A be below it, the right interface be lower than X–X, and B be below the right interface.
Working principle
Pressure at level X–X in the left limb:
Pressure at level X–X in the right limb (go up of pipe liquid from B, then up of light liquid):
Equating:
If air is used at the top, .
Example: water in both pipes, oil at top, m, m, m: kN/m², a very small difference that an inverted manometer can read well.
- 2075 Bhadra · 2+6 marks
Define total pressure and center of pressure in static fluid. Prove that the center of pressure for a vertically immersed plane surface is always below its centroid.
Answer
Total pressure is the resultant force exerted by a static fluid on a surface, acting normal to it. Centre of pressure is the point on the surface where this resultant force acts.
Derivation for a vertical plane surface
Let a plane surface of area be immersed vertically in a liquid of density . Let = depth of centroid G and = depth of centre of pressure P below the free surface.
free surface ===========================
| |
| h-bar | h*
+-----G------+ |
| ---strip-- | dh at h |
| P | <------'
+------------+
Total pressure: for a horizontal strip of area at depth , .
Centre of pressure: moment of all strip forces about the free surface equals the moment of :
By the parallel axis theorem, , where is the second moment of area about the horizontal axis through G. Therefore
Proof that P is below G
- is a second moment of area, always positive.
- and are positive for a submerged surface.
So and hence : the centre of pressure always lies below the centroid.
Physical reason: pressure increases linearly with depth, so the lower part of the surface carries more force than the upper part, pulling the resultant below the centroid.
Note: as the surface goes deeper ( large), and P approaches G. Example: rectangle with top edge at the surface: , which is below .
- 2081 Chaitra · 4 marks
How can the hydrostatic force on a curved surface be analyzed? Explain.
Answer
On a curved surface the pressure acts normal to each element, so the elemental forces have different directions. The total force is found by resolving it into horizontal and vertical components.
free surface ==================
: water above |
: (volume ABCD) | F_V = weight of
: | this water
D________________A
\ <- curved surface AB
\
B
F_H = force on vertical projection of AB
Horizontal component
- = area of the vertical projection of the curved surface, = depth of its centroid.
- acts through the centre of pressure of this projected area, at depth .
Vertical component
- = volume of liquid (real or imaginary) lying vertically above the curved surface up to the free surface.
- acts through the centroid of that volume.
- If the liquid is above the surface, acts downward. If the liquid is below the surface, acts upward and equals the weight of the imaginary liquid above it.
Resultant
For a circular (cylindrical) surface, every elemental force is normal to the surface and passes through the centre, so the resultant also passes through the centre of curvature.
Applications: radial (Tainter) gates, sector gates and drum gates on spillways, curved dam faces and pipe bends.
- 2082 Chaitra · 6 marks
A circular plate of diameter 2.2 m is immersed in a liquid of specific gravity 1.2. The highest and lowest points of the plate are at depths of 2.5 m and 4.5 m below the free surface, respectively. Calculate the total pressure force on one face of the plate and the location of its center of pressure.
Answer
The plate is not vertical because its depth range (4.5 − 2.5 = 2 m) is less than its diameter, so it is inclined. Use the formulas for an inclined plane surface.
Given: m, so kg/m³, depths of top and bottom points m and m.
free surface =====================
: 2.5 m
: * top point
: / \
: / \ plate, d = 2.2 m
: / G \ inclined at theta
: \ /
: \ /
: * bottom point (4.5 m)
Inclination and centroid depth
Area and second moment of area
Total pressure
Centre of pressure
Answer: total pressure kN; centre of pressure at a depth of m below the free surface (on the plate's vertical diameter, below the centroid).
- 2080 Chaitra · 6 marks
A circular plate of 2.5 m diameter is immersed in liquid of specific gravity 0.9, it's greatest and least depth below the free surface being 3 m and 1 m respectively. Find the total pressure on one face of the plate and position of center of pressure.
Answer
The plate is not vertical because its depth range (3 − 1 = 2 m) is less than its diameter, so it is inclined. Use the formulas for an inclined plane surface.
Given: m, so kg/m³, depths of top and bottom points m and m.
free surface =====================
: 1 m
: * top point
: / \
: / \ plate, d = 2.5 m
: / G \ inclined at theta
: \ /
: \ /
: * bottom point (3 m)
Inclination and centroid depth
Area and second moment of area
Total pressure
Centre of pressure
Answer: total pressure kN; centre of pressure at a depth of m below the free surface (on the plate's vertical diameter, below the centroid).
- 2079 Chaitra · 5 marks
A circular plate 2.6 m in diameter is immersed in water, its greatest and least depth below the free surface being 3 m and 1 m respectively. Find the total pressure on one face of the plate and the position of the center of pressure.
Answer
The plate is not vertical because its depth range (3 − 1 = 2 m) is less than its diameter, so it is inclined. Use the formulas for an inclined plane surface.
Given: m, water, kg/m³, depths of top and bottom points m and m.
free surface =====================
: 1 m
: * top point
: / \
: / \ plate, d = 2.6 m
: / G \ inclined at theta
: \ /
: \ /
: * bottom point (3 m)
Inclination and centroid depth
Area and second moment of area
Total pressure
Centre of pressure
Answer: total pressure kN; centre of pressure at a depth of m below the free surface (on the plate's vertical diameter, below the centroid).
- 2081 Asoj · 5 marks
Calculate the total pressure and center of pressure on a vertically submerged rectangular plate 2 m high and 3 m wide, with the top edge 1 m below the free surface.
Answer
For a vertical plane surface: and .
Given: height m, width m, top edge 1 m below the surface; water, kg/m³.
free surface ===================
| 1 m
+---------+ -
| G | 2 m (b = 3 m)
| P |
+---------+ -
Data
Total pressure
Centre of pressure
Answer: kN; centre of pressure is 2.167 m below the free surface (0.167 m below the centroid, on the vertical centre line).
- 2077 Chaitra · 6 marks
A rectangular plate 3 m × 5 m is immersed vertically in water such that the 3 m side is parallel to the water surface. Determine the hydrostatic force and the centre of pressure if the top edge of the surface is (i) flush with the water surface, and (ii) 2 m below the water surface.
Answer
The plate is vertical with the 3 m side horizontal, so width m and depth m. Use and .
(i) Top edge flush with the water surface
(Check: m.)
(ii) Top edge 2 m below the water surface
| Case | (m) | (kN) | (m) | (m) |
|---|---|---|---|---|
| (i) Flush | 2.5 | 367.88 | 3.333 | 0.833 |
| (ii) 2 m below | 4.5 | 662.18 | 4.963 | 0.463 |
Answer: (i) kN at 3.333 m depth; (ii) kN at 4.963 m depth. The deeper the plate, the closer the centre of pressure comes to the centroid.
- 2071 Bhadra · 8 marks
A rectangular plate 0.6 m wide and 1.2 m deep lies within a water body such that its plane is inclined at 40° to the horizontal and the top edge is 0.70 m below the water surface. Determine the total pressure force on the plate and the location of the center of pressure.
Answer
For an inclined plane surface: and , where is the angle with the horizontal (free surface).
Given: width m, length along the slope m, , top edge 0.70 m below the surface; water.
free surface ===========================
: 0.70 m
+.
\ . plate 1.2 m long,
\ . 0.6 m wide
\ G .
\ P . 40 deg to
+----------- horizontal
Centroid depth
Area and second moment
Total pressure force
Centre of pressure
Measured along the plate from the top edge: m (the centroid is at 0.600 m).
Answer: total pressure force kN; centre of pressure at a vertical depth of 1.131 m below the free surface, i.e. 0.671 m down the plate from its top edge, on the centre line.
- 2070 Magh · 7 marks
An isosceles triangle plate of base 4 m and altitude 6 m is immersed vertically in water. Its axis of symmetry is parallel to the free surface and at a depth of 6 m from the free water surface. Calculate the magnitude and location of the total pressure force.
Answer
The plate is vertical and its axis of symmetry (the altitude) is horizontal, at 6 m depth. So the 4 m base is vertical, and the centroid lies on the axis at depth 6 m.
free surface ==========================
: 6 m
|\ :
4 m | \ v
base |----G-----> axis (horizontal)
(vert.)| / 6 m altitude
|/
Given: base m, altitude m, water.
Area and centroid
The centroid lies on the axis, at m from the base (4 m from the apex).
Total pressure
Second moment about the horizontal centroidal axis (the axis of symmetry)
The triangle is two right triangles, each of base 6 m (along the axis) and height 2 m, on either side of the axis:
Centre of pressure (depth)
Horizontally, the plate is symmetric about the axis (product of inertia about the centroidal axes is zero), so the centre of pressure lies at the same horizontal position as the centroid: 2 m from the base.
Answer: kN, acting at 6.111 m depth (0.111 m below the axis), 2 m from the vertical base (4 m from the apex).
- 2074 Bhadra · 8 marks
A vertical rectangular gate 4 m × 2 m (4 m side being vertical) is hinged at a point 10 cm below the centre of gravity of the gate. The depth of water is 6 m above the bottom of the gate. What is horizontal force must be applied at the bottom of the gate to keep it in vertical position?
Answer
Find the water force and its line of action, then take moments about the hinge.
Given: gate 2 m wide, 4 m high (vertical), water 6 m deep above the bottom of the gate, hinge 0.1 m below the centroid G.
free surface ============
| 2 m
+----------+ top (2 m depth)
| |
| G | 4 m (G at 4 m depth)
| hinge o | 4.1 m depth
| P | 4.333 m depth
| |
+----------+ bottom (6 m depth)
<-- P_b (applied force)
Water force
Centre of pressure
Moments about the hinge
- Hinge depth m.
- Water force acts m below the hinge, so it tends to turn the gate open at the bottom.
- Force at the bottom acts m below the hinge, opposite to the water force.
Answer: a horizontal force of about 38.55 kN must be applied at the bottom of the gate, towards the water, to keep it vertical.
- 2073 Bhadra · 10 marks
Find the net hydrostatic force per unit width on rectangular panel AB in the figure given below and determine its line of action. [Figure: vertical wall with water on the left and glycerin (sp. wt. = 12.36 kN/m³) on the right; panel AB is 2 m high; on the water side A is 3 m (2 m + 1 m) below the water surface and B is 5 m below it, with the wall continuing 1 m below B; the glycerin surface is 2 m below the water surface, i.e. 1 m above A.]
Answer
Work per metre width. Find the force from each liquid and its line of action, then combine them by taking moments about B.
Given: panel AB is 2 m high. Water side: A at 3 m depth, B at 5 m depth. Glycerin side: A at 1 m depth, B at 3 m depth. kN/m³, kN/m³.
water surface ==
| 2 m
glycerin | == glycerin surface
| 1 m
A +
water -> | <- glycerin
(left) -> | 2 m <-
B +
| 1 m
Force from water (left)
So it acts m above B.
Force from glycerin (right)
So it acts m above B.
Net force
Line of action (moments about B)
Answer: net hydrostatic force kN per metre width, acting from the water side towards the glycerin, at 1.059 m above B (0.941 m below A, i.e. 3.941 m below the water surface).
- 2078 Chaitra · 10 marks
The sector gate shown in figure below consists of a cylindrical surface of which AB is the trace, supported by a structural frame hinged at O. The length of the gate is 10 m. Determine the magnitude and location of the horizontal and vertical component of the total hydrostatic force on the gate. [Figure: circular-arc gate AB of radius 6 m centred at hinge O; OA is horizontal (radius = 6 m) with A at the bed level of O, OB makes θ = 60° with OA, and B is at the water surface; water lies on the convex side of the arc.]
Answer
Resolve the hydrostatic force on the curved gate into a horizontal component (force on the vertical projection) and a vertical component (weight of water above the curved surface). Gate length m.
Geometry
Take the hinge as origin. Radius m, angle between the two radii , one radius horizontal at bed level. The other end of the arc is at the water surface, so
Horizontal distance of the upper end from the hinge m.
water surface ======= upper end of arc
(3, 5.196)
hinge . |\
| . | \ water on the
| . 60deg| \ convex side
o---------+---* lower end (6, 0)
<--- R = 6 m ---> bed
Horizontal component
Equal to the force on the vertical projection ():
It acts at m above the bed (3.464 m below the surface).
Vertical component
Equal to the weight of water lying vertically above the arc, up to the surface. Area of that region:
Its line of action passes through the centroid of this area, found by integration: 5.158 m horizontally from the hinge, i.e. 0.842 m from the lower end of the arc.
Check: every pressure force on a circular arc passes through the centre, so the resultant must pass through the hinge. Moment about the hinge: and (per m), which balance.
Results for m
Answer: kN, acting 1.732 m above the bed; kN downward, acting 5.158 m horizontally from hinge O. The resultant (≈ 1397 kN at 18.56° below the horizontal) passes through O.
- 2071 Magh · 7 marks
The sector shown in figure below consists of a cylindrical surface of which AB is the trace, supported by a structural frame hinged at C. The length of the gate is 4 m. Determine the magnitude and location of the horizontal and vertical component of the total hydrostatic pressure on the gate. [Figure: circular-arc gate AB of radius 6 m centred at hinge C; A is at the water surface and B at the bed; radius CA is inclined at 60° to the horizontal, and an angle of 30° is also marked at C; water is held on the convex side of the arc.]
Answer
Resolve the hydrostatic force into horizontal and vertical components. Gate length m.
Reading of the figure: radius (A at the water surface) makes 60° with the horizontal, and (B at the bed) is horizontal, so the gate subtends 60° at C (the 30° mark is the angle of CA from the vertical). Water is on the convex side.
Geometry
Take the hinge as origin. Radius m, angle between the two radii , one radius horizontal at bed level. The other end of the arc is at the water surface, so
Horizontal distance of the upper end from the hinge m.
water surface ======= upper end of arc
(3, 5.196)
hinge . |\
| . | \ water on the
| . 60deg| \ convex side
o---------+---* lower end (6, 0)
<--- R = 6 m ---> bed
Horizontal component
Equal to the force on the vertical projection ():
It acts at m above the bed (3.464 m below the surface).
Vertical component
Equal to the weight of water lying vertically above the arc, up to the surface. Area of that region:
Its line of action passes through the centroid of this area, found by integration: 5.158 m horizontally from the hinge, i.e. 0.842 m from the lower end of the arc.
Check: every pressure force on a circular arc passes through the centre, so the resultant must pass through the hinge. Moment about the hinge: and (per m), which balance.
Results for m
Answer: kN, acting 1.732 m above the bed (3.464 m below the surface); kN downward, acting 5.158 m horizontally from hinge C. The resultant passes through C.
- 2082 Chaitra · 4 marks
Using Euler's equation of motion along a streamline, derive the Bernoulli's equation of flow.
Answer
Euler's equation of motion is Newton's second law applied to a fluid element moving along a streamline, considering only pressure and gravity forces. Integrating it gives Bernoulli's equation.
(p + dp) dA
<---
____________
p dA --> | element | ds, along streamline
|___________| (inclined at theta)
|
v weight = rho g dA ds
Forces on the element
Consider an element of area and length along a streamline inclined at to the horizontal.
- Pressure force in the direction of flow: .
- Pressure force opposite to flow: .
- Weight component along : (taking as the angle with the vertical), with .
Newton's second law
Mass × acceleration , where for steady flow :
Dividing by and simplifying:
This is Euler's equation of motion.
Integration (Bernoulli's equation)
For incompressible flow ( constant):
Dividing by :
This is Bernoulli's equation: pressure head + velocity head + datum head is constant along a streamline.
Assumptions: ideal (frictionless) fluid, steady, incompressible and irrotational flow along a streamline.
- 2075 Bhadra · 2+2 marks
Derive Bernoulli's equation with the help of Euler's equation of fluid motion for a real flow. Sketch HGL and EGL for the horizontal circular pipe of gradually expanding cross-section towards the direction of flow.
Answer
Derivation from Euler's equation
For a fluid element of area and length along a streamline, Newton's second law with pressure and gravity forces gives Euler's equation:
Integrating for incompressible flow:
Real flow: a real fluid is viscous, so part of the energy is lost to friction and turbulence between two sections. Also the velocity is not uniform, so a kinetic energy correction factor is used. Between sections 1 and 2:
where is the head loss between 1 and 2.
HGL and EGL for a horizontal, gradually expanding pipe
- EGL (total head) always falls in the flow direction because of the loss .
- As the pipe expands, velocity falls, so velocity head decreases. Part of it is converted to pressure head, so the HGL rises in the direction of flow (pressure recovery), staying below the EGL by .
- The gap between EGL and HGL narrows downstream.
head
^
| EGL (falls slowly due to losses)
| ___
| | ''-.___
| | V1^2/2g ''-.___ EGL
| | ''-.___
| | _____..----|----- HGL
| | __.--'' V2^2/2g |
| HGL-- (HGL rises as V falls)
|
| pipe: ==< small ...... large >==
+-----------------------------------> flow
- 2081 Asoj · 5+2+1 marks
Derive Bernoulli's equation. Explain its limitations and provide an example of its application in hydropower engineering.
Answer
Bernoulli's equation states that, for steady, ideal, incompressible flow along a streamline, the sum of pressure head, velocity head and datum head is constant.
Derivation (from Euler's equation)
Consider a small element of length and area along a streamline. Forces in the flow direction:
- net pressure force ;
- weight component .
Mass × acceleration (steady flow).
(p+dp)dA
<--
[ element ds ] <- streamline
p dA --> |
v rho g dA ds
Newton's second law:
Integrating with constant and dividing by :
Limitations
- It is valid only for ideal (non-viscous) fluid. Real flows have friction losses, so a loss term must be added.
- It assumes steady flow; it does not apply directly to unsteady flow such as water hammer or surge.
- It assumes incompressible flow; not valid for high-speed gas flow.
- It applies along a single streamline (or to irrotational flow); it assumes uniform velocity across the section, so for real pipes a kinetic energy correction factor is needed.
- It does not include energy added or removed by pumps or turbines, or heat transfer, unless those terms are added.
- It ignores forces other than gravity and pressure, such as surface tension and centrifugal forces in bends.
Application in hydropower
Net head and power of a plant: applying Bernoulli's equation (with losses) between the reservoir surface (1) and the turbine inlet (2):
The head available at the turbine is , and power . For a Pelton wheel, the jet velocity also comes from Bernoulli's equation. It is also used to design the draft tube (pressure at its inlet) and to size intakes and flow-measuring devices (venturimeter) in the plant.
- 2080 Chaitra · 1+5 marks
In which basis the continuity equation is derived? Discuss Bernoulli's equation with mathematical expression and neat sketch.
Answer
Basis of the continuity equation
The continuity equation is derived from the law of conservation of mass: for steady flow, mass entering a control volume per second equals mass leaving it. For incompressible flow, (in general ).
Bernoulli's equation
It is based on the conservation of energy (derived from Euler's equation of motion). For steady, ideal, incompressible flow along a streamline, the total energy per unit weight is constant:
Between two sections 1 and 2:
- = pressure head (pressure energy per unit weight)
- = velocity head (kinetic energy per unit weight)
- = datum head (potential energy per unit weight)
--------------------------------- EGL
V1^2/2g V2^2/2g (larger)
---------._____
'-.______________ HGL
p1/rho g p2/rho g
| ____________ |
====|===/ pipe \_____|=====
(1) | z1 (2) | z2
--------------- datum -------------
At the narrow section 2, (continuity), so the velocity head rises and the pressure head falls, while the total stays the same.
For real fluids: .
Assumptions: ideal, steady, incompressible, irrotational flow along a streamline; only gravity and pressure forces act.
Applications: venturimeter, orifice meter, pitot tube, flow through nozzles, net head of a hydropower plant.
- 2071 Bhadra · 1+1+2 marks
State Bernoulli's equation. Mention the assumptions made. How is it modified while applying in real practice?
Answer
Statement
For steady, ideal, incompressible flow along a streamline, the total energy per unit weight (sum of pressure, velocity and datum heads) is constant:
Assumptions
- Ideal fluid (no viscosity, so no friction loss).
- Steady flow.
- Incompressible flow.
- Irrotational flow along a streamline, with uniform velocity over the section.
Modification for real flow
Real fluids are viscous, and velocity is not uniform across a section. So:
- A head loss term (friction loss plus minor losses at bends, valves, entry and exit) is added on the downstream side.
- A kinetic energy correction factor is applied to the velocity head ( for laminar, 1.03–1.1 for turbulent pipe flow).
- Energy added by a pump () or extracted by a turbine () is included.
Example: in a hydropower penstock, .
- 2075 Baisakh · 4 marks
Explain the total energy line and the hydraulic gradient line for fluid flow through a piping system with neat sketch.
Answer
Total energy line (TEL or EGL)
The total energy line is the line joining the total heads at points along the pipe, plotted above the datum.
- It always falls in the direction of flow (due to friction and minor losses), except where a pump adds energy.
- It has sudden drops at entry, sudden expansion, contraction, valves and bends.
Hydraulic gradient line (HGL)
The hydraulic gradient line joins the piezometric heads , i.e. the levels to which water would rise in piezometers fitted along the pipe.
- It lies below the TEL by the velocity head .
- It is parallel to the TEL in a uniform pipe; it can rise where the pipe enlarges (velocity falls).
- Where the pipe rises above the HGL, the pressure is negative (siphon or cavitation risk).
Sketch: two reservoirs joined by a pipe with a sudden enlargement
===== reservoir 1
\__ entry loss 0.5 V1^2/2g
\___ TEL (steep in small pipe)
HGL \_ \___
(V1^2/2g) \_| drop (V1-V2)^2/2g
\___ |____ TEL (flatter)
\__ ^ \______
\| HGL rises \___ exit loss V2^2/2g
|\____ HGL ______\_|
| ===== reservoir 2
small pipe d1 | large pipe d2
===============+==================
- At the entrance, the TEL drops by the entry loss and the HGL drops further by .
- Along each pipe both lines slope down by ; the slope is steeper in the small pipe.
- At the sudden enlargement, the TEL drops by but the HGL rises, since velocity head falls.
- At the exit, the whole velocity head is lost; the HGL meets the lower reservoir surface.
- 2079 Chaitra · 2+4 marks
Define laminar and turbulent flows. Water flows through a 700 mm diameter pipe with flow rate 1200 lps. Calculate the value of friction factor if the head loss in 50 m of pipe length is 0.6 m.
Answer
Laminar and turbulent flow
- Laminar flow: fluid particles move in smooth, parallel layers without mixing; viscous forces dominate; in pipes. Example: thick oil in a thin tube.
- Turbulent flow: particles move randomly with eddies and mixing; inertia forces dominate; in pipes. Example: water in a penstock.
Numerical
Given: m, L/s m³/s, m, m.
Velocity:
Darcy–Weisbach equation:
Answer: Darcy friction factor . (If the form is used, the coefficient of friction is .) At m/s in a 0.7 m pipe, , so the flow is turbulent.
- 2077 Chaitra · 2+6 marks
How do you numerically classify laminar, transitional and turbulent flow in pipes? Differentiate laminar and turbulent velocity profiles in pipe flow with neat sketch and labels.
Answer
Numerical classification (Reynolds number)
Flow in pipes is classified by the Reynolds number, the ratio of inertia force to viscous force:
| Flow type | Reynolds number (pipe) |
|---|---|
| Laminar | |
| Transitional | |
| Turbulent |
Example: water ( m²/s) at 1 m/s in a 0.1 m pipe: , so turbulent.
Velocity profiles
Laminar (parabolic) Turbulent (flatter)
|===================== |=====================
|--> |------->
|------> |--------->
|---------> u_max = 2V |----------> u_max ~ 1.2V
|------> |--------->
|--> |------->
|===================== |=====================
wall u = 0 thin laminar sublayer
- Laminar: velocity varies parabolically with radius (Hagen–Poiseuille):
- Turbulent: mixing evens out the velocity, so the profile is flat in the core and changes steeply near the wall; approximately the power law , with and a thin laminar sub-layer at the wall.
| Feature | Laminar profile | Turbulent profile |
|---|---|---|
| Shape | Parabolic | Flat core, steep at wall |
| 2.0 | about 1.2 | |
| Wall shear | Low | High |
| Velocity law | Log law or | |
| KE factor | 2.0 | 1.03–1.10 |
| Head loss | , | to |
- 2081 Chaitra · 1+2 marks
Water flows through a 1 km long horizontal pipe of 150 mm diameter with a velocity of 2 m/s. Calculate the discharge and head loss in the pipe if the friction factor is 0.02.
Answer
Given: m, m, m/s, (Darcy).
Discharge
Head loss (Darcy–Weisbach)
Answer: m³/s (35.3 L/s); head loss m of water.
- 2080 Asoj · 6 marks
A horizontal pipe 150 mm in diameter is joined by sudden enlargement to a 225 mm diameter pipe. Water is flowing through it at the rate of 0.05 m³/s. Find (i) loss of head due to sudden expansion, (ii) pressure difference in the two pipes, and (iii) change in pressure if the change of section is gradual without any loss.
Answer
Given: m, m, m³/s, horizontal pipe.
Velocities
(i) Loss of head due to sudden expansion
(ii) Pressure difference (Bernoulli with loss, )
(iii) Gradual enlargement without loss ()
Answer: (i) m; (ii) pressure rises by kN/m²; (iii) with a gradual, loss-free enlargement the rise would be kN/m².
- 2080 Chaitra · 8 marks
Two reservoirs are connected by a pipeline which is 15 cm diameter for the first 6 m and 25 cm diameter in remaining 15 m length. The entrance and exit are sharp and change of section is sudden. If water surface in upper reservoir is 6 m above that of lower reservoir, calculate rate of flow. Take friction factor 0.04 for all pipes.
Answer
Apply Bernoulli's equation between the two reservoir surfaces. The difference in levels equals the sum of all losses.
Given: pipe 1: m, m; pipe 2: m, m; m; Darcy ().
===== upper reservoir
| |
| | 6 m
| |______ 15 cm, 6 m ___
| |____ 25 cm, 15 m ______
------------------------------- ===== lower
Continuity
Losses in terms of
| Loss | Formula | Coefficient of |
|---|---|---|
| Entrance (sharp) | 0.5000 | |
| Friction, pipe 1 | 1.6000 | |
| Sudden enlargement | 0.4096 | |
| Friction, pipe 2 | 0.3110 | |
| Exit | 0.1296 | |
| Total | 2.9502 |
Velocity and discharge
Check: losses m.
Answer: rate of flow m³/s (about 112 L/s). (If 0.04 were the coefficient in , the friction terms would be four times larger and smaller; the Darcy form is used here.)
- 2070 Bhadra · 8 marks
Two reservoirs are connected by a pipe line which is 20 cm in diameter for the first 5 m and 30 cm in diameter for the remaining 20 m. The entrance and exit are sharp and change of section is sudden. If the water surface in the upper reservoir is 6 m above that in the lower reservoir, calculate head losses and rate of flow. Take f = 0.01 for all cases.
Answer
The total difference in water level (6 m) is used up by all the losses in the pipe: entry loss, friction in both pipes, sudden enlargement loss and exit loss. Since is a coefficient of friction (R.K. Bansal convention), friction loss is .
Data
- Pipe 1: m, m; Pipe 2: m, m
- m, , m/s²
Upper res.
~~~~~~~~~| H = 6 m
|==== 20 cm ====|=========== 30 cm ==========|
| 5 m | 20 m |~~~~~
Lower res.
Velocity relation
By continuity,
Losses in terms of
| Loss | Formula | Coefficient of |
|---|---|---|
| Entrance (sharp) | 0.5 | |
| Friction, pipe 1 | ||
| Sudden enlargement | ||
| Friction, pipe 2 | ||
| Exit | ||
| Total | 2.5329 |
Velocity and discharge
Individual head losses
| Loss | Value (m) |
|---|---|
| Entrance | 1.184 |
| Friction in 20 cm pipe | 2.369 |
| Sudden enlargement | 0.731 |
| Friction in 30 cm pipe | 1.248 |
| Exit | 0.468 |
| Total | 6.000 |
Answer: Discharge m³/s (214 L/s); the losses are as tabulated, adding up to the 6 m head difference.
(If were taken as the Darcy factor, , the friction terms would be four times smaller and Q would be larger; the coefficient-of-friction reading is the usual one for .)
- 2073 Bhadra · 4+6 marks
A pipe 5 cm diameter is 5 m long and carries a discharge of 0.005 m³/s. Find the loss of head due to friction. The central 2 m length of the pipe is replaced by a pipe 7.5 cm diameter, the changes of section being sudden. Determine the loss of head due to these alternatives considering all losses. Take f = 0.01 for all pipes and contraction loss coefficient = 0.5.
Answer
Friction loss is found with Darcy's equation using the coefficient of friction : (Bansal convention, ).
Case 1: Original pipe (5 cm, 5 m)
Case 2: Central 2 m replaced by 7.5 cm pipe
5 cm, 1.5 m 7.5 cm, 2 m 5 cm, 1.5 m
==========|----------------------|==========
^ sudden enlargement ^ sudden contraction
Velocity in the larger pipe:
Losses:
Total loss:
| Arrangement | Total head loss |
|---|---|
| Uniform 5 cm pipe | 1.322 m |
| With 7.5 cm central length | 1.130 m |
Answer: Friction loss in the original pipe = 1.322 m. With the central 2 m replaced by a 7.5 cm pipe, total loss (friction + enlargement + contraction) = 1.130 m, a saving of about 0.19 m. The large pipe cuts friction a lot, but part of that saving is lost at the sudden enlargement and contraction.
- 2071 Bhadra · 8 marks
A pipeline supplies 0.09 m³/s water from a reservoir to a building. The pipe is 2 km long and 0.15 m diameter with friction factor 0.025. It is desired to increase the discharge by 25% by installing another pipeline having same friction factor in parallel with this over half the length. Recommend a suitable diameter of the pipe to be installed.
Answer
The head available (reservoir to building) stays the same. Adding a parallel pipe over the first half reduces resistance there, so more flow passes. Darcy–Weisbach with friction factor is used: .
Step 1: Available head (existing pipe)
(This large value is simply the head the original pipe needs; it stays fixed.)
Step 2: New layout
Pipe A (0.15 m, 1000 m), Q1
Res ==+=================================+===== 0.15 m, 1000 m ====> Bldg
+---------------------------------+ Q = 0.1125
Pipe B (D2, 1000 m), Q2
New discharge m³/s.
Loss in the second (single) half:
Loss allowed in the parallel half:
Step 3: Flow in old pipe of the parallel portion
So the new pipe must carry m³/s.
Step 4: Diameter of new pipe
Same , same length and same head loss , so :
Answer: A parallel pipe of about 0.143 m diameter is needed. Recommend the next standard size, 150 mm, which gives slightly more than the required 25% increase.
- 2070 Magh · 8 marks
A pipe line (AB) conveying oil (specific gravity = 0.90) has diameter [?] ... [?] and the discharge is [?] litres per second. Find the loss of head and the direction of flow. [Figure: tapering pipe AB rising from the smaller end A to the larger end B; the centre line at B is 5 m above A.] (Most of the data in this question is unreadable in the scan.)
Answer
Most of the data are unreadable in the scan, so the standard textbook values for this problem are assumed: mm, mm, N/cm² (98.1 kPa), N/cm² (58.86 kPa), L/s, oil S = 0.90, B is 5 m above A. The method is the same for any values.
Principle: flow always goes from the section of higher total energy to the section of lower total energy, and the difference is the head loss.
B (d = 500 mm, z = 5 m)
___/
________---
A ___--- flow ?
(d = 200 mm, z = 0)
Velocities
Total energy (take datum through A, N/m³)
Result
Since , flow is from A to B (upwards, from the smaller to the larger end).
Answer (with assumed data): Flow from A to B; loss of head ≈ 1.46 m of oil. If had come out larger, the flow would be from B to A.
- 2082 Kartik · 2+2 marks
Water flows through a 250 m long penstock pipe at a velocity of 2.5 m/s. If the pipe is suddenly closed, determine the pressure rise due to water hammer and the period of oscillation of the pressure wave, assuming a wave speed of 1,450 m/s.
Answer
Sudden closure means the valve closes in less than , so the full Joukowsky pressure rise occurs.
Pressure rise
Period of oscillation
The pressure wave travels to the reservoir and back twice in one full cycle (high pressure phase + low pressure phase):
(The time for one round trip, s, is the critical closure time.)
Answer: Pressure rise = 3.625 MN/m² (≈ 369.5 m head); period of oscillation = 0.69 s.
- 2081 Asoj · 2+2 marks
Water is flowing in a 200 mm diameter pipe with a velocity of 2 m/s. If the pipe is abruptly closed, calculate the pressure rise due to water hammer and the period of oscillation of the pressure wave. Assume the wave speed in the pipe is 1400 m/s.
Answer
For abrupt (instantaneous) closure, the pressure rise is given by Joukowsky's equation and does not depend on the pipe diameter.
Pressure rise
Period of oscillation
One full cycle of the pressure wave takes four trips along the pipe:
The pipe length L is not given, so T is left in terms of L. For example, for m, s.
Answer: Pressure rise = 2.8 MN/m² (≈ 285.4 m head); period s (2.86 s if L = 1000 m).
- 2081 Chaitra · 3+3 marks
In a pipe of 500 mm diameter and 2500 m length, provided with a valve at its end, water is flowing with a velocity of 1.5 m/s. Assuming velocity of pressure wave = 1460 m/s, find (i) the rise in pressure if the valve is closed in 25 seconds and (ii) the rise in pressure if the valve is closed in 2 seconds. Assume the pipe to be rigid one and take bulk modulus of water as 2.132 GN/m².
Answer
First compare the closure time with the critical time to decide whether the closure is gradual or sudden.
Critical time
(i) Closure in 25 s
, so it is gradual closure. The water column decelerates uniformly:
(ii) Closure in 2 s
, so it is sudden closure. For a rigid pipe:
(Check: MN/m², same, since m/s.) This equals about 223.3 m of water.
Answer: (i) 0.15 MN/m² (150 kN/m²) for 25 s closure; (ii) 2.19 MN/m² for 2 s closure.
- 2075 Bhadra · 1+2+5 marks
What is water hammer? Write down the problems with water hammer. Water is flowing through a cast-iron pipe of diameter 150 mm and thickness 10 mm which is provided with a valve at its end. Water is suddenly stopped with closing the valve. Find the maximum velocity of water, when rise of pressure due to sudden closure of valve is 1.962 MN/m². Take K = 1.962 GN/m² and E = 117.7 GN/m².
Answer
Water hammer
Water hammer is the sudden rise (and following fall) of pressure in a pipe when the flowing water is suddenly stopped or its velocity is suddenly changed, e.g. by quick closing of a valve or sudden load rejection at a turbine. The kinetic energy of the moving water is turned into pressure energy, and a pressure wave travels back and forth along the pipe at the speed of sound in water.
Problems caused by water hammer
- Very high pressure can burst the pipe or penstock.
- Negative pressure in the return wave can cause collapse of thin pipes and cavitation.
- Damage to valves, joints, anchors and supports; noise and vibration.
- Need for thicker (costlier) pipes and protective devices like surge tanks and relief valves.
- Unstable turbine governing.
Numerical: elastic pipe, sudden closure
Data: m, m, MN/m², GN/m², GN/m², kg/m³.
For sudden closure in an elastic pipe:
Answer: Maximum velocity of water ≈ 1.57 m/s.
- 2071 Magh · 3+4 marks
What is water hammer and what are its effects? How the water hammer pressure is calculated for the gradual closure of the valve in the pipe?
Answer
Water hammer and its effects
Water hammer is the sharp rise of pressure in a closed conduit when the velocity of the flowing liquid is suddenly reduced, for example by closing a valve at the end of a penstock. The moving water column is brought to rest, its kinetic energy changes to pressure energy, and a pressure wave travels up and down the pipe with wave speed until friction damps it.
Effects:
- Very high pressure; pipe may burst or joints may fail.
- Low (negative) pressure phase may collapse the pipe or cause cavitation.
- Hammering noise, vibration, damage to valves, anchors and turbine parts.
- Penstock must be made thicker; surge tanks or relief valves are needed.
Pressure for gradual closure
Closure is gradual when the closing time (the reflected wave returns before closure ends).
Consider a pipe of length , area , initial velocity , valve closed uniformly in time .
Reservoir Valve
~~~~~|=============================|X
|<------------ L ------------>|
water mass = rho A L
- Mass of water in pipe .
- Uniform retardation .
- Retarding force by Newton's second law:
- This force is provided by the pressure rise acting on area : .
- Equating:
Example: m, m/s, s: kN/m².
If , the closure is sudden and (rigid pipe, ).
- 2070 Bhadra · 2+6 marks
What do you mean by a channel of hydraulically best section? Show that the hydraulic mean depth for a trapezoidal channel is half the depth of flow.
Answer
Hydraulically best section
A channel section is hydraulically best (most economical or most efficient) when, for a given area, bed slope and roughness, it carries the maximum discharge. Since (or Manning), Q is maximum when the wetted perimeter is minimum, i.e. hydraulic radius is maximum. Such a section also needs the least lining and excavation.
Proof: for the best trapezoidal section
Let bottom width , depth , side slope H : 1 V.
|<-------- b + 2ny -------->|
\ /
\ y / side slope n:1
\_______________________/
|<---- b ---->|
For maximum discharge, must be minimum with constant:
Using : , i.e.
(half the top width equals one sloping side).
Now the perimeter:
Hence
So for the most economical trapezoidal channel, the hydraulic mean depth equals half the depth of flow. (It is also shown that the three sides are tangent to a semicircle with centre on the water surface.)
- 2075 Bhadra · 6 marks
Verify that for the most economical trapezoidal channel, the length of one channel side must be equal to half the length of the top-width of the section.
Answer
A trapezoidal channel is most economical when its wetted perimeter is minimum for a given area, which gives maximum discharge for given , and roughness.
Let bottom width , depth , side slope H : 1 V.
|<-------- T = b + 2ny ------->|
\ /
\ sloping side = y*sqrt(1+n^2)
\__________________________/
|<----- b ----->|
Area and wetted perimeter
Condition for minimum P (A constant)
Substitute :
Interpretation
- Top width , so the left side is half the top width.
- Length of one sloping side , which is the right side.
Therefore, for the most economical trapezoidal section, length of one sloping side = half the top width. Hence verified.
Also , so this is indeed a minimum of . A related result is .
- 2071 Bhadra · 2+5 marks
What is meant by economical channel section? Prove that a triangular channel section will be most economical when each of its slopes is 1:1 and sloping sides makes an angle of 45° with vertical.
Answer
Economical channel section
A channel section is economical (most efficient / best hydraulic) when for a given cross-sectional area, bed slope and roughness it gives the maximum discharge. This happens when the wetted perimeter is minimum, so the cost of excavation and lining is also least.
Proof for triangular section
Let depth , side slope H : 1 V on both sides, and the angle of each side with the vertical, so .
|<------ 2my ------>|
\ /
\ y /
\ theta| /
\ | /
\ | /
\ | /
\___|__/
V (apex)
For minimum P at constant A, minimise :
, so it is a minimum.
So the side slope is 1 : 1 (1 H : 1 V), and gives with the vertical. The two sides are then at right angles to each other.
Additional results for this section: , , .
- 2072 Asoj · 3 marks
Define Froude number.
Answer
Froude number () is the dimensionless ratio of the inertia force to the gravity force in a flowing fluid. It is the most important number for open channel flow.
where = mean velocity, = acceleration due to gravity, = hydraulic depth (equal to for a rectangular channel).
Classification of flow:
| Flow type | Feature | |
|---|---|---|
| < 1 | Subcritical (tranquil) | Deep, slow flow |
| = 1 | Critical | Minimum specific energy |
| > 1 | Supercritical (rapid) | Shallow, fast flow |
Uses: hydraulic jump calculations below spillways, model studies (Froude model law for spillways and dams), and design of channels. Example: m/s, m gives (subcritical).
- 2072 Asoj · 3 marks
Define specific energy.
Answer
Specific energy () is the total energy per unit weight of liquid at a channel section, measured with respect to the channel bed as datum.
For a rectangular channel with discharge per unit width : .
Key points:
- A plot of against for constant is the specific energy curve.
- For a given there are two possible depths (alternate depths): one subcritical, one supercritical.
- is minimum at critical depth , where .
y | / subcritical
| /
| /
yc |---* (Emin, Fr = 1)
| \
| \___ supercritical
+-----------------------> E
Example: m²/s, m: m.
- 2072 Asoj · 3 marks
Define best hydraulic section.
Answer
A best hydraulic section (most efficient or most economical section) is the channel cross-section that carries the maximum discharge for a given area, bed slope and roughness. From , this occurs when the wetted perimeter is minimum, i.e. the hydraulic radius is maximum. Such a section also needs the least lining and excavation cost.
Conditions for common shapes:
| Section | Condition |
|---|---|
| Rectangular | , |
| Trapezoidal | Half top width = sloping side; |
| Triangular | Side slope 1:1 (45° with vertical), |
Example: best rectangular section with m has m and m.
- 2082 Chaitra · 6 marks
Find the depth of flow in a triangular channel having a longitudinal slope of 1 in 2000 and side slopes of 1.5H:1V. The channel carries a discharge of 2.5 m³/s. Take Manning's roughness coefficient n = 0.025.
Answer
Uniform flow depth is found with Manning's equation .
Geometry (side slope H : 1 V)
Manning's equation
Check
m², m, m, m/s, and m³/s. Correct.
Answer: Depth of flow m.
- 2079 Chaitra · 2+6 marks
What is the condition required for the most efficient rectangular section? Determine the normal depth for a triangular channel with side slope 2H: 1V and longitudinal slope 0.0005 to carry discharge of 0.5 m³/s if Manning's coefficient n is 0.04.
Answer
Condition for the most efficient rectangular section
For a rectangular channel of width and depth : , . For minimum at constant :
So the width is twice the depth (), and .
Normal depth of triangular channel
Data: side slope (2H : 1V), , m³/s, .
Manning's equation:
Check: m², m, m³/s.
Answer: Normal depth m.
- 2078 Chaitra · 2+6 marks
What is the condition required for the most efficient trapezoidal section? Determine the normal depth for a triangular channel with side slope 2H: 1V and longitudinal slope 0.0005 to carry discharge of 0.5 m³/s if manning's coefficient n is 0.04.
Answer
Condition for the most efficient trapezoidal section
For bottom width , depth , side slope H : 1V, minimising at constant gives:
- : half the top width equals one sloping side.
- Hydraulic radius .
- The sides are tangent to a semicircle drawn with centre on the water surface. If the side slope is also free, the best is with the horizontal (half a regular hexagon).
Normal depth of triangular channel
Data: side slope (2H : 1V), , m³/s, .
Manning's equation:
Check: m², m, m³/s.
Answer: Normal depth m.
- 2074 Bhadra · 8 marks
Find the normal depth of flow in a triangular channel having longitudinal slope of 0.0004 and side slopes of 1:1 when it carries 1 m³/sec, manning roughness coefficient (n) = 0.014.
Answer
Normal depth is the uniform flow depth from Manning's equation.
Geometry (side slope 1:1, )
Manning's equation
(Here .)
Check
m², m, m, m/s, m³/s.
Answer: Normal depth m.
- 2082 Kartik · 6 marks
A trapezoidal channel carries a discharge of 5 m³/s. Design the channel section given a slope of 1 in 1200 and side slopes of 1:1, using Chezy's formula with C = 56.
Answer
Only , , side slope and are given, so one more condition is needed. The channel is designed as the most economical trapezoidal section (standard assumption): and half the top width = one sloping side.
Proportions (side slope )
Chezy's equation
Dimensions
Check: m³/s.
|<------- T = 4.01 m ------->|
\ /
\ y = 1.42 m 1:1 /
\________________________/
b = 1.17 m
Answer: Bottom width ≈ 1.17 m, depth of flow ≈ 1.42 m, side slopes 1:1 (top width ≈ 4.01 m). In practice a freeboard of about 0.3–0.5 m is added.
- 2081 Asoj · 5 marks
Design the best hydraulic rectangular cross-section for a canal conveying 15 m³/s discharge with Manning's n = 0.02 and a bed slope of 0.001.
Answer
For the best hydraulic rectangular section, width is twice the depth: , so and .
Manning's equation
Section
Check: m³/s.
|<---- b = 4.26 m ---->|
|~~~~~~~~~~~~~~~~~~~~~~|
| | y = 2.13 m
|______________________|
Answer: Width ≈ 4.26 m, depth ≈ 2.13 m (plus freeboard), velocity ≈ 1.65 m/s.
- 2080 Asoj · 2+6 marks
What is the condition for the most economical Rectangular section? A trapezoidal channel having bottom width 6 m and side slope 2:1, carries a discharge of 15 m³/s. Find the value of the bed slope of the channel if the depth of the flow is 1.2 m and Manning's 'n' = 0.013.
Answer
Condition for the most economical rectangular section
For width and depth , . Setting at constant gives , i.e. (width twice the depth) and . This section carries maximum discharge for a given area.
Bed slope of trapezoidal channel
Data: m, side slope 2H : 1V (), m³/s, m, .
Manning's equation, solved for :
Answer: Bed slope , i.e. about 1 in 2277.
- 2080 Chaitra · 8 marks
A trapezoidal channel has side slopes of 1:2 (H:V) and slope of the bed is 1 in 1500. The sectional area is 50 m². Find the dimensions of the section if it is considered the most economical. Also determine the discharge if Chezy's C = 50.
Answer
For the most economical trapezoidal section: half the top width equals one sloping side, and .
Data
Side slope 1 : 2 (H : V), so horizontal per unit vertical ; ; m²; .
Condition and dimensions
Check: m². Wetted perimeter m, m .
Discharge (Chezy)
|<------ T = 12.00 m ------->|
\ /
\ y = 5.37 m 1H:2V /
\________________________/
b = 6.63 m
Answer: Bottom width ≈ 6.63 m, depth ≈ 5.37 m, discharge ≈ 105.7 m³/s (velocity ≈ 2.11 m/s).
- 2070 Magh · 6 marks
Calculate dimensions of a most efficient trapezoidal channel section having side slopes 3H:4V with n = 0.012 consider bed slope 1 in 2000 which carries water at a velocity of 0.50 m/s.
Answer
For the most efficient trapezoidal section, and half the top width equals one sloping side. Velocity is known, so Manning's equation gives directly.
Data
Side slope 3H : 4V, so horizontal per vertical; . Manning's , , m/s.
Hydraulic radius from Manning
Depth and bottom width
(With 3H : 4V slopes, .)
Check
m², m, m. Discharge m³/s.
Answer: Depth ≈ 0.278 m, bottom width ≈ 0.278 m (top width ≈ 0.695 m); it carries about 0.068 m³/s at 0.5 m/s. The section is small because the velocity is low and the channel is smooth.
- 2075 Baisakh · 8 marks
Find the rate of flow for a rectangular channel 7.5 m wide for uniform flow at a depth of 2.25 m. The channel is having bed slope as 1 in 1000. Take Chezy's constant C = 55.
Answer
Uniform flow in an open channel is given by Chezy's formula .
Section properties
Velocity and discharge
Answer: Rate of flow m³/s (velocity ≈ 2.06 m/s).
- 2072 Asoj · 10 marks
A rectangular channel, 8 m wide and 1.5 m deep, has a slope of 0.001 in 1 and is lined with smooth concrete plaster. It is desired to enhance the discharge to a maximum by changing the dimensions of the channel but keeping the same amount of lining. Find the new dimensions and percentage increase in discharge. For smooth concrete plaster, take Manning's constant = 0.015.
Answer
Keeping the same amount of lining means the wetted perimeter stays the same. For a given perimeter, discharge is maximum when the section is the best (most economical) rectangle: .
Existing channel
New channel (same P = 11 m, )
Percentage increase
| Item | Existing | New |
|---|---|---|
| Width (m) | 8.0 | 5.5 |
| Depth (m) | 1.5 | 2.75 |
| Perimeter (m) | 11 | 11 |
| R (m) | 1.091 | 1.375 |
| Q (m³/s) | 26.81 | 39.43 |
Answer: New width = 5.5 m, depth = 2.75 m; discharge increases by about 47%.
Questions from Old Question Collection (CE 660) (IOE BEL CE 660 exam papers from 2070 Bhadra to 2082 Chaitra (18 papers)). Answers are written for this site; check them against your class notes.
Chapter titles and hours from the IOE syllabus ↗
