Chapter 4 · 5 hours
Dam Engineering
IOE past exam questions
Past questions and answers
16 questions set from this chapter, 2 of them more than once. Most asked first.
- Asked 2 times
- 2082 Kartik · 8 marks
- 2081 Asoj · 8 marks
Explain the failure modes and the structural stability criteria of gravity dams.
Answer
A gravity dam resists the water thrust and other forces mainly by its own weight. It can fail in four ways; each one gives a stability criterion that the design must satisfy for all load combinations (empty reservoir, full reservoir, earthquake, flood).
|\ W = self weight
P-> | \ P = water thrust
| \ U = uplift
~~~~| \ R = resultant
| W \
| \ \
heel |___R__\ toe
^ U ^ ^ ^
1. Overturning about the toe
- Mode: the horizontal forces (water pressure, silt, wave, earthquake) and uplift produce a moment that tends to rotate the dam about its toe.
- Criterion: factor of safety against overturning
In practice, a dam that satisfies the no-tension and crushing criteria will not overturn.
2. Sliding (shear failure)
- Mode: the dam slides along the base or along a weak joint/seam in the foundation when the horizontal force exceeds the frictional and shear resistance.
- Criteria:
- Factor of safety against sliding (friction only): (usually 1 to 1.5).
- Shear friction factor (friction plus shear strength of the joint over base width ): to 5.
3. Compression or crushing
- Mode: the vertical stress at the toe (full reservoir) or heel (empty reservoir) exceeds the allowable compressive strength of concrete or rock.
- Criterion:
The principal stress at the toe, , must also be below the allowable value.
4. Tension cracking
- Mode: if the resultant falls outside the middle third of the base (), tension develops at the heel. Concrete is weak in tension, so a crack opens, uplift enters the crack, the effective base width reduces and stresses at the toe rise, which can lead to failure.
- Criterion (middle-third rule):
A small tension (e.g. up to about 500 kN/m²) is sometimes allowed for extreme load cases such as earthquakes.
Summary of criteria
| Failure mode | Criterion |
|---|---|
| Overturning | |
| Sliding | ; –5 |
| Crushing | allowable |
| Tension | Resultant in middle third () |
- Asked 2 times
- 2075 Baisakh · 3+5 marks
- 2071 Bhadra · 8 marks
What is meant by elementary profile of a gravity dam? Explain for fixing the width of the elementary profile of concrete gravity dam by considering no tension and no sliding criteria.
Answer
Elementary profile
The elementary profile of a gravity dam is the right-angled triangle with a vertical upstream face, zero top width and base width , with water standing up to its apex. It is the theoretical shape that resists water pressure with the least material, because water pressure is zero at the top and increases linearly with depth, exactly like the triangle's width. Under empty reservoir the resultant passes through the inner middle-third point, and under full reservoir (with proper base width) through the outer middle-third point, so there is no tension. A practical profile is made by adding a top width, freeboard and other details to it.
apex (water level)
|\
| \
P --> | \ H
| W \
| \
heel |_____\ toe
<--B-->
^ uplift ^
Forces (per metre length)
Let = specific gravity of concrete, = unit weight of water, = uplift intensity factor.
- Self weight: , acting at from the heel.
- Water pressure: , acting at above the base.
- Uplift: , acting at from the heel.
Base width for no tension
For no tension, the resultant must pass through the outer middle-third point (distance from the toe, i.e. from the heel). Taking moments about this point: and both have lever arm , and has lever arm .
Without uplift (): . For , ; with , .
Base width for no sliding
For no sliding, the frictional resistance must at least equal the horizontal force (μ = coefficient of friction):
Without uplift: .
Design base width
The base width adopted is the larger of the two values. Example: , , gives (no tension) and (no sliding), so would be adopted. For usual values of (0.65–0.75), the sliding criterion often governs.
The limiting height of the elementary profile (from allowable stress ) is ; a dam taller than this is a "high" gravity dam.
- 2082 Chaitra · 2+8 marks
What do you mean by elementary profile of gravity dam? A concrete gravity dam with a triangular section has a height of 40 m and a base width of 28 m. The water on the upstream side is up to the crest. Considering only self-weight, hydrostatic pressure, and uplift pressure (with an uplift intensity factor of 0.6), calculate the eccentricity of the resultant force from the toe, the factor of safety against sliding (take coefficient of friction = 0.7), the maximum vertical stress at the toe, and the factor of safety against overturning. Take unit weight of concrete = 24 kN/m³ and unit weight of water = 10 kN/m³.
Answer
Elementary profile
The elementary profile of a gravity dam is a right-angled triangle with a vertical upstream face, zero top width, and water up to the apex. It is the ideal shape to resist water pressure (which grows linearly with depth) with minimum material and no tension in the base.
Data (per metre length)
H = 40 m, B = 28 m, = 24 kN/m³, = 10 kN/m³, C = 0.6, μ = 0.7. Upstream face vertical; water up to the crest. Moments are taken about the toe.
|\
P --> | \ 40 m
13.33 |W \
m | \
heel |____\ toe
<-28 m->
Forces and moments
| Force | Value (kN) | Lever arm from toe (m) | Moment (kN·m) |
|---|---|---|---|
| W = ½×28×40×24 | 13,440 (↓) | 28 − 28/3 = 18.667 | +250,880 |
| P = ½×10×40² | 8,000 (→) | 40/3 = 13.333 | −106,667 |
| U = ½×0.6×10×40×28 | 3,360 (↑) | 18.667 | −62,720 |
(a) Position of resultant and eccentricity
Since m, the resultant lies outside the middle third (towards the toe), so tension develops at the heel.
(b) Factor of safety against sliding
: the section is unsafe in sliding (by friction alone).
(c) Maximum vertical stress at the toe
At the heel: kN/m² (tension).
(d) Factor of safety against overturning
Answer: Resultant at 8.085 m from the toe (eccentricity e = 5.915 m from the base centre); FS against sliding = 0.88 (unsafe); maximum toe stress = 816.3 kN/m² (heel tension 96.3 kN/m²); FS against overturning = 1.48 (just below the usual 1.5). The 28 m base is less than the no-tension width m, which explains the heel tension.
- 2081 Chaitra · 12 marks
For the concrete gravity dam shown in the figure below, calculate the maximum vertical stresses at the heel and toe, the major principal stresses at the toe, and the shear stress intensity on a horizontal plane near the toe. Assume the unit weight of concrete is 24 kN/m³ and the unit weight of water is 10 kN/m³. [Figure: gravity dam with vertical upstream face and top width 12 m; the downstream face is vertical for the top 15 m and then slopes down to the toe; upstream water depth is 65 m with the water surface 5 m below the crest; drain holes are 10 m from the heel and the toe is a further 40 m beyond them; tailwater depth is 5 m.]
Answer
Geometry and assumptions (per metre length)
- Water depth = 65 m, water surface 5 m below crest, so dam height = 70 m.
- Top width 12 m; downstream face vertical for the top 15 m, then sloping from 55 m height down to the toe.
- Base width = 10 + 40 = 50 m (drain holes 10 m from heel). Tailwater depth = 5 m.
- Downstream slope: horizontal 50 − 12 = 38 m over vertical 55 m, so (α measured from vertical).
- Uplift with drains (usual IS/textbook rule): heel ; at drains ; toe .
- Silt, wave and earthquake forces are ignored. Moments are taken about the toe.
12 m
+----+ crest (70 m)
~~~|~~~~| 5 m
| | 15 m vertical d/s
65m | + (55 m)
wat | W1 \
er | W2 \
| \ ~~~ tailwater 5 m
heel +-----------\ toe
<10>|<---40--->
drains B = 50 m
Uplift pressures
- Heel: kN/m²
- Drains: kN/m²
- Toe: kN/m²
Forces and moments about the toe
| Force | Value (kN) | Arm (m) | Moment (kN·m) |
|---|---|---|---|
| W1 = 12×70×24 | 20,160 ↓ | 44.000 | +887,040 |
| W2 = ½×38×55×24 | 25,080 ↓ | 25.333 | +635,360 |
| Tailwater on slope = ½×3.455×5×10 | 86.4 ↓ | 1.152 | +99 |
| P1 = ½×10×65² | 21,125 → | 21.667 | −457,708 |
| P2 = ½×10×5² | 125 ← | 1.667 | +208 |
| U1 = 50×40 | 2,000 ↑ | 20.000 | −40,000 |
| U2 = ½×200×40 | 4,000 ↑ | 26.667 | −106,667 |
| U3 = 250×10 | 2,500 ↑ | 45.000 | −112,500 |
| U4 = ½×400×10 | 2,000 ↑ | 46.667 | −93,333 |
(Tailwater wedge width on the slope m.)
Position of resultant
(a) Maximum vertical stresses
(b) Major principal stress at the toe
With tailwater pressure at the toe kN/m², , :
(c) Shear stress on a horizontal plane near the toe
Answer: Vertical stress at toe = 1076.1 kN/m², at heel = 316.9 kN/m² (both compressive); major principal stress at toe = 1565.9 kN/m²; shear stress near toe = 708.9 kN/m².
- 2080 Asoj · 10 marks
Check the stability of a trapezoidal concrete gravity dam having maximum reservoir level of 250.0 m, base level of 200.0 m, tail water elevation of 210.0 m, base width of 40 m, top width of 6 m, location of drainage gallery 10 m from u/s face. Take sp. wt and permissible compressive strength of the dam material are 24 kN/m³ and 300 kN/m², respectively.
Answer
The dam is checked for full reservoir against overturning, sliding, tension and compression (crushing), per metre length.
Data and assumptions
- Upstream water depth m; tailwater depth m.
- Dam height is not given, so the crest is taken at the maximum reservoir level: m.
- Upstream face vertical; top width 6 m; downstream face slopes straight from the crest to the toe, so .
- kN/m³, kN/m³. Coefficient of friction (not given) assumed .
- Uplift with drainage gallery (IS 6512 rule): heel , at gallery , toe .
Uplift intensities: heel kN/m²; gallery kN/m²; toe kN/m².
6 m
+--+ El. 250 (crest = MRL)
| |\
P1 |W1| \ W2 50 m
-> | | \
| | \ ~~ TW El. 210 (10 m)
heel+--+----\ toe El. 200
<10>|<- 30 ->
gallery B = 40 m
Forces and moments about the toe
| Force | Value (kN) | Arm (m) | Moment (kN·m) |
|---|---|---|---|
| W1 = 6×50×24 | 7,200 ↓ | 37.000 | +266,400 |
| W2 = ½×34×50×24 | 20,400 ↓ | 22.667 | +462,400 |
| Tailwater wedge = ½×6.8×10×9.81 | 333.5 ↓ | 2.267 | +756 |
| P1 = ½×9.81×50² | 12,262.5 → | 16.667 | −204,375 |
| P2 = ½×9.81×10² | 490.5 ← | 3.333 | +1,635 |
| U1 = 228.9×10 | 2,289 ↑ | 35.000 | −80,115 |
| U2 = ½×261.6×10 | 1,308 ↑ | 36.667 | −47,960 |
| U3 = 98.1×30 | 2,943 ↑ | 15.000 | −44,145 |
| U4 = ½×130.8×30 | 1,962 ↑ | 20.000 | −39,240 |
(i) Overturning
(ii) Sliding
(iii) Tension
The resultant is within the middle third, so no tension.
(iv) Compression
Major principal stress at the toe ( kN/m²):
These exceed the permissible 300 kN/m², so the dam fails in crushing as the data stand.
Answer: FS overturning = 1.76 (safe); FS sliding = 1.16 (safe, μ = 0.7 assumed); e = 3.77 m < B/6 (no tension); toe stress 760.6 kN/m² and principal stress 1066.9 kN/m² > 300 kN/m² (unsafe in compression). A permissible strength of 300 kN/m² is very low for concrete; if 3000 kN/m² was intended, the dam is safe in all four checks.
- 2080 Chaitra · 8 marks
Water stand on the u/s side of a gravity dam of triangular section up to the full height of 35 m. The base width of dam is 26 m. If the uplift pressure coefficient is 0.5, calculate a) Eccentricity of the resultant from the toe. b) Factor of safety against sliding. c) The crushing strength developed in the dam. d) Factor of safety against overturning. Take coefficient of friction between base and foundation is 0.75 and the unit weight of dam material is 2400 kg(f)/m³.
Answer
Data (per metre length)
H = 35 m, B = 26 m, uplift coefficient C = 0.5, μ = 0.75. Unit weight of concrete kgf/m³ kN/m³; water kN/m³. Upstream face vertical, water up to the top. Uplift varies from at the heel to zero at the toe. Moments are about the toe.
|\
P --> | \ 35 m
| W\
heel |___\ toe
<26 m>
Forces
| Force | Value (kN) | Arm from toe (m) | Moment (kN·m) |
|---|---|---|---|
| W = ½×26×35×23.544 | 10,712.5 ↓ | 2×26/3 = 17.333 | +185,683.7 |
| P = ½×9.81×35² | 6,008.6 → | 35/3 = 11.667 | −70,100.6 |
| U = ½×0.5×9.81×35×26 | 2,231.8 ↑ | 17.333 | −38,684.1 |
a) Eccentricity
m, so the resultant lies in the middle third (no tension).
b) Factor of safety against sliding
c) Maximum compressive (crushing) stress
Heel stress kN/m² (compression). Major principal stress at toe, with : kN/m².
d) Factor of safety against overturning
Answer: Resultant at 9.067 m from the toe (e = 3.933 m from centre); FS sliding = 1.06; maximum vertical stress at toe = 622.2 kN/m² (principal stress 965.5 kN/m²); FS overturning = 1.71. The dam is safe in overturning and tension; FS against sliding is just above 1, so the margin is small.
- 2079 Chaitra · 10 marks
Check the stability of a gravity dam having trapezoidal section with following data: Crest level of dam = 1530 m, Maximum water level at upstream = 1525 m, Top width = 6 m, Base width = 60 m, Tail water depth = 6 m, Bed level = 1470 m. Drainage gallery provided at 10 m from the heel. Consider full uplift condition and permissible compressive strength of concrete 3000 kN/m². Take specific weight of concrete 24 kN/m³.
Answer
Data and assumptions (per metre length)
- Dam height m; upstream water depth m; tailwater depth m.
- Top width 6 m, base 60 m, upstream face vertical, downstream face straight from crest to toe: .
- , kN/m³; μ (not given) assumed 0.7.
- "Full uplift": full hydrostatic uplift at the heel; with the gallery, IS 6512 rule: head at gallery m.
Uplift intensities: heel 539.6, gallery 219.1, toe 58.9 kN/m².
6
+--+ 1530
| |\
55 | | \ 60 m
m |W1|W2\
| | \ ~~ TW 6 m
+--+----\ 1470
<10>|<-50->
gallery B = 60 m
Forces and moments about the toe
| Force | Value (kN) | Arm (m) | Moment (kN·m) |
|---|---|---|---|
| W1 = 6×60×24 | 8,640 ↓ | 57.0 | +492,480 |
| W2 = ½×54×60×24 | 38,880 ↓ | 36.0 | +1,399,680 |
| Tailwater wedge = ½×5.4×6×9.81 | 158.9 ↓ | 1.8 | +286 |
| P1 = ½×9.81×55² | 14,837.6 → | 18.333 | −272,023 |
| P2 = ½×9.81×6² | 176.6 ← | 2.0 | +353 |
| U1 = 219.1×10 | 2,190.9 ↑ | 55.0 | −120,500 |
| U2 = ½×320.5×10 | 1,602.3 ↑ | 56.667 | −90,797 |
| U3 = 58.9×50 | 2,943.0 ↑ | 25.0 | −73,575 |
| U4 = ½×160.2×50 | 4,005.8 ↑ | 33.333 | −133,525 |
Overturning
Sliding
Tension
The resultant is 2.55 m from the centre on the heel side; m, so no tension.
Compression
Principal stress at toe kN/m². All stresses are well below 3000 kN/m² (safe).
Answer: FS overturning = 2.74, FS sliding = 1.76, e = 2.55 m (within middle third, no tension), maximum stress = 772.7 kN/m² at heel < 3000 kN/m². The dam is safe. (If drains are ignored and full uplift acts over the whole base, FS overturning = 1.98 and FS sliding = 1.42; still safe.)
- 2075 Bhadra · 8 marks
Check the stability of concrete gravity dam against overturning and sliding. Consider μ = 0.7, γconcrete = 24 kN/m³, average shear strength of material at the horizontal section (q) = 1400 kN/m. [Figure: gravity dam with vertical upstream face and top width 6 m; the downstream face is vertical for the top 13 m and then slopes over a further 20 m height to the toe, giving a base of 6 m + 15 m = 21 m; upstream water depth is 30 m.]
Answer
Geometry and assumptions (per metre length)
- Dam height m; water depth m; no tailwater.
- Top width 6 m; downstream face vertical for 13 m, then slopes 15 m horizontally over 20 m height; base m.
- kN/m³, kN/m³, μ = 0.7, shear strength kN/m² (taken per m² of base).
- Uplift is taken as full (C = 1), varying from at heel to zero at toe.
6 m
+----+
| | 13 m
30 | W1 +
m | \ W2 20 m
-> | \
heel+-------\ toe
<6>|<-15->
B = 21 m
Forces and moments about the toe
| Force | Value (kN) | Arm (m) | Moment (kN·m) |
|---|---|---|---|
| W1 = 6×33×24 | 4,752 ↓ | 18.0 | +85,536 |
| W2 = ½×15×20×24 | 3,600 ↓ | 10.0 | +36,000 |
| P = ½×9.81×30² | 4,414.5 → | 10.0 | −44,145 |
| U = ½×9.81×30×21 | 3,090.2 ↑ | 14.0 | −43,262 |
Overturning
Sliding
Results
| Check | With uplift | Without uplift | Required |
|---|---|---|---|
| FS overturning | 1.39 | 2.75 | ≥ 1.5 |
| FS sliding (friction) | 0.83 | 1.32 | ≥ 1.0 |
| Shear friction factor | 7.49 | 7.98 | ≥ 3–5 |
(Without uplift: kN, kN·m.)
Answer: With full uplift, FS overturning = 1.39 (slightly below 1.5) and friction FS = 0.83, but the shear friction factor = 7.49 > 5, so the dam is safe against sliding when the shear strength of the joint is counted. Without uplift, FS overturning = 2.75 and SFF = 7.98 (safe). To improve overturning safety, drainage holes should be provided to reduce uplift.
- 2074 Bhadra · 5+5 marks
A concrete gravity dam has maximum reservoir level 250 m, base level of dam 200 m, tail water elevation 210 m, base width of dam 40 m, location of drainage gallery 10 m from upstream face which may be assumed as vertical. Compute hydrostatic thrust and uplift force per unit length of dam at its base level. Assume 50% reduction in net seepage head at the location of the drainage gallery.
Answer
Data
- Upstream water depth m; tailwater depth m.
- Base width m; drainage gallery 10 m from the vertical upstream face. kN/m³. Values are per metre length of dam.
Hydrostatic thrust

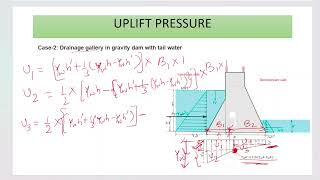

Uplift pressure
Net seepage head m. It is reduced by 50% at the gallery:
| Point | Head (m) | Pressure (kN/m²) |
|---|---|---|
| Heel | 50 | 490.5 |
| Gallery (10 m) | 30 | 294.3 |
| Toe | 10 | 98.1 |
heel gallery toe
|<- 10 ->|<------- 30 -------->|
|\ | |
| \ | |
| \_____|_____________ |
| | -----___|
| 490.5 | 294.3 98.1 |
Its line of action (moments about heel) is at 15.33 m from the heel.
For comparison, without the gallery: kN, so the gallery reduces uplift by about 17%.
Answer: Net hydrostatic thrust = 11,772 kN/m (upstream 12,262.5 kN/m, tailwater 490.5 kN/m); uplift force = 9,810 kN/m acting 15.33 m from the heel.
- 2073 Bhadra · 8 marks
A concrete dam of trapezoidal section is of height 50 m with upstream vertical face. Top width, base width and freeboard are 4.5 m, 42 m and 5 m respectively. Check the stability of the dam against (i) Overturning (ii) sliding (iii) Tension and (iv) Crushing. The unit weight of water is 10 kN/m³, the unit weight of concrete is 25 kN/m³ and Crushing strength of the material 10 kg/cm². Take angle of internal friction (ϕ = 37°), uplift coefficient 0.8. Consider self-weight, hydraulic pressure and uplift pressure only. Mention your recommendation.
Answer
Data (per metre length)
- Dam height 50 m, freeboard 5 m, so water depth m (no tailwater).
- Top width 4.5 m, base 42 m, upstream face vertical; downstream slope .
- , kN/m³; ; uplift coefficient C = 0.8.
- Crushing strength kg/cm² N/m² kN/m².
4.5
+--+ ---
| |\ 5 m FB
45 |W1| \
m | |W2\ 50 m
-> | | \
heel+--+----\ toe
<-- 42 m -->
Forces and moments about the toe
| Force | Value (kN) | Arm (m) | Moment (kN·m) |
|---|---|---|---|
| W1 = 4.5×50×25 | 5,625 ↓ | 39.75 | +223,594 |
| W2 = ½×37.5×50×25 | 23,437.5 ↓ | 25.00 | +585,938 |
| P = ½×10×45² | 10,125 → | 15.00 | −151,875 |
| U = ½×0.8×10×45×42 | 7,560 ↑ | 28.00 | −211,680 |
(i) Overturning
(ii) Sliding
(iii) Tension
No tension (safe).
(iv) Crushing
Both are below 981 kN/m² (safe).
| Check | Value | Limit | Result |
|---|---|---|---|
| Overturning | 2.23 | ≥ 1.5 | Safe |
| Sliding | 1.60 | ≥ 1.0 | Safe |
| Tension | e = 0.26 m | ≤ 7 m | Safe |
| Crushing | 829.6 kN/m² | ≤ 981 kN/m² | Safe |
Recommendation: The dam is safe in all four checks. The resultant is almost at the centre of the base, so stresses are nearly uniform; the section is on the heavy side and the downstream slope could be steepened to save concrete, after re-checking with earthquake and silt loads.
- 2071 Magh · 9 marks
Check safety against sliding and overturning for the gravity dam shown in figure. Assume, unit weight of water = 9.81 kN/m³, unit weight of concrete = 24 kN/m³, angle of internal friction ϕ = 37°, uplift coefficient = 80%. Consider self-weight, hydrostatic pressure and uplift pressure only. Mention your recommendations. [Figure: gravity dam with vertical upstream face and top width 2.0 m; the water surface is 1.0 m below the crest and the water depth is 30 m; the downstream face is vertical for the top 1.5 m and then slopes at 0.75 (H) : 1.0 (V) down to the toe.]
Answer
Geometry and data (per metre length)
- Water depth 30 m, water surface 1 m below crest, so dam height m.
- Top width 2 m; downstream face vertical for 1.5 m, then slopes 0.75H : 1V for the remaining m, giving horizontal projection m.
- Base width m. No tailwater.
- , kN/m³; ; uplift C = 0.8 (triangular, at heel to zero at toe).
2 m
+--+ 1 m above WL
| + 1.5 m vertical
30 | \
m |W1 \ 0.75H:1V
-> | W2 \ 29.5 m
heel+------\ toe
<-24.125->
Forces and moments about the toe
| Force | Value (kN) | Arm (m) | Moment (kN·m) |
|---|---|---|---|
| W1 = 2×31×24 | 1,488 ↓ | 23.125 | +34,410 |
| W2 = ½×22.125×29.5×24 | 7,832.3 ↓ | 14.750 | +115,526 |
| P = ½×9.81×30² | 4,414.5 → | 10.000 | −44,145 |
| U = ½×0.8×9.81×30×24.125 | 2,840.0 ↑ | 16.083 | −45,677 |
Safety against sliding
Safety against overturning
Check of resultant: m from toe, m m, so there is no tension at the heel (toe stress 454.7 kN/m², heel stress 82.5 kN/m²).
Answer: FS against sliding = 1.11 and FS against overturning = 1.67; the dam is safe.
Recommendations: the sliding margin is small (just above 1), so:
- provide foundation drainage holes/gallery to reduce uplift,
- key the base into sound rock or give it a slight upstream slope to increase shear resistance,
- check the shear friction factor using the shear strength of the rock–concrete joint.
- 2070 Bhadra · 3+3 marks
Determine the uplift pressure force on a gravity dam of 40 m height, 10 m top width with u/s face vertical and the base width = 30 m. The tail water depth is 5 m and the free board is 3 m. What will be the uplift pressure force when there is a drainage gallery at a distance of 6 m from u/s face?
Answer
Data (per metre length)
- Dam height 40 m, free board 3 m, so upstream water depth m.
- Tailwater depth m, base width m, kN/m³.
- Full uplift is assumed (C = 1): pressure varies linearly from at the heel to at the toe.
(a) Without drainage gallery
Heel: kN/m²; toe: kN/m².
(b) With drainage gallery 6 m from upstream face
By the usual rule (IS 6512), the uplift head at the line of drains is the tailwater head plus one-third of the difference:
heel drain toe
|<-6->|<-------- 24 --------->|
|\ | |
| \ | |
| \__|______ |
| | -------______ |
362.97 153.69 49.05
Answer: Uplift force = 6,180.3 kN per metre without drains; 3,982.9 kN per metre with the drainage gallery at 6 m. The gallery cuts uplift by about 36%.
- 2072 Asoj · 9 marks
Describe the forces that possibly acted to the gravity dam. Show them in neat and clean sketch. Describe the stability requirements of gravity dam.
Answer
A gravity dam is a solid concrete or masonry dam that resists all external forces by its own weight. The forces acting on it are:
crest
~~~~~ +---+ <- wave pressure Pw
| | |\
Pi -> | | \ <- wind
| | W | \ W = self weight
P1 -> | | \ (+ EQ: aW horizontal)
| | | W2 \
Ps -> | | \ ~~~~ tailwater
(silt) | | \ <- P2
+---+-------+ toe
heel ^ ^ ^ ^ ^
U (uplift)
Forces acting on a gravity dam
- Self weight (W): the main stabilising force; area per metre length, acting at the centroid. Divided into rectangles and triangles for calculation.
- Water pressure:
- Upstream horizontal: at above base.
- Vertical weight of water on a sloping upstream face (if any).
- Tailwater: acting upstream, plus weight of water on the downstream slope.
- Uplift pressure (U): water seeping through the foundation and joints pushes upward. It varies from at heel to at toe; drainage galleries reduce it (head at drains ).
- Silt pressure (Ps): silt deposited against the upstream face: , , at .
- Wave pressure (Pw): due to wind waves; wave height for fetch km; , acting above still water level.
- Earthquake forces:
- Inertia force on the dam horizontally (and vertically) at the centroid.
- Hydrodynamic pressure of water: Westergaard/Zanger, e.g. with .
- Ice pressure: in cold regions, about 250 kN/m² over the ice thickness.
- Wind pressure: small; usually neglected.
Stability requirements
The dam must be safe for all load combinations (empty reservoir, full reservoir, flood, earthquake):
| Requirement | Criterion |
|---|---|
| No overturning | (2–3 normal) |
| No sliding | ; shear friction factor –5 |
| No tension | Resultant within middle third: |
| No crushing | and principal stress allowable |
Also, the foundation must be safe in bearing and the dam must have adequate freeboard to avoid overtopping.
- 2070 Magh · 6 marks
Discuss with neat sketch the force acting on a gravity dam.
Answer
A gravity dam stays in place by its own weight. The forces acting on it are grouped into stabilising forces (self weight, tailwater) and destabilising forces (water pressure, uplift, silt, waves, earthquake).
crest
~~~~~ +---+ <- wave pressure Pw
| | |\
Pi -> | | \ <- wind
| | W | \ W = self weight
P1 -> | | \ (+ EQ: aW horizontal)
| | | W2 \
Ps -> | | \ ~~~~ tailwater
(silt) | | \ <- P2
+---+-------+ toe
heel ^ ^ ^ ^ ^
U (uplift)
1. Self weight (W)
Main resisting force. cross-sectional area (per metre length), acting through the centroid. The section is split into rectangles and triangles.
2. Water pressure
- Upstream: , horizontal, at above the base. If the upstream face is sloping, the weight of water above the slope acts vertically downward.
- Tailwater: acting upstream, and the weight of water on the downstream slope.
3. Uplift pressure (U)
Seepage water under the base and in the joints acts upward and reduces the effective weight. It varies linearly from at the heel to at the toe; drains reduce it.
4. Silt (sediment) pressure
, where , acting at from the base.
5. Wave pressure
Wind waves strike the top of the dam. acting at above the reservoir level; wave height from Molitor's formula.
6. Earthquake forces
- Horizontal inertia force on the dam (and vertical ).
- Hydrodynamic pressure of the reservoir water (Westergaard/Zanger method), acting at about above the base.
7. Ice and wind pressure
Ice thrust (cold regions) about 250 kN/m² on the ice thickness; wind pressure is small and usually neglected.
- 2078 Chaitra · 1+4+4 marks
What do you mean by dam? Enlist types of dam based on various criteria. Write the possible forces acting on gravity dam with a neat sketch.
Answer
Dam
A dam is a barrier built across a river or stream to store water, raise its level or divert it. The stored water is used for hydropower, irrigation, water supply and flood control.
Types of dams
| Criterion | Types |
|---|---|
| Function | Storage dam, diversion dam (weir/barrage), detention (flood) dam, debris dam, coffer dam |
| Hydraulic design | Overflow dam (spillway section), non-overflow dam |
| Material | Rigid: concrete, masonry, steel, timber; Non-rigid: earthfill, rockfill |
| Structural action | Gravity, arch, buttress, embankment (earth/rockfill) |
| Height (ICOLD) | Low (< 15 m), medium (15–100 m), high (> 100 m); "large dam" ≥ 15 m |
| Purpose | Single purpose, multipurpose |
Examples in Nepal: Kulekhani (rockfill storage dam), Kaligandaki A (concrete gravity diversion dam).
Forces acting on a gravity dam
crest
~~~~~ +---+ <- wave pressure Pw
| | |\
Pi -> | | \ <- wind
| | W | \ W = self weight
P1 -> | | \ (+ EQ: aW horizontal)
| | | W2 \
Ps -> | | \ ~~~~ tailwater
(silt) | | \ <- P2
+---+-------+ toe
heel ^ ^ ^ ^ ^
U (uplift)
- Self weight (W): main stabilising force, area, at the centroid.
- Upstream water pressure: at ; plus water weight on a sloping upstream face.
- Tailwater pressure: acting upstream, plus water weight on the downstream slope.
- Uplift pressure (U): upward seepage pressure on the base, from at heel to at toe; reduced by drainage galleries.
- Silt pressure: .
- Wave pressure: at above water level.
- Earthquake forces: inertia force on the dam and hydrodynamic water pressure (Westergaard/Zanger).
- Ice and wind pressure: ice thrust in cold regions; wind usually neglected.
- 2077 Chaitra · 7 marks
Explain elementary profile of dam and prove that B = H/√(G − K) where B is base width, H is height of water at the upstream side of the dam, G is specific gravity of dam material and K is uplift pressure intensity coefficient.
Answer
Elementary profile
The elementary profile of a gravity dam is a right-angled triangle with a vertical upstream face, zero top width and base width B, with water up to its apex (height H). Water pressure is zero at the top and grows linearly with depth, so a triangle is the ideal shape: it uses the least material and, if the base is wide enough, has no tension under full or empty reservoir. Practical profiles are made by adding top width and freeboard to it.
|\
| \
P --> | \ H
(H/3) | W \
| \
heel |__.__\ toe
^ ^ ^
U (KγwH at heel -> 0 at toe)
<--B-->
Forces per metre length
With = specific gravity of dam material, = uplift intensity coefficient:
Proof of (no-tension condition)
For no tension at the heel with full reservoir, the resultant must pass through the outer middle-third point, i.e. at from the heel ( from the toe). Taking moments about this point:
- W and U act at from the heel, so their lever arm is .
- P has lever arm .
For the resultant to pass through this point, the net moment must be zero:
Hence proved. Without uplift (), ; for concrete () this gives , and with full uplift () .
No-sliding condition (for comparison)
gives . The larger of the two widths is adopted.
Questions from Old Question Collection (CE 660) (IOE BEL CE 660 exam papers from 2070 Bhadra to 2082 Chaitra (18 papers)). Answers are written for this site; check them against your class notes.
Chapter titles and hours from the IOE syllabus ↗
