Chapter 4 · 5 hours
Unsteady flow in pipes
IOE past exam questions
Past questions and answers
26 questions set from this chapter, 2 of them more than once. Most repeated first.
- Asked 2 times
- 2079 Chaitra · 2 marks
- 2078 Chaitra · 2 marks
What are the functions (primary and secondary purposes) of a surge tank?
Answer
A surge tank is an open (or air-cushioned) storage chamber connected to a pressure conduit (penstock or tunnel) near its downstream end, to control pressure changes caused by sudden changes of flow.
Primary purposes
- Reduce water hammer: it reflects the pressure wave at the tank, so the pipe length subject to water hammer is only the short length between the tank and the valve or turbine, instead of the whole conduit up to the reservoir.
- Supply and absorb flow: when the turbine load increases, the tank supplies the extra water immediately; when the load is rejected, it takes the surplus water, so that the long upstream conduit does not have to accelerate or decelerate rapidly.
Secondary purposes
- Improves speed regulation of the turbine, because the water for the changed load is available at once.
- Reduces the pressure on the long tunnel/penstock and allows lighter pipe design.
- Acts as a reservoir of water for the first moments after a demand change, and allows the conduit to be left under steady head.
- Asked 2 times
- 2073 Magh · 8 marks
- 2069 Poush · 8 marks
Discuss water hammer phenomenon. Describe with neat sketches the one cycle of pressure wave propagation in a pipe connected to a reservoir, when the valve at the end of the pipe is closed suddenly (showing flow velocity direction and wave celerity at the specified times). One cycle represents t = 0 to t = 4L/C.
Answer
Water hammer
When the velocity of flowing water in a closed pipe is changed suddenly (valve closed quickly, pump stopped), the kinetic energy of the moving column is converted into pressure energy, producing a pressure wave that travels along the pipe at a speed (celerity) and is reflected at the ends. The pressure change is . This repeated pressure rise and fall is called water hammer (it produces noise and vibration like hammering).
One cycle of the wave after sudden valve closure
Consider a pipe of length with a reservoir at the upstream end and a valve at the downstream end, initial velocity towards the valve. The valve is closed suddenly at . (Friction neglected; the wave speed is constant.)
Stage 1: (wave travels from the valve to the reservoir)
reservoir |<-------------- L -------------->| valve
|=====[ V=V0 ]=====|====[ V=0 ]===X closed
<---- c <----- pressure wave +dp
The layer at the valve is stopped at once and compressed; pressure rises by and the pipe expands. The wave front moves upstream at ; the water behind it () is at high pressure; ahead of it, the water still moves at . At the whole pipe is at with .
Stage 2: (wave travels from the reservoir to the valve)
reservoir |=====[ V=-V0 ]=====|====[ V=0, +dp ]===X
----> c -----> (reflected wave, pressure back to p0)
At the reservoir the pressure cannot stay above the reservoir pressure, so the water flows back into the reservoir with and a wave travels back towards the valve, restoring the pressure to normal. At the whole pipe is at normal pressure with (flow towards the reservoir).
Stage 3: (wave travels from the valve to the reservoir)
reservoir |=====[ V=-V0, p0 ]=====|====[ V=0, p0-dp ]===X
<---- c <----- negative wave
The valve prevents any further backward flow, so drops to 0 at the valve and the pressure falls by below normal (possible column separation if the pressure falls below vapour pressure). The negative wave travels towards the reservoir. At the pipe is at , .
Stage 4: (wave travels from the reservoir to the valve)
reservoir |=====[ V=+V0, p0 ]=====|====[ V=0, p0-dp ]===X
----> c ----->
The low pressure in the pipe draws water from the reservoir at ; the wave restores normal pressure as it moves to the valve. At conditions are the same as at just before closure (flow towards the valve with pressure ), and the cycle repeats. In reality friction damps the oscillations.
| Time | Wave direction | Velocity | Pressure in pipe |
|---|---|---|---|
| 0 to | valve to reservoir | behind the front | behind the front |
| to | reservoir to valve | behind the front | back to behind the front |
| to | valve to reservoir | behind the front | behind the front |
| to | reservoir to valve | behind the front | back to behind the front |
The period of one cycle is .
- 2082 Kartik · 8 marks
Describe with sketches the variation of pressure with time (at valve and at midpoint of pipe) in a long pipeline from the reservoir with valve at the downstream, when the valve is instantaneously closed.
Answer
Case. A long pipeline of length from a reservoir (upstream) to a valve (downstream) carries water at velocity . The valve is closed instantaneously at . Neglect friction. Let (pressure rise ) and the static head be (shown as the zero line below).
At the valve end
The pressure wave starts at the valve at , so the pressure there rises at once by and stays at until the negative wave reflected from the reservoir returns at . Then the pressure drops by to (the closed valve prevents backward flow) and remains so until , when the positive wave from the reservoir restores it to . The variation is a square wave of period . Computed from the wave tracking (two cycles, above and below the zero line):
************ ************ *
-------------------------------------------------
************ ************
(top = 1.0, bottom = -1.0; '-' is zero line)
At the mid-point of the pipe ( from the valve)
- : no change (the wave has not arrived yet); pressure .
- : the wave reaches the mid-point; pressure (duration ).
- : the reflected negative wave from the reservoir cancels it; pressure .
- : the wave reflected from the valve (negative) arrives; pressure .
- : the positive wave from the reservoir restores pressure ; then the cycle repeats from .
****** ******
***------******------******------******------****
****** ******
(top = 1.0, bottom = -1.0; '-' is zero line)
The mid-point pressure wave has the same height () but is out of phase with the valve and lasts for at each level, with in between, i.e. it has a "stepped" (rectangular pulse) shape.
Summary. At the valve the pressure alternates between and every ; at the mid-point it follows the sequence with each stage lasting (except the first stage, which lasts ). The period of both is .
- 2081 Chaitra · 8 marks
A 2300 m long pipeline leading from a large tank has a diameter of 15 cm and the thickness of 2.8 mm. When a discharge of 2200 l/min of water was flowing the valve was suddenly closed completely. Sketch the variation of the water hammer pressure with time at (i) the valve end (ii) 57.5 m from the upstream tank. Take Pa and Pa for steel.
Answer
Data. m, m, wall thickness mm, l/min m³/s, Pa, Pa. The valve is closed suddenly and completely.
Wave speed and pressure rise
Cross-section area m², so m/s.
Time for the wave to travel the pipe: s; s; period s.
(i) Pressure variation at the valve end
rises at and stays at MPa above the static pressure until s. Then it falls to MPa until s, then rises again. (Square wave, period 8.01 s.)
************ ************ *
-------------------------------------------------
************ ************
(top = 1.0, bottom = -1.0; '-' is zero line)
(ii) Pressure variation at 57.5 m from the upstream tank
The point is m from the valve. Wave arrival times:
- s: pressure rises by MPa
- s: the wave reflected at the tank (negative) returns, pressure falls back to the static value
- s: the negative wave reflected at the valve arrives, pressure falls to MPa
- s: the positive wave reflected at the tank arrives, pressure returns to the static value
So at this point the pressure rise is a short pulse: MPa for only s (from 1.95 to 2.05 s), then the static value (up to 5.96 s), then MPa for 0.100 s (5.96 to 6.06 s), then static until , and the cycle repeats.
(not to scale in time; pulses are narrow)
+2.38 | __
| | |
0 +------+--+----------__----------> t (s)
| 1.95 2.05 5.96 6.06 8.0
-2.38 | |__|
(The pulses are only about 0.1 s wide because the point is close to the tank.)
Answer: m/s; MPa. At the valve: MPa square wave of half-period 4.00 s. At 57.5 m from the tank: short MPa pulses of about 0.1 s each cycle of 8.01 s.
- 2080 Chaitra · 2+3+3 marks
A 2300 m long pipeline leading from a large tank has a diameter of 15 cm and thickness of 2.8 mm. When a discharge of 2200 liters per minute of water was flowing, the valve was suddenly closed completely. What water hammer pressure and stress would develop at this condition? Also sketch the variation of the water hammer pressure with time at a distance of 1725 m downstream from reservoir end. Take Pa for water and Pa for steel.
Answer
Data. m, m, mm, l/min m³/s, Pa, Pa. Instantaneous closure.
Velocity and wave speed
Check closure type: s, and the valve closes instantaneously, so the closure is rapid (full Joukowsky rise).
Water hammer pressure
Stress developed
Hoop (circumferential) stress due to the pressure rise, thin-walled pipe:
(The longitudinal stress is about half of this, .)
Pressure-time variation at 1725 m from the reservoir
The point is m from the valve ( m from the reservoir). Wave arrival times ( m/s):
- s: wave from the valve arrives; pressure rises by MPa
- s: wave reflected from the reservoir arrives (negative); pressure falls back to the static value
- s: negative wave reflected from the valve arrives; pressure falls to MPa
- s: positive wave reflected from the reservoir arrives; pressure returns to the static value
- The cycle repeats with period s.
| Time interval (s) | Pressure change at the point |
|---|---|
| 0 to 0.50 | 0 |
| 0.50 to 3.50 | MPa |
| 3.50 to 4.50 | 0 |
| 4.50 to 7.51 | MPa |
| 7.51 to 8.01 | 0 (then the cycle repeats) |
******************
***------------------******------------------****
******************
(top = 1.0, bottom = -1.0; '-' is zero line)
(Pressure change relative to static pressure: +1 = , = ; time from 0 to s.)
Answer: MPa (243 m of water); hoop stress MPa; the pressure at 1725 m from the reservoir is a stepped wave with the changes at = 0.50, 3.50, 4.50 and 7.51 s.
- 2079 Chaitra · 6 marks
Water is flowing at 4 m/s in a penstock 4500 m long. If celerity of the pressure wave travelling in the pipe due to the sudden closure of a valve at the downstream end is given as 1500 m/s, what will be the maximum pressure rise? Show how the pressure changes with time at the 400 m upstream of penstock length from the valve.
Answer
Data. m/s, m, m/s, sudden valve closure at the downstream end.
Maximum pressure rise (Joukowsky)
Sudden closure means s (rapid closure), so the full rise occurs:
Pressure-time variation at 400 m upstream of the valve
Distance from the valve m. Wave times:
- s: the pressure wave arrives, pressure rises by m ( MPa)
- s: the negative wave reflected from the reservoir arrives, pressure returns to normal
- s: the negative wave reflected from the valve arrives; pressure drops by m
- s: the positive wave reflected from the reservoir arrives; pressure returns to normal
- The cycle repeats every s.
| Time (s) | Pressure change at 400 m |
|---|---|
| 0 to 0.27 | 0 |
| 0.27 to 5.73 | m |
| 5.73 to 6.27 | 0 |
| 6.27 to 11.73 | m |
| 11.73 to 12 | 0 |
*********************
**---------------------***---------------------**
*********************
(top = 1.0, bottom = -1.0; '-' is zero line)
(+1 = , = relative to the normal pressure; time from 0 to s.)
Answer: Maximum pressure rise m of water ( MPa). At 400 m from the valve the pressure is m for 0.267 s to 5.733 s (and falls by the same amount from 6.267 s to 11.733 s); see the table, stepped wave of period 12 s.
- 2078 Chaitra · 6 marks
Two reservoirs with constant difference of 10 m in their water surface elevation are connected by a 15 cm diameter pipe length 400 m and f = 0.025. The minor losses in the pipe can be taken as 15 times the velocity head in the pipe. If a valve controlling the flow is suddenly opened, a) estimate the time for 95 % of ultimate flow to be established and b) find the flow at the end of 10 s from the start of valve operation.
Answer
Data. m, m, m, , minor losses . The valve is opened suddenly, so the water column (assumed rigid, incompressible) accelerates until the head is used up by losses.
Equation of motion
Applying Newton's law to the water column (mass ) with driving force and resisting force from losses:
Ultimate (steady) velocity
At the final steady state, :
Solution
Writing and integrating from at :
where .
(a) Time for 95% of ultimate flow
(b) Flow after 10 s
Answer: (a) s; (b) l/s at 10 s (the ultimate flow is 27.4 l/s).
- 2077 Chaitra · 4+4 marks
A steel pipe 1.20 m in diameter conveys 1.40 m³/s of water under a head of 300 m. A valve at the downstream end can be expected to close suddenly. Estimate the water hammer pressure due to this closure. Also determine the minimum thickness of the wall to the nearest millimetre needed to withstand the pressures involved. For steel: E = 210 kN/mm², and safe working stress = 0.1 kN/mm². For water: K = 2.10 kN/mm².
Answer
Data. m, m³/s, static head 300 m ( MPa), kN/mm² Pa, safe stress kN/mm² MPa, kN/mm² Pa. Sudden closure, so the full Joukowsky rise applies.
Water hammer pressure
The wave speed depends on the wall thickness (unknown):
First estimate (rigid pipe, ): m/s, so MPa. This is the upper limit.
Thickness
The pipe must carry the maximum pressure at the safe hoop stress:
Since depends on , iterate. Start with = 10 mm and repeat: each new gives a new and . The substitution converges to
To the nearest (larger) millimetre: mm.
Check with mm: m/s, MPa ( m of water), maximum stress MPa MPa.
Answer: Water hammer pressure rise MPa ( m of water; MPa if the pipe were rigid); minimum wall thickness mm.
- 2076 Baisakh · 8 marks
A pump draws water from a reservoir and delivers it at a steady rate of 115 L/s to a tank in which the free surface level is 12 m higher than that in the reservoir. The pipe system consists of 30 m of 225 mm diameter pipe (f = 0.028) and 100 m of 150 mm diameter pipe (f = 0.032) arranged in series. Determine the flow rate 2 s after a failure of the power supply to the pump, assuming that the pump stops instantaneously. Neglect minor losses in the pipes and in the pump, and assume an incompressible fluid in rigid pipes with f independent of Reynolds number.
Answer
Data. Static lift m. Pipe 1: m, m, . Pipe 2: m, m, . Steady flow l/s. After the pump stops instantaneously the water column continues to move for a short time, decelerating under the static head and friction. Treat the water as incompressible and the pipes as rigid (rigid-column theory).
Constants
- Areas: m², m².
- Inertia length:
- Friction coefficients, with : , , so s²/m⁵ (check: steady friction head at 115 l/s is m).
Equation of motion
For the whole water column (mass -type inertia) after pump failure the forces are the static head (pushing the water back) and friction (opposing the forward motion):
Separate and integrate from :
Numbers
At s:
(The flow stops completely after s.)
Answer: The flow rate 2 s after the power failure is about l/s (still forward), decreasing from 115 l/s.
- 2075 Bhadra · 8 marks
A pump draws water from a reservoir and delivers it through a pipe 150 mm diameter, 90 m long, to a tank in which the free surface level is 8 m higher than that in the reservoir. The flow rate is steady at 0.05 m³/s until a power failure causes the pump to stop. Neglecting minor losses in the pipe and in the pump and assuming that the pump stops instantaneously, determine for how long flow into the tank continues after the power failure. The friction factor f may be taken as constant at 0.028 and elastic effects in the water or pipe material may be disregarded.
Answer
Data. m, m, static lift m, , steady m³/s. The pump stops instantaneously; minor losses and elasticity are neglected, so the water column decelerates as a rigid body under the static head (back-pressure) and friction.
Constants
Equation of motion
The flow into the tank stops when . Integrating from to 0:
Answer: The flow into the tank continues for about s (about 2.6 s) after the power failure.
- 2076 Bhadra · 6 marks
A valve which normally operates under a net head of 300 m is supplied with water at 2.5 m³/s through a pipe 1 m diameter and 1.6 km long for which f = 0.02. When the valve is gradually stopped over an interval of 8 seconds, the retardation of the water being proportional to , i.e. , where t represents the time measured from the beginning of the shut-down. Neglecting minor losses and assuming an incompressible fluid in a rigid pipe with f independent of Reynolds number, determine the head at the valve inlet and the velocity in the pipe at t = 6 seconds.
Answer
Data. Normal net head at the valve m with m³/s; m, km, ; valve closed gradually over s with retardation . The pipe is treated as rigid and the water as incompressible (rigid column theory); minor losses neglected.
Initial velocity and reservoir head
The head at the upstream end of the pipe (reservoir level) is the valve head plus the friction loss: m.
Velocity during closure
and the velocity falls to zero at : , so . Then
At s: , so
Head at the valve at s
Retardation (magnitude) .
Equation of motion of the water column (deceleration raises the head at the valve):
Answer: At s, the velocity in the pipe is m/s and the head at the valve is about m (an increase of about m, minus the lower friction loss, above the normal 300 m).
- 2075 Baisakh · 2.5+2.5+3 marks
A cast iron pipe of 300 mm diameter and 8 mm thick is 1500 m long. The pipe is to convey 200 litres per sec of water. a) Estimate the maximum time of closure of a valve at the downstream end that would be recognized as rapid closure? b) What is the peak water hammer pressure produced by rapid closure? c) What is the length of the pipe subjected to peak water hammer pressure if the time of closure is 2.0 sec? (For water E = 2200 MPa; for cast iron Pa)
Answer
Data. m, mm, m, l/s, MPa Pa, Pa for cast iron.
Velocity and wave speed
(a) Maximum time of closure for rapid closure
Closure is rapid if (the time for the pressure wave to travel to the reservoir and back):
(b) Peak water hammer pressure (rapid closure)
(c) Length of pipe subjected to peak pressure for s
Since s, the closure is rapid, but the closing takes a finite time, so only part of the pipe sees the full peak pressure. At a point from the valve, the last pressure increment of the closure arrives at , while the negative wave reflected from the reservoir arrives at . The full peak is reached only if the last increment arrives before the reflection:
This is the length of pipe measured from the valve towards the reservoir that experiences the peak pressure; the remaining m next to the reservoir does not.
Answer: (a) s; (b) MPa; (c) about m of the pipe adjacent to the valve experiences the peak pressure.
- 2074 Bhadra · 8 marks
In a pipe of length 500 m and uniform circular cross-section, water flows at a steady velocity of 2 m/s and discharges to atmosphere through a valve. Under steady conditions the static head just before the valve is 300 m. Calculate the ratio of internal diameter to wall thickness of the pipe so that, when the valve is completely and instantaneously closed, the increase in circumferential stress is limited to 20 MPa, and determine the maximum time for which the closure could be described as rapid. The bulk modulus of water = 2 GPa, and the elastic modulus of the pipe material = 200 GPa.
Answer
Data. m, m/s, static head 300 m, instantaneous valve closure, increase of circumferential stress MPa, GPa, GPa. Let .
Relations
Wave speed: (since ).
Pressure rise: .
Hoop stress increase (thin-walled pipe): .
Solve for
Square both sides: , so
Maximum time for rapid closure
Wave speed with this thickness:
(then MPa, and MPa, as required; the maximum pressure is MPa.)
Closure is rapid if its time :
Answer: (wall thickness is about 1/15 of the diameter); closure is rapid for s.
- 2073 Bhadra · 8 marks
Discuss Water hammer phenomenon. Develop Euler's equation as well as continuity equation for unsteady flow.
Answer
Water hammer phenomenon
When the velocity of water flowing in a pipe is changed quickly (valve closed or opened suddenly, pump or turbine started or stopped), the kinetic energy of the water is converted into pressure energy and a pressure wave of high intensity travels through the pipe at the speed of sound in the water-pipe system (). The wave is reflected at the reservoir and at the valve and may cause pressure rise or fall of many times the normal pressure, with noise like hammering. This is water hammer. It can burst pipes (pressure rise) or collapse them and cause column separation (pressure fall).
For instantaneous closure, the pressure rise is (Joukowsky)
Euler (momentum) equation for unsteady pipe flow
Consider a short element of fluid of length in a pipe of cross-section , perimeter , inclined at an angle to the horizontal, measured along the pipe. Forces along the pipe:
- Pressure:
- Weight component:
- Wall shear:
Newton's second law, with mass and acceleration :
Divide by . With the piezometric head (), the pressure and weight terms combine to . The wall shear and give :
This is Euler's (momentum) equation for unsteady flow in a pipe. In water hammer problems the convective term is small compared with and is usually dropped.
Continuity equation for unsteady flow (elastic water and pipe)
Consider a pipe element of length . Mass inflow minus outflow equals the rate of change of mass in the element:
Hence . A change of pressure changes the density and the area:
- Water compressibility (bulk modulus ):
- Pipe elasticity (thin wall, hoop stress , strain ):
So , which defines the wave speed
Therefore . Using , :
The terms and are small, so the usual form is .
Together with the momentum equation, these are the two equations that govern water hammer. They combine to the wave equation (friction neglected), whose solutions are waves travelling at , and for a sudden change of velocity they give .
- 2072 Asoj · 3+5 marks
Explain the water hammer phenomenon and mention its causes. Derive the momentum equation for unsteady flow through pipe.
Answer
Water hammer phenomenon
When the velocity of flow in a closed conduit is changed rapidly, the moving water column is suddenly slowed or accelerated. Its kinetic energy is converted into pressure (strain) energy, and a pressure wave travels along the pipe at wave speed , reflecting at the reservoir and at the valve. The resulting rapid pressure rise and fall, with hammering noise, is water hammer. For instantaneous closure, .
Causes
- Sudden closing or opening of valves or gates (the commonest cause).
- Starting or stopping of pumps, or power failure to the pump.
- Sudden change of load on a turbine (governor action closing the guide vanes or nozzle).
- Rupture of a pipe, or a sudden change in the demand at the end of a pipe.
- Vibration of the machine or flow control equipment, and air trapped in the pipe.
- Failure of a pump check valve, or a change in the reservoir head.
Momentum equation for unsteady flow through a pipe
Consider a short element of fluid of length in a pipe of cross-section , perimeter , inclined at an angle to the horizontal, measured along the pipe. Forces along the pipe:
- Pressure:
- Weight component:
- Wall shear:
Newton's second law, with mass and acceleration :
Divide by . With the piezometric head (), the pressure and weight terms combine to . The wall shear and give :
This is Euler's (momentum) equation for unsteady flow in a pipe. In water hammer problems the convective term is small compared with and is usually dropped.
Use in water hammer. With and friction neglected, the equation reduces to . Together with the continuity equation , it gives the wave solution .
- 2072 Magh · 2 marks
In the figure below, water flowing through a pipe from the reservoir is suddenly stopped by closing a valve at point B. Draw pressure-time diagram at the 2/3 L from valve of the pipe for one cycle of wave motion. [Figure: reservoir connected to a pipe of length L ending in a valve at B]
Answer
Case. Reservoir at the upstream end, valve at B (downstream end), pipe length , wave speed , valve closed suddenly at . The point is from the valve (so from the reservoir). Let and the static head be .
Wave timing at the point ( from the valve)
- : the positive wave from the valve arrives; pressure rises to
- : the negative wave reflected from the reservoir arrives; pressure returns to
- : the negative wave reflected from the valve arrives; pressure falls to
- : the positive wave reflected from the reservoir arrives; pressure returns to
- At the cycle is complete and repeats.
| Interval | Pressure at the point |
|---|---|
| to | |
| to | |
| to | |
| to | |
| to |
Pressure-time diagram (one cycle, from 0 to )
********
********--------****************--------*********
********
(top = 1.0, bottom = -1.0; '-' is zero line)
(+1 = , 0 = , = .) The positive pulse lasts and the negative pulse lasts , separated by a period of at the static pressure.
- 2072 Magh · 6 marks
Water flows through a 25 cm diameter 1500 m long pipe at rate of 75 lps. The static pressure of water in the pipe is 200 m at the downstream end of the pipe and the thickness of the pipe material is 6 mm. If a valve at the downstream end closed in 3 sec estimate the stress in the pipe wall. Take Bulk modulus of water = N/m² and Young's modulus of elasticity of steel = N/m².
Answer
The valve closure time is compared with the critical time . If the closure is slower than , the pressure rise is found from the gradual-closure formula . Hoop (circumferential) stress in the wall is then using the total pressure.
Given data
m, m, m³/s, mm, s, static head = 200 m, N/m², N/m².
Step 1: Velocity
Step 2: Wave celerity in elastic pipe
Step 3: Type of closure
So the closure is gradual (slow), and the Joukowsky value does not apply.
Step 4: Pressure rise
Step 5: Stress in pipe wall
Static pressure MPa.
Total pressure MPa.
The stress due to the static head alone is 40.88 MPa; the water hammer adds 15.92 MPa.
Answer: pressure rise = 0.764 MPa (77.9 m); maximum hoop stress in pipe wall = 56.8 MPa (about 57 N/mm²).
- 2071 Bhadra · 8 marks
Water is flowing from a reservoir in a pipe of 600 mm diameter, 3000 m long and 6 mm thick at a velocity of 3.5 m/s. Assuming the value of bulk modulus of elasticity for water as 2.06 GPa, modulus of elasticity for pipe material 206 GPa and velocity of pressure wave 1400 m/s. Draw pressure-time diagram at location 1200 m from reservoir if the valve located at the end of the pipe is closed in 1 second.
Answer
Closure time s is shorter than the pipe period s, so the closure is rapid and the full Joukowsky pressure develops. The pressure at the section is then a trapezoidal wave that repeats every .
Given data
m, m, m/s, m/s (given), s, section at m from the reservoir, i.e. 1800 m from the valve. The static head is not given, so pressure is plotted as .
(Note: the given and would give m/s for a thin-walled elastic pipe; the stated m/s is used as instructed.)
Pressure rise
Wave travel times
- Pipe period: s.
- Wave from valve reaches the section: s.
- Wave from valve reaches the reservoir: s, and returns as a negative wave.
Pressure history at the section (1200 m from reservoir)
| Time (s) | Event | Pressure |
|---|---|---|
| 0 – 1.29 | Wave not yet arrived | |
| 1.29 – 2.29 | Positive wave arrives (rises over 1 s) | rises to m |
| 2.29 – 3.00 | Positive wave passing | m |
| 3.00 – 4.00 | Negative wave reflected from reservoir arrives | falls to |
| 4.00 – 5.57 | Net effect zero | |
| 5.57 – 6.57 | Negative wave reflected from closed valve arrives | falls to m |
| 6.57 – 7.29 | Negative wave passing | m |
| 7.29 – 8.29 | Positive wave reflected from reservoir arrives | rises to |
| 8.29 – 9.86 | Cycle repeats from 8.57 s |
Pressure-time diagram (friction neglected)
H0+dH| ___
| //// \\\\
H0 |_____ ______ _______
| \\\\\ ////
H0-dH| __
+|---|---|---|---|---|---|---|---|---|---
0 1 2 3 4 5 6 7 8 9 t(s)
dH = 499 m. Sloping parts last 1 s (equal to the closure time). In practice friction damps the wave, and the low-pressure part cannot fall below vapour pressure.
Answer: peak pressure rise = 4.90 MPa (499 m of water); the section sees +499 m from 1.29 s to 3.00 s (falling to by 4.00 s), then −499 m from 5.57 s to 7.29 s, repeating every 8.57 s.
- 2071 Magh · 8 marks
A steel pipeline ( = 0.046 mm) 61 cm in diameter and 3.2 km long laid freely at its lower end under a head of 61 m. What water-hammer pressure would develop if a valve at the outlet were closed in 4 sec? 60 sec? Wall thickness = 0.5 cm for both cases of closure. Compute the stress that would develop in the walls of the pipe near the valve. If the working stress of steel is taken as 16,000 psi, what would be the minimum time of safe closure? Consider N/m² and N/m².
Answer
The velocity before closure is first found from the head loss in the pipe. Then closure time is compared with : if the closure is rapid (), otherwise gradual ().
Assumptions
The pipe discharges freely at the outlet under a head m. Take m²/s, m/s². Losses = friction plus exit velocity head.
Step 1: Initial velocity
. Solve
with the Colebrook equation for (iterated): at .
Step 2: Wave celerity
Step 3: Hammer pressure
Static pressure: MPa.
Closure in 4 s ( s, rapid):
Closure in 60 s ( s, gradual):
Step 4: Stress in the pipe wall,
| Case | Total pressure (MPa) | Hoop stress (MPa) |
|---|---|---|
| Static only | 0.598 | 36.5 |
| 4 s closure | 4.69 | 286.3 |
| 60 s closure | 0.828 | 50.5 |
Step 5: Minimum safe closure time
Working stress psi MPa. Allowable pressure:
Allowable hammer rise MPa. Using the gradual-closure formula:
This is greater than s, so the gradual formula is valid.
Answer: hammer pressure = 4.09 MPa for 4 s and 0.229 MPa for 60 s; wall stress = 286 MPa and 50.5 MPa respectively; minimum safe closure time ≈ 11.4 s.
The 4 s closure gives a stress far above the working stress, so it is unsafe.
- 2070 Bhadra · 1.5+1.5 marks
Explain the importance of surge tank. Describe the types of surge tank.
Answer
Surge tank
A surge tank is a vertical open standpipe or chamber connected to the penstock/pressure tunnel near the powerhouse (as close to the turbine as possible). It gives a free water surface near the valve or turbine.
Importance
- Controls water hammer. When the turbine gates close suddenly, the water column cannot stop at once; it flows into the surge tank. The pressure wave is reflected at the tank instead of travelling back along the long tunnel, so the long conduit is protected from high pressure.
- Supplies water when load increases. When the gates open, the tank gives water quickly until the water in the long tunnel gets accelerated. This avoids a large pressure drop.
- Reduces pressure fluctuation at the turbine, giving better speed regulation by the governor.
- Cheaper design. The tunnel can be made lighter because it is not designed for hammer pressure; only the short penstock after the tank is.
- Stores and releases water so surging dies out (oscillations are damped by friction and tank area).
Types of surge tank
| Type | Description | Remark |
|---|---|---|
| Simple surge tank | Plain cylindrical tank connected directly to the pipe | Large oscillation; slow damping |
| Restricted orifice tank | Simple tank with a throttled (orifice) opening at the base | Orifice loss damps oscillations; limits rise and fall |
| Differential tank (Johnson) | Central riser inside a larger tank; the riser has ports at the base | Quick response from riser; storage in the outer tank; most economical |
| Closed (pneumatic) tank | Air-tight tank with compressed air cushion | Used when site has no high ground |
| Overflow (spilling) tank | Top is provided with spillway for excess surge | Limits the maximum rise |
| Inclined / Tunnel-type / Gallery tank | Inclined shaft or chamber with expansion gallery | Used where vertical shaft is not practical |
Simple Restricted Differential
| | | | | | | |
| | | | | |__| |
| | | | | riser |
-+ +- -+ +- orifice -+ ports +-
penstock
- 2070 Bhadra · 5 marks
A 300 mm diameter pipe of mild steel having 6 mm thickness carries water at the rate of 200 l/s. What will be the rise in pressure if the valve at the downstream end is closed instantaneously? Compare results assuming the pipe to be rigid as well as elastic. What should be the maximum closing time for the computed results to be valid? Take pipe length as 5.0 km, Modulus of elasticity of pipe material as N/m², Bulk modulus of elasticity of water as N/m².
Answer
For instantaneous closure the pressure rise is . The wave celerity depends on whether the pipe wall is treated as rigid (only the water is compressible) or elastic (the wall also stretches).
Given data
m, mm, m³/s, m, N/m², N/m².
(a) Rigid pipe
(b) Elastic pipe
Comparison
| Pipe | (m/s) | (MPa) | Head (m) |
|---|---|---|---|
| Rigid | 1414.2 | 4.001 | 407.9 |
| Elastic | 1176.7 | 3.329 | 339.4 |
The rigid-pipe assumption over-estimates the pressure by about 20%, because the elastic wall expands and absorbs some energy.
Maximum closing time for the result to be valid
The result holds for rapid closure, i.e. :
- Elastic: s.
- Rigid: s.
Answer: elastic pipe: MPa (339 m); rigid pipe: MPa (408 m); closing time must not exceed 8.50 s (elastic) / 7.07 s (rigid).
- 2070 Magh · 3 marks
Define water hammer and write down continuity equation and momentum equation for unsteady flow in pipe.
Answer
Water hammer
Water hammer is the rise and fall of pressure in a pipe caused by a sudden change of flow velocity, such as quick closing or opening of a valve or turbine gate, or pump failure. The kinetic energy of the moving water changes to elastic (strain) energy of the water and the pipe wall. A pressure wave travels along the pipe at celerity and is reflected at the ends. It may burst the pipe or cause collapse and noise (like hammering).
Equation of motion (momentum / Euler's equation)
Newton's second law for a water element in a pipe of diameter , with along the pipe, velocity, piezometric head:
For hammer, the convective term is small compared with and is neglected:
Without friction this is the Euler equation .
Continuity equation
Mass conservation including compressibility of water (bulk modulus ) and elasticity of the pipe:
where is the wave celerity.
Together these two equations (momentum and continuity) are solved, e.g. by the method of characteristics, to find and along the pipe at any time.
- 2070 Magh · 5 marks
A valve is closed in 4.5 s at the down stream end of a 3200 m pipeline carrying water at 2.7 m/s. What is the peak pressure developed by the closure, if the wave travels with velocity of 1000 m/s? Determine the length of pipe subjected to the peak discharge.
Answer
The wave from the valve goes to the reservoir and comes back in time . If closure finishes before the reflected wave returns to the valve, the full Joukowsky pressure develops at the valve.
Given data
m, m/s, m/s, s.
Peak pressure
The closure is rapid (the valve is completely shut before the negative wave returns), so
Length of pipe subjected to the peak pressure
During the closing time the pressure wave travels a distance up the pipe and the reflected wave comes back. The reflected wave reduces pressure beyond the point where it has reached when closure ends. Length of pipe at the full peak pressure (measured from the valve):
Reservoir Valve
|<------ 2250 m ------>|<---- 950 m --->|
reduced pressure peak pressure
Answer: peak pressure rise = 2.70 MPa (275.2 m of water); length of pipe subjected to peak pressure = 950 m from the valve.
- 2069 Bhadra · 7+1 marks

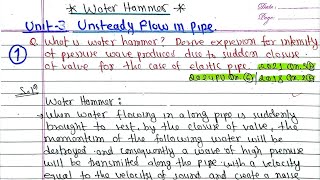

Derive an expression for the pressure rise due to instantaneous closure of valve considering the pipe to be elastic. From the derived expression for elastic pipe, obtain the pressure rise for rigid pipe.
Answer
Pressure rise on sudden valve closure is found from the momentum (impulse) equation applied to the pressure wave, and the wave speed from the continuity (energy/volume) equation, including elasticity of the pipe.
Set-up
Pipe of diameter , wall thickness , Young's modulus of pipe, water density , bulk modulus , flow velocity before closure. The valve closes suddenly at the downstream end. A pressure wave moves upstream with celerity , bringing the water to rest and raising pressure by . Let the wave advance a distance in time .
Reservoir <---- wave front ---- Valve
======= (V) -> | V=0, p+dp | ====|
<-- c dt -->
1. Momentum (impulse) equation
Mass of water brought to rest in time : . Change in momentum . The net force is (acting against the flow).
2. Wave velocity (strain energy)
Kinetic energy lost .
Strain energy stored in water (volume ): .
Strain energy stored in pipe wall (hoop stress , strain energy per unit volume , wall volume ):
Energy balance:
Substitute :
3. Pressure rise for elastic pipe
4. Rigid pipe
A rigid pipe does not stretch: , so and
This is the maximum possible pressure rise; it is larger than the value for an elastic pipe.
- 2068 Bhadra · 8 marks
A 20 m long, 75 mm diameter, steel pipeline, wall thickness 6 mm, carries water from a large reservoir tank, held at a constant head of 6 m. Discharge is 0.022 m³/s through a variable speed valve positioned 10 m from the supply tank. Discharge is to a second constant head tank held at 2 m head as shown in figure below. If the valve closure is instantaneous, determine the theoretical magnitudes of the pressure wave propagated away from the valve under frictionless conditions. Draw pressure (both steady and unsteady) time curve at point 5 m, 2.5 m and 0.5 m from the upstream tank. Take N/m² and N/m². [Figure: upstream tank with 6 m head; pipe of 10 m to the valve and another 10 m to the downstream tank with 2 m head]
Answer
For instantaneous closure (frictionless), the valve creates a pressure wave of magnitude . Upstream of the valve the wave is a pressure rise; downstream of the valve it is a pressure drop. The waves reflect at the constant-head tanks (head unchanged, sign reversed) and at the closed valve (sign unchanged).
Given data
m, mm, m³/s, N/m², N/m². Valve is 10 m from the upstream tank (6 m head) and 10 m from the downstream tank (2 m head).
Step 1: Velocity and celerity
Step 2: Magnitude of the pressure wave
- Upstream of the valve (towards the upstream tank): wave of +677.6 m.
- Downstream of the valve (towards the downstream tank): wave of −677.6 m.
Step 3: Steady pressure head
In a frictionless pipe the steady head at any point upstream of the valve is the tank head minus velocity head:
(The 2 m downstream head is only a boundary level; the remaining head is lost at the valve.)
Step 4: Timing
The valve is m from the tank; the wave period is ms with m. For a point m from the upstream tank:
- First rise:
- Back to steady (reflection from the tank):
- Drop of −ΔH (reflection from valve):
- Back to steady: ; the cycle repeats every 29.97 ms.
| Point | Rise begins (ms) | Back to steady (ms) | Fall begins (ms) | Back to steady (ms) | Next rise (ms) |
|---|---|---|---|---|---|
| 5 m | 3.75 | 11.24 | 18.73 | 26.22 | 33.71 |
| 2.5 m | 5.62 | 9.36 | 20.60 | 24.35 | 35.59 |
| 0.5 m | 7.12 | 7.87 | 22.10 | 22.85 | 37.08 |
Step 5: Pressure-time curves
Steady pressure head m (a horizontal line). Unsteady (total) head switches between three levels:
head
+H_hi | ____ ____
| | | |
h_s |_____| |__ ____| (steady line)
| | |
H_lo | |____|
+---------------------------------> t
rise back fall back next rise
H_hi = 682 m, h_s = 4.74 m, H_lo = -673 m. (The shape is the same at all three points; only the timing differs as shown in the table. The block width is for the +ΔH pulse and the fall pulse is wide, so the pulse at 0.5 m is very narrow and at 5 m is widest.)
The theoretical low head (-673 m) is below absolute vacuum, so in reality the water column separates (cavitation) and pressure is limited to vapour pressure (about −10 m gauge).
Answer: wave speed 1335 m/s; pressure wave = ±678 m of water (±6.65 MPa), + upstream and − downstream of the valve; steady head 4.74 m at the points.
- 2068 Magh · 8 marks
Derive following continuity equation for unsteady flow in pipes . Where is celerity and other symbols have their usual meanings.
Answer
The continuity equation expresses conservation of mass in a pipe in which water is slightly compressible and the pipe wall is elastic.
Set-up
Take a control volume of length in a pipe of cross-section , density , velocity along the pipe axis .
mass in mass out
rho A v --> |<-- ds -->| --> rho A v + d(rho A v)/ds ds
Mass balance
Net mass flow into the element equals the rate of increase of mass inside:
Expanding and dividing by :
i.e.
where is the derivative following the fluid.
Compressibility of water
From the bulk modulus, :
Elasticity of pipe wall
For a thin-walled pipe of diameter , thickness , modulus , the hoop stress is and strain . As :
Result
Put (2) and (3) in (1):
Multiply by and divide by :
With celerity :
For a rigid pipe (), , which is the speed of sound in water (about 1440 m/s), the form given in the question.
Questions from Old Question Collection (CE 555) (IOE Hydraulics (CE 555) exam papers from 2068 to 2082). Answers are written for this site; check them against your class notes.
Chapter titles and hours from the IOE syllabus ↗
