Nepal Engineering Council · Electrical Engineering · Chapter 1
Fundamental of Electrical Engineering
Tap an option to check it. Wrong picks show the right answer and the hint.
180 questions in 6 syllabus topics.
1.1 Basic circuit concept
32 questions · AExE0101

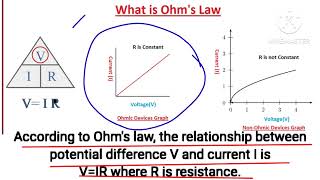

1. Ohm's law states that, provided temperature and other physical conditions remain constant, the current through a conductor is
Show hintHide hint
Think of V = IR with R fixed.
Show answerHide answer
Answer: D. directly proportional to the voltage across it
Ohm's law: V = IR with R constant, so I is directly proportional to V.
2. An electric heater draws 5 A from a 230 V supply. Its resistance is
Show hintHide hint
Rearrange V = IR.
Show answerHide answer
Answer: D. 46 Ω
R = V/I = 230/5 = 46 Ω.
3. Ohm's law is NOT applicable to which of the following?
Show hintHide hint
Look for the element whose V-I graph is not a straight line.
Show answerHide answer
Answer: A. A semiconductor diode
A diode has a non-linear V-I characteristic, so V/I is not constant; the others are linear (ohmic) at constant temperature.
4. One kilowatt-hour (kWh) of electrical energy is equal to
Show hintHide hint
Convert both kilo and hour into SI units.
Show answerHide answer
Answer: C. 3.6 × 10⁶ J
1 kWh = 1000 W × 3600 s = 3.6 × 10⁶ J.
5. A 1.5 kW water heater is used for 4 hours every day. The energy consumed in a 30-day month is
Show hintHide hint
Energy = power × total operating time.
Show answerHide answer
Answer: A. 180 kWh
Energy = 1.5 kW × 4 h × 30 = 180 kWh.
6. The hot resistance of a 100 W, 230 V incandescent lamp is
Show hintHide hint
Use P = V²/R.
Show answerHide answer
Answer: D. 529 Ω
R = V²/P = 230²/100 = 529 Ω.
7. Three equal resistors connected in series across a constant-voltage supply dissipate a total power P. If they are reconnected in parallel across the same supply, the total power becomes
Show hintHide hint
Compare the two equivalent resistances; P = V²/R.
Show answerHide answer
Answer: A. 9P
Series: R_eq = 3R; parallel: R_eq = R/3. Power V²/R_eq increases by a factor (3R)/(R/3) = 9.
8. A wire is drawn out so that its length is doubled while its volume stays the same. Its resistance becomes
Show hintHide hint
Volume constant means area changes too.
Show answerHide answer
Answer: A. 4 times the original
Doubling length at constant volume halves the area; R = ρl/A becomes ρ(2l)/(A/2) = 4R.
9. Which of the following materials has a negative temperature coefficient of resistance?
Show hintHide hint
Pure metals behave alike; one material here is a non-metal.
Show answerHide answer
Answer: A. Carbon
The resistance of carbon decreases as temperature rises (negative coefficient); pure metals have a positive coefficient.
10. Which of the following metals has the highest electrical conductivity at room temperature?
Show hintHide hint
Copper is used for cost reasons, not because it is the best.
Show answerHide answer
Answer: B. Silver
Silver has the lowest resistivity (about 1.6 × 10⁻⁸ Ω·m) of all metals, slightly better than copper.
11. Which of the following is an insulating material?
Show hintHide hint
Three of these are used to carry current or produce heat/light.
Show answerHide answer
Answer: C. Mica
Mica has very high resistivity and dielectric strength; nichrome and tungsten are metallic conductors and graphite also conducts.
12. A good insulating material should have
Show hintHide hint
It must both block current and resist breakdown.
Show answerHide answer
Answer: C. high resistivity and high dielectric strength
An insulator must block current flow (high resistivity) and withstand high electric stress without breakdown (high dielectric strength).
13. A copper coil has a resistance of 10 Ω at 20 °C. Taking α₂₀ = 0.00393 /°C, its resistance at 70 °C is about
Show hintHide hint
Use the temperature rise above 20 °C, not 70 °C itself.
Show answerHide answer
Answer: D. 11.97 Ω
R₇₀ = R₂₀[1 + α₂₀(70 − 20)] = 10(1 + 0.00393 × 50) = 11.97 Ω.
14. In a series circuit, the quantity that is the same through every element is
Show hintHide hint
There is only one path for charge to flow.
Show answerHide answer
Answer: A. current
Series elements form a single path, so the same current flows through each.
15. A 4 Ω resistor is connected in series with a parallel combination of 6 Ω and 3 Ω across a 12 V source. The source current is
Show hintHide hint
Reduce the parallel pair first.
Show answerHide answer
Answer: D. 2 A
6 ∥ 3 = 2 Ω; total = 4 + 2 = 6 Ω; I = 12/6 = 2 A.
16. A current of 10 A divides between two parallel resistors of 2 Ω and 8 Ω. The current through the 2 Ω resistor is
Show hintHide hint
The smaller resistor takes the larger share.
Show answerHide answer
Answer: C. 8 A
I₂Ω = I × 8/(2 + 8) = 8 A; the smaller resistance carries the larger current.
17. A 24 V supply is applied across 4 kΩ and 8 kΩ resistors in series. The voltage across the 8 kΩ resistor is
Show hintHide hint
Voltage divides in proportion to resistance.
Show answerHide answer
Answer: B. 16 V
Voltage divider: V = 24 × 8/(4 + 8) = 16 V.
18. A balanced delta network has 30 Ω in each arm. The equivalent star network has, in each arm,
Show hintHide hint
The star equivalent of a balanced delta is smaller.
Show answerHide answer
Answer: B. 10 Ω
For balanced networks R_Y = R_Δ/3 = 30/3 = 10 Ω.
19. A star network has R_A = 5 Ω, R_B = 10 Ω and R_C = 20 Ω. In the equivalent delta, the resistance connected between terminals A and B is
Show hintHide hint
Sum of the two adjacent arms plus their product over the third.
Show answerHide answer
Answer: A. 17.5 Ω
R_AB = R_A + R_B + R_A·R_B/R_C = 5 + 10 + 50/20 = 17.5 Ω.
20. A delta network has R_AB = 10 Ω, R_BC = 20 Ω and R_CA = 30 Ω. The star-equivalent resistance connected to terminal A is
Show hintHide hint
Use the two delta arms that meet at terminal A.
Show answerHide answer
Answer: B. 5 Ω
R_A = R_AB·R_CA/(R_AB + R_BC + R_CA) = 10 × 30/60 = 5 Ω.
21. Kirchhoff's current law is based on the principle of conservation of
Show hintHide hint
What cannot pile up at a junction?
Show answerHide answer
Answer: C. charge
Charge cannot accumulate at a node, so the sum of currents entering equals the sum leaving.
22. Kirchhoff's voltage law is a consequence of the principle of conservation of
Show hintHide hint
Voltage is energy per unit charge.
Show answerHide answer
Answer: D. energy
Around a closed loop the net work done on a unit charge is zero, so the algebraic sum of voltages is zero.
23. At a node, currents of 5 A and 3 A enter and a current of 2 A leaves through a third branch. The current leaving through the fourth branch is
Show hintHide hint
Total in = total out.
Show answerHide answer
Answer: D. 6 A
KCL: 5 + 3 = 2 + I, so I = 6 A.
24. A closed loop contains a 20 V source and three resistors. The voltage drops across two of the resistors are 8 V and 5 V. The drop across the third resistor is
Show hintHide hint
Sum of drops equals the source emf.
Show answerHide answer
Answer: B. 7 V
KVL: 20 = 8 + 5 + V, so V = 7 V.
25. A linear circuit is one in which
Show hintHide hint
It is about the parameters, not the layout.
Show answerHide answer
Answer: C. the circuit parameters (R, L, C) remain constant irrespective of the voltage or current
Linearity means the element parameters do not change with voltage or current, so the V-I relations are linear (superposition holds).
26. An iron-cored coil operated well into magnetic saturation is an example of
Show hintHide hint
Does its inductance stay fixed as current rises?
Show answerHide answer
Answer: A. a non-linear element
In saturation the inductance changes with current, so the element is non-linear (it is still passive and bilateral).
27. Which of the following is a unilateral element?
Show hintHide hint
Reverse the current direction and see which behaves differently.
Show answerHide answer
Answer: B. Diode
A diode conducts very differently in the two directions; R, L and C behave the same for either direction of current.
28. A network that contains at least one source of energy is called
Show hintHide hint
Sources supply energy.
Show answerHide answer
Answer: C. an active network
Active networks contain energy sources (voltage or current sources); passive networks contain only R, L, C.
29. Which of the following is a passive element?
Show hintHide hint
Which one cannot supply net energy?
Show answerHide answer
Answer: D. Inductor
An inductor only stores and returns energy; it cannot deliver net energy, unlike sources.
30. The internal resistance of an ideal voltage source is
Show hintHide hint
Its terminal voltage never drops with load.
Show answerHide answer
Answer: C. zero
An ideal voltage source keeps its terminal voltage constant for any current, which requires zero internal resistance.
31. A 12 V battery with internal resistance 0.5 Ω supplies a 5.5 Ω load. The terminal voltage of the battery is
Show hintHide hint
Subtract the internal drop from the emf.
Show answerHide answer
Answer: B. 11 V
I = 12/(0.5 + 5.5) = 2 A; V_t = 12 − 2 × 0.5 = 11 V.
32. A current of 2 A flows through a 10 Ω resistor for 5 minutes. The heat energy produced is
Show hintHide hint
Convert minutes to seconds.
Show answerHide answer
Answer: B. 12 kJ
P = I²R = 40 W; W = 40 × 300 s = 12 000 J = 12 kJ.
1.2 Network theorems
30 questions · AExE0102
33. The superposition theorem can be applied only to circuits that are
Show hintHide hint
Which property allows responses to be added?
Show answerHide answer
Answer: C. linear
Superposition depends on linearity (additivity and homogeneity); it holds for AC or DC sources.
34. While applying the superposition theorem, an ideal independent voltage source that is not being considered is replaced by
Show hintHide hint
What has zero voltage across it for any current?
Show answerHide answer
Answer: D. a short circuit
Setting an ideal voltage source to zero makes its terminal voltage zero, i.e. a short circuit (its internal resistance, if any, stays).
35. While applying the superposition theorem, an ideal independent current source that is not being considered is replaced by
Show hintHide hint
What carries zero current for any voltage?
Show answerHide answer
Answer: A. an open circuit
Setting a current source to zero means no current can flow through it, i.e. an open circuit.
36. The superposition theorem cannot be used directly to calculate
Show hintHide hint
Which quantity is not linear in the source values?
Show answerHide answer
Answer: B. the power dissipated in a resistor
Power is proportional to I² (non-linear), so powers due to individual sources cannot simply be added.
37. During superposition, dependent (controlled) sources in the circuit are
Show hintHide hint
Only sources that act on their own are switched off.
Show answerHide answer
Answer: D. left in the circuit as they are
Dependent sources are controlled by circuit variables; they remain active while each independent source acts alone.
38. A 12 V source in series with 4 Ω feeds node A. A 4 Ω resistor connects node A to the reference, and an ideal 2 A current source injects current into node A. By superposition, the voltage of node A is
Show hintHide hint
Find each source's contribution, then add.
Show answerHide answer
Answer: D. 10 V
12 V alone: 12 × 4/8 = 6 V. 2 A alone: 2 × (4 ∥ 4) = 4 V. Total = 6 + 4 = 10 V.
39. In a 5 Ω resistor, source X acting alone produces 3 A and source Y acting alone produces 1 A in the opposite direction. The actual power dissipated in the resistor is
Show hintHide hint
Add currents with sign first, then compute power.
Show answerHide answer
Answer: C. 20 W
Net current = 3 − 1 = 2 A, so P = 2² × 5 = 20 W. Adding the individual powers (45 + 5 = 50 W) is wrong.
40. Source E₁ = 10 V with series 5 Ω and source E₂ = 20 V with series 10 Ω are both connected to a common node, which is joined to the reference by R₃ = 10 Ω (both sources referenced to the same node). The current in R₃ is
Show hintHide hint
Each source's contribution is found with the other shorted.
Show answerHide answer
Answer: B. 1 A
E₁ alone gives 5 V across R₃ and E₂ alone gives 5 V, so V = 10 V and I = 10/10 = 1 A.
41. The Thevenin equivalent of a linear two-terminal network consists of
Show hintHide hint
Norton uses the other arrangement.
Show answerHide answer
Answer: C. a voltage source in series with an impedance
Thevenin: V_th in series with R_th (Z_th); the parallel current-source form is Norton's.
42. The Thevenin voltage of a network is the
Show hintHide hint
The load is removed first.
Show answerHide answer
Answer: A. open-circuit voltage across the load terminals
V_th is measured or calculated with the load removed (terminals open).
43. When a network contains only independent sources and resistors, the Thevenin resistance is found by
Show hintHide hint
Switch off the sources, then look into the terminals.
Show answerHide answer
Answer: D. replacing every source by its internal resistance and finding the resistance seen from the load terminals
With sources deactivated (ideal V-sources shorted, I-sources opened), R_th is the resistance looking into the open terminals.
44. When a network contains dependent sources, the Thevenin resistance is best obtained by
Show hintHide hint
Dependent sources must stay in the circuit.
Show answerHide answer
Answer: C. applying a test source at the terminals (or using V_oc/I_sc) with dependent sources kept active
Dependent sources cannot be switched off; R_th = V_test/I_test or V_oc/I_sc.
45. Thevenin's theorem is especially useful when
Show hintHide hint
Think about changing the load repeatedly.
Show answerHide answer
Answer: D. the current in one branch must be found for several different values of its load
The rest of the circuit is reduced once to V_th and R_th; each new load then needs only I = V_th/(R_th + R_L).
46. A 24 V source in series with 6 Ω is connected across a 3 Ω resistor, and the output terminals are taken across the 3 Ω resistor. The Thevenin equivalent is
Show hintHide hint
Open-circuit voltage by divider; resistance with the source shorted.
Show answerHide answer
Answer: B. 8 V, 2 Ω
V_th = 24 × 3/9 = 8 V; R_th = 6 ∥ 3 = 2 Ω.
47. A network has V_th = 8 V and R_th = 2 Ω. The current in a 6 Ω load connected to it is
Show hintHide hint
Include R_th in series with the load.
Show answerHide answer
Answer: B. 1 A
I = V_th/(R_th + R_L) = 8/(2 + 6) = 1 A.
48. A network gives an open-circuit voltage of 20 V and a short-circuit current of 4 A at its terminals. Its Thevenin resistance is
Show hintHide hint
Ratio of open-circuit voltage to short-circuit current.
Show answerHide answer
Answer: A. 5 Ω
R_th = V_oc/I_sc = 20/4 = 5 Ω.
49. The Norton current of a network is the
Show hintHide hint
The terminals are shorted, not opened.
Show answerHide answer
Answer: A. short-circuit current through the load terminals
I_N is the current that flows when the load terminals are shorted.
50. The Norton equivalent of a linear network consists of
Show hintHide hint
It is the dual of the Thevenin form.
Show answerHide answer
Answer: A. a current source in parallel with a resistance
Norton: I_N in parallel with R_N.
51. For the same linear network, the Norton resistance R_N and the Thevenin resistance R_th are related as
Show hintHide hint
Both are found the same way.
Show answerHide answer
Answer: C. R_N = R_th
Both are the resistance seen into the terminals with sources deactivated, so they are equal.
52. A Thevenin equivalent of 10 V in series with 5 Ω is converted to its Norton equivalent. The Norton source and resistance are
Show hintHide hint
I_N = V_th/R_th.
Show answerHide answer
Answer: A. 2 A in parallel with 5 Ω
I_N = V_th/R_th = 10/5 = 2 A; R_N = R_th = 5 Ω.
53. A Norton equivalent of 3 A in parallel with 4 Ω is converted to a Thevenin equivalent. The Thevenin voltage is
Show hintHide hint
Multiply the source current by the parallel resistance.
Show answerHide answer
Answer: C. 12 V
V_th = I_N × R_N = 3 × 4 = 12 V.
54. A 30 V source in series with 10 Ω is connected across a 15 Ω resistor, and the output terminals are taken across the 15 Ω resistor. The Norton equivalent is
Show hintHide hint
Shorting the output also shorts the 15 Ω resistor.
Show answerHide answer
Answer: B. 3 A in parallel with 6 Ω
Shorting the terminals bypasses 15 Ω, so I_N = 30/10 = 3 A; R_N = 10 ∥ 15 = 6 Ω.
55. In a DC network, maximum power is transferred to a load resistance R_L when
Show hintHide hint
Differentiate P with respect to R_L.
Show answerHide answer
Answer: B. R_L equals the Thevenin resistance of the network
Maximising P = V_th²R_L/(R_th + R_L)² gives R_L = R_th.
56. Under the condition of maximum power transfer from a source with internal resistance, the efficiency of power transfer is
Show hintHide hint
The same current flows through two equal resistances.
Show answerHide answer
Answer: B. 50 %
With R_L = R_th, equal power is lost in R_th and delivered to R_L, so efficiency is 50 %.
57. A network has V_th = 20 V and R_th = 5 Ω. The maximum power it can deliver to a resistive load is
Show hintHide hint
Set R_L = R_th and find I²R_L.
Show answerHide answer
Answer: A. 20 W
P_max = V_th²/(4R_th) = 400/20 = 20 W.
58. A 12 V source with internal resistance 2 Ω supplies a variable load resistor. The load current at the condition of maximum power transfer is
Show hintHide hint
First find the load resistance for maximum power.
Show answerHide answer
Answer: A. 3 A
At maximum power R_L = 2 Ω, so I = 12/(2 + 2) = 3 A.
59. An ideal 5 A current source is connected in parallel with a 4 Ω resistor. The maximum power this combination can deliver to a resistive load is
Show hintHide hint
Convert to a Thevenin equivalent first.
Show answerHide answer
Answer: C. 25 W
Thevenin: V_th = 5 × 4 = 20 V, R_th = 4 Ω; P_max = 20²/(4 × 4) = 25 W.
60. An AC source has internal impedance (3 + j4) Ω. For maximum power transfer to a load whose resistance and reactance can both be varied, the load impedance should be
Show hintHide hint
The reactances should cancel each other.
Show answerHide answer
Answer: D. (3 − j4) Ω
Maximum power transfer in AC requires Z_L = Z_s* (complex conjugate), cancelling the reactance.
61. An AC source has internal impedance (6 + j8) Ω. If the load is restricted to a pure resistance, maximum power is transferred when the load resistance is
Show hintHide hint
Use the magnitude of the source impedance.
Show answerHide answer
Answer: D. 10 Ω
For a purely resistive load, R_L = |Z_s| = √(6² + 8²) = 10 Ω.
62. Power transmission and distribution systems are NOT operated at the maximum power transfer condition mainly because
Show hintHide hint
Consider where the other half of the power goes.
Show answerHide answer
Answer: B. efficiency would be only 50 %
At maximum power transfer half the power is wasted in the source/line resistance; power systems need high efficiency.
1.3 Alternating current fundamentals
30 questions · AElE0103
63. The generation of alternating emf in an alternator is based on
Show hintHide hint
Moving conductors in a magnetic field.
Show answerHide answer
Answer: D. Faraday's law of electromagnetic induction
A conductor moving relative to a magnetic field has an emf induced in it proportional to the rate of change of flux linkage.
64. For a rectangular coil rotating at constant speed in a uniform magnetic field, the induced emf is maximum when the plane of the coil is
Show hintHide hint
Maximum emf occurs when flux linkage is changing fastest, not when it is largest.
Show answerHide answer
Answer: C. parallel to the magnetic field lines
When the coil plane is parallel to the field, the flux linkage is zero but changing fastest (the sides cut flux at right angles), so the emf is maximum.
65. A coil of 100 turns, each of area 0.02 m², rotates at 50 revolutions per second in a uniform field of 0.5 T. The peak value of the induced emf is about
Show hintHide hint
Use E_m = NBAω with ω = 2πn.
Show answerHide answer
Answer: B. 314 V
E_m = NBAω = 100 × 0.5 × 0.02 × (2π × 50) ≈ 314 V.
66. An 8-pole alternator runs at 750 rpm. The frequency of the generated emf is
Show hintHide hint
Use f = PN/120.
Show answerHide answer
Answer: C. 50 Hz
f = PN/120 = 8 × 750/120 = 50 Hz.
67. In a 6-pole machine, one complete mechanical revolution corresponds to
Show hintHide hint
Each pair of poles produces one cycle.
Show answerHide answer
Answer: B. 1080 electrical degrees
Electrical degrees = (P/2) × mechanical degrees = 3 × 360° = 1080°.
68. The time period of a 50 Hz alternating voltage is
Show hintHide hint
Period is the reciprocal of frequency.
Show answerHide answer
Answer: D. 20 ms
T = 1/f = 1/50 s = 20 ms.
69. The angular frequency of a 50 Hz supply is
Show hintHide hint
One cycle is 2π radians.
Show answerHide answer
Answer: B. 314.16 rad/s
ω = 2πf = 2π × 50 = 314.16 rad/s.
70. An alternating voltage is given by v = 325 sin 314t volts. Its rms value and frequency are
Show hintHide hint
Divide the peak by √2 and ω by 2π.
Show answerHide answer
Answer: B. 229.8 V and 50 Hz
V_rms = 325/√2 ≈ 229.8 V; f = ω/2π = 314/2π ≈ 50 Hz.
71. The instantaneous value at t = 0 of the voltage v = 100 sin(628t + 30°) V is
Show hintHide hint
Put t = 0; only the phase angle remains.
Show answerHide answer
Answer: A. 50 V
At t = 0, v = 100 sin 30° = 50 V.
72. A current i = 10 sin(100πt) A starts from zero at t = 0. The time taken for it to first reach 5 A is about
Show hintHide hint
Find the angle whose sine is 0.5, in radians.
Show answerHide answer
Answer: C. 1.67 ms
sin(100πt) = 0.5 gives 100πt = π/6, so t = 1/600 s ≈ 1.67 ms.
73. If v = V_m sin(ωt + 20°) and i = I_m sin(ωt − 40°), then the current
Show hintHide hint
Compare the two phase angles.
Show answerHide answer
Answer: A. lags the voltage by 60°
Phase difference = 20° − (−40°) = 60°, with i behind v, so i lags by 60°.
74. The average value of a sinusoidal current of peak value I_m, taken over one half-cycle, is
Show hintHide hint
Integrate over half a cycle only.
Show answerHide answer
Answer: C. 0.637 I_m
I_avg = 2I_m/π ≈ 0.637 I_m over a half-cycle (over a full cycle the average is zero).
75. The average value of a pure sinusoidal voltage taken over one complete cycle is
Show hintHide hint
Compare the positive and negative halves.
Show answerHide answer
Answer: A. zero
The positive and negative half-cycles are equal and cancel over a full cycle.
76. The rms value of a sinusoidal current of peak value 20 A is
Show hintHide hint
Divide by √2.
Show answerHide answer
Answer: B. 14.14 A
I_rms = I_m/√2 = 20/1.414 = 14.14 A.
77. The rms value of an alternating current is defined as the steady (DC) current which
Show hintHide hint
It is also called the effective or heating value.
Show answerHide answer
Answer: A. produces the same heat in a given resistance in the same time
RMS (effective) value is defined by equal heating effect, I²Rt.

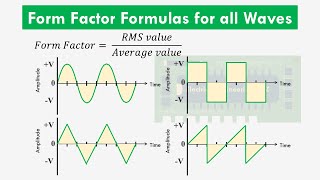

78. The form factor of a sinusoidal waveform is
Show hintHide hint
Form factor = rms ÷ average.
Show answerHide answer
Answer: D. 1.11
Form factor = rms/average = 0.707 V_m/0.637 V_m = 1.11.
79. The peak (crest) factor of a sinusoidal waveform is
Show hintHide hint
Peak factor = peak ÷ rms.
Show answerHide answer
Answer: D. 1.414
Peak factor = V_m/V_rms = √2 = 1.414.
80. The form factor of a symmetrical square wave is
Show hintHide hint
Its magnitude is constant throughout.
Show answerHide answer
Answer: D. 1.0
For a square wave rms = average (half-cycle) = V_m, so form factor = 1.

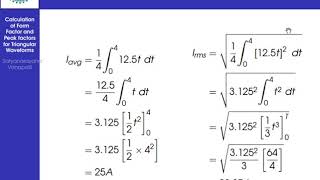

81. The peak factor of a symmetrical triangular waveform is
Show hintHide hint
Recall the rms of a triangular wave.
Show answerHide answer
Answer: A. 1.732
For a triangular wave V_rms = V_m/√3, so peak factor = √3 = 1.732.
82. A symmetrical triangular voltage waveform has a peak value of 12 V. Its rms value is
Show hintHide hint
A triangular wave's rms is not V_m/√2.
Show answerHide answer
Answer: B. 6.93 V
V_rms = V_m/√3 = 12/1.732 = 6.93 V.
83. The average value (over a full cycle) of a half-wave rectified sine wave of peak 100 V is
Show hintHide hint
Only one half-cycle is present out of each full cycle.
Show answerHide answer
Answer: A. 31.8 V
V_avg = V_m/π = 100/π ≈ 31.8 V, because one half-cycle is missing.
84. The rms value of a half-wave rectified sine wave of peak value V_m is
Show hintHide hint
Mean square is half that of a full sine.
Show answerHide answer
Answer: A. 0.5 V_m
V_rms = √(V_m²/4) = V_m/2.
85. The peak-to-peak value of a 230 V (rms) sinusoidal supply voltage is about
Show hintHide hint
Peak is √2 × rms; peak-to-peak is twice the peak.
Show answerHide answer
Answer: D. 650.5 V
V_pp = 2√2 × 230 ≈ 650.5 V.
86. A sinusoidal current has an average (half-cycle) value of 9 A. Its rms value is about
Show hintHide hint
Use the form factor.
Show answerHide answer
Answer: B. 10 A
I_rms = form factor × I_avg = 1.11 × 9 ≈ 10 A.
87. A current i = 4 + 3√2 sin ωt A flows through a resistor. The rms value of this current is
Show hintHide hint
Combine the DC part and the AC rms part as squares.
Show answerHide answer
Answer: C. 5 A
I_rms = √(I_DC² + I_ac,rms²) = √(4² + 3²) = 5 A.
88. A sinusoidal current of 10 A rms flows through a 5 Ω resistor. The average power dissipated is
Show hintHide hint
Use rms, not peak, for power.
Show answerHide answer
Answer: C. 500 W
P = I_rms²R = 10² × 5 = 500 W.
89. Two currents i₁ = 10 sin ωt A and i₂ = 10 sin(ωt + 90°) A are added. The resultant is
Show hintHide hint
Add them as phasors, not as numbers.
Show answerHide answer
Answer: B. 14.14 sin(ωt + 45°) A
Phasor sum = 10∠0° + 10∠90° = 14.14∠45°.
90. AC voltmeters and ammeters used on power circuits are normally calibrated to read
Show hintHide hint
230 V supply is quoted in which value?
Show answerHide answer
Answer: C. rms values
Ratings and readings on power systems are in rms (effective) values, e.g. 230 V means 230 V rms.
91. A sinusoidal waveform is preferred for AC power systems mainly because
Show hintHide hint
Think of what inductors and capacitors do to a waveform.
Show answerHide answer
Answer: A. its derivative and integral are also sinusoids of the same frequency
Because L and C involve derivatives/integrals, a sinusoidal supply produces sinusoidal voltages and currents everywhere in a linear circuit.
92. In phasor diagrams, phasors are conventionally assumed to rotate
Show hintHide hint
Leading angles are measured in the positive (counter-clockwise) direction.
Show answerHide answer
Answer: D. anticlockwise at angular velocity ω
By convention, phasors rotate counter-clockwise at ω rad/s; angles measured anticlockwise are leading.
1.4 Electric circuit responses
30 questions · AElE0104
93. The time constant of a series R-L circuit is
Show hintHide hint
Check which combination has units of seconds.
Show answerHide answer
Answer: A. L/R
τ = L/R seconds (henry/ohm = second).
94. A 10 kΩ resistor is connected in series with a 100 µF capacitor. The time constant of the circuit is
Show hintHide hint
Multiply R in ohms by C in farads.
Show answerHide answer
Answer: D. 1 s
τ = RC = 10 × 10³ × 100 × 10⁻⁶ = 1 s.
95. When an uncharged capacitor is charged through a resistor from a DC source, after one time constant its voltage reaches about
Show hintHide hint
Evaluate 1 − e⁻¹.
Show answerHide answer
Answer: A. 63.2 % of the final value
v = V(1 − e⁻¹) = 0.632 V at t = τ.
96. In a decaying R-L circuit, the current after one time constant falls to about
Show hintHide hint
Evaluate e⁻¹.
Show answerHide answer
Answer: C. 36.8 % of its initial value
i = I₀e⁻¹ = 0.368 I₀ at t = τ.
97. A transient in a first-order R-L or R-C circuit is considered practically complete after about
Show hintHide hint
Find when e^(−t/τ) is below 1 %.
Show answerHide answer
Answer: A. 5 time constants
After 5τ the response is within about 0.7 % of its final value (1 − e⁻⁵ ≈ 0.993).
98. At the instant of switching (t = 0⁺), an initially uncharged capacitor behaves as
Show hintHide hint
What is its voltage just after switching?
Show answerHide answer
Answer: B. a short circuit
Capacitor voltage cannot change instantly; at t = 0⁺ it is still 0 V, like a short circuit.
99. At the instant of switching (t = 0⁺), an inductor carrying no initial current behaves as
Show hintHide hint
What is its current just after switching?
Show answerHide answer
Answer: C. an open circuit
Inductor current cannot change instantly; at t = 0⁺ it is still zero, like an open circuit.
100. In a DC circuit that has reached steady state, an ideal inductor and an ideal capacitor behave respectively as
Show hintHide hint
Use v = L di/dt and i = C dv/dt with nothing changing.
Show answerHide answer
Answer: C. a short circuit and an open circuit
With constant current, v_L = L di/dt = 0 (short); with constant voltage, i_C = C dv/dt = 0 (open).
101. Which of the following cannot change instantaneously in an electric circuit?
Show hintHide hint
Which change would require infinite current?
Show answerHide answer
Answer: D. Voltage across a capacitor
An instant change in capacitor voltage would need infinite current (i = C dv/dt); capacitor current and inductor voltage can jump.
102. A 10 V DC source is switched on to a series circuit of R = 5 Ω and L = 0.5 H. The current 0.1 s after switching is about
Show hintHide hint
0.1 s is exactly one time constant here.
Show answerHide answer
Answer: B. 1.26 A
τ = L/R = 0.1 s; i = (10/5)(1 − e^(−t/τ)) = 2(1 − e⁻¹) ≈ 1.26 A.
103. For the same circuit (10 V, R = 5 Ω, L = 0.5 H), the initial rate of rise of current just after switching on is
Show hintHide hint
Initially there is no drop across R.
Show answerHide answer
Answer: C. 20 A/s
At t = 0⁺ the current is zero, so the full 10 V appears across L: di/dt = V/L = 10/0.5 = 20 A/s.
104. A capacitor charged to 100 V discharges through a resistor; the time constant is 2 s. The capacitor voltage 4 s after the start of discharge is about
Show hintHide hint
4 s is two time constants.
Show answerHide answer
Answer: B. 13.5 V
v = 100e^(−4/2) = 100e⁻² ≈ 13.5 V.
105. A 12 V source charges an initially uncharged capacitor through a resistor; τ = 1 ms. The capacitor voltage at t = 2 ms is about
Show hintHide hint
2 ms is two time constants of charging.
Show answerHide answer
Answer: D. 10.38 V
v = 12(1 − e⁻²) ≈ 12 × 0.865 = 10.38 V.
106. The initial charging current of an uncharged capacitor connected through a 20 kΩ resistor to a 100 V DC supply is
Show hintHide hint
The capacitor voltage is still zero at the start.
Show answerHide answer
Answer: B. 5 mA
At t = 0⁺ the capacitor acts as a short, so i = V/R = 100/20 000 = 5 mA.
107. In an R-C charging circuit with RC = 10 ms, the time taken for the capacitor voltage to reach half its final value is about
Show hintHide hint
Solve e^(−t/τ) = 0.5.
Show answerHide answer
Answer: D. 6.93 ms
1 − e^(−t/τ) = 0.5 gives t = τ ln 2 = 0.693 × 10 ms = 6.93 ms.
108. The energy stored in a 2 H inductor carrying a steady current of 3 A is
Show hintHide hint
Use ½LI².
Show answerHide answer
Answer: D. 9 J
W = ½LI² = ½ × 2 × 9 = 9 J.
109. The energy stored in a 50 µF capacitor charged to 200 V is
Show hintHide hint
Use ½CV² with C in farads.
Show answerHide answer
Answer: B. 1 J
W = ½CV² = ½ × 50 × 10⁻⁶ × 200² = 1 J.
110. Doubling the resistance in a series R-L circuit (inductance unchanged) makes the time constant
Show hintHide hint
R is in the denominator.
Show answerHide answer
Answer: C. half as large
τ = L/R, so doubling R halves τ.
111. A coil of inductance 200 mH and resistance 40 Ω is switched onto a DC supply. The current practically reaches its steady value after about
Show hintHide hint
Find τ first, then use the 5τ rule.
Show answerHide answer
Answer: D. 25 ms
τ = L/R = 0.2/40 = 5 ms; steady state ≈ 5τ = 25 ms.
112. When the current in a highly inductive circuit is suddenly interrupted by opening a switch, a high voltage appears across the switch because
Show hintHide hint
Think of Faraday's law for self-inductance.
Show answerHide answer
Answer: C. the induced emf L di/dt is very large
A very rapid fall in current makes di/dt large, so the self-induced emf L di/dt can be many times the supply voltage.
113. A series R-L-C circuit is critically damped when
Show hintHide hint
Set the discriminant of the characteristic equation to zero.
Show answerHide answer
Answer: B. R = 2√(L/C)
Critical damping occurs when the roots of s² + (R/L)s + 1/(LC) = 0 are equal: (R/2L)² = 1/(LC), i.e. R = 2√(L/C).
114. A series R-L-C circuit has L = 1 H and C = 1 µF. The value of R for critical damping is
Show hintHide hint
Use R = 2√(L/C).
Show answerHide answer
Answer: A. 2 kΩ
R = 2√(L/C) = 2√(1/10⁻⁶) = 2 × 1000 = 2000 Ω.
115. A series R-L-C circuit has R = 100 Ω, L = 0.1 H and C = 10 µF. Its transient response to a step input is
Show hintHide hint
Compare R with 2√(L/C).
Show answerHide answer
Answer: A. underdamped (oscillatory, decaying)
ζ = (R/2)√(C/L) = 50 × √(10⁻⁴) = 0.5 < 1, so the response is underdamped. (Critical R would be 200 Ω.)
116. If the resistance of a series R-L-C circuit is zero, its natural response to a step input is
Show hintHide hint
Nothing dissipates energy.
Show answerHide answer
Answer: C. a sustained oscillation of constant amplitude
With R = 0 there is no damping (ζ = 0), so energy keeps exchanging between L and C indefinitely.
117. The complete response of a linear circuit to a suddenly applied source is the sum of
Show hintHide hint
One part dies out, the other remains.
Show answerHide answer
Answer: A. the natural (transient) response and the forced (steady-state) response
Total response = transient (natural, decays to zero) + steady-state (forced by the source).
118. A series R-L circuit with R = 3 Ω and X_L = 4 Ω is connected to a 100 V AC supply. In steady state, the current is
Show hintHide hint
Find |Z| and tan φ = X_L/R.
Show answerHide answer
Answer: B. 20 A lagging the voltage by 53.1°
Z = √(3² + 4²) = 5 Ω, I = 100/5 = 20 A, φ = tan⁻¹(4/3) = 53.1° lagging.
119. In a series R-C circuit supplied with sinusoidal voltage, the steady-state current
Show hintHide hint
Mixed resistive and capacitive behaviour.
Show answerHide answer
Answer: D. leads the voltage by an angle between 0° and 90°
The capacitive reactance makes the current lead; the resistance keeps the angle below 90°.
120. In a purely capacitive AC circuit, the current
Show hintHide hint
Differentiate a sine.
Show answerHide answer
Answer: A. leads the voltage by 90°
i = C dv/dt; for v = V_m sin ωt, i = ωCV_m cos ωt, which leads v by 90°.
121. The reactance of a 0.1 H inductor at 50 Hz is
Show hintHide hint
X_L = 2πfL.
Show answerHide answer
Answer: B. 31.4 Ω
X_L = 2πfL = 2π × 50 × 0.1 = 31.4 Ω.
122. The reactance of a 100 µF capacitor at 50 Hz is
Show hintHide hint
X_C = 1/(2πfC), with C in farads.
Show answerHide answer
Answer: A. 31.83 Ω
X_C = 1/(2πfC) = 1/(2π × 50 × 100 × 10⁻⁶) = 31.83 Ω.
1.5 AC series and parallel circuits
29 questions · AElE0105
123. The units of active, reactive and apparent power are respectively
Show hintHide hint
Reactive power has its own special unit.
Show answerHide answer
Answer: C. W, VAR and VA
Active power P in watts, reactive power Q in volt-ampere reactive, apparent power S in volt-amperes.
124. Power factor of an AC circuit is defined as the ratio of
Show hintHide hint
It equals cos φ in the power triangle.
Show answerHide answer
Answer: A. active power to apparent power
pf = P/S = cos φ for sinusoidal quantities.

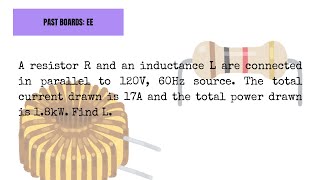

125. A single-phase load draws 10 A from a 230 V supply at a power factor of 0.8 lagging. The active power consumed is
Show hintHide hint
P = VI cos φ.
Show answerHide answer
Answer: A. 1840 W
P = VI cos φ = 230 × 10 × 0.8 = 1840 W.
126. A load takes 50 kVA and 40 kW. Its reactive power and power factor are
Show hintHide hint
Use the power triangle S² = P² + Q².
Show answerHide answer
Answer: D. 30 kVAR and 0.8
Q = √(S² − P²) = √(2500 − 1600) = 30 kVAR; pf = 40/50 = 0.8.
127. The power factor of a purely inductive circuit is
Show hintHide hint
What is cos 90°?
Show answerHide answer
Answer: A. zero, lagging
In a pure inductor the current lags by 90°, so cos 90° = 0 (lagging).
128. The average power consumed by a pure inductor connected to a sinusoidal supply is
Show hintHide hint
Energy is stored and returned every cycle.
Show answerHide answer
Answer: B. zero
Energy stored in the magnetic field in one quarter-cycle is returned in the next, so the average power is zero (I²X_L is reactive power).
129. A series circuit with R = 6 Ω and X_L = 8 Ω is connected to a 100 V AC supply. The active power consumed is
Show hintHide hint
Only the resistance consumes active power.
Show answerHide answer
Answer: D. 600 W
Z = 10 Ω, I = 10 A, P = I²R = 100 × 6 = 600 W.
130. A series circuit with R = 20 Ω and X_L = 15 Ω carries a current of 5 A. The reactive power drawn is
Show hintHide hint
Reactive power is associated with the reactance.
Show answerHide answer
Answer: C. 375 VAR
Q = I²X_L = 25 × 15 = 375 VAR. (P = 500 W and S = 625 VA.)

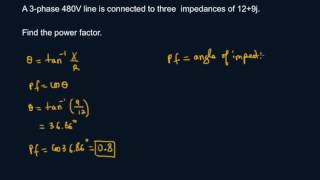

131. The impedance of a load is (8 + j6) Ω. Its power factor is
Show hintHide hint
pf = R/|Z|; the sign of j tells lag or lead.
Show answerHide answer
Answer: C. 0.8 lagging
|Z| = 10 Ω; pf = R/|Z| = 8/10 = 0.8; positive (inductive) reactance means lagging.
132. A load has V = 100∠0° V and I = 5∠−30° A. The active and reactive power absorbed by the load are
Show hintHide hint
Use S = VI* (conjugate of the current).
Show answerHide answer
Answer: D. 433 W and 250 VAR (inductive)
S = VI* = 100 × 5∠30° = 433 + j250; current lagging, so the load absorbs inductive VAR.
133. Which of the following loads operates at a leading power factor?
Show hintHide hint
Leading current comes from capacitance.
Show answerHide answer
Answer: D. A series R-C circuit
Capacitive loads draw current that leads the voltage.
134. The power factor of an inductive load is usually improved by
Show hintHide hint
You need a source of leading reactive power.
Show answerHide answer
Answer: C. connecting capacitors in parallel with the load
Shunt capacitors supply leading VAR that cancel part of the load's lagging VAR without changing the load voltage.
135. For the same active power at the same voltage, a low power factor results in
Show hintHide hint
Look at I = P/(V cos φ).
Show answerHide answer
Answer: D. larger current and therefore higher I²R losses
I = P/(V cos φ); a low cos φ increases current, copper losses, voltage drop and the required conductor and equipment rating.
136. A 100 kW load operates at 0.6 power factor lagging. The capacitor kVAR needed to raise the power factor to 0.9 lagging is about
Show hintHide hint
Find the reactive power before and after with active power fixed.
Show answerHide answer
Answer: D. 84.9 kVAR
Q_C = P(tan φ₁ − tan φ₂) = 100(1.333 − 0.484) ≈ 84.9 kVAR.
137. At series resonance in an R-L-C circuit, the impedance is
Show hintHide hint
The reactances cancel.
Show answerHide answer
Answer: A. minimum and equal to R
X_L = X_C, so they cancel and Z = R, its minimum; current is maximum and pf is unity.
138. A series R-L-C circuit has L = 10 mH and C = 10 µF. Its resonant frequency is about
Show hintHide hint
Don't forget the 2π.
Show answerHide answer
Answer: B. 503 Hz
f₀ = 1/(2π√(LC)) = 1/(2π√(10⁻⁷)) ≈ 503 Hz. (3162 is ω₀ in rad/s.)
139. A series R-L-C circuit has R = 10 Ω, L = 0.1 H and C = 10 µF. Its quality factor at resonance is
Show hintHide hint
Q = (1/R)√(L/C) for a series circuit.
Show answerHide answer
Answer: A. 10
Q = (1/R)√(L/C) = (1/10)√(0.1/10⁻⁵) = (1/10)(100) = 10.
140. A series resonant circuit with quality factor 10 is supplied with 10 V at its resonant frequency. The voltage across the capacitor is
Show hintHide hint
Series resonance magnifies voltage by Q.
Show answerHide answer
Answer: B. 100 V
At resonance V_C = Q × V = 10 × 10 = 100 V (voltage magnification).
141. A series resonant circuit has a resonant frequency of 1 kHz and a quality factor of 20. Its bandwidth is
Show hintHide hint
Bandwidth = f₀/Q.
Show answerHide answer
Answer: B. 50 Hz
BW = f₀/Q = 1000/20 = 50 Hz.
142. At frequencies below series resonance, a series R-L-C circuit behaves as
Show hintHide hint
At low frequency, which reactance is larger?
Show answerHide answer
Answer: A. a capacitive circuit with leading current
Below f₀, X_C = 1/(ωC) exceeds X_L = ωL, so the net reactance is capacitive.
143. At the half-power (cut-off) frequencies of a series resonant circuit, the current is
Show hintHide hint
Half the power, not half the current.
Show answerHide answer
Answer: A. 0.707 times its value at resonance
Power ∝ I², so half power occurs at I = I₀/√2 = 0.707 I₀.
144. Increasing the quality factor of a resonant circuit (same resonant frequency)
Show hintHide hint
Bandwidth and Q are inversely related.
Show answerHide answer
Answer: C. reduces the bandwidth and improves selectivity
BW = f₀/Q, so a higher Q gives a narrower, more selective response.
145. If the capacitance of a series resonant circuit is made four times larger (inductance unchanged), the resonant frequency becomes
Show hintHide hint
f₀ varies with the square root of C.
Show answerHide answer
Answer: B. half of the original
f₀ ∝ 1/√C, so 4C gives f₀/√4 = f₀/2.
146. At parallel resonance of an ideal L-C circuit, the impedance and the supply current are respectively
Show hintHide hint
Branch currents are equal and opposite.
Show answerHide answer
Answer: C. maximum and minimum
The branch currents in L and C cancel, so the line current is minimum and the impedance maximum.
147. A parallel resonant circuit is also known as
Show hintHide hint
The series circuit accepts; the parallel one ...
Show answerHide answer
Answer: D. a rejector circuit
It offers maximum impedance (rejects current) at resonance; the series resonant circuit is the acceptor circuit.
148. A coil with R = 10 Ω and L = 0.1 H is connected in parallel with a 10 µF capacitor. The dynamic impedance of the circuit at resonance is
Show hintHide hint
Use Z_D = L/(CR).
Show answerHide answer
Answer: B. 1000 Ω
Z_D = L/(CR) = 0.1/(10 × 10⁻⁶ × 10) = 1000 Ω.
149. Compared with an ideal L-C tank of the same L and C, the resonant frequency of a parallel circuit whose coil has resistance R is
Show hintHide hint
The R²/L² term is subtracted.
Show answerHide answer
Answer: B. slightly lower
f₀ = (1/2π)√(1/(LC) − R²/L²), which is less than 1/(2π√(LC)).
150. A 10 Ω resistor and an inductor of reactance 10 Ω are connected in parallel across a 100 V AC supply. The supply current is
Show hintHide hint
Branch currents add as phasors.
Show answerHide answer
Answer: C. 14.14 A
I_R = 10 A (in phase), I_L = 10 A (lagging 90°); I = √(10² + 10²) = 14.14 A.
151. A series circuit has R = 30 Ω, X_L = 70 Ω and X_C = 30 Ω. The magnitude of its impedance is
Show hintHide hint
The two reactances oppose each other.
Show answerHide answer
Answer: A. 50 Ω
Z = √(R² + (X_L − X_C)²) = √(900 + 1600) = 50 Ω.
1.6 Three phase systems
29 questions · AElE0106
152. In a balanced star-connected system, the line and phase quantities are related as
Show hintHide hint
In star, each line is in series with one phase.
Show answerHide answer
Answer: A. V_L = √3 V_ph and I_L = I_ph
In star, each line carries its phase current, and the line voltage is the phasor difference of two phase voltages, √3 times larger.
153. In a balanced delta-connected system, the line and phase quantities are related as
Show hintHide hint
In delta, each phase is across two lines.
Show answerHide answer
Answer: A. V_L = V_ph and I_L = √3 I_ph
In delta, each phase is directly across two lines, and each line current is the difference of two phase currents.
154. In a balanced three-phase supply, the three phase voltages are displaced from one another by
Show hintHide hint
360° shared among three phases.
Show answerHide answer
Answer: A. 120 electrical degrees
The three windings are spaced 120° electrical apart, so the voltages are 120° apart.
155. In a balanced delta-connected load (positive sequence), each line current
Show hintHide hint
Draw I_ab − I_ca as phasors.
Show answerHide answer
Answer: C. lags its corresponding phase current by 30°
I_a = I_ab − I_ca = √3 I_ab∠−30°, so the line current lags the phase current by 30°.
156. The instantaneous sum of the three phase voltages of a balanced three-phase supply is
Show hintHide hint
Add three equal phasors spaced 120°.
Show answerHide answer
Answer: A. zero
Three equal phasors 120° apart add to zero at every instant.
157. A 400 V (line), three-phase, star-connected supply has a phase voltage of about
Show hintHide hint
Divide by √3.
Show answerHide answer
Answer: A. 230.9 V
V_ph = V_L/√3 = 400/1.732 = 230.9 V.
158. An 11 kV, star-connected generator has a phase voltage of about
Show hintHide hint
Rated voltage of a three-phase machine is the line voltage.
Show answerHide answer
Answer: C. 6.35 kV
V_ph = 11/√3 ≈ 6.35 kV.
159. Three 10 Ω resistors are connected in delta across a 400 V, three-phase supply. The phase and line currents are
Show hintHide hint
In delta the full line voltage is across each resistor.
Show answerHide answer
Answer: D. 40 A and 69.3 A
I_ph = 400/10 = 40 A; I_L = √3 × 40 = 69.3 A.
160. A balanced delta-connected load has a phase current of 10 A. The line current is
Show hintHide hint
Multiply by √3.
Show answerHide answer
Answer: A. 17.32 A
I_L = √3 I_ph = 1.732 × 10 = 17.32 A.
161. Three identical resistors draw a total power P when connected in star across a three-phase supply. If they are reconnected in delta across the same supply, the total power becomes
Show hintHide hint
Compare the voltage across each resistor.
Show answerHide answer
Answer: C. 3P
In delta each resistor gets √3 times the voltage, so power per resistor rises by (√3)² = 3.
162. A balanced three-phase load draws 20 A per line from a 415 V supply at 0.85 power factor. The total active power is about
Show hintHide hint
Use √3 V_L I_L cos φ.
Show answerHide answer
Answer: B. 12.22 kW
P = √3 V_L I_L cos φ = 1.732 × 415 × 20 × 0.85 ≈ 12.22 kW.
163. A 20 kW, three-phase balanced load operates from a 400 V supply at 0.8 power factor. The line current is about
Show hintHide hint
Rearrange P = √3 V_L I_L cos φ.
Show answerHide answer
Answer: B. 36.1 A
I_L = P/(√3 V_L cos φ) = 20 000/(1.732 × 400 × 0.8) ≈ 36.1 A.
164. A balanced star-connected load of (8 + j6) Ω per phase is supplied from a 400 V, three-phase supply. The total active power is
Show hintHide hint
Find phase current first, then 3I²R.
Show answerHide answer
Answer: C. 12.8 kW
V_ph = 230.9 V, I = 230.9/10 = 23.09 A, P = 3 × 23.09² × 8 = 12.8 kW.
165. A balanced three-phase load takes 30 kW at a power factor of 0.6 lagging. Its apparent power is
Show hintHide hint
S = P/pf.
Show answerHide answer
Answer: D. 50 kVA
S = P/cos φ = 30/0.6 = 50 kVA (Q = 40 kVAR).
166. The total reactive power of a balanced three-phase load is given by
Show hintHide hint
Same form as active power, but with the other trig function.
Show answerHide answer
Answer: B. √3 V_L I_L sin φ
Q = 3 V_ph I_ph sin φ = √3 V_L I_L sin φ for both star and delta.
167. The power factor of a balanced three-phase load is the cosine of the angle between
Show hintHide hint
It is the angle of the load impedance per phase.
Show answerHide answer
Answer: D. the phase voltage and the phase current
φ is the impedance angle of each phase, i.e. between phase voltage and phase current; line quantities differ by an extra 30° in some cases.
168. The total instantaneous power delivered to a balanced three-phase load is
Show hintHide hint
Add the three pulsating components.
Show answerHide answer
Answer: B. constant
The double-frequency pulsating terms of the three phases cancel, leaving a constant total power; this gives smooth torque in motors.
169. In the two-wattmeter method of measuring three-phase power, if one wattmeter reads zero the load power factor is
Show hintHide hint
Find φ that makes cos(30° + φ) = 0.
Show answerHide answer
Answer: D. 0.5
W₁ = V_L I_L cos(30° − φ) and W₂ = V_L I_L cos(30° + φ); W₂ = 0 when φ = 60°, so pf = 0.5.
170. In a two-wattmeter test on a balanced three-phase load, the readings are 8 kW and 4 kW. The load power factor is about
Show hintHide hint
Use tan φ = √3(W₁ − W₂)/(W₁ + W₂).
Show answerHide answer
Answer: B. 0.866
tan φ = √3(W₁ − W₂)/(W₁ + W₂) = √3 × 4/12 = 0.577, so φ = 30° and pf = 0.866.
171. In a balanced star-connected load, the current in the neutral conductor is
Show hintHide hint
Add three equal currents 120° apart.
Show answerHide answer
Answer: D. zero
The three balanced line currents are equal and 120° apart, so their phasor sum is zero.
172. The main purpose of the neutral wire in a three-phase four-wire distribution system is to
Show hintHide hint
Loads on a distribution system are rarely equal.
Show answerHide answer
Answer: A. carry unbalanced current and keep the phase voltages nearly equal
The neutral returns the unbalance current, holding each load at its own phase voltage even when loads differ.
173. A three-phase four-wire system (with a neutral) can be obtained only from
Show hintHide hint
Where does the neutral come from?
Show answerHide answer
Answer: C. a star-connected source
Only a star connection has a common star point from which the neutral can be taken.
174. A four-wire star system supplies unity-power-factor phase currents of 10 A, 10 A and 5 A (balanced voltages, positive sequence). The neutral current is
Show hintHide hint
Treat the currents as phasors 120° apart.
Show answerHide answer
Answer: B. 5 A
The phasor sum 10∠0° + 10∠−120° + 5∠120° = −5∠120°, magnitude 5 A.
175. Unbalanced loading of a three-phase four-wire distribution system results in
Show hintHide hint
The line currents no longer cancel.
Show answerHide answer
Answer: A. current flowing in the neutral conductor
When the phase currents are unequal their phasor sum is not zero, and that sum flows in the neutral.
176. If the neutral of a star-connected, three-phase, four-wire lighting load breaks while the loads are unbalanced, then
Show hintHide hint
The star point of the load is no longer held at neutral potential.
Show answerHide answer
Answer: B. the phase voltages become unequal (neutral shift), so some lamps get over-voltage and others under-voltage
Without the neutral, the star point floats; the phase with the highest impedance (least load) gets a higher voltage and the most heavily loaded phase a lower voltage.
177. Interchanging any two supply lines of a three-phase induction motor
Show hintHide hint
Think about phase sequence.
Show answerHide answer
Answer: D. reverses its direction of rotation
Swapping two lines reverses the phase sequence, which reverses the rotating magnetic field.
178. Compared with a single-phase system transmitting the same power at the same voltage and losses, a three-phase system
Show hintHide hint
One reason three-phase is used in grids.
Show answerHide answer
Answer: C. requires less conductor material
Three-phase transmission needs only about 75 % of the copper of single-phase for the same power, voltage and losses.
179. In a two-wattmeter test on a balanced three-phase load, the readings are 8 kW and 4 kW. The total reactive power of the load is about
Show hintHide hint
Reactive power uses the difference of the readings.
Show answerHide answer
Answer: D. 6.93 kVAR
Q = √3(W₁ − W₂) = 1.732 × 4 = 6.93 kVAR.
180. In a balanced three-phase star connection (positive sequence), the line voltage V_RY
Show hintHide hint
Subtract V_Y from V_R as phasors.
Show answerHide answer
Answer: C. leads the phase voltage V_R by 30°
V_RY = V_R − V_Y = √3 V_R∠30°.
