8.1 Illumination
32 questions · AElE0801
1. What is the SI unit of luminous flux?
Show hintHide hint
Think of the quantity that counts the total light output of a lamp.
Show answerHide answer
Answer: A. Lumen
Luminous flux is the total light energy emitted per second, judged by the eye's response, and is measured in lumens. Candela is intensity, lux is illuminance.
2. One candela of luminous intensity is equivalent to:
Show hintHide hint
Intensity relates to flux in a cone of directions.
Show answerHide answer
Answer: D. One lumen per steradian
Luminous intensity is flux per unit solid angle in a given direction, so 1 cd = 1 lm/sr.
3. The total solid angle subtended at the centre of a sphere by its whole surface is:
Show hintHide hint
Use surface area of a sphere divided by r².
Show answerHide answer
Answer: B. 4π steradian
Solid angle = area/r² = 4πr²/r² = 4π sr.
4. A lamp radiates a uniform luminous intensity of 100 cd in all directions. Its total luminous flux is about:
Show hintHide hint
Multiply intensity by the total solid angle around the lamp.
Show answerHide answer
Answer: B. 1257 lm
Flux = 4π × I = 4π × 100 ≈ 1257 lm.
5. A lamp of 200 cd hangs 4 m directly above a point on a table. The illuminance at that point is:
Show hintHide hint
Apply the inverse square law.
Show answerHide answer
Answer: C. 12.5 lux
E = I/d² = 200/4² = 12.5 lux (inverse square law, normal incidence).
6. A lamp of 400 cd (towards the point) is mounted 3 m above the floor. The horizontal illuminance on the floor at a point 4 m horizontally away from the foot of the lamp is:
Show hintHide hint
Combine the inverse square law with the cosine law.
Show answerHide answer
Answer: D. 9.6 lux
d = √(3²+4²) = 5 m, cos θ = 3/5. E = I cos θ / d² = 400 × 0.6 / 25 = 9.6 lux.
7. A 9 W LED lamp gives 900 lm. Its luminous efficacy is:
Show hintHide hint
Efficacy is output light per input watt.
Show answerHide answer
Answer: D. 100 lm/W
Efficacy = lumens/watts = 900/9 = 100 lm/W.
8. The filament of a general lighting incandescent lamp is made of tungsten mainly because tungsten has:
Show hintHide hint
The filament must glow white-hot without melting.
Show answerHide answer
Answer: C. A very high melting point and low vapour pressure
Tungsten melts at about 3400 °C and evaporates slowly, so the filament can run hot enough to emit useful visible light.
9. In a tungsten-halogen lamp, the halogen cycle:
Show hintHide hint
Think about what normally blackens an ordinary bulb.
Show answerHide answer
Answer: C. Returns evaporated tungsten to the filament and keeps the bulb clear
Evaporated tungsten combines with halogen near the hot bulb wall and the compound breaks down at the filament, redepositing tungsten and preventing blackening.
10. In a fluorescent tube, most of the visible light comes from:
Show hintHide hint
Mercury vapour discharge mostly emits invisible radiation.
Show answerHide answer
Answer: A. The phosphor coating excited by ultraviolet from the mercury discharge
The low-pressure mercury discharge emits mainly UV (253.7 nm); the phosphor coating on the tube converts it to visible light.
11. In a conventional fluorescent lamp circuit, the choke (ballast):
Show hintHide hint
A discharge lamp cannot limit its own current.
Show answerHide answer
Answer: B. Gives a high voltage surge to strike the tube and then limits current
When the starter opens, the collapsing choke current induces a high voltage to strike the arc; afterwards the choke limits the arc current because the discharge has negative resistance.
12. The capacitor connected across the supply terminals of a fluorescent lamp fitting is meant to:
Show hintHide hint
The choke draws lagging reactive current.
Show answerHide answer
Answer: C. Improve the power factor of the fitting
The choke makes the fitting strongly inductive (low lagging power factor); a shunt capacitor supplies the reactive power and raises the power factor.
13. The stroboscopic effect of fluorescent lighting in a workshop can be reduced by:
Show hintHide hint
Spread the light pulses out in time.
Show answerHide answer
Answer: A. Connecting adjacent fittings to different phases of the three-phase supply
Light from lamps on different phases peaks at different instants, so the combined light fluctuates much less. High-frequency electronic ballasts also help.
14. The electronic ballast of a CFL typically runs the lamp at a frequency of about:
Show hintHide hint
Higher frequency allows small magnetic parts and no flicker.
Show answerHide answer
Answer: B. Tens of kilohertz
CFL ballasts rectify the supply and invert it to roughly 20–50 kHz, which raises efficacy, removes visible flicker and allows a tiny ballast.
15. An LED produces light by:
Show hintHide hint
It is a diode operated with forward bias.
Show answerHide answer
Answer: D. Electroluminescence from carrier recombination in a forward-biased p-n junction
In a forward-biased junction, electrons recombine with holes and release energy as photons whose wavelength depends on the band gap.
16. Most white LEDs used for general lighting produce white light by:
Show hintHide hint
Phosphor conversion of a short-wavelength chip.
Show answerHide answer
Answer: A. A blue LED chip coated with a yellow phosphor
Blue light from an InGaN chip partly excites a yellow phosphor (e.g. YAG:Ce); the blue + yellow mixture is seen as white.
17. Which of the following light sources has the lowest luminous efficacy?
Show hintHide hint
Which source converts most of its input into heat?
Show answerHide answer
Answer: C. General lighting incandescent lamp
Incandescent lamps give roughly 10–17 lm/W since most input becomes heat; CFLs give about 50–70, T5 tubes around 90–100 and good LEDs over 100 lm/W.
18. An office 10 m × 8 m needs an average illuminance of 300 lux. Utilisation factor = 0.6, maintenance factor = 0.8 and each luminaire gives 3000 lm. The number of luminaires required is:
Show hintHide hint
Use the lumen method and round up.
Show answerHide answer
Answer: D. 17
N = E·A/(Φ·UF·MF) = 300 × 80/(3000 × 0.6 × 0.8) = 16.7, rounded up to 17.
19. A hall of 100 m² has 20 lamps of 2000 lm each. With utilisation factor 0.5 and maintenance factor 0.8, the average illuminance on the working plane is:
Show hintHide hint
Lumen method in reverse: total useful lumens over area.
Show answerHide answer
Answer: C. 160 lux
E = N·Φ·UF·MF/A = 20 × 2000 × 0.5 × 0.8/100 = 160 lux.
20. In illumination design, the utilisation factor (coefficient of utilisation) is the ratio of:
Show hintHide hint
It compares useful light to light produced.
Show answerHide answer
Answer: A. Lumens reaching the working plane to the total lumens emitted by the lamps
UF accounts for light lost to absorption by walls, ceiling and fittings before it reaches the working plane.
21. The maintenance factor used in lighting design accounts for:
Show hintHide hint
What happens to a lighting installation over months of use?
Show answerHide answer
Answer: B. Fall in illuminance due to dirt on fittings and ageing of lamps
Maintenance factor (inverse of depreciation factor) allows for lumen depreciation and dirt accumulation over time.
22. A lighting scheme in which 90–100 % of the light is directed upward towards the ceiling and reflected down is called:
Show hintHide hint
The ceiling becomes the light source.
Show answerHide answer
Answer: A. Indirect lighting
In indirect lighting the ceiling acts as the effective source, giving soft, glare-free but less efficient illumination.
23. For a luminaire with a maximum space-to-mounting-height ratio of 1.5 mounted 3 m above the working plane, the maximum spacing between luminaires is:
Show hintHide hint
Multiply the ratio by the height above the working plane.
Show answerHide answer
Answer: D. 4.5 m
Spacing = SHR × mounting height = 1.5 × 3 = 4.5 m.
24. Which measure helps reduce direct glare from luminaires in an office?
Show hintHide hint
Hide the bright lamp from the eye.
Show answerHide answer
Answer: D. Using luminaires with louvres or diffusers giving proper cut-off
Shielding the lamp with louvres/diffusers keeps high-luminance parts out of the normal field of view.
25. In flood lighting calculations, the waste light factor accounts for:
Show hintHide hint
Flood beams rarely fit the target exactly.
Show answerHide answer
Answer: B. Light falling outside the edges of the area to be lit
Some of the beam spills beyond the target surface; the waste light factor (typically about 1.2–1.5) increases the lumens required to allow for this spill.
26. Street lamps are spaced 30 m apart on a 10 m wide road. For an average illuminance of 10 lux with utilisation factor 0.4 and maintenance factor 0.8, the lumen output required per lamp is about:
Show hintHide hint
Each lamp lights one span of road.
Show answerHide answer
Answer: D. 9375 lm
Area per lamp = 30 × 10 = 300 m²; Φ = E·A/(UF·MF) = 10 × 300/(0.4 × 0.8) = 9375 lm.
27. Which lamp has very high luminous efficacy but gives nearly monochromatic yellow light with very poor colour rendering?
Show hintHide hint
Think of the yellow sodium D-line.
Show answerHide answer
Answer: B. Low-pressure sodium vapour lamp
Low-pressure sodium lamps emit almost entirely at 589 nm, giving efficacy up to about 150–200 lm/W but almost no colour discrimination.
28. For a wide road with heavy traffic, street lighting poles are usually arranged:
Show hintHide hint
Uniformity across a wide carriageway.
Show answerHide answer
Answer: A. On both sides of the road, opposite or staggered
One-side lighting is adequate only for narrow roads; wide roads need luminaires on both sides (opposite or staggered) for uniform illuminance.
29. The polar curve of a luminaire shows:
Show hintHide hint
It is plotted in polar coordinates of angle.
Show answerHide answer
Answer: B. Luminous intensity in different directions in a plane
A polar curve plots candle power (intensity) against angle, showing how the luminaire distributes light.
30. A lamp gives a total luminous flux of 1000 lm. Its mean spherical candle power (MSCP) is about:
Show hintHide hint
Divide total flux by the full-sphere solid angle.
Show answerHide answer
Answer: A. 79.6 cd
MSCP = total flux/4π = 1000/12.566 ≈ 79.6 cd.
31. Replacing a 60 W incandescent lamp with a 9 W LED lamp used 5 hours a day saves how much energy in 30 days?
Show hintHide hint
Power difference times total hours.
Show answerHide answer
Answer: C. 7.65 kWh
Saving = (60 − 9) W × 5 h × 30 = 7650 Wh = 7.65 kWh.
32. A typical recommended average illuminance for general office work is about:
Show hintHide hint
Much more than a street, much less than a surgical table.
Show answerHide answer
Answer: C. 300–500 lux
Lighting codes (e.g. CIBSE, IS 3646) recommend roughly 300–500 lux for general office tasks; 5–10 lux suits streets and thousands of lux only precision tasks.
8.2 Electrical design and estimation
31 questions · AElE0802
33. The electrical layout (wiring) plan of a building mainly shows:
Show hintHide hint
It is drawn over the architectural floor plan.
Show answerHide answer
Answer: D. Locations of light points, sockets, switches, distribution boards and circuit runs on the floor plan
The layout drawing marks every point, switch, board and wiring route on the architectural plan using standard symbols; it is the basis of the estimate.
34. A single-line diagram of a three-phase installation:
Show hintHide hint
The name describes how the phases are drawn.
Show answerHide answer
Answer: D. Represents all three phases by one line with standard symbols for equipment
A single-line (one-line) diagram simplifies a balanced three-phase system to one line, showing sources, transformers, switchgear, cables and loads.
35. The first step in preparing an estimate for the electrical installation of a building is to:
Show hintHide hint
You cannot count materials before knowing where things go.
Show answerHide answer
Answer: B. Study the building plan and mark the locations of all points and loads
Quantities of wire, conduit and accessories can only be worked out after the layout of points and circuits is fixed on the plan.
36. A schedule of materials (bill of quantities) in an electrical estimate normally lists:
Show hintHide hint
It must allow the cost to be computed item by item.
Show answerHide answer
Answer: B. Item description, quantity, unit, rate and amount
The BOQ itemises every material and work item with quantity, unit rate and amount, which add up to the estimated cost.

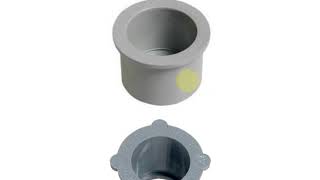

37. Which wiring system gives the best mechanical protection and neat appearance for modern residential and commercial buildings?
Show hintHide hint
The wiring is hidden inside the structure.
Show answerHide answer
Answer: A. Concealed conduit wiring
Cables drawn through conduits embedded in walls/slabs are protected from damage and moisture, can be rewired and are invisible.
38. Cleat wiring is generally suitable for:
Show hintHide hint
Cheap, quick and easily removed.
Show answerHide answer
Answer: D. Temporary installations
Cleat wiring is cheap and quick to install and remove, but has poor protection and appearance, so it is used for temporary work.
39. A single-pole switch controlling a lamp must be connected in the:
Show hintHide hint
When off, the fitting should not be live.
Show answerHide answer
Answer: B. Phase (line) conductor
Switching the phase ensures the lamp holder is dead when the switch is off, which is safer for lamp replacement.
40. As per the IEC harmonised colour code, the neutral and protective earth conductors are respectively:
Show hintHide hint
Brown is a phase colour.
Show answerHide answer
Answer: C. Blue and green-yellow
IEC 60445 colours: phase brown/black/grey, neutral blue, protective earth green-and-yellow.
41. For protection of persons against electric shock, a residual current circuit breaker (RCCB) usually has a rated residual operating current of:
Show hintHide hint
It must act well below the current that causes heart fibrillation.
Show answerHide answer
Answer: A. 30 mA
30 mA RCCBs trip before shock current through the body becomes dangerous; 100–300 mA devices are used for fire protection only.
42. An MCB whose magnetic (instantaneous) trip operates between 5 and 10 times its rated current is a:
Show hintHide hint
Recall the B, C, D trip bands.
Show answerHide answer
Answer: C. Type C MCB
IEC 60898: Type B trips at 3–5 In, Type C at 5–10 In, Type D at 10–20 In.
43. A 3 kW single-phase resistive water heater is fed at 230 V. The most suitable standard MCB rating for its circuit is:
Show hintHide hint
Find the current, then the next standard size above it.
Show answerHide answer
Answer: C. 16 A
I = 3000/230 ≈ 13 A, so the next standard rating above it, 16 A, is chosen; 10 A would trip and 63 A would not protect the wiring.
44. A 2.5 mm² copper cable (ρ = 0.0172 Ω·mm²/m) feeds a single-phase load 30 m away carrying 10 A. The voltage drop in the circuit (go and return) is about:
Show hintHide hint
Remember the current flows out and back.
Show answerHide answer
Answer: D. 4.13 V
R = ρ × 2L/A = 0.0172 × 60/2.5 = 0.413 Ω; drop = 10 × 0.413 = 4.13 V (about 1.8 % of 230 V).
45. A building has a connected load of 20 kW and a demand factor of 0.6. Its maximum demand is:
Show hintHide hint
Demand factor is always 1 or less.
Show answerHide answer
Answer: D. 12 kW
Maximum demand = demand factor × connected load = 0.6 × 20 = 12 kW.
46. The individual maximum demands of a group of consumers add up to 50 kW, while the maximum demand of the whole group is 40 kW. The diversity factor is:
Show hintHide hint
It is never less than 1.
Show answerHide answer
Answer: C. 1.25
Diversity factor = sum of individual maximum demands / maximum demand of group = 50/40 = 1.25.
47. A flat has 22 light and fan points. If each lighting sub-circuit may have at most 10 points, the minimum number of lighting sub-circuits is:
Show hintHide hint
Round up, not down.
Show answerHide answer
Answer: A. 3
22/10 = 2.2, rounded up to 3 sub-circuits.
48. An estimate has material cost Rs 2,00,000. Labour is taken as 20 % of material cost and contingency as 5 % of (material + labour). The total estimated cost is:
Show hintHide hint
Apply contingency on the subtotal, not on material alone.
Show answerHide answer
Answer: B. Rs 2,52,000
Material + labour = 2,40,000; contingency 5 % = 12,000; total = 2,52,000.
49. A balanced three-phase industrial load of 50 kW at 0.8 power factor lagging is supplied at 400 V. The line current is about:
Show hintHide hint
Three-phase power uses √3 and the power factor.
Show answerHide answer
Answer: A. 90.2 A
I = P/(√3 V cos φ) = 50000/(1.732 × 400 × 0.8) ≈ 90.2 A.
50. A factory load is 40 kW at 0.8 power factor. The kVA rating required of the supply transformer (ignoring margin) is:
Show hintHide hint
Apparent power is larger than real power at lagging pf.
Show answerHide answer
Answer: C. 50 kVA
S = P/cos φ = 40/0.8 = 50 kVA.
51. A house has 10 lamps of 40 W, 5 fans of 60 W, 4 light-plug sockets taken as 100 W each and 2 power sockets taken as 1000 W each. The total connected load is:
Show hintHide hint
Add every category, including both power sockets.
Show answerHide answer
Answer: B. 3100 W
400 + 300 + 400 + 2000 = 3100 W.
52. A PVC cable has a current rating of 100 A under standard conditions. With a grouping factor of 0.8 and an ambient temperature factor of 0.9, its derated current carrying capacity is:
Show hintHide hint
Apply both correction factors together.
Show answerHide answer
Answer: A. 72 A
Derated capacity = 100 × 0.8 × 0.9 = 72 A; correction factors multiply.
53. The main purpose of earthing the metal enclosures of electrical equipment is to:
Show hintHide hint
Think of what happens when a live wire touches the casing.
Show answerHide answer
Answer: C. Keep exposed metal near earth potential and provide a low-impedance fault path so protection operates
On an insulation failure, fault current flows through the earth path, the fuse/MCB/RCD operates, and touch voltage on the enclosure stays low.
54. Layers of charcoal and salt are placed around a pipe or plate earth electrode in order to:
Show hintHide hint
Lower resistance needs moist, conductive soil.
Show answerHide answer
Answer: B. Lower the soil resistivity around the electrode by retaining moisture
Salt makes the soil more conductive and charcoal holds moisture, both reducing earth resistance.
55. Two earth electrodes, each of 10 Ω resistance, are placed far enough apart that they do not interact and are connected in parallel. The combined earth resistance is about:
Show hintHide hint
Parallel resistors.
Show answerHide answer
Answer: A. 5 Ω
Well-separated electrodes act as parallel resistances: 10 × 10/(10 + 10) = 5 Ω.
56. The resistance of an earth electrode is usually measured with:
Show hintHide hint
It needs auxiliary spikes driven into the ground.
Show answerHide answer
Answer: B. An earth tester using the fall-of-potential method
An earth tester injects current through an auxiliary current electrode and measures voltage with a potential electrode (fall-of-potential/three-point method).
57. In Nepal, the National Building Code (NBC) is given legal force for building construction by the:
Show hintHide hint
It is a construction law, not a power-sector law.
Show answerHide answer
Answer: D. Building Act, 2055 BS
The Building Act 2055 (1998) provides for preparation and enforcement of the National Building Code; the other acts deal with the power sector.
58. Nepal's National Building Code NBC 207 deals with:
Show hintHide hint
It is the code in the series that concerns electrical engineers.
Show answerHide answer
Answer: B. Electrical design requirements for public buildings
NBC 207 covers electrical design requirements for public buildings; seismic design is NBC 105 and sanitary/plumbing is NBC 208.
59. Nepal Standards (NS) for electrical products such as cables and switches are issued by:
Show hintHide hint
Standards and measurement body.
Show answerHide answer
Answer: D. Nepal Bureau of Standards and Metrology
NBSM is the national standards body and issues NS marks; NEA is a utility, DoED handles licensing, and NEC registers engineers.
60. The IEC 60364 series of standards deals with:
Show hintHide hint
The standard used for building wiring rules.
Show answerHide answer
Answer: A. Low-voltage electrical installations
IEC 60364 covers design, erection and verification of LV installations; symbols are IEC 60617, transformers IEC 60076 and machines IEC 60034.
61. The standard low-voltage supply provided by NEA to consumers is:
Show hintHide hint
Line voltage = √3 × phase voltage.
Show answerHide answer
Answer: A. 230 V single-phase and 400 V three-phase at 50 Hz
Nepal uses 50 Hz with 230 V phase-to-neutral and 400 V line-to-line on LV distribution.
62. A lightning protection system for a building essentially consists of:
Show hintHide hint
Intercept, conduct, dissipate.
Show answerHide answer
Answer: C. Air terminals, down conductors and an earth termination system
Air terminals intercept the stroke, down conductors carry the current, and the earth termination dissipates it into the ground.
63. In an industrial complex, a motor control centre (MCC) is:
Show hintHide hint
It centralises motor switching and protection.
Show answerHide answer
Answer: C. An assembly of starters and protective devices for many motors fed from a common busbar
An MCC groups motor starters, contactors, overload relays and breakers in one enclosure with common busbars, simplifying distribution and maintenance.
8.3 Tariff schemes
31 questions · AElE0803
64. The basic objective of an electricity tariff is to:
Show hintHide hint
A utility must stay financially viable.
Show answerHide answer
Answer: C. Recover the cost of supplying energy plus a reasonable return on investment
A tariff must recover fixed and running costs of generation, transmission and distribution and give the utility a fair return.
65. Which of the following is a desirable characteristic of a tariff?
Show hintHide hint
A good tariff rewards behaviour that helps the system.
Show answerHide answer
Answer: D. It should encourage consumers to improve load factor and power factor
A good tariff is simple, fair, gives a proper return and gives incentives that help the system, such as higher load factor and power factor.
66. The annual fixed charges of a power supply undertaking depend mainly on:
Show hintHide hint
What decides how much plant must be built?
Show answerHide answer
Answer: C. The maximum demand (installed capacity)
Interest, depreciation and similar fixed charges arise from the capital cost of plant, which is sized for the maximum demand; running charges depend on units generated.
67. A main drawback of the simple (uniform) rate tariff, which charges a fixed rate per kWh, is that it:
Show hintHide hint
It looks only at units, not at demand.
Show answerHide answer
Answer: A. Does not distinguish between consumers with different load factors
Two consumers using the same kWh pay the same, although the one with higher maximum demand (lower load factor) costs the utility more.
68. A domestic consumer's tariff is: first 20 units at Rs 4 per unit, next 30 units at Rs 7 per unit and remaining units at Rs 9 per unit. The energy charge for 100 units is:
Show hintHide hint
Bill each slab separately.
Show answerHide answer
Answer: C. Rs 740
20 × 4 + 30 × 7 + 50 × 9 = 80 + 210 + 450 = Rs 740.
69. A block-rate tariff in which the rate per unit increases for higher consumption blocks is mainly used to:
Show hintHide hint
Higher use costs more per unit.
Show answerHide answer
Answer: B. Encourage energy conservation by heavy users
Inverted (increasing) block rates keep basic consumption cheap while making extra units costlier, which discourages waste.
70. A two-part (Hopkinson demand) tariff consists of:
Show hintHide hint
Fixed costs relate to demand, running costs to energy.
Show answerHide answer
Answer: B. A charge per kW of maximum demand plus a charge per kWh of energy
Two-part tariff: total = a × kW (max demand) + b × kWh; the demand part recovers fixed costs and the energy part running costs.
71. An industry is billed Rs 200 per kW of maximum demand per month plus Rs 8 per kWh. In a month its maximum demand is 50 kW and it uses 15,000 kWh. The monthly bill is:
Show hintHide hint
Add the demand and energy charges.
Show answerHide answer
Answer: D. Rs 1,30,000
Demand charge 200 × 50 = 10,000; energy charge 8 × 15,000 = 1,20,000; total Rs 1,30,000.
72. A disadvantage of the two-part tariff for small consumers is that:
Show hintHide hint
Look at the part of the bill that does not depend on kWh.
Show answerHide answer
Answer: B. They must pay the demand charge even if they use very little energy
The fixed (demand) component is payable regardless of consumption, which is a burden on small users, and a demand meter is required.
73. A three-part (Doherty) tariff consists of:
Show hintHide hint
Two-part tariff plus one more fixed element.
Show answerHide answer
Answer: B. A fixed customer charge, a maximum demand charge and an energy charge
Three-part tariff = a (fixed per consumer) + b × kW + c × kWh; the fixed part covers metering, billing and service costs.
74. Under a three-part tariff of Rs 100 per month fixed + Rs 150 per kW of maximum demand + Rs 7 per kWh, a consumer with 10 kW maximum demand and 2000 kWh consumption pays:
Show hintHide hint
There are three components to add.
Show answerHide answer
Answer: B. Rs 15,600
100 + 150 × 10 + 7 × 2000 = 100 + 1500 + 14,000 = Rs 15,600.
75. A factory has a maximum demand of 80 kW at 0.8 power factor and is charged Rs 250 per kVA of maximum demand per month. Its monthly demand charge is:
Show hintHide hint
Convert kW to kVA first.
Show answerHide answer
Answer: A. Rs 25,000
kVA = 80/0.8 = 100 kVA; demand charge = 100 × 250 = Rs 25,000.
76. Which tariff gives a consumer a direct financial incentive to improve power factor?
Show hintHide hint
kVA rises as power factor falls.
Show answerHide answer
Answer: B. A tariff with demand charge based on maximum kVA
At the same kW, lower pf means higher kVA and a higher bill, so improving pf reduces the kVA demand charge.
77. A consumer uses 3600 kWh in a 30-day month with a maximum demand of 10 kW. The monthly load factor is:
Show hintHide hint
Average load over 720 hours, divided by the peak.
Show answerHide answer
Answer: C. 0.50
Load factor = average load/maximum demand = (3600/720)/10 = 5/10 = 0.5.
78. For a consumer on a two-part tariff, improving the load factor (same maximum demand) results in:
Show hintHide hint
Same demand charge, more units.
Show answerHide answer
Answer: D. A lower average cost per kWh
The fixed demand charge is spread over more units, so the overall cost per kWh falls.
79. A consumer on a tariff of Rs 300 per kW of maximum demand per month plus Rs 6 per kWh has a maximum demand of 20 kW and a load factor of 0.5 in a 30-day month. The average cost per kWh is about:
Show hintHide hint
Find the energy from load factor first.
Show answerHide answer
Answer: A. Rs 6.83
Energy = 20 × 0.5 × 720 = 7200 kWh; bill = 6000 + 43,200 = 49,200; average = 49,200/7200 ≈ Rs 6.83/kWh.
80. The main purpose of a time-of-day (TOD) tariff is to:
Show hintHide hint
Price signals that vary with the clock.
Show answerHide answer
Answer: A. Encourage consumers to shift load from peak hours to off-peak hours
TOD tariffs charge more per kWh in peak hours and less in off-peak hours, flattening the system load curve.
81. Under a TOD tariff, an industry uses 1000 kWh at peak (Rs 12/kWh), 3000 kWh at normal (Rs 9/kWh) and 2000 kWh at off-peak (Rs 5/kWh). The energy charge is:
Show hintHide hint
Multiply each period's energy by its rate.
Show answerHide answer
Answer: A. Rs 49,000
12,000 + 27,000 + 10,000 = Rs 49,000.
82. Tariff A charges Rs 10 per kWh. Tariff B charges Rs 1000 per month plus Rs 8 per kWh. Both give the same monthly bill at a consumption of:
Show hintHide hint
Set the two bills equal.
Show answerHide answer
Answer: C. 500 kWh
10x = 1000 + 8x gives x = 500 kWh; above this Tariff B is cheaper.
83. The low-priced first block (lifeline rate) in a domestic electricity tariff is mainly intended to:
Show hintHide hint
Who uses only the first few units each month?
Show answerHide answer
Answer: D. Keep basic electricity affordable for low-consumption households
A small first block at a low (often subsidised) rate covers essential needs such as lighting, so poor households can afford electricity, while higher slabs pay more.
84. A maximum demand meter with a 30-minute integration period records 30 kWh in its highest half-hour of the month. The maximum demand registered is:
Show hintHide hint
Demand is average power over the interval.
Show answerHide answer
Answer: C. 60 kW
Demand = energy in the interval/interval length = 30 kWh/0.5 h = 60 kW.
85. A flat-demand tariff, which charges according to the connected load (e.g., number of lamps) without metering, is best suited to:
Show hintHide hint
Load and hours are known in advance.
Show answerHide answer
Answer: B. Street lighting and similar fixed, predictable loads
Where the load and its hours of use are fixed and known, metering can be avoided and the bill based on connected load.
86. Domestic consumers of NEA are billed with a minimum charge that depends on the meter's ampere capacity and with energy charges that:
Show hintHide hint
Nepal uses increasing block slabs for households.
Show answerHide answer
Answer: C. Increase in rate for higher consumption slabs
NEA's domestic tariff has categories by meter capacity (e.g. 5 A, 15 A, 30 A, 60 A) and slab-wise energy rates that rise with consumption.
87. In Nepal, electricity tariffs are at present approved by the:
Show hintHide hint
An independent regulator.
Show answerHide answer
Answer: B. Electricity Regulatory Commission
The ERC, formed under the Electricity Regulatory Commission Act 2074, determines and approves retail tariffs of NEA and other distributors.
88. The Electricity Regulatory Commission of Nepal was established under the:
Show hintHide hint
The regulator has its own Act, enacted recently.
Show answerHide answer
Answer: C. Electricity Regulatory Commission Act, 2074 BS
The ERC Act 2074 (2017) created the ERC, taking over tariff fixation from the earlier Electricity Tariff Fixation Commission.
89. Under the Electricity Act, 2049 BS, a licence is NOT required for generating electricity up to:
Show hintHide hint
The threshold is one thousand kilowatts.
Show answerHide answer
Answer: D. 1 MW
The Act exempts generation up to 1000 kW from licensing; the promoter only needs to inform the prescribed authority.
90. Survey and generation licences for hydropower projects in Nepal are generally issued by the:
Show hintHide hint
A government department under the energy ministry.
Show answerHide answer
Answer: D. Department of Electricity Development
DoED, under the Ministry of Energy, Water Resources and Irrigation, processes and issues licences under the Electricity Act 2049; ERC regulates tariffs and NEA is a utility.
91. Private hydropower projects in Nepal are developed under generation licences on a build-own-operate-transfer (BOOT) basis. When the licence term ends, the project is:
Show hintHide hint
The last letter of BOOT stands for Transfer.
Show answerHide answer
Answer: B. Handed over to the Government of Nepal
Under BOOT the developer builds, owns and operates the plant during the licence term and recovers its investment from power sales; at the end of the term the project is transferred to the Government of Nepal (in working condition), as provided under the Electricity Act 2049.
92. The detailed rules for implementing the Electricity Act, 2049 BS are given in the:
Show hintHide hint
It was issued one year after the Act.
Show answerHide answer
Answer: A. Electricity Regulation, 2050 BS
The Electricity Regulation 2050 (1993) was framed under the Electricity Act 2049 to implement licensing, safety and other provisions.
93. The Nepal Electricity Authority (NEA) was established under the:
Show hintHide hint
NEA has its own Act from the 1980s.
Show answerHide answer
Answer: A. Nepal Electricity Authority Act, 2041 BS
NEA was created in 2042 BS (1985) under the NEA Act 2041 by merging the earlier electricity department, corporation and boards.
94. A maximum demand meter registers:
Show hintHide hint
It averages over an interval.
Show answerHide answer
Answer: A. The highest average power over a fixed demand interval in the billing period
Demand meters average power over an interval (commonly 15 or 30 minutes) and record the highest such value, so brief starting surges are not counted.
8.4 Electric drives and motor selection
30 questions · AElE0804
95. In an electric drive system, the function of the power modulator (converter) is to:
Show hintHide hint
It sits between the source and the motor.
Show answerHide answer
Answer: C. Regulate the flow of power from the source to the motor
The power modulator (rectifier, chopper, inverter, starter etc.) shapes voltage, current and frequency supplied to the motor as commanded by the control unit.

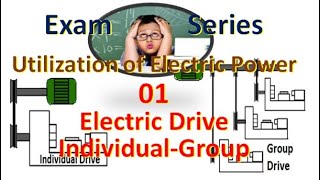

96. In a group drive, a major disadvantage is that:
Show hintHide hint
Many machines depend on one motor.
Show answerHide answer
Answer: D. A fault in the single motor stops all the machines driven by it
In a group drive one motor drives several machines through a line shaft; its failure halts all of them and the shafting wastes power.
97. A drive in which several motors drive different parts of the same machine, such as the hoist, trolley and bridge of an overhead crane, is called a:
Show hintHide hint
One machine, many motors.
Show answerHide answer
Answer: C. Multi-motor drive
Multi-motor drives use separate motors for separate motions of one machine, e.g. cranes and rolling mills.

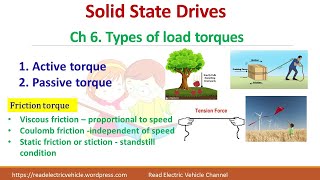

98. Which of the following load torques is an active load torque?
Show hintHide hint
Which torque could drive the motor by itself?
Show answerHide answer
Answer: B. Torque due to gravity on the load of a hoist
Active torques (gravity, compression, deformation) can drive the motor and keep their sign when the direction reverses; passive torques such as friction and windage always oppose motion.
99. For a centrifugal fan or pump, the load torque varies approximately as:
Show hintHide hint
Power for fans varies as the cube of speed.
Show answerHide answer
Answer: D. The square of the speed
Fan/pump torque ∝ N², so the power required ∝ N³.
100. Loads such as coilers and winders, in which torque varies inversely with speed, are called:
Show hintHide hint
Multiply torque by speed.
Show answerHide answer
Answer: D. Constant-power loads
If T ∝ 1/N, then P = Tω is constant.

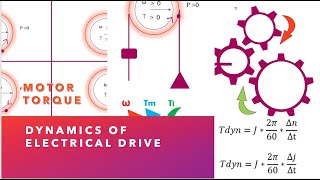

101. A hoist lowering a heavy load at steady speed, with the motor developing torque upward to hold the load back, is operating in:
Show hintHide hint
Speed is negative but motor torque still points upward.
Show answerHide answer
Answer: B. Quadrant IV (reverse braking)
Taking hoisting as positive speed, lowering has negative speed while motor torque remains positive (upward): negative speed, positive torque = quadrant IV, a braking mode.
102. An equilibrium operating point of a motor-load system is steady-state stable if, at that point:
Show hintHide hint
A small speed rise must produce a decelerating torque.
Show answerHide answer
Answer: A. dT_L/dω > dT_m/dω
If speed rises slightly, load torque must exceed motor torque to bring it back: the load torque curve must have the greater slope.
103. A motor delivers 100 N·m at 1450 rpm. The mechanical power output is about:
Show hintHide hint
Convert rpm to rad/s.
Show answerHide answer
Answer: C. 15.2 kW
P = Tω = 100 × (2π × 1450/60) = 100 × 151.8 ≈ 15.2 kW.
104. A 7.5 kW motor runs at 960 rpm at full load. Its full-load torque is about:
Show hintHide hint
T = P/ω with ω in rad/s.
Show answerHide answer
Answer: B. 74.6 N·m
T = P/ω = 7500/(2π × 960/60) = 7500/100.5 ≈ 74.6 N·m.
105. A pump delivers 0.05 m³/s of water against a total head of 20 m with a pump efficiency of 75 %. The motor output power required is about:
Show hintHide hint
Hydraulic power divided by efficiency.
Show answerHide answer
Answer: A. 13.1 kW
P = ρgQH/η = 1000 × 9.81 × 0.05 × 20/0.75 ≈ 13.1 kW.
106. A hoist raises a mass of 1000 kg at 1 m/s. If the mechanical efficiency of the hoist is 80 %, the motor power required is about:
Show hintHide hint
Force × speed, divided by efficiency.
Show answerHide answer
Answer: D. 12.3 kW
P = mgv/η = 1000 × 9.81 × 1/0.8 ≈ 12.26 kW.
107. A motor of moment of inertia 0.5 kg·m² drives a load of 10 kg·m² through a gear that reduces speed by 5:1. The equivalent inertia referred to the motor shaft is:
Show hintHide hint
Load inertia is divided by the square of the gear ratio.
Show answerHide answer
Answer: B. 0.9 kg·m²
J_eq = J_m + J_L/a² = 0.5 + 10/25 = 0.9 kg·m², where a = 5 is the speed ratio.
108. A motor operates a repeating 60 s cycle: 100 N·m for 10 s, 50 N·m for 20 s and no load for 30 s. Ignoring changes in cooling, the RMS (equivalent) torque is:
Show hintHide hint
Square, average over the whole cycle, then root.
Show answerHide answer
Answer: D. 50.0 N·m
T_rms = √[(100² × 10 + 50² × 20 + 0)/60] = √(150,000/60) = √2500 = 50 N·m.
109. A drive has total inertia 2 kg·m² and a constant accelerating torque of 40 N·m. The time to accelerate from rest to 1500 rpm is about:
Show hintHide hint
T = J dω/dt with ω in rad/s.
Show answerHide answer
Answer: C. 7.9 s
ω = 2π × 1500/60 = 157.1 rad/s; t = Jω/T = 2 × 157.1/40 ≈ 7.85 s.
110. A conveyor needs a pull of 2000 N at a belt speed of 2 m/s. With a drive efficiency of 90 %, the motor rating required is about:
Show hintHide hint
Force times speed, then allow for efficiency.
Show answerHide answer
Answer: A. 4.4 kW
P = Fv/η = 2000 × 2/0.9 ≈ 4.44 kW.
111. A motor has a final steady temperature rise of 60 °C and a heating time constant of 60 min. Starting cold, its temperature rise after 60 min of continuous full load is about:
Show hintHide hint
After one time constant the rise reaches about 63 % of final.
Show answerHide answer
Answer: D. 37.9 °C
θ = θ_f(1 − e^(−t/τ)) = 60(1 − e^(−1)) = 60 × 0.632 ≈ 37.9 °C.
112. The heating time constant of an electric motor is the time taken for its temperature rise to reach:
Show hintHide hint
Evaluate 1 − e^(−1).
Show answerHide answer
Answer: A. 63.2 % of its final steady value
With θ = θ_f(1 − e^(−t/τ)), at t = τ the rise is 1 − e⁻¹ = 0.632 of final.
113. A motor rated for continuous duty (S1) is used on short-time duty (S2) with long rest periods. For the short operating period it can deliver:
Show hintHide hint
It does not have time to reach final temperature.
Show answerHide answer
Answer: A. More than its continuous rating without overheating
Because the operating time is shorter than the time needed to reach final temperature, the motor can carry overload for that period and cool during rest.
114. The motor traditionally preferred for traction and crane drives needing very high starting torque and speed that falls with load is the:
Show hintHide hint
Field winding carries the armature current.
Show answerHide answer
Answer: C. DC series motor
Torque of a DC series motor ∝ I² (before saturation), giving very high starting torque, and its speed adjusts naturally with load.
115. For constant-speed drives such as pumps, fans and compressors without speed control, the most commonly selected motor is the:
Show hintHide hint
Rugged, cheap and almost maintenance-free.
Show answerHide answer
Answer: D. Three-phase squirrel-cage induction motor
Squirrel-cage motors are rugged, cheap, need little maintenance and run at nearly constant speed.
116. A slip-ring induction motor is preferred over a squirrel-cage motor when the drive needs:
Show hintHide hint
What can you add through the slip rings?
Show answerHide answer
Answer: C. High starting torque with low starting current, using rotor resistance
External rotor resistance raises starting torque and limits starting current; also gives limited speed control, useful for cranes and hoists.
117. A large synchronous motor is often chosen for a big compressor drive because it:
Show hintHide hint
Over-excitation gives a useful side benefit.
Show answerHide answer
Answer: A. Runs at constant speed and can improve the plant power factor
A synchronous motor runs at constant speed and, when over-excited, draws leading current, correcting the plant power factor.

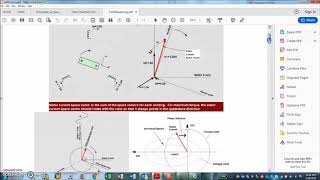

118. In variable-frequency (V/f) control of an induction motor below base speed, the ratio V/f is kept constant in order to:
Show hintHide hint
Flux is proportional to voltage divided by frequency.
Show answerHide answer
Answer: B. Keep the air-gap flux constant
Air-gap flux ∝ V/f; constant V/f keeps flux and torque capability constant and avoids saturation at low frequency.
119. Regenerative braking of an induction motor occurs when:
Show hintHide hint
The machine becomes a generator.
Show answerHide answer
Answer: B. The rotor is driven above synchronous speed and power is returned to the supply
Above synchronous speed slip becomes negative; the machine works as a generator, feeding energy back to the supply.
120. Plugging (reverse current braking) of an induction motor is done by:
Show hintHide hint
Reverse the rotating field.
Show answerHide answer
Answer: A. Interchanging two supply phases while the motor is running
Reversing the phase sequence reverses the rotating field; the large opposing torque stops the motor quickly, but current and losses are very high.
121. In dynamic (rheostatic) braking, the kinetic energy of the drive is:
Show hintHide hint
The energy is not reused.
Show answerHide answer
Answer: B. Dissipated as heat in a braking resistor
The motor acts as a generator loaded by a resistor, so the stored energy is burnt in the resistor.
122. A motor runs at 1440 rpm and must drive a machine at 288 rpm. The required gear reduction ratio is:
Show hintHide hint
Divide motor speed by load speed.
Show answerHide answer
Answer: B. 5 : 1
Ratio = 1440/288 = 5, a 5 : 1 reduction from motor to load.
123. A 4-pole, 50 Hz induction motor runs with 4 % slip. Its rotor speed is:
Show hintHide hint
Start from synchronous speed.
Show answerHide answer
Answer: C. 1440 rpm
N_s = 120f/P = 1500 rpm; N = N_s(1 − s) = 1500 × 0.96 = 1440 rpm.
124. The IP rating (e.g., IP55) of a motor enclosure specifies:
Show hintHide hint
Ingress Protection.
Show answerHide answer
Answer: A. Degree of protection against ingress of solid objects and water
IP code: first digit gives protection against solids/dust, second against water; it guides motor selection for the site environment.
8.5 Electric heating
31 questions · AElE0805
125. Which of the following is an advantage of electric heating over fuel-fired heating?
Show hintHide hint
Think cleanliness and control.
Show answerHide answer
Answer: A. Accurate temperature control with no products of combustion
Electric heating is clean, needs no flue, allows precise and uniform temperature control and high efficiency, though energy cost may be higher.
126. In direct resistance heating:
Show hintHide hint
Where is the I²R loss produced?
Show answerHide answer
Answer: C. Current is passed through the charge itself, which acts as the resistance
Examples are salt-bath furnaces and electrode boilers, where the charge (or bath) carries the current and heats directly.
127. An electric oven in which heat produced in nichrome elements reaches the charge by radiation and convection uses:
Show hintHide hint
The current does not pass through the charge.
Show answerHide answer
Answer: C. Indirect resistance heating
The current flows only in the heating elements; the charge is heated indirectly by transfer from them.
128. A desirable property of a material for resistance heating elements is:
Show hintHide hint
You want a compact element whose power stays steady when hot.
Show answerHide answer
Answer: A. High resistivity and a low temperature coefficient of resistance
High resistivity keeps the element short; low temperature coefficient keeps power steady; high melting point and oxidation resistance give long life.
129. Nichrome, widely used for heating elements up to about 1150 °C, is an alloy of:
Show hintHide hint
The name gives it away.
Show answerHide answer
Answer: A. Nickel and chromium
Typical nichrome is about 80 % nickel and 20 % chromium; it resists oxidation and has high resistivity.
130. A non-metallic heating element suitable for furnace temperatures of about 1400 °C in air is made of:
Show hintHide hint
A ceramic-like conducting compound.
Show answerHide answer
Answer: B. Silicon carbide
Silicon carbide (globar) rods work in air up to about 1500 °C, beyond the range of nickel-chromium alloys.
131. Three identical heating elements are switched from delta to star on the same three-phase supply. The power in star is:
Show hintHide hint
Power varies as voltage squared.
Show answerHide answer
Answer: A. One-third of the power in delta
In star each element gets V/√3 instead of V, so power per element falls to (1/√3)² = 1/3.
132. A heating element is rated 2 kW at 230 V. Its hot resistance is about:
Show hintHide hint
Use R = V²/P.
Show answerHide answer
Answer: C. 26.45 Ω
R = V²/P = 230²/2000 = 26.45 Ω.
133. A 3 kW immersion heater with 90 % efficiency heats 50 kg of water from 15 °C to 85 °C (c = 4186 J/kg°C). The time taken is about:
Show hintHide hint
Find heat in kWh, allow for efficiency, then divide by power.
Show answerHide answer
Answer: B. 1.51 h
Heat = 50 × 4186 × 70 = 14.65 MJ = 4.07 kWh; input = 4.07/0.9 = 4.52 kWh; time = 4.52/3 ≈ 1.51 h.
134. A 10 kW resistance oven takes 1 hour to heat a charge that absorbs 30 MJ. The oven efficiency is about:
Show hintHide hint
Convert MJ to kWh (1 kWh = 3.6 MJ).
Show answerHide answer
Answer: D. 83.3 %
Useful heat = 30 MJ = 8.33 kWh; input = 10 kWh; efficiency = 8.33/10 = 83.3 %.
135. If the temperature of a radiating heating element is raised from 1000 K to 1200 K (surroundings much cooler), the heat radiated increases by a factor of about:
Show hintHide hint
Stefan–Boltzmann law uses the fourth power.
Show answerHide answer
Answer: C. 2.07
Radiated power ∝ T⁴ (Stefan's law): (1200/1000)⁴ = 1.2⁴ ≈ 2.07.
136. In a direct arc furnace used for steel making:
Show hintHide hint
The charge is part of the electric circuit.
Show answerHide answer
Answer: B. The arc is struck between the electrodes and the charge, so current flows through the charge
In direct arc furnaces the charge is part of the arc circuit, giving intense heat suitable for steel melting.
137. An indirect arc furnace, often of the rocking type, is mainly used for melting:
Show hintHide hint
The charge is not in the arc circuit.
Show answerHide answer
Answer: D. Non-ferrous metals such as brass and copper
The arc between two electrodes heats the charge by radiation; rocking spreads heat and protects the lining. It suits non-ferrous metals.
138. Induction heating of a metal charge is based on:
Show hintHide hint
Transformer action without contact.
Show answerHide answer
Answer: D. Eddy current and hysteresis losses induced by an alternating magnetic field
The charge acts as a short-circuited secondary; induced eddy currents (and hysteresis in magnetic materials) heat it.
139. Coreless induction furnaces are operated at higher frequencies (hundreds of Hz to several kHz) mainly because:
Show hintHide hint
Induced emf is proportional to frequency.
Show answerHide answer
Answer: A. Without an iron core, high frequency is needed to induce enough eddy current heating in the charge
With weak magnetic coupling, induced emf and eddy loss must be raised by increasing frequency.

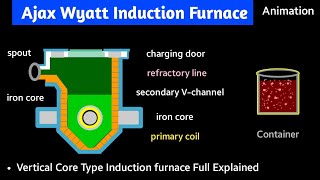

140. A limitation of the core-type (e.g., Ajax-Wyatt) induction furnace is that:
Show hintHide hint
The charge itself is the secondary winding.
Show answerHide answer
Answer: C. A closed loop of molten metal must be kept to start the next heat
The charge forms the secondary loop; a continuous molten ring is needed, so it cannot start from cold solid charge pieces easily and is used for continuous operation.
141. If the frequency of the current in an induction heater is increased four times, the depth of current penetration (skin depth) in the charge becomes:
Show hintHide hint
Depth varies with the inverse square root of frequency.
Show answerHide answer
Answer: D. Half
Skin depth δ ∝ 1/√f, so 4 × f gives δ/2.
142. Surface hardening of steel gear teeth is best done by:
Show hintHide hint
Use the skin effect.
Show answerHide answer
Answer: B. High-frequency induction heating
High frequency confines the induced current to a thin surface layer, heating it quickly while the core stays cool.
143. Dielectric heating is used for heating:
Show hintHide hint
The material is placed between capacitor plates.
Show answerHide answer
Answer: A. Non-conducting materials such as wood, plastics and glue
In dielectric heating an insulating material between electrodes is heated by dielectric losses in a high-frequency field.
144. In dielectric heating, if the applied voltage is doubled with frequency unchanged, the heat produced becomes:
Show hintHide hint
Power depends on V squared.
Show answerHide answer
Answer: C. Four times
Power P = ωCV² tan δ, so P ∝ V²; doubling V quadruples power.
145. Domestic microwave ovens typically operate at a frequency of about:
Show hintHide hint
Gigahertz, not megahertz.
Show answerHide answer
Answer: B. 2.45 GHz
Microwave ovens use the 2.45 GHz ISM band, which is readily absorbed by water molecules in food.
146. Infrared heating with special lamps is commonly used for:
Show hintHide hint
It heats surfaces, not bulk.
Show answerHide answer
Answer: A. Drying paint and varnish on surfaces
Infrared radiation heats surfaces quickly, ideal for drying painted or varnished surfaces.
147. The main purpose of an electrical energy audit in an industry is to:
Show hintHide hint
It ends with recommendations to save energy.
Show answerHide answer
Answer: B. Find where energy is used and wasted and identify cost-effective saving measures
An energy audit measures and analyses consumption to find losses and recommend conservation measures with their payback.
148. A plant draws 100 kW at 0.7 power factor lagging. The capacitor kVAR needed to raise the power factor to 0.95 lagging is about:
Show hintHide hint
Difference of the tangents of the two angles.
Show answerHide answer
Answer: A. 69.2 kVAR
Q = P(tan φ₁ − tan φ₂) = 100(1.020 − 0.329) ≈ 69.2 kVAR.
149. A fan's speed is reduced to 70 % of rated using a variable-speed drive. Its power demand (ignoring drive losses) falls to about:
Show hintHide hint
Affinity law: power varies as the cube of speed.
Show answerHide answer
Answer: C. 34 % of rated
Fan power ∝ N³: 0.7³ = 0.343, i.e. about 34 %.
150. A 15 kW (output) motor running 4000 h per year is replaced by one of 92 % efficiency instead of 88 %. The annual energy saved is about:
Show hintHide hint
Compare input powers, not efficiencies directly.
Show answerHide answer
Answer: B. 2960 kWh
Inputs: 15/0.88 = 17.05 kW and 15/0.92 = 16.30 kW; saving 0.74 kW × 4000 h ≈ 2960 kWh.
151. If the power factor of a feeder carrying a fixed kW load at constant voltage is improved from 0.7 to 1.0, the I²R loss in the feeder becomes about:
Show hintHide hint
Current falls in proportion to the power factor rise.
Show answerHide answer
Answer: C. 49 % of the original
I ∝ 1/pf, so loss ∝ 1/pf²: (0.7/1.0)² = 0.49.
152. Flow from a pump is controlled by partly closing a throttle valve. The most effective energy conservation measure is to:
Show hintHide hint
Remove the wasteful pressure drop.
Show answerHide answer
Answer: B. Control flow by varying the pump speed with a variable-frequency drive
Throttling wastes energy across the valve; reducing speed cuts power roughly as the cube of speed.
153. In demand-side management, valley filling means:
Show hintHide hint
Fill the low parts of the load curve.
Show answerHide answer
Answer: D. Building up load during off-peak periods, e.g. night-time storage heating or EV charging
Valley filling adds load in low-demand periods, improving load factor and utilisation of plant.
154. A heat pump saves energy for space heating compared with a resistance heater because:
Show hintHide hint
It moves heat rather than making it.
Show answerHide answer
Answer: D. It moves heat from the surroundings, giving a coefficient of performance greater than 1
A heat pump delivers several kWh of heat per kWh of electricity (COP typically 2–4) by pumping heat from outside air or ground.
155. Which of the following is an energy conservation measure in building lighting?
Show hintHide hint
Light only when and where it is needed.
Show answerHide answer
Answer: D. Occupancy sensors and daylight-linked dimming
Switching or dimming lights when spaces are empty or daylight is sufficient reduces lighting energy without loss of service.
8.6 Electric traction
30 questions · AElE0806
156. A major disadvantage of electric traction compared with diesel traction is:
Show hintHide hint
Think of what must be built along the route.
Show answerHide answer
Answer: C. High initial cost of the overhead supply system and dependence on it
Electric traction is clean, has high starting torque and can regenerate, but needs costly fixed electrification and stops if supply fails.
157. A diesel-electric locomotive is an example of:
Show hintHide hint
It carries its own power source but drives the wheels electrically.
Show answerHide answer
Answer: A. Self-contained electric traction, where a diesel engine drives a generator feeding traction motors
It carries its own prime mover; the electric transmission gives smooth, flexible control of the traction motors.
158. The track electrification system most widely adopted for new main-line railways today is:
Show hintHide hint
Fed straight from the public grid frequency.
Show answerHide answer
Answer: A. 25 kV, 50 Hz single-phase AC overhead
25 kV, 50 Hz AC can be fed directly from the public grid, needs fewer substations and lighter overhead conductors, so it is the standard for new main lines.
159. Tramways in cities are usually supplied with:
Show hintHide hint
Low-voltage DC, using the rails for return.
Show answerHide answer
Answer: C. 600–750 V DC through an overhead wire with rail return
Low-voltage DC is safe for street running and suits DC series motors; the running rails serve as the return path.
160. A trolley bus needs two overhead contact wires because:
Show hintHide hint
What does a tram use for current return?
Show answerHide answer
Answer: B. Its rubber tyres cannot provide a return path through rails
Unlike a tram, a trolley bus runs on the road, so both supply and return must be via overhead wires collected by two trolley poles.
161. In a 25 kV AC locomotive that uses DC series traction motors, the AC supply is:
Show hintHide hint
AC for distribution, DC for the motors.
Show answerHide answer
Answer: B. Stepped down by an on-board transformer and rectified to DC
Such rectifier locomotives combine the advantages of AC distribution with the good traction characteristics of DC series motors.
162. The current collector used on high-speed electric trains with overhead catenary is the:
Show hintHide hint
A spring-loaded hinged frame on the roof.
Show answerHide answer
Answer: D. Pantograph
A pantograph keeps steady contact with the contact wire at high speed; trolley poles and bow collectors are for low-speed trams/trolley buses.
163. The DC series motor has traditionally been preferred for traction because:
Show hintHide hint
Consider torque versus current for a series field.
Show answerHide answer
Answer: B. It gives high starting torque and its speed falls naturally as load rises
Torque ∝ I² at starting gives strong acceleration; the falling speed-torque characteristic suits traction and shares load between motors.
164. Modern electric locomotives and EMUs mostly use:
Show hintHide hint
Power electronics plus a rugged AC motor.
Show answerHide answer
Answer: A. Three-phase induction motors fed from VVVF inverters
Inverter-fed squirrel-cage motors are rugged, low-maintenance, give smooth speed control and easy regenerative braking.
165. With two identical DC series motors, series-parallel starting raises the theoretical starting efficiency from 50 % (plain rheostatic starting) to about:
Show hintHide hint
Less energy is wasted in the starting resistance.
Show answerHide answer
Answer: D. 66.7 %
With plain rheostatic starting half the supply energy is lost in the starting resistance (efficiency 50 %). With series-parallel starting the resistance loss falls to one third of the input energy, so starting efficiency = 2/3 ≈ 66.7 %.
166. Field weakening (field diverter) on a DC series traction motor is used to:
Show hintHide hint
Speed is inversely proportional to flux.
Show answerHide answer
Answer: C. Increase the speed above that at full field
Reducing flux raises speed (N ∝ E/φ), giving higher running speeds after series-parallel transition.
167. During coasting on the speed-time curve of a train:
Show hintHide hint
No power, no braking.
Show answerHide answer
Answer: A. Power is switched off and the train runs on its momentum with slowly falling speed
Coasting saves energy; speed falls slowly due to train resistance before braking begins.
168. A train covers 2 km between stations in 3 minutes of running time and stops for 30 s at each station. Its schedule speed is about:
Show hintHide hint
Include stop time.
Show answerHide answer
Answer: B. 34.3 km/h
Schedule speed = distance/(running + stop time) = 2/(3.5/60) ≈ 34.3 km/h (average speed would be 40 km/h).
169. For the same run, the schedule speed of a train compared with its average speed is:
Show hintHide hint
Which one includes the time standing at stations?
Show answerHide answer
Answer: B. Always lower, because it includes stop time
Average speed uses running time only; schedule speed adds station stop time, so it is smaller.
170. A train accelerates uniformly at 2 km/h/s to 60 km/h. The distance covered during acceleration is:
Show hintHide hint
Area of the triangle under the speed-time curve.
Show answerHide answer
Answer: D. 0.25 km
Time = 60/2 = 30 s; distance = ½ × (60/3600 km/s) × 30 = 0.25 km.
171. A train accelerates at 1.8 km/h/s for 25 s from rest. Its speed at the end of acceleration is:
Show hintHide hint
Speed = acceleration × time, in matching units.
Show answerHide answer
Answer: D. 45 km/h
V = αt = 1.8 × 25 = 45 km/h.
172. A train of 200 t with 10 % allowance for rotating masses (effective mass 220 t) accelerates at 1.5 km/h/s on level track. The tractive effort for acceleration alone is about:
Show hintHide hint
1 km/h/s = 0.2778 m/s².
Show answerHide answer
Answer: B. 91.7 kN
F = 277.8 × We × α = 277.8 × 220 × 1.5 ≈ 91,670 N, using effective mass (83.3 kN would ignore rotating masses).
173. The tractive effort required to overcome gravity for a 300 t train on a 1 % up gradient is about:
Show hintHide hint
Gradient of 1 % means a rise of 1 m in 100 m.
Show answerHide answer
Answer: C. 29.4 kN
F = W g sin θ ≈ 300,000 × 9.81 × 0.01 = 29.4 kN (98.1 N per tonne per % gradient).
174. A 300 t train has a specific train resistance of 50 N per tonne. The tractive effort to overcome train resistance is:
Show hintHide hint
Multiply by the mass in tonnes.
Show answerHide answer
Answer: C. 15 kN
F = 300 × 50 = 15,000 N = 15 kN.
175. A locomotive exerts a tractive effort of 50 kN at 36 km/h. The power at the wheels is:
Show hintHide hint
Convert km/h to m/s.
Show answerHide answer
Answer: A. 500 kW
P = F × v = 50,000 × 10 m/s = 500 kW.
176. A locomotive has an adhesive weight of 80 t and the coefficient of adhesion is 0.25. The maximum tractive effort it can exert without slipping is about:
Show hintHide hint
Friction-like limit: μ times the weight on driving wheels.
Show answerHide answer
Answer: B. 196 kN
F_max = μ × W × g = 0.25 × 80,000 × 9.81 ≈ 196 kN.
177. Sand is dropped on the rails in front of the driving wheels in order to:
Show hintHide hint
Grip between wheel and rail.
Show answerHide answer
Answer: A. Increase the coefficient of adhesion and prevent wheel slip
Wet or oily rails reduce adhesion; sanding increases it so more tractive effort can be applied without slipping.
178. On long down gradients, the most energy-efficient form of electric braking is:
Show hintHide hint
Which method recovers energy?
Show answerHide answer
Answer: D. Regenerative braking
Regenerative braking returns the energy of the descending train to the supply instead of wasting it as heat.
179. Specific energy consumption of a train is usually expressed in:
Show hintHide hint
Energy per unit mass per unit distance.
Show answerHide answer
Answer: A. Wh per tonne-km
It is the energy needed to move one tonne of train mass over one kilometre.
180. For a given maximum speed, the specific energy consumption of a train generally decreases when:
Show hintHide hint
Each stop throws away kinetic energy.
Show answerHide answer
Answer: D. The distance between stops increases
Fewer stops mean less kinetic energy wasted in braking per kilometre travelled.
181. An elevator car weighs 800 kg and has a rated load of 1000 kg. If the counterweight balances the car plus 50 % of rated load, the counterweight mass is:
Show hintHide hint
Car mass plus a fraction of the rated load.
Show answerHide answer
Answer: C. 1300 kg
Counterweight = 800 + 0.5 × 1000 = 1300 kg.
182. An elevator has an unbalanced mass of 500 kg (full load minus counterweight effect) and travels at 1.5 m/s. With an overall efficiency of 80 %, the motor power required is about:
Show hintHide hint
Only the unbalanced mass needs lifting power.
Show answerHide answer
Answer: A. 9.2 kW
P = mgv/η = 500 × 9.81 × 1.5/0.8 ≈ 9.2 kW.
183. Modern traction elevators are usually driven by:
Show hintHide hint
Smooth speed control with power electronics.
Show answerHide answer
Answer: B. AC induction or permanent-magnet motors with VVVF drives
VVVF drives give smooth acceleration, accurate floor levelling, low starting current and regenerative operation.
184. In an elevator, the overspeed governor:
Show hintHide hint
A safety device, not the speed controller.
Show answerHide answer
Answer: C. Trips the safety gear to grip the guide rails if the car exceeds a set speed
It is a safety device independent of the drive; on overspeed it actuates safety gear clamping the car to the rails.
185. Starting of a DC series tramway motor is commonly done by:
Show hintHide hint
DC motors cannot use star-delta.
Show answerHide answer
Answer: D. Series resistance combined with series-parallel control of the motors
Resistances limit current at starting; switching the motors from series to parallel reduces the energy wasted in resistors.
